D hot sale manual cylindrical objects screen printing machine for pen GW Q2

Product Overview

Description

D-hot sale manual cylindrical objects screen printing machine for pen GW-Q2

Application:

Manual cylindric screen printer,simple structure,easy operation,the width of worktable can be adjusted to meet different diameters,it is suitable for printing single color on the surface of cylindric products,such as water breaker,bottles,pens,cups and so on.there are five models to choose



Function:

1.it is suitable for printing cylindric product,manual operate

2.It is suitale  for single color printing all kinds of cylindric product

3.Easy adjustment,easy operation, Nicely reliable

4.Using metal screen frame or wooden screen frame

5.Screen frame can be adjusted up and down



Technical parameter:



1.Model:GW-Q1

Max.printig diameter:φ60MM

Max.printing girth: 200MM

Max.printing area: 200*100MM

Frame size: 320*210MM

Package size:680*310*220MM



2.Model:GW-Q2

Max.printig diameterφ160MM

Max.printing girth200MM

Max.printing area200*240MM

Frame size320*370MM

Package size:680*480*350MM



3.Model:GW-Q3

Max.printig diameterφ160MM

Max.printing girth300MM

Max.printing area300*240MM

Screen frame size460*370MM

Package size830*480*350MM



4.Model:GW-Q4

Max.printig diameterφ300MM

Max.printing girth300MM

Max.printing area300*400MM

Screen frame size460*560MM

Package size1000*660*350MM



5.Model:GW-Q5

Max.printig diameterφ400MM

Max.printing girth500MM

Max.printing area500*400MM

Screen frame size560*750MM

Package size1320*680*620MM

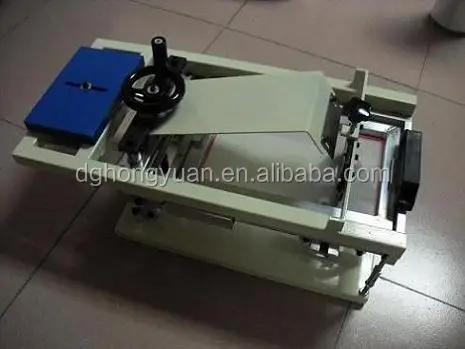

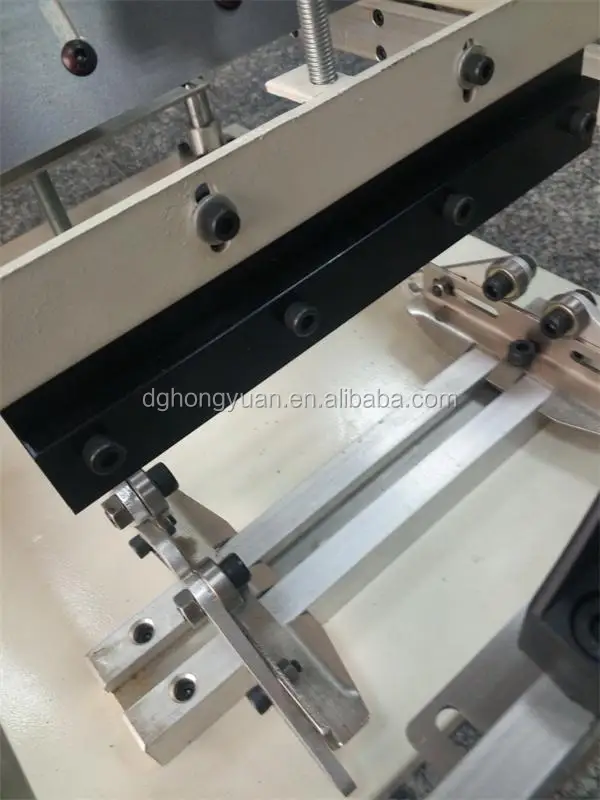

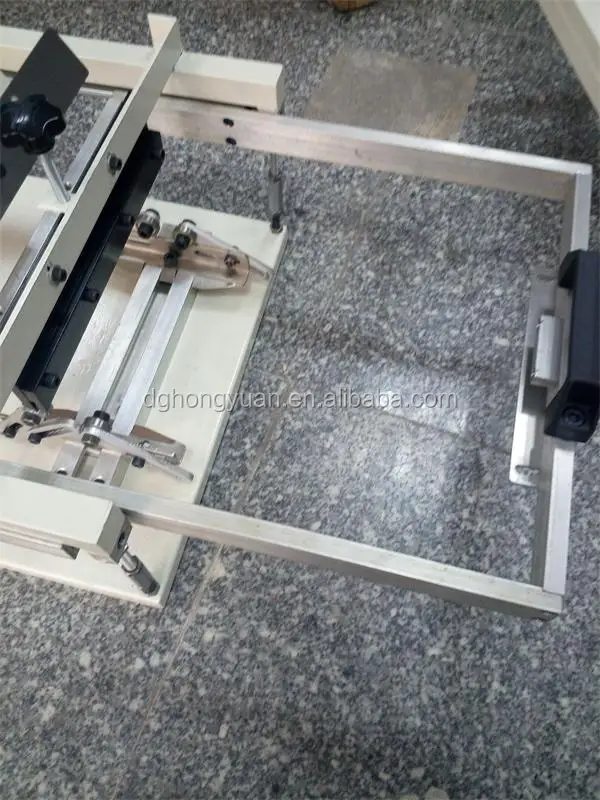

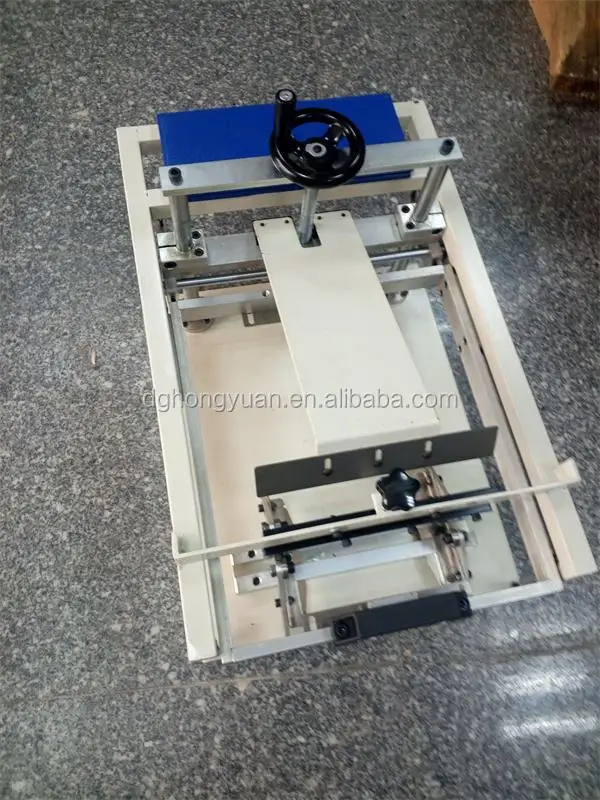

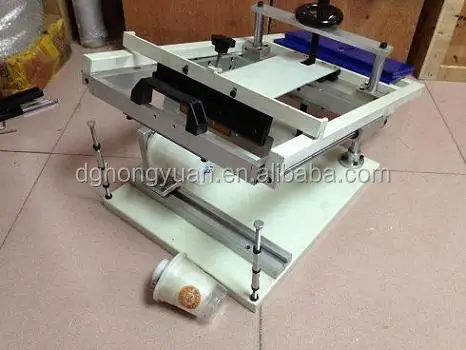

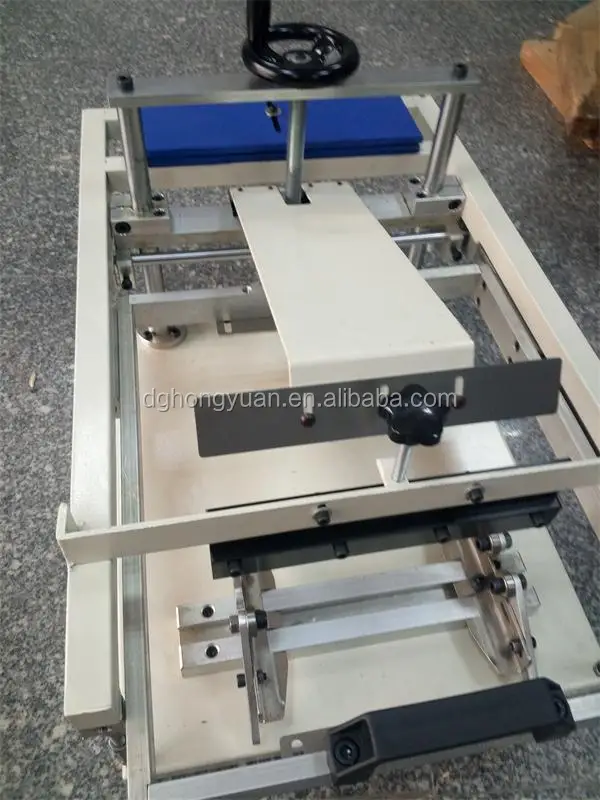

Actual machine pictures:
