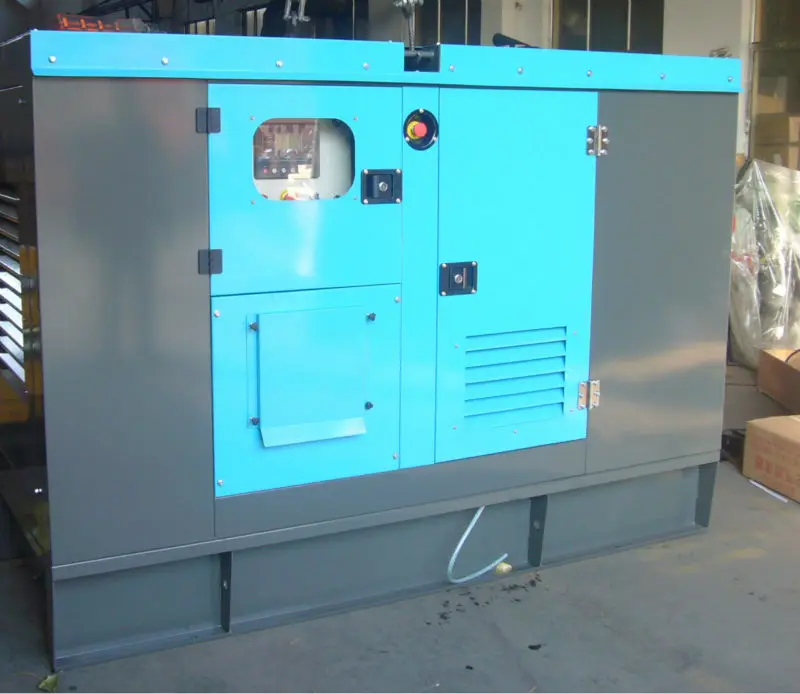

Silent denyo china 45kva generator for sale

Price:

Price in USD:Details

Quantity:

DENYO CHINA 45KVA GENERATOR SPECIFICATION

*Powered by heavy duty industrial diesel engine, Cummins/Deutz/Perkins or China brand engines

*Radiator 40°C max, fans are driven by belt, with safety guard

*12//24V DC start motor and storage battery

*Brushless, self-excited, IP22/23, insulation H alternator

*Absorber to reduce vibration

*Dry type air filter, fuel filter, oil filter

*Main line circuit breaker

*Control system: Key start control panel as standard, digital auto start or ATS system is optional

*8 hours operation base fuel tank

*High efficient muffler to reduce noise

*Ripple flex exhaust pipe, exhaust siphon and flange etc.

*Genset type: open type or soundproof/silent type, or trailer type

* Maintenance and operation manual, quality certificate, etc.

*Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load, 110%

and all protection function(over speed stop, high water temperature, low oil pressure, battery

charging fail, emergency stop)

*Certificate: ISO9001:2000, CE

Main technical data sheet

GENERATOR SET
Genset model	GF-40
Prime power (KW/KVA)	40/50
Standby power (KW/KVA)	45/55
Frequency & voltage	400V, 50HZ
No. of Phase	3
Genset type	Silent/soundproof type
Reference Dimension & Weight (W*H, mm)/KGS	325011701850; 1750kgs
DIESEL ENGINE
Engine brand & Model	HFR4105ZD
Rated output	56KW
Rated Speed	1500RPM
Engine Type	In-line, direct injection, four stroke
No. of cylinder	4
Bore*stroke	105*120mm
Aspiration method	Turbocharged intercooled
Governor	Mechanical/Electrical
Starting method	Electric starting
Cooling method	Forced water cooled
Displacement	6L
Fuel consumption	205g/kw.h
Rotation direction of crankshaft	Counter clockwise(face to flywheel end)
ALTERNATOR
Alternator brand & model	Stamford/Leroy Somer/China reputed brand
Type	Brushless & self-excited
No. of phase	3
Volatage	400V
Frequency	50HZ
Power Factor	0.8
Insulation Grade	H
Protection Grade	IP22/23
Altitude	≤1000m
