9999 counts 1.5% Accuracy Test voltage 3700V Digital Earth Resistance Clamp Meter

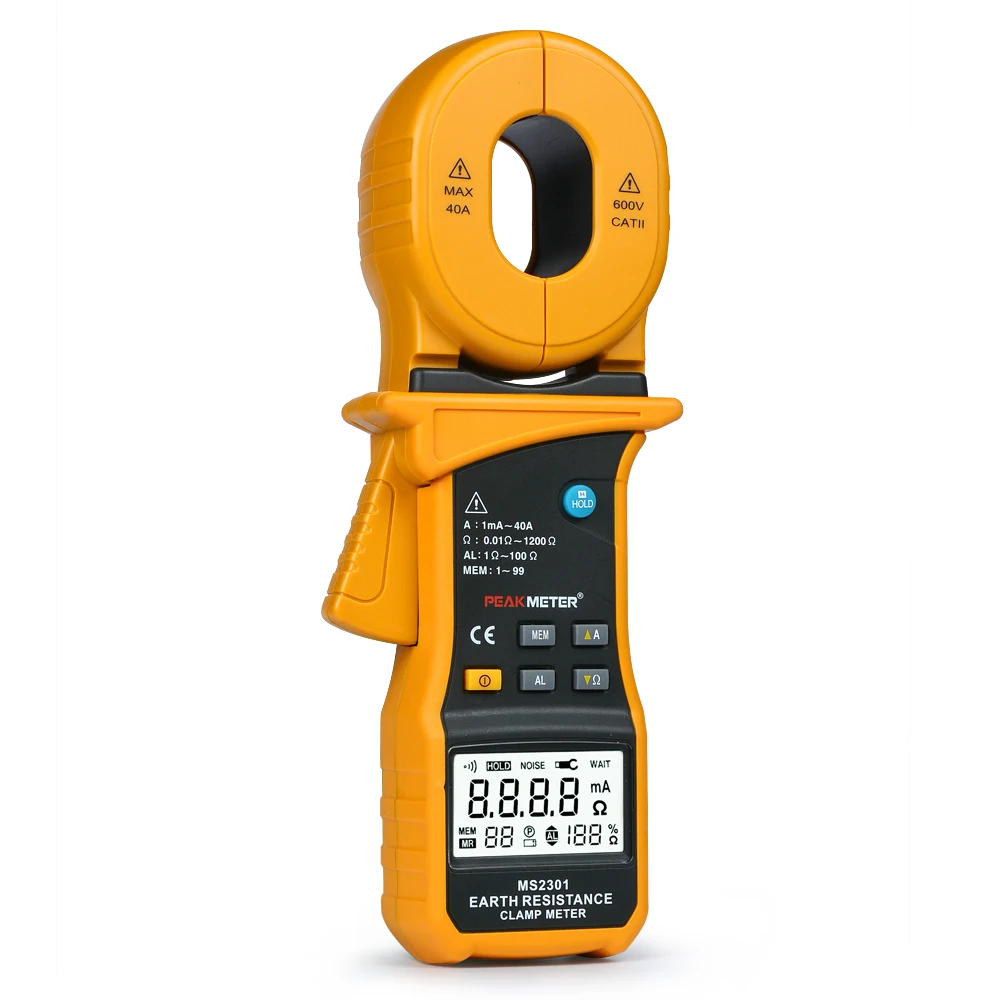

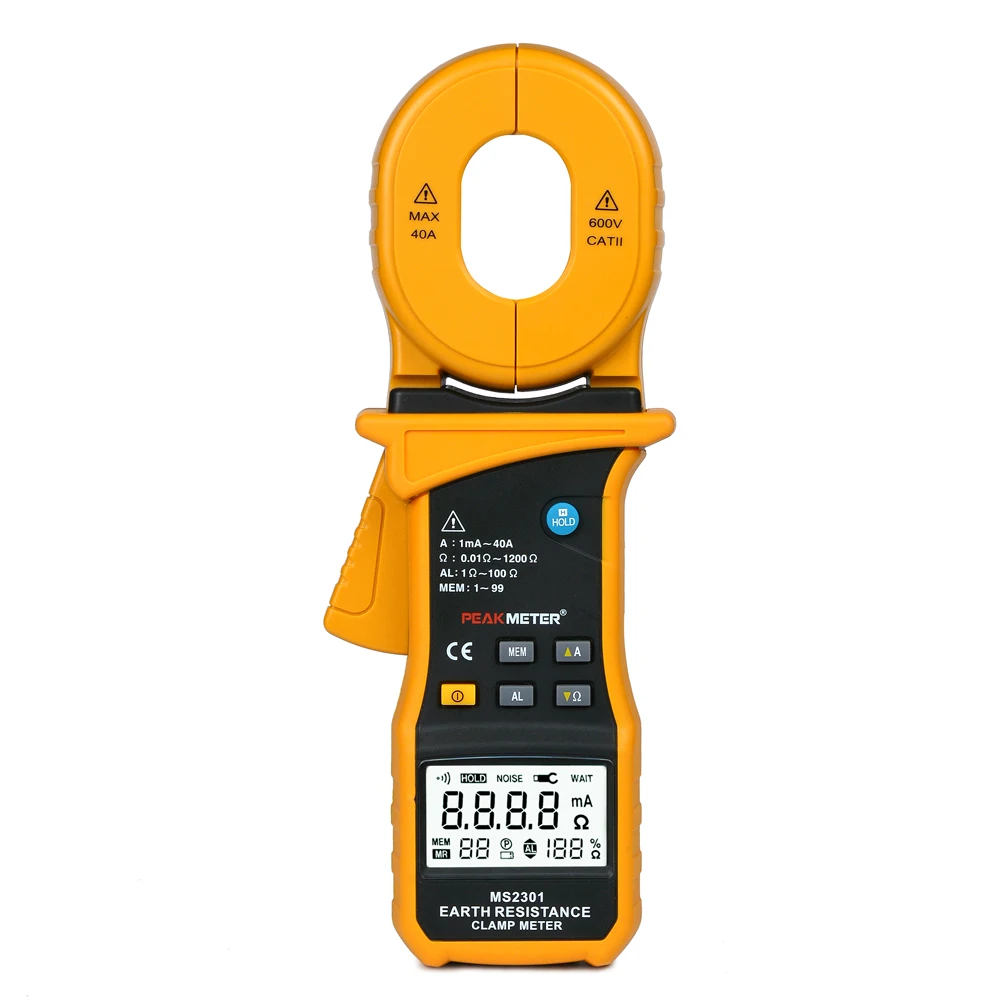

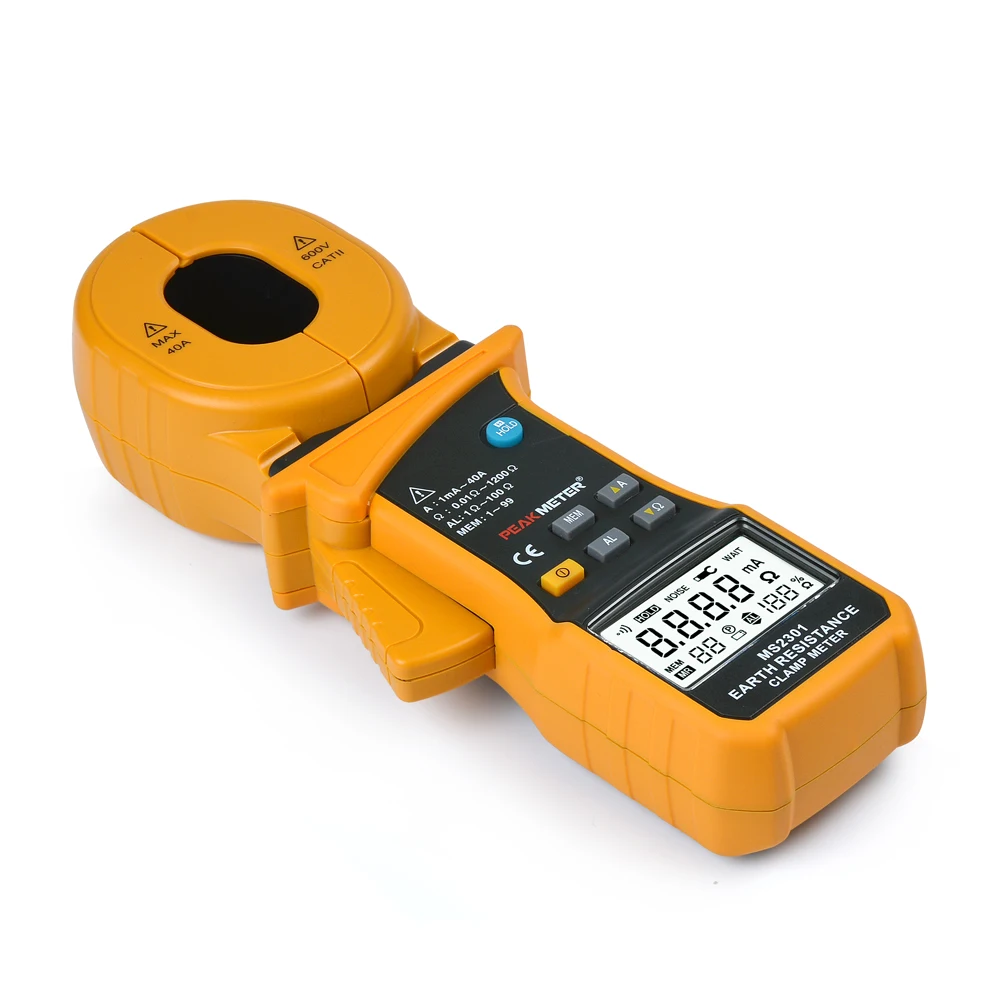

MS2301 Digital Earth Resistance Clamp Meter

Features

Display

3 3/4

9999 counts

Jaw

Φ37mm

45mm x 32mm

Auto Ranging

Data Hold

Low Battery Display

Display Backlight

Double insulation, strengthen the interference resistance

Untouched measurement, ensure the safety

0.01Ω high accuracy for low resistance measurement

0.001Ω high resolution

Set alarm threshold in 1Ω to 100Ω

Test voltage

3700V

Limiting overload

20A RMS current

Average consumption

approx. 50mA

Data logging And recall

99 groups

Alarm Limit Setting

Set alarm threshold in 1Ω to 100Ω

Current measurement

Measure leakage current and neutral current

Time per measurement

1 second

Power supply

9V6F22 Battery

Weight

Approx 1050g

Size

54mm×104mm×276mm

Safety Rating

CE ETL CAT.Ⅱ600V RoHS

Specifications

Range

Accuracy

Resolution

Resistance

0.01Ω to 0.999Ω

±(1.5% + 0.01Ω)

0.001Ω

1Ω ~ 9.99Ω

±(1.5% + 0.1Ω)

0.01Ω

10Ω ~ 99.9Ω

±(2.0% + 0.3Ω)

0.1Ω

100Ω ~ 199.9Ω

±(3.0% + 1Ω)

1Ω

200Ω ~ 400Ω

±(6.0% + 5Ω)

1Ω

400Ω ~ 600Ω

±(10% + 10Ω)

5Ω

600Ω ~ 1200Ω

approx. 20%

10Ω

Current

100mA

±(2.5% + 1mA)

0.1mA

300mA

±(2.5% + 2mA)

0.3mA

1A

±(2.5% + 0.003A)

0.001mA

3A

±(2.5% + 0.01A)

0.003mA

10A

±(2.5% + 0.03A)

0.01mA

40A

±(2.5% + 0.05A)

0.03m
