Manual operation slim concealed cistern for wall hung toilet
- Category: Toilet Tanks >>>
- Supplier: Guangdong Kardier Sanitary Ware Technology Co. Ltd.
Share on (60336926204):
Product Overview
Description
plastic water tank

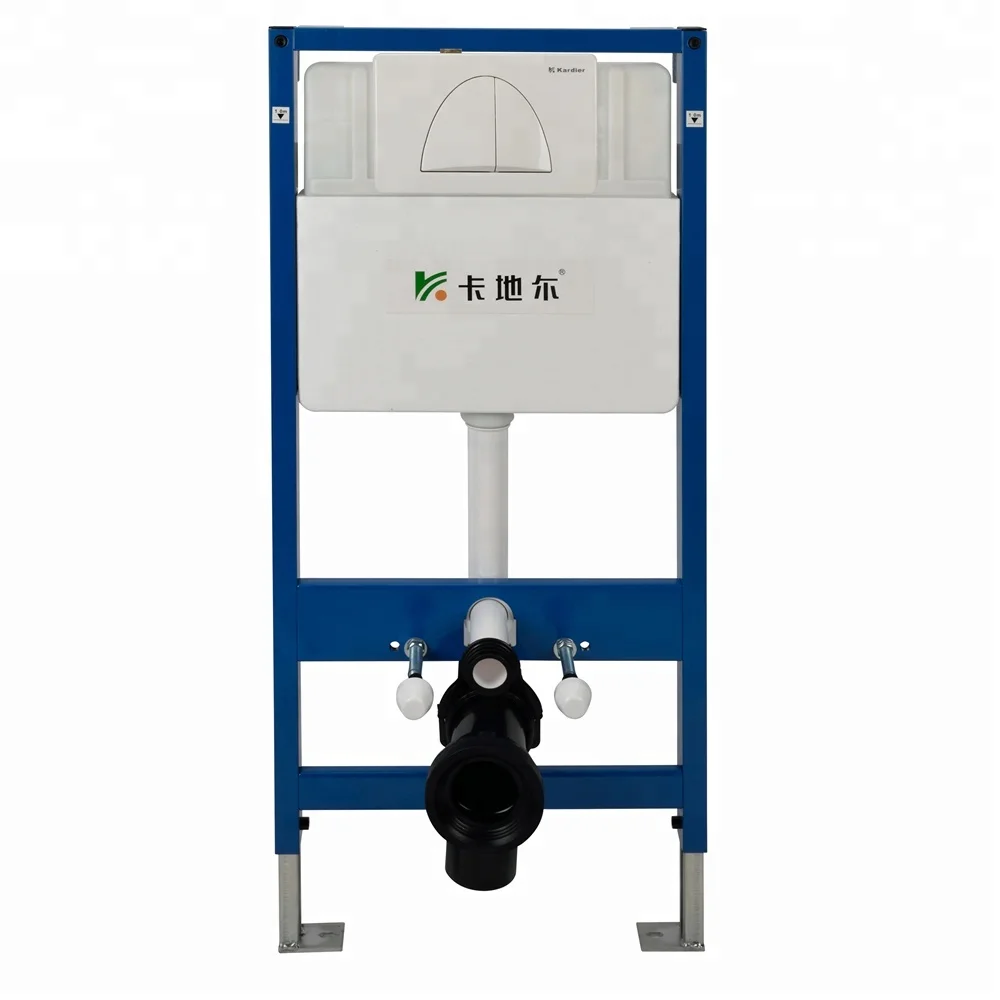

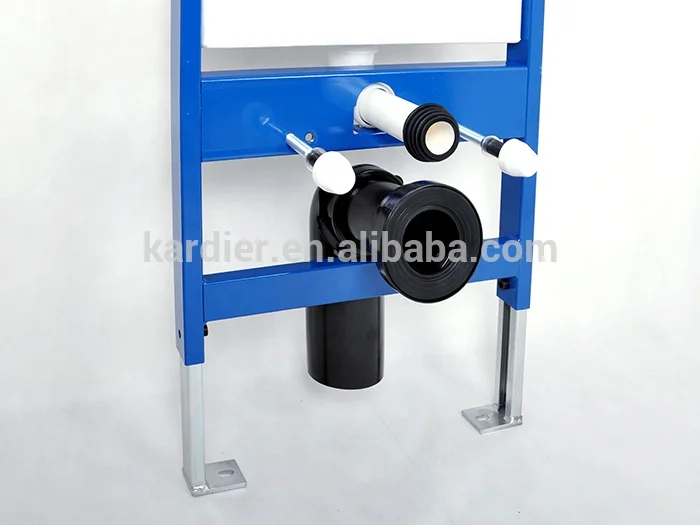

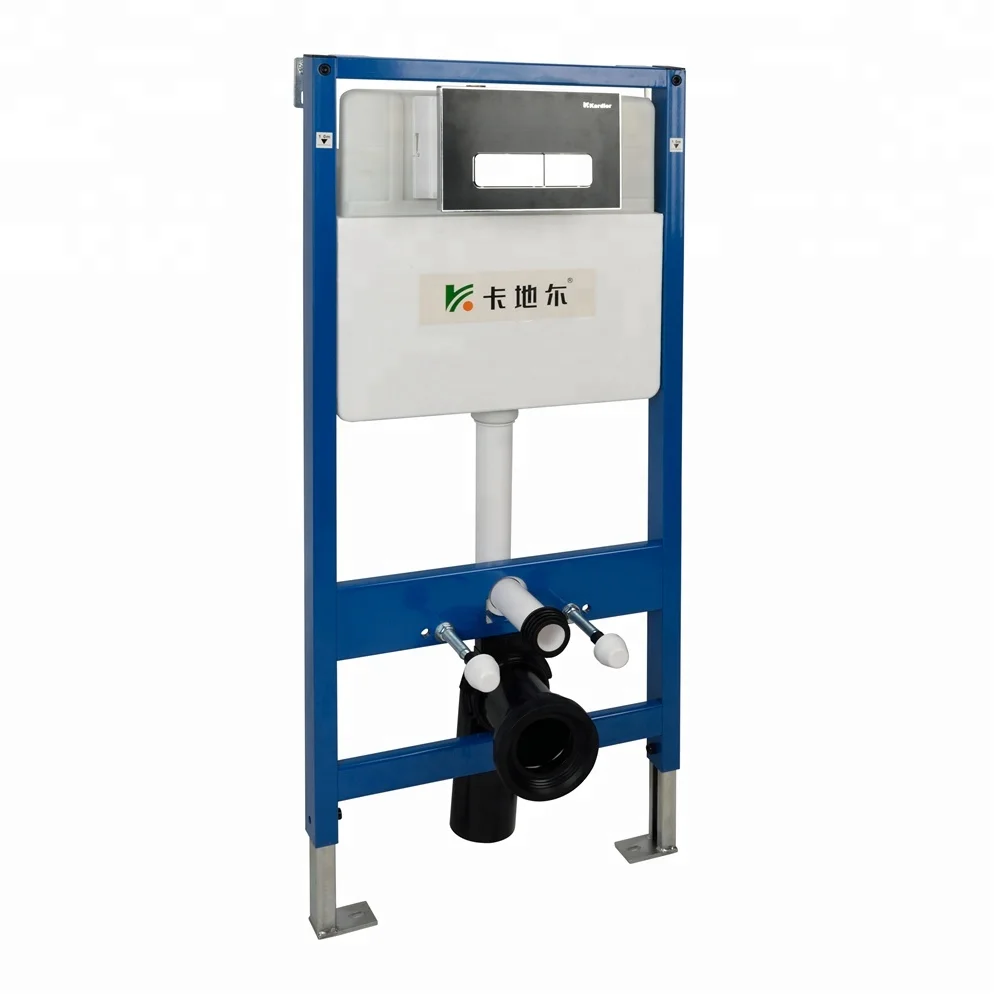

Manual operation slim concealed cistern for wall hung toilet
Concealed Cistern's Advantage
1. Space-saving: Functional cisterns hidden in the wall of 90-155mm thickness. |
2. Elegant: Gracious panel decorates your bathroom. |
3. Clean: Pretty easy to clean the bathroom. |
4. Durable: HDPE/ABS plastic tank protected with foam, frame undertake 400kg wight, 100% inspection for each product. |
5. Environmental: Save water by adjusting flush volume 3L-9L, quiet hydraulic valve. |
Concealed Cistern's Product Show

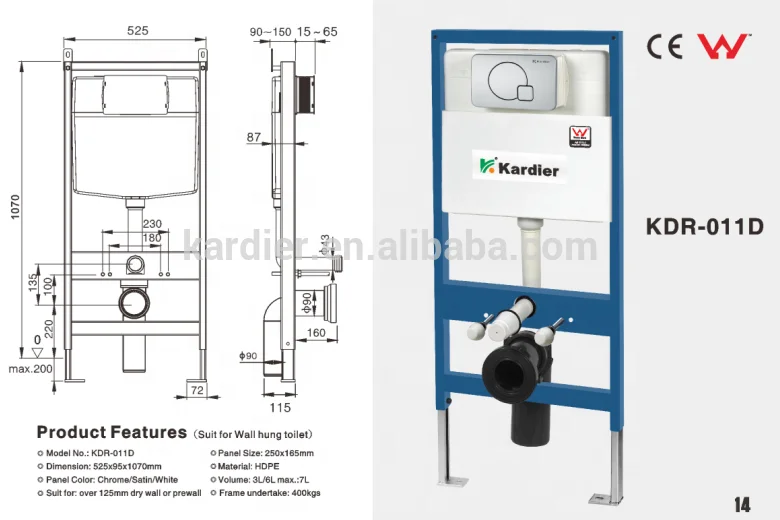

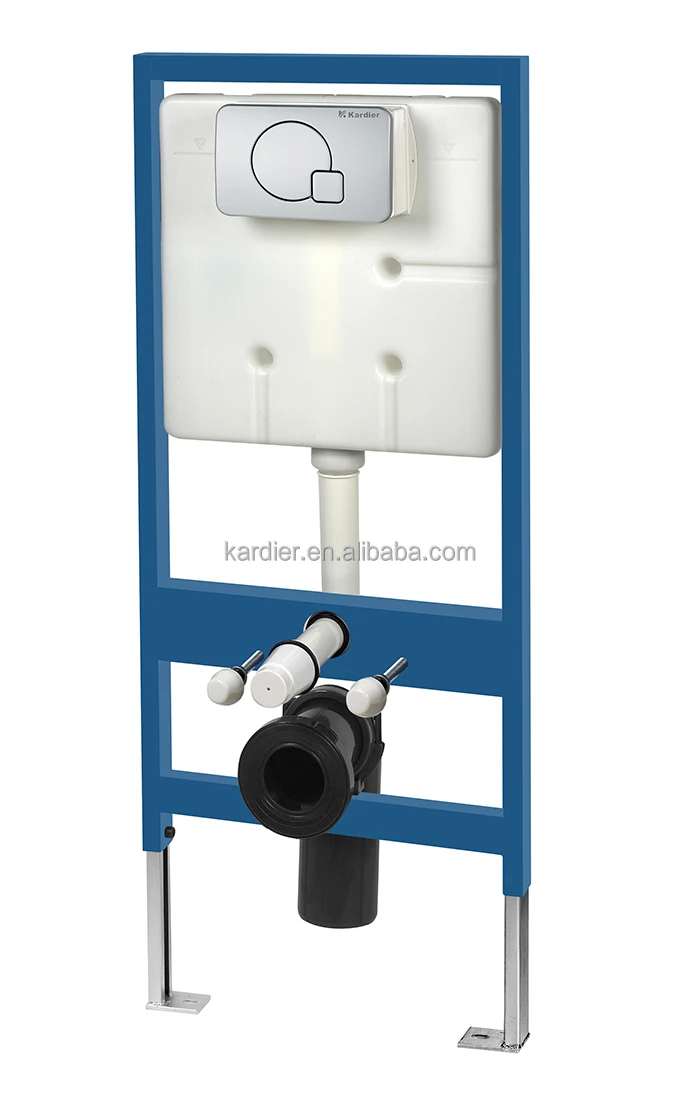

KDR-011D Description
Model NO. | KDR-011D |
| Dimension(mm) | 515x85x1070 |
| Panel size(mm) | 250x165 |
| Water storage | 3L/ 6L max. 7L |
| Suit for wall | over 120mm dry wall or prewall |
Panel color | chrome/satin/white |
Frame undertake(kgs) | 400 |
Packing Way | carton |
MOQ | 50 PCS |
Port of loading | Shenzhen or Shunde, China |
Payment term | T/T, against copy BL. To the other payment term, pls contact us. |
Material | HDPE |
Delivery Time | 20-25days |
Specific Use | Bathroom |
Strength | 1. Use less space 2. Aesthetic-installation 3. Corrosion-resistant and durable 4. Save water |
Kardier's Company
| Kardier Sanitary Ware Industry Co., Ltd. established in 1999. Our factory specialized in producing all kinds of plastic lavatory cistern,concealed cistern,bathroom cabinet,toilet paper holder & shower etc. bathroom accessories. We have a professional R&D team and sales team. |

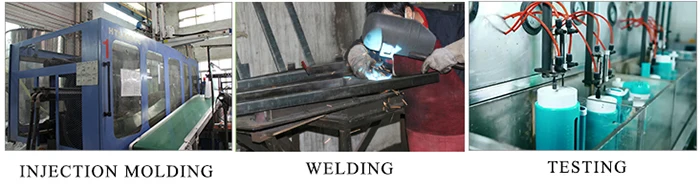

Concealed Cistern Process
| 1. The cistern body is sticked with foam which can debase noise. |
| 2. The cistern panel adoptted ABS engineering plastic, corrosion-resistant&durable. |
| 3. The painted steel frame is corrosion-resistant,durable and can bear the heavy stress of about 400kg. |
| 4. It has silent fill valve&flush valve which can prevent noise. |
| 5. Every cistern is automatically tested for correct function and ensure that it has no leak. The first-class material can certify that the valves can be used in a long life circle. |
| 6. Easy and fast installation,cleanout & maintain,suited for the drastic competitive international market. |

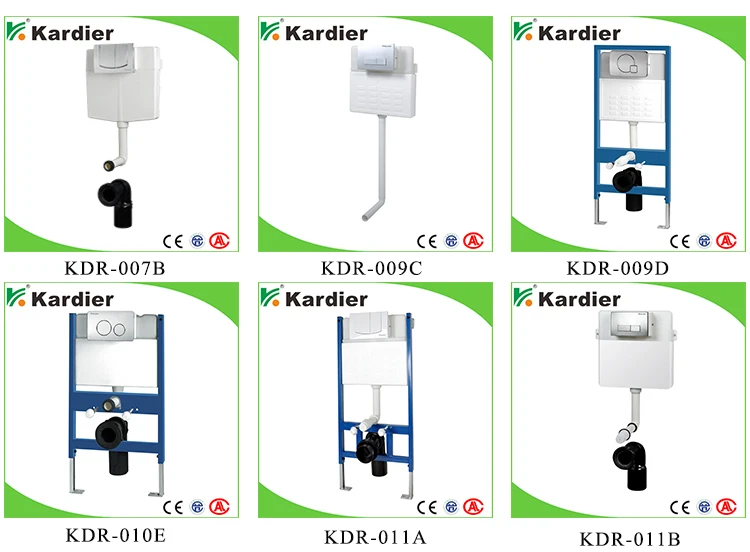

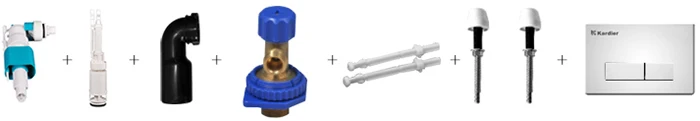

Concealed Cistern Combination

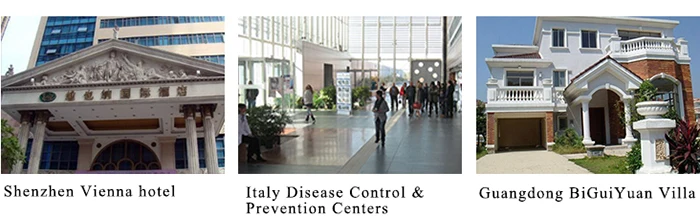

A Coner of Project
Recommend
1. Use less space: The concealed cistern can be installed in a wall of 155mm width.It can suit for dry-wall installation or pre-wall installation and donnot affect the frame of original wall. |
2. Corrosion-resistant and durable: The cistern body adopted HDPE plastic. |
3. Save water: 3L&6L flush water volume can be chosen optionally. |
4. Aesthetic-installation: Concealed cisterns greatest feature is that the flush system will never be seen. It is thin enough to be hidden in a wall of 155 mm width. |
FAQ
1. What is the difference between series A and series D ? A: A series is more economic, D series is stronger. |
2. Does it include all the fittings like the blowdown canal? A: Our products are the full set of fittings sales, including all accessories. |
3. Are the products can assembled Geberit panel ? A: Yes, the 009 series can be assembled the Geberit panel. |
4. Are the A or D series can assembled all of the wall hang toilets? A: Yes, they can |
5. What certifications do we have? A: our factory and cistern fittings have passed the European CE Certification, China section water attestation, our product has been awarded sufficient patents like design patent certification. |
6. Can you provide the free samples? A: If you are overseas buyers, and the price of the product is less than USD 50, we can provide a free sample, but you need pay the freight . |
7. What is the MOQ? A: In general, up to 50 pcs. |
8. How long is the delivery time? A: Under normal conditions, 20 to 25 days. |
9. What is the adaptive panel size? A: 265 x165mm . |
10. Do you offer OEM service? A: Yes, but you need provide certification of trademark authorization and trademark registration certificate. |
11. Is there the risk of leakage? A: Our cistern is molded in one and implemented full-inspection, there are 0.01% risk of leaking. All cistern fittings will be implemented sampling inspection after full-inspection, the risk less than 0.1% of leaking normally. |
12. How to solve the after-sales problem? A: we will provide the free after-sale accessories for each shipment of the 0.3% of the goods value. If some problem with the quality , we would provide the accessories for free and sent together with purchaser’s goods. |
| 13. Does it have the noise avoiding? A: The surface of the cisterns is provided with a layer of foam, which have reduce noise and thermal insulation function. |
Your satisfication, our enternal purpose. Anytime you are the most welcome to visit our factory.
