Custom printing machines parts printing rubber roller

Product Overview

Description

printing roller  Product Introduce:

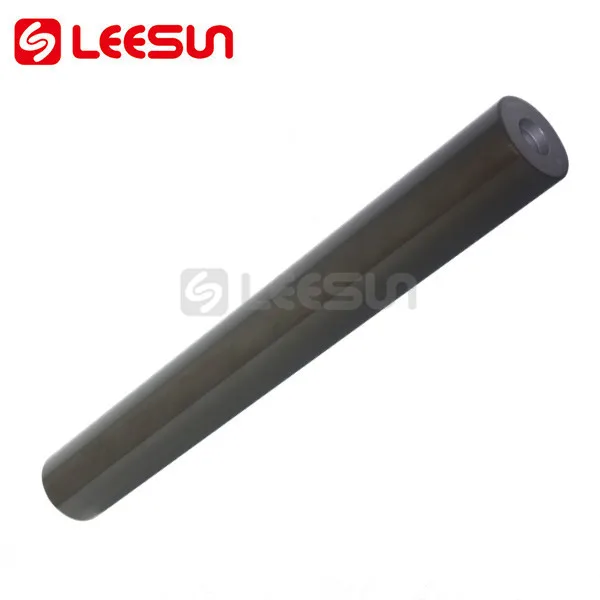

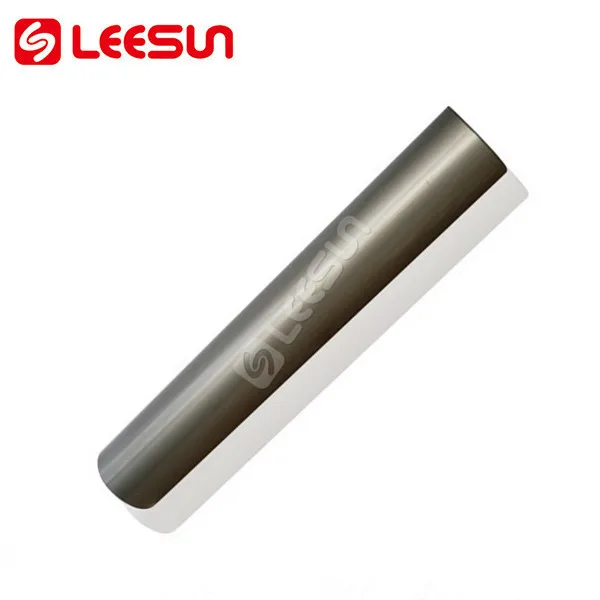

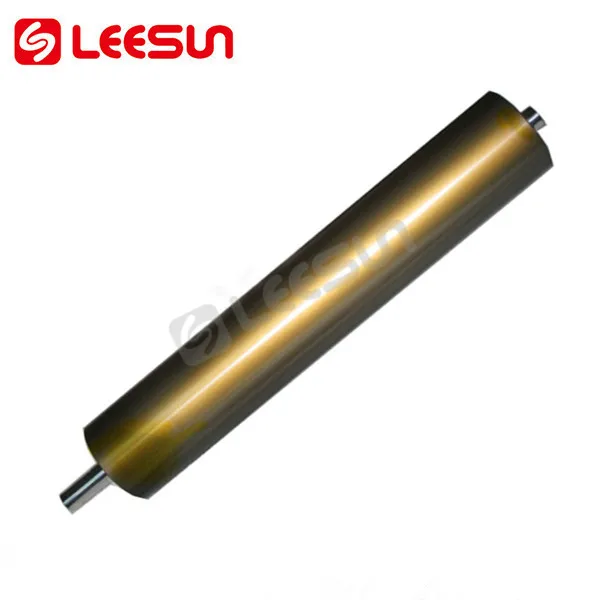

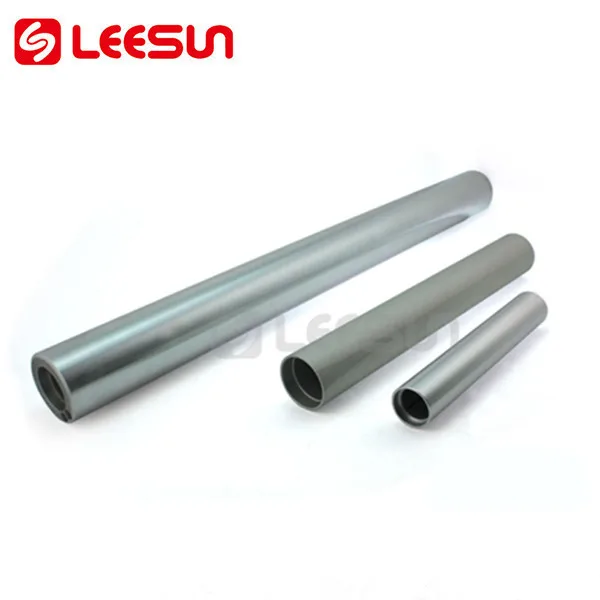

The aluminum idler roller produced by "LEESUN" has gone through the strictest raw materials extrusion production process.

The high-strength special-section and ribs inside can signiflcantly enhance the rigidity of the aluminum tube,the excellent shrink fitted assembly procedure and the surface tooling by  anodic oxidation treatment, we have two types of this product: HV300 (white) or HV700 (twenty), or Special material processing,roll body smooth finish is 0.8, dynamic balance is G2.5; Aluminum tube generally have 8-10 reinforcement. We can make slot roller according to customers' requirement, such as: Crossover aluminum roller, horizontal center, aluminum roller, roller, and cooling roller.



printing roller Product Features:

 1, The high-strength special-section and ribs inside can signiflcantly enhance the rigidity of the aluminum tube;

2,Good linearity and concentricity;

3,The high-speed dynamic balance performance;

4: Roller surface hardening treatment reach HV300 OR HV600,We can make slot roller according to customers' requirement

printing roller Data:

External dia. ΦD	Internal dia. ΦD1	processing length L	Unilateral thickness H	Ribs R	Dia of sahft hole  ΦD2
Φ30mm	Φ23.5mm	200 ~1200mm	3.25mm	-	The dia.& depth of the shaft hole can be customized
Φ40mm	Φ31mm	200 ~1200mm	4.50mm	-
Φ50mm	Φ42mm	250 ~1500mm	4.00mm	R4.1mm*8(6)
Φ60mm	Φ52mm	300 ~1800mm	4.00mm	R4.1mm*8(6)
Φ70mm	Φ61mm	300 ~1800mm	4.5mm	R4.1mm*8(6)
Φ75mm	Φ61mm	300 ~1800mm	7.00mm	R4.1mm*8(6)
Φ80mm	Φ71mm	300 ~1800mm	4.50mm	R4.1mm*8
Φ90mm	Φ81mm	300 ~2000mm	4.50mm	R4.1mm*8
Φ100mm	Φ91mm	300 ~25000mm	4.50mm	R4.5mm*8
Φ120mm	Φ110mm	300 ~2500mm	5.00mm	R4.5mm*8
Φ150mm	Φ137mm	400 ~3500mm	6.50mm	R5.0mm*9
Φ160mm	Φ145mm	400 ~3500mm	7.50mm	R5.0mm*9
Φ170mm	Φ155mm	450 ~3500mm	7.50mm	R5.0mm*9
Φ180mm	Φ165mm	450 ~3500mm	7.50mm	R5.0mm*9
Φ200mm	Φ185mm	450 ~3500mm	7.50mm	R8.0mm*10
Φ220mm	Φ205mm	4500 ~3500mm	7.50mm	R8.0mm*10



 Printing roller Teatment:

1:Aluminum roller suface teatment HV300(white/silver)

2:Anodic oxidetion treatment HV700(tawny)

3:Teflon treatment with several color

4:Sand-blasting treatment with:fine sand/medium sand/coarse sand.

Our products can be widely used in paper making,printing,packaging,plastic items,rubber industry,textile industry,printing and dyeing,wire and cable,metallurgy industry and

tension control of winding and unwinding in roll material processing industry.

Still frustrated about your powder brake, powder clutch, air shaft or safety chucks, tension controllers,guiding systems? And looking for available and enduring ones with warranty?

 You’ve come to the right place!

 LEESUN POWER TECHNOLOGY  CO., LTD established in 2001 and located in Dongguan city.



 It's a professional design and development team, the main development and production of industrial machinery of high precision magnetic powder clutch brake, electromagnetic clutch brakes, air pressure disc / pass-axis clutch brakes, as well as packaging and printing Take-up equipment industry-specific inflatable shaft, pressure sets of folders (inflatable swollen), fast and secure chuck, aluminum alloy guide roll, automatic tension controller, the roll diameter Tension controller, guiding systems. Comprehensive range of products in the take-up device industries to provide a variety of tension control solutions.



All along, we are actively enterprising, innovation, integrity management, service industry more than a dozen set, because of the quality of products and companies seeking strict Ke tireless efforts of all colleagues, resulting in "LEESUN" brand to become the industry leader and has been marketing the country and the exported to Europe( Germany),Southeast Asia( Japan and India )and South America ( Argentina and Brazil )other regions.
Through constant innovation and development of the establishment of LEESUN POWER TECHNOLOGY  CO., LTD as the mainland base of operations and the establishment of the Department of South China factory, have been established for East Marketing Department, North China Marketing Department, to provide users with better products and services, so that "LEESUN" Products more widely used in packaging machinery, printing machinery, wire and cable machinery, paper version of the system machinery, rubber machinery, tableware machinery, textile machinery, glass machinery, woodworking machinery, electronic machinery and other equipment, the battery industry.
Our business philosophy: the leading science and technology, well production, sustainable development

Our goal: a strong-the quality of the image outside, the unison into first-class science and technology of modern technology manufacturing companies.



LEESUN Science&Technology, unlimited power!



Since 2007 ,Our factory use “Leesun” brand to attend Intermational Exhibition every time,Our products are popular with custormers from all over the world.

 2007 PTINTCHINA, 2011 PTINTCHINA, 2013 SIAF, 2012The 19nd South China International Exhibition on printing Industry, 2014The 21nd South China International Exhibition on printing Industry,2015 The22nd South China International Exhibition on printing Industry.

How to get your suitable machine or parts ?
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Skype) and let us know your enquiry.
• Discussion:Let us know the model number,like LEESUN-AR-40-01Printing roller ,specify the items you desire, confirm specification; OEM/ODM consultation.
• Place order as per contract or discussion.
• Perform invoice( sales contract ) In duplicate confirmed and kept by both sides.
• Payment settled.
• Order completed under our arrangement.
• Goods shipped as per contracted term.
• Goods arrive at local port or warehouse, depending on contracted term.
• Support & re-ordering.
Any question about Printing Machinery Parts ,contact with us please,sincere service for you and welcome to LEESUN power!
