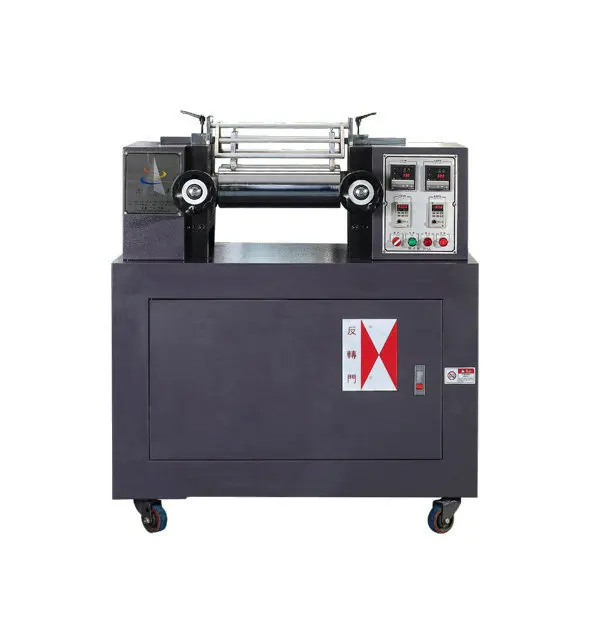

High output and energy save two roll Rubber open Mixing Mill
- Category: >>>
- Supplier: Dongguan C Fine Machinery Technology Co. Ltd.
Share on (60336943584):
Product Overview
Description
Product Description
Introduction: the main function of this machine is to meet the requirements of the customer for the color and quality,and then used for the production. This machine is a mix equipment to mix the raw material and ingredients evenly | |||||||||
| 1.Main Technical Specification | ||||||||||
| a. | mixing volume:about 500g-800g | |||||||||

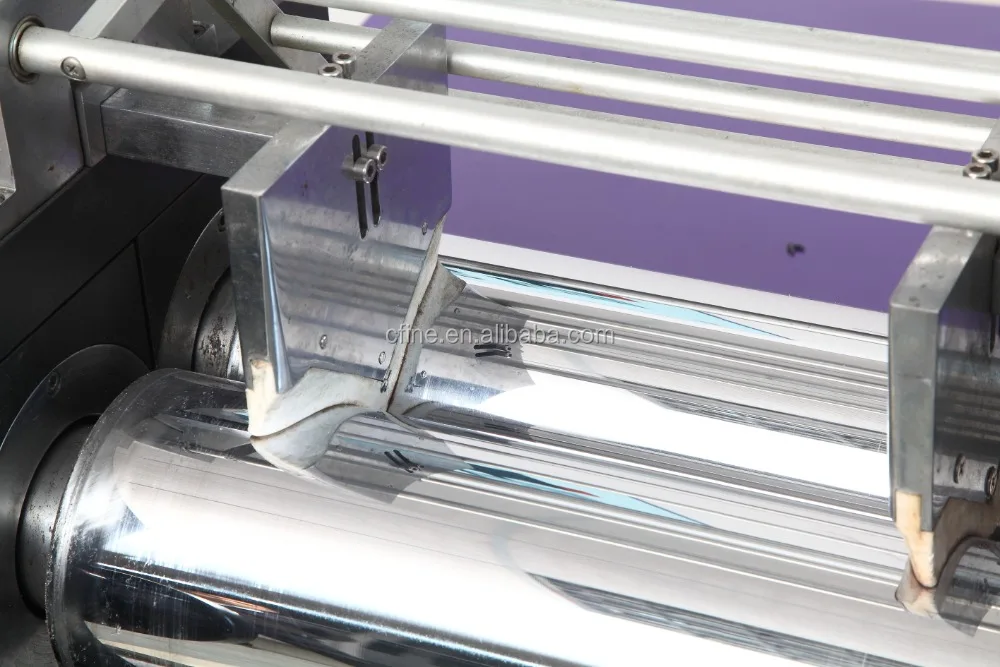

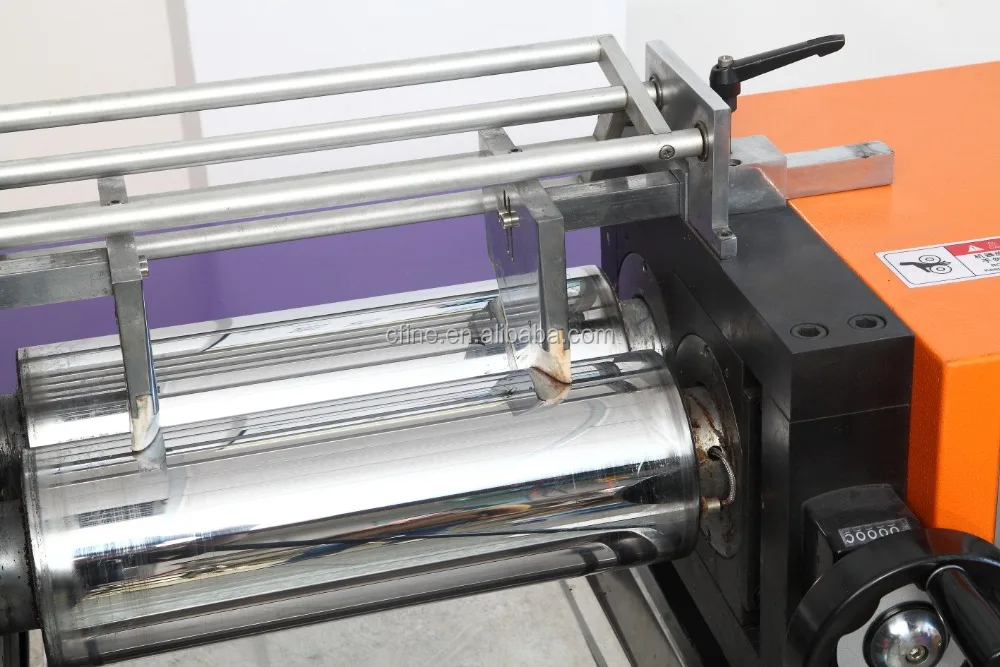

| b. | the size of the cylinder:dia 120mm×L350mm | |||||||||
| c. | the distance of the cylinder:0-5mm, it is adjustable | |||||||||
| d. | the speed ratio of the cylinder:double tuner and adjustable | |||||||||
| e. | the speed of the cylinder: 24/17.5r/min | |||||||||
| f. | the material of the cylinder:solid KDB | |||||||||
| g. | surface treatment:Hard chrome plating | |||||||||
| h. | temperature:normal ~300℃ | |||||||||
| i. | temperature accuracy :±3℃ | |||||||||
| j. | temperature controller:made in Japan | |||||||||
| k. | Heating method:by electricity | |||||||||
| l. | safety features:reversal | |||||||||
| m. | the power of the motor:1HP×2 | |||||||||
| n. | the power:5HP | |||||||||
| o. | dimension : 1000*860*1220MM | |||||||||
| p. | power power supply:3phase,AC380V | |||||||||
| q. | G.W:about 400kgs | |||||||||
| remark:(all the electrical and motor are imported) | ||||||||||
| 1,Payment term:30% of deposit,70% before shipment. | ||||||||||
| 2,Delivery term: FOB or Ex-work | ||||||||||
| 3,Delivery time:45 days after receipt of the deposit. | ||||||||||
