Reliable diamond core drill bit
- Category: Drill Bits >>>
- Supplier: Hebei,Greens,Building,Material,Technology,Development,Co.,Ltd.
Share on:
Product Overview
Description

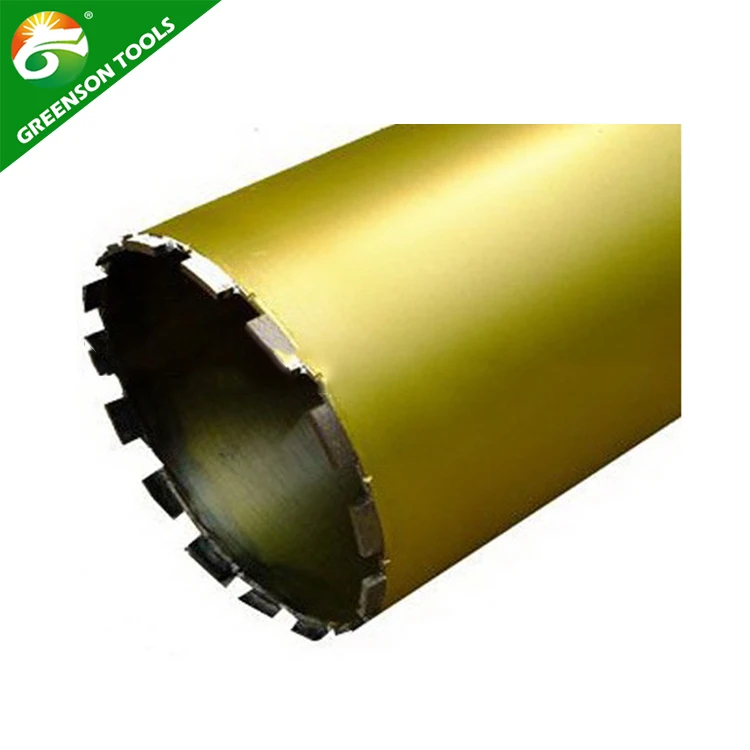

Reliable diamond core drill bit
Diamond
60336982245
Type: Brazed segmented diamond core drill bits for reinforced concrete, 1-1/4"UNC connection thread diamond core bits for concrete brick, wet drilling hollow core diamond drill bits for concrete block, diamond concrete drilling tools factory.
Features: Drill aggressively with long working life, somooth drill with good balance, widely used in professional construction projects, high precision steel core tube, working length 450mm.
Applications: Concrete, reinforced concrete, brick, block, general building materials.
Machinery: Hydraulic Drilling machine, electric drilling machine, electric portable drill, hand held core drill, stand core drill.
Specification:
| Item No. | Core Drill Bits | Segment | |||
| Dia. (mm) | Dia. (inch) | Thread (inch) | Thickness(mm) | Height(mm) | |
| BB056SC | 56 | 2-1/5" | 1-1/4UNC | 3.5 | 8/10 |
| BB062SC | 62 | 2-1/2" | 1-1/4UNC | 3.5 | 8/10 |
| BB066SC | 66 | 2-3/5" | 1-1/4UNC | 3.5 | 8/10 |
| BB072SC | 72 | 2-3/4" | 1-1/4UNC | 3.5 | 8/10 |
| BB076SC | 76 | 3" | 1-1/4UNC | 3.5 | 8/10 |
| BB083SC | 83 | 3-1/4" | 1-1/4UNC | 4 | 8/10 |
| BB089SC | 89 | 3-1/2" | 1-1/4UNC | 4 | 8/10 |
| BB096SC | 96 | 3-4/5" | 1-1/4UNC | 4 | 8/10 |
| BB102SC | 102 | 4" | 1-1/4UNC | 4 | 8/10 |
| BB108SC | 108 | 4-1/4" | 1-1/4UNC | 4 | 8/10 |
| BB116SC | 116 | 4-3/5" | 1-1/4UNC | 4 | 8/10 |
| BB120SC | 120 | 4-3/4" | 1-1/4UNC | 4 | 8/10 |
| BB127SC | 127 | 5" | 1-1/4UNC | 4 | 8/10 |
| BB132SC | 132 | 5-1/4" | 1-1/4UNC | 4 | 8/10 |
| BB142SC | 142 | 5-5/8" | 1-1/4UNC | 4 |
8/10 |
