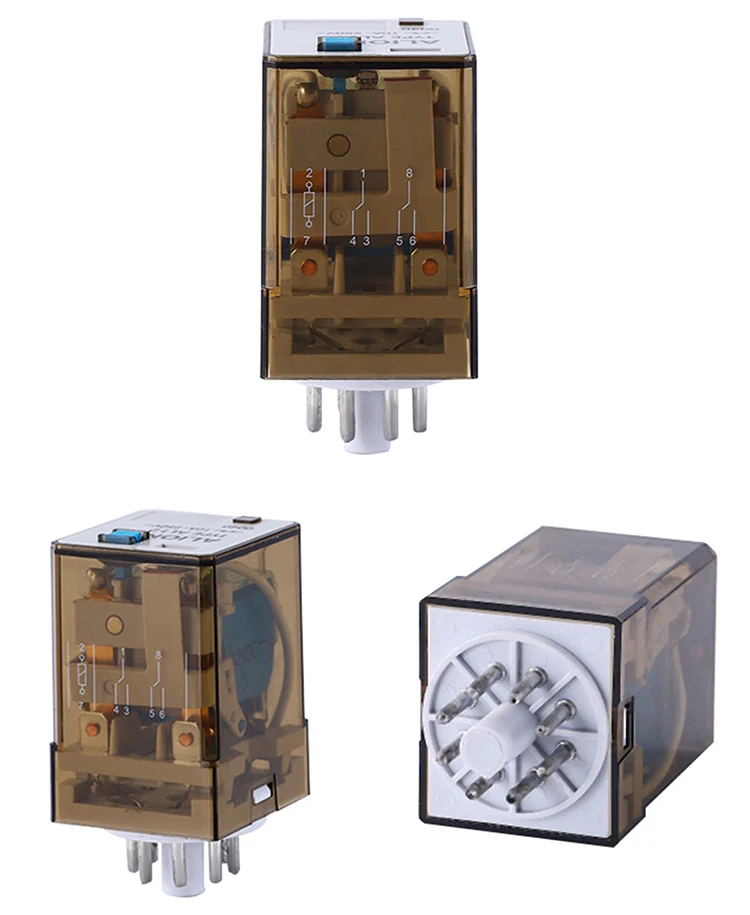

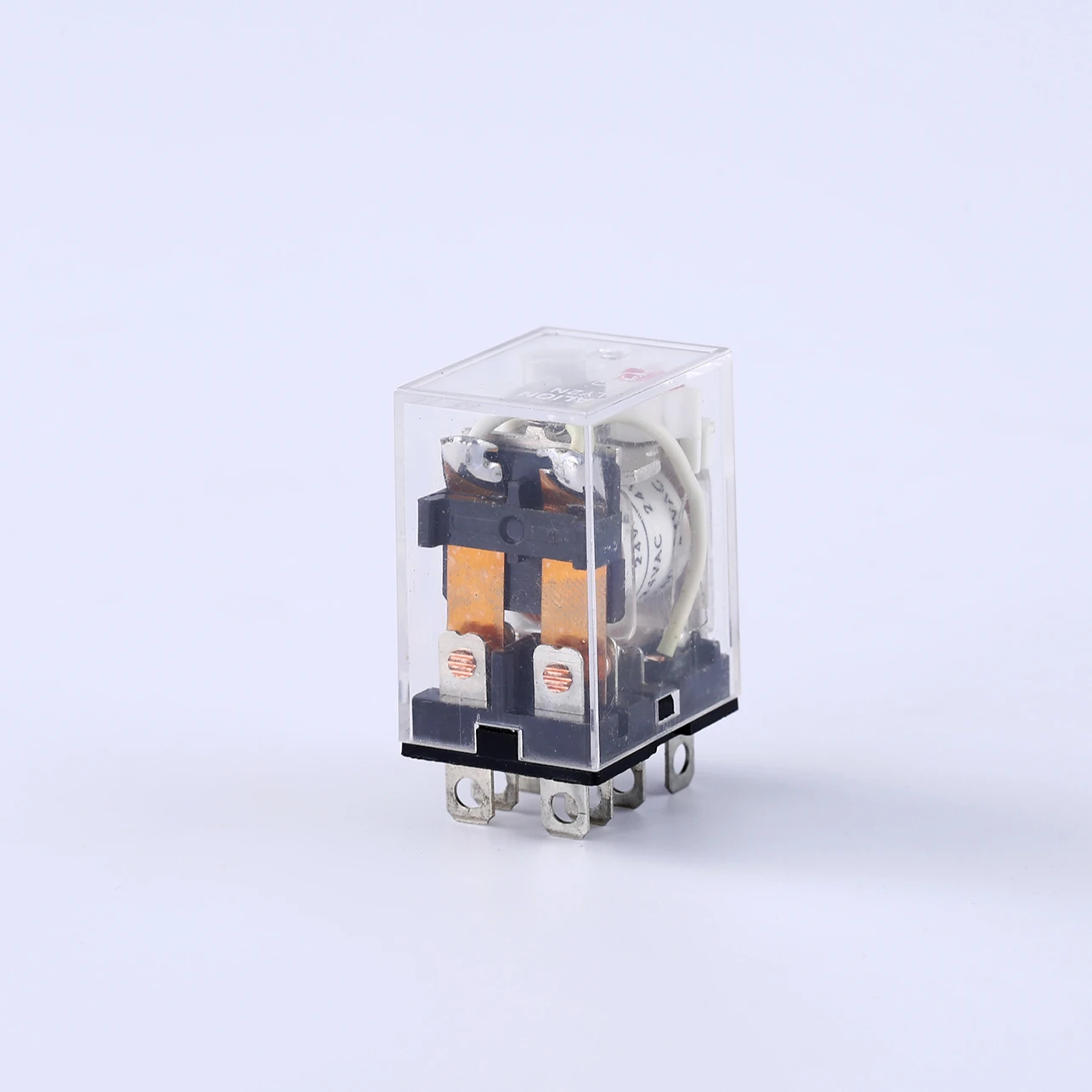

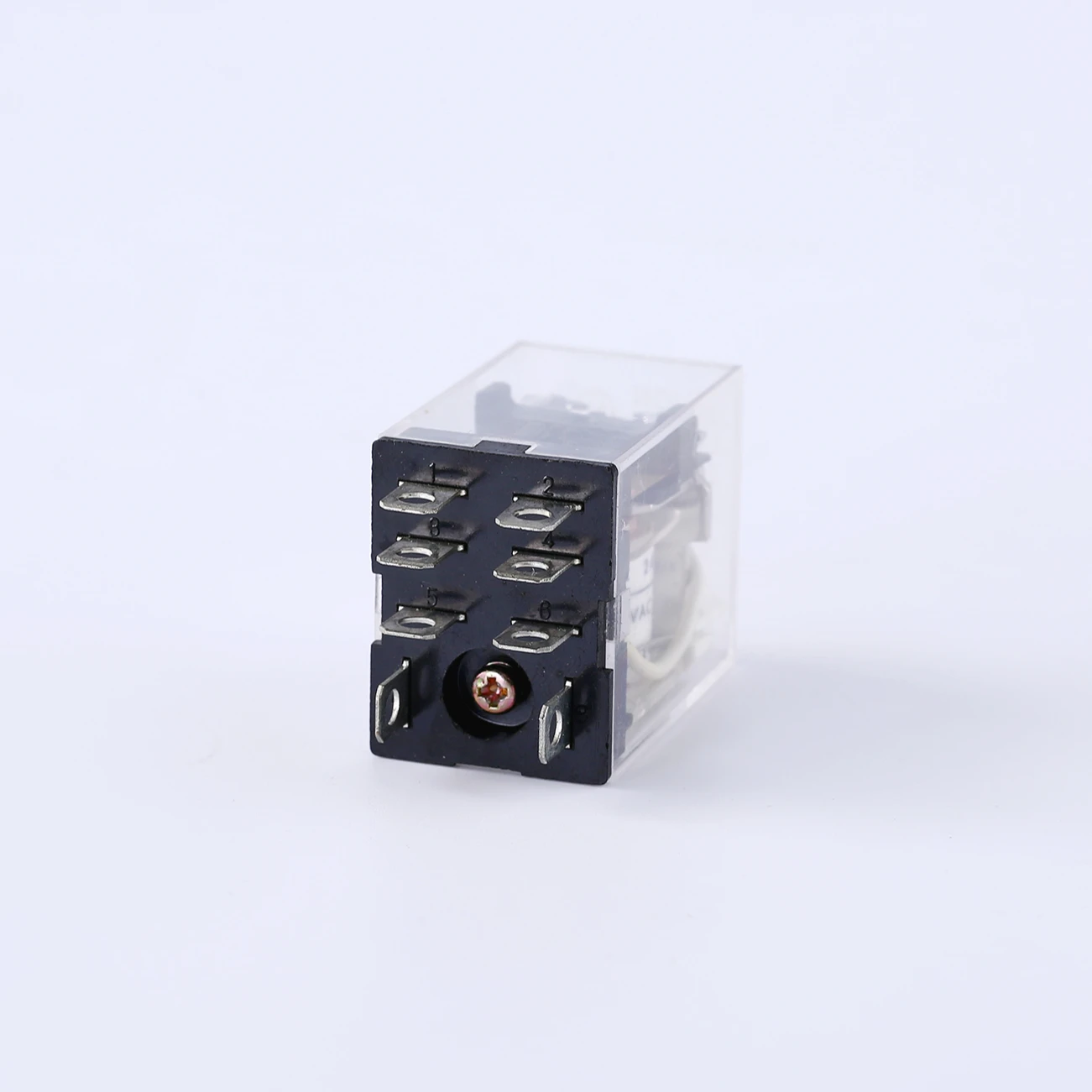

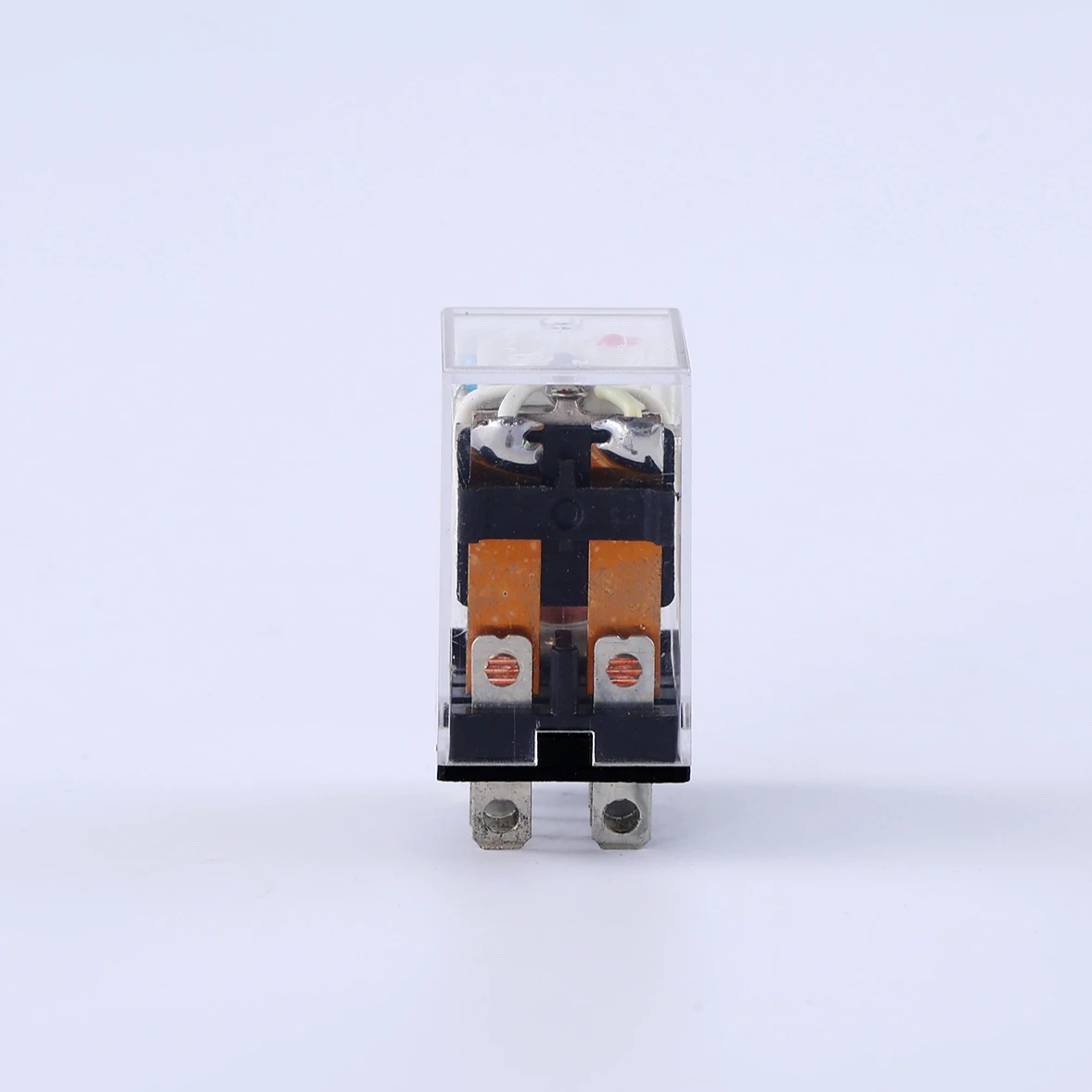

LY2 Alion 6 volt Ip Relay Case, 24v 100a latching relay for Wholesale
- Category: >>>
- Supplier: Alion Holding Group Zhejiang Imp.& Exp. Co. Ltd.
Share on (60337182473):
Product Overview
Description
Product Description
Focus On Time Control For 24 Years
Description
- Small universal relay capable of power switch
- Applications
Switch control for air-conditioning compressor
Switch control for electric tools and a variety of motor
Switch control for heater power control
Switch control for a variety of drying machine power control
Switch control for controlling various lights
Switch control for packaging machines, food processing equipment, power control
- Low power consumption
- Rugged Design
- Silver alloy contacts
- With manual test button function
- With mechanical flag indicator
- Power Supply
AC(V) 6,12,24,48,60,110,220,240,380 50Hz
DC(V) 6,12,24,48,60,110,220
- Output Contacts rated 10A at 250 VAC or 30 VDC
- Two pole changeover contacts
- Socket mounted with 90.22
TABLE 1:
| CLASSIFICATION | MINI ELECTROMAGETIC RELAY SERIES | ||||
| MODEL | LY1,-S,-N,-F,-O | LY2,-S,-N,-F,-O | LY3,-S,-N,-F,-O | LY4,-S,-N,-F,-O | |
| DIMMENSIONS(mm) | 27.5*21.5*35 | 27.5*21.5*35 | 27.5*31*35 | 27.5*41*35 | |
| ONTACT FORM | 1Z | 2Z | 3Z | 4Z | |
| ONTACT CAPACITY | 5A 250VAC DC28V | ||||
COIL VOLTAGE | DC | 6V~220V | |||
| AC | 6V~380V | ||||
| COIL POWER | DC:≤0.9W AC:≤1.2VA | ||||
| PICK-UP | DC: ≤75% AC: ≤80% | ||||
| DROP-OUT | DC: ≥10% AC: ≥30% | ||||
| CONTACT RESISTANCE | ≤50mΩ | ||||
| INSULATION RESISTANCE | ≥100MΩ | ||||
| LIFE | ELECTRICAL | 105 times | |||
| MECHANICAL | 107 times | ||||
DIELECTRIC STRENGTH | BETWEEN OPEN CONTACTS | 1000V ms | |||
BETWEEN COIL &CONTACTS | 1500v ms | ||||
| MOUNTUBG FORM | P.C.B & Socket | ||||
| OPERATING TEMPERATURE | -40°c~+55°c | ||||
| WEIGHT | About 35g | About 35g | About 53g | About 70g | |
| SIMILAR PRODUCTS | HH61P | HH62P | HH63P | HH64P | |
| FITTED SOCKET | PTF08A PTF08A-E PT08 | PTF08A PTF08A-E PT08 | PT11 PTF11A | PYF14A PYF14A-E PY14 PY14 | |
| REMARKS | With lamp:-n, FLANGE:-F, With button:-S, PCB:-O | ||||
TABLE 2:
| CLASSIFICATION | MINI ELECTROMAGETIC RELAY SERIES | MINI ELECTROMAGETIC RELAY SERIES | ||||
| MODEL | MY2,-S,-N,-F,-O | MY3,-S,-N,-F,-O | MY4,-S,-N,-F,-O | MK2P-I,-S,-N | MK3P-I,-S,-N | |
| DIMMENSIONS(mm) | 27.5*21.5*35 | 27.5*21.5*35 | 27.5*21.5*35 | 34.5*34.5*52 | 34.5*34.5*52 | |
| ONTACT FORM | 2Z | 3Z | 4Z | 2Z | 3Z | |
| ONTACT CAPACITY | 5A 250VAC DC28V | 5A 250VAC DC28V | 5A 250VAC DC28V | 10A 250VAC, DC28V | ||
COIL VOLTAGE | DC | 6V~220V | 6V~220V | |||
| AC | 6V~380V | 6V~380V | ||||
| COIL POWER | DC:≤0.9W AC:≤1.2VA | DC:≤1.5W AC:≤2.2VA | ||||
| PICK-UP | DC: ≤75% AC: ≤80% | DC: ≤75% AC: ≤80% | ||||
| DROP-OUT | DC: ≥10% AC: ≥30% | DC: ≥10% AC: ≥30% | ||||
| CONTACT RESISTANCE | ≤50mΩ | ≤50mΩ | ||||
| INSULATION RESISTANCE | ≥100MΩ | ≥100MΩ | ||||
| LIFE | ELECTRICAL | 105 times | 105 times | |||
| MECHANICAL | 107 times | 107 times | ||||
DIELECTRIC STRENGTH | BETWEEN OPEN CONTACTS | 1000V rms | 1000V rms | |||
BETWEEN COIL &CONTACTS | 1500v rms | 1500V rms | ||||
| MOUNTUBG FORM | P.C.B & Socket | Socket | ||||
| OPERATING TEMPERATURE | -40°c~+55°c | -40°c~+55°c | ||||
| WEIGHT | About 35g | About 35g | About 35g | About 85g | About 85g | |
| SIMILAR PRODUCTS | L10KH2 HH52P 4101 | L10KH2 HH53P 4101 | L10KH2 HH54P 4101 | H,K FRM5 | H,K FRM5 | |
| FITTED SOCKET | PYF08A PYF08A-E PY08 | PYF11A PYF11A-E PYF11 | PYF14A PYF14A-E PYF14 | PF083A PF083A-E US-08 | PF113A PF113A-E US-11 | |
| REMARKS | With lamp:-n, FLANGE:-F, With button:-S, PCB:-O | With lamp:-N, With button:-S | ||||
Company Information
Packaging & Shipping
Our Services
1. Exclusive service-a professional Support Team will be in charge of your order.
2. Inquiry processing-data sheet,price,picture,manual and certificate will be provided.
3. The product will be accurately according to your requirement-function,printing,sticker,manual and box.
4. Order progress tracking-photo of your order will be sent to you to keep abreast of progress about producing,testing, packaging and storing.
5. Shipping-a professional Logistics Department is in charge of shipping arrangement.
6. Stable delivery-quantity below 200 pieces will be delivered in 7 days.
7. Quality assurance-all of products have to be tested by our Quality Department before leaving factory. We will provide full coordination to your QC testing if necessary.
8. After-sale service-a professional Customer Service Team will be able to help with your questions of product.
9. Warranty-one years.
FAQ
Q1: Why choose ALION?
1.ALION is a professional manufacturer that has focused on time control for 20 years.
2.ALION provides complete certification, such as CE, ROHS, ISO and so on.
3.ALION is strict accordance with the following points.
High quality - all of our products are produced according to international standard, we will provide full coordination to your QC testing if necessary.
Great service - a professional Service Team will be in charge of your order and help to solve your questions timely whether before or after you purchase.
Q2: How will you do the OEM?
We have own R&D team that involves 2 experienced structural engineers, 1 software engineer and 2 circuit engineers.
The OEM product will be accurately according to your requirement about function, printing, sticker, manual and box.
After the product has entered the market, you can send your feedback to our after-sale service team. Our R&D team will adjust and improve the product according to your feedback.
Q3: What is the MOQ for OEM?
Our MOQ for OEM is 1000 pcs.
Q4: Can I have a sample order?
YES, we can provide a sample for FREE to test or check quality, you only need to pay the freight cost.
Q5: What is the MOQ for ALION product?
There is no MOQ, we deal with any quantity of your order.
Q6: What is the payment term?
We accept T/T, L/C, Western Union and paypal.
Q7: What is the delivery time?
It depends on the quantity.
7 days, below 200 pcs.
10 days, below 500 pcs.
15 days, below 1000 pcs.
