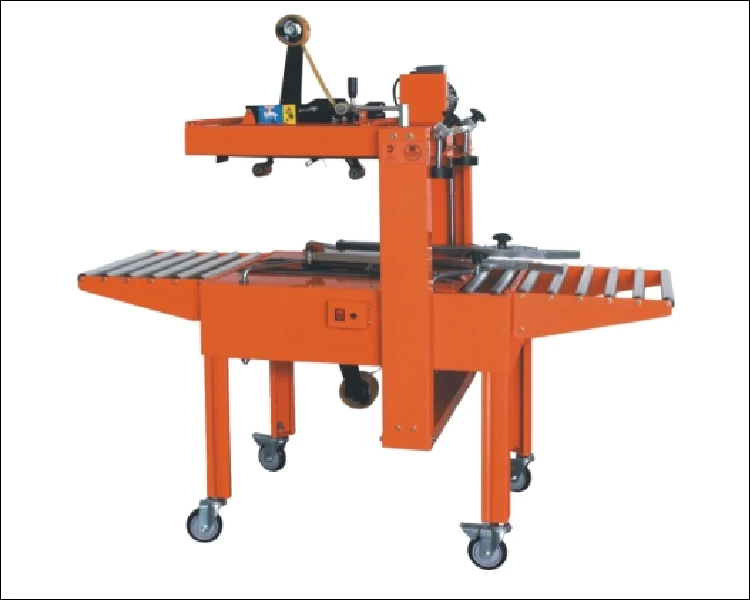

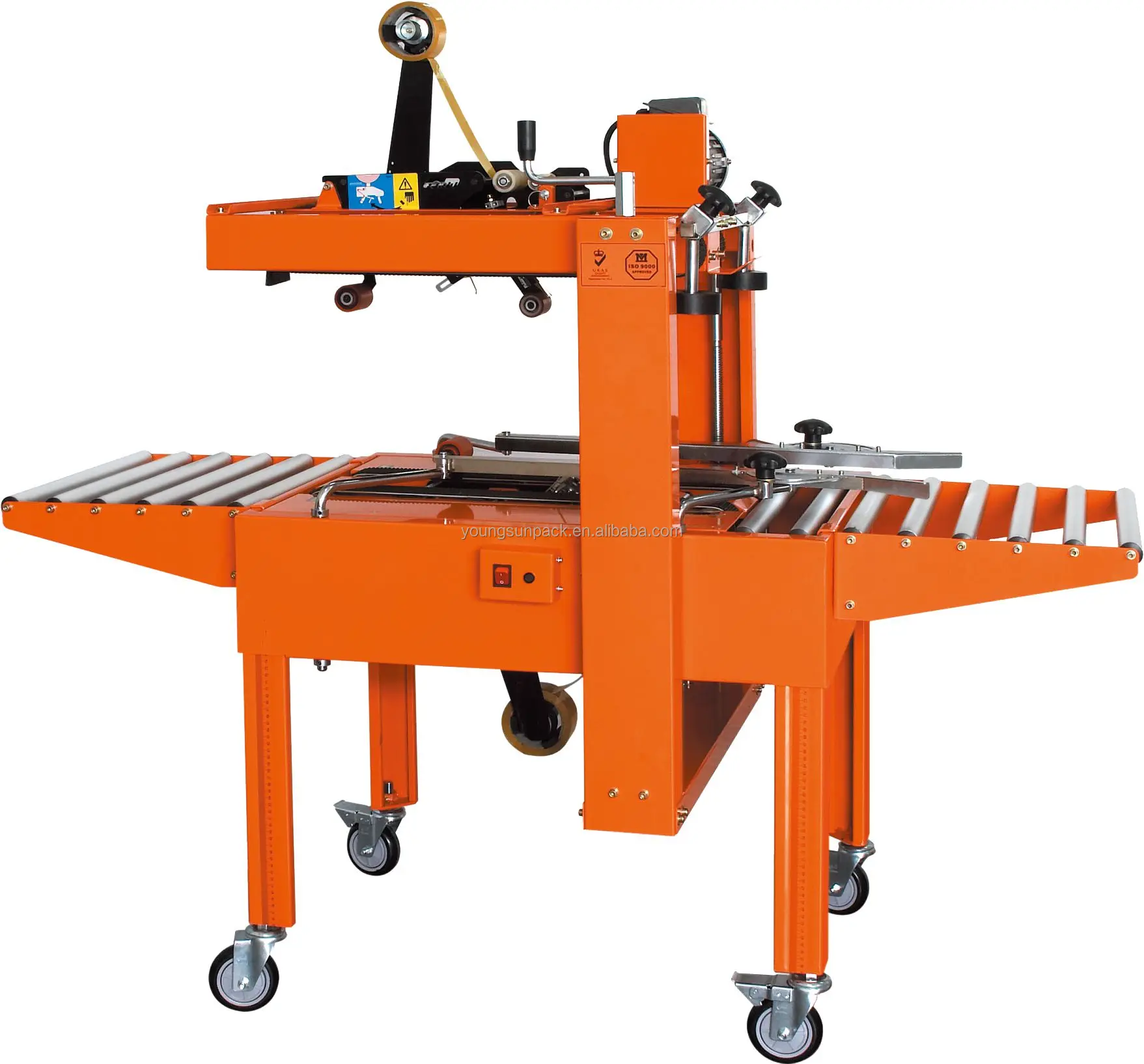

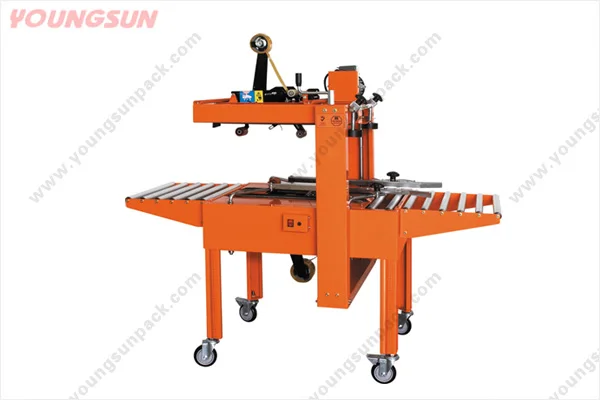

Automatic Continuous Sealing Machine Band Sealer Packing Machine Adjustable Carton Case Sealer

Product Overview

Description





Welcome to>>Hangzhou Youngsun Intelligent Equipment Co., Ltd

Automatic Continuous Sealing Machine Band Sealer Packing Machine Adjustable Carton Case Sealer Machine Features:

Manual adjustment for different carton width and height; Top and buttom belts driving; Automatically conveying and sealing carton top and bottom at the same time.

Work Flow:

Connect to the power supply, and the power indicator is on; Press the START button, the machine starts, the belts drive; Operator folds the carton flaps, pushes the carton box to the belts area, the belts will drive the carton box moving forward; During the process of carton box moving forward, the taping head will seal the top and the bottom of carton box, the finished carton box will be output through the belts.



Technical Specifications:



Power supply:	1P  110V/220V  50Hz/60Hz  400W
Machine dimensions:	L850mm×W800mm×H(depending on sealing height)
Machine weight:	100kg
Worktable height:	750mm
Conveying speed:	19 m/min
Carton dimensions:	L(150-+∞)mm,W(180-450)mm,H(120-480)mm
Adhesive tape specifications:	48-60mm
Adhesive tape material:	Kraft paper or BOPP
Motor:	Taiwan Luson
Noise emission:	≤75dB(A)
Environmental conditions:	Relative humidity ≤98%, temperature 0-40℃
Optional:	(1) Inlet & outlet worktable; (2) truckles; (3) Q304/Q201



Youngsun, be built in 1983, the famous trademark of China’s packaging industry, is a larger manufacturer of packaging equipment in China and a national high-tech enterprise integrating R&D, production, sales and services, with main businesses including various liquid filling, powder and granule packaging, universal packaging equipment, and external packaging materials, etc. It has been listed on the Shanghai Stock Exchange since May 29, 2015, with the Stock Code 603901. The output value of Youngsun group and the affiliated companies reach USD 600 million, and the output value of Youngsun headquarters reaches USD 300 million. We have already passed Moody international ISO9000 in 2002, approved CE in 2004. What's more, we established long term business with world-famous brands like Ferroro, Danone, Budweiser, Pepesi, P&G, Asiafoods etc. As a customized-products oriented company and enjoy high reputation in worldwide packing industry, we are still seeking for ever greater perfection. We offer: Case Erectors; Labeling Machine; Shrink Wrapper; Carton Sealer Strapping Machine; Strapping Tool; Palletizer; Wrapping Machine; Carton Packer; Packing Line; PP/PET Straps; Stretch Film/Shrink Film; Conveyor; Cartoning Machine; Robot……and customized packing machines. We are in a good position not only to supply you high quality machinery, but also the excellent after sales service. Well-trained engineers will offer you any technical support. I think we can find opportunity to cooperate as we have the same goal: providing superior quality products and services that consistently exceed our customers' expectations.

Strapping machine	Carton sealer	pallet wrapping m/c	Vacuum machine
Shrink wrapper	Case erector	Robot	Labeling machine
Cartoning machine	Carton packer	Filling and sealing machine	PP straps



Any of your kind inquiry would be replied within 12 hours.
Well-trained and experienced sales staffs will reply all your concerns in fluent English.
OEM services are available with us, our professional designer would make your private idea into being.



Protection of your sales area, ideas of design and all your private information.
Delivery by air mail or ship for your orders.
With years of manufacture and promotion experience in global market, brings you profit and great success!



1. Are you manufacturer or trade Company?
We are a factory founded in 1983 with trade team for international service.



2. What terms of payment you usually use?
T/T 30% deposit and 70% against document, Western Union, L/C at sight



3. What is your lead time for your goods?

Normally 45 days after confirmed order. 30 days could be available in low season for some items (during May to July), and 65 days during new year and hot season ( Jan to March).



4. Do you have any instant chat ?
Skype: lzxwlh
WhatsApp: 008613989816698
