D6 D9 Cheap price pneumatic tamper/Air Pneumatic tampers

Product Overview

Description

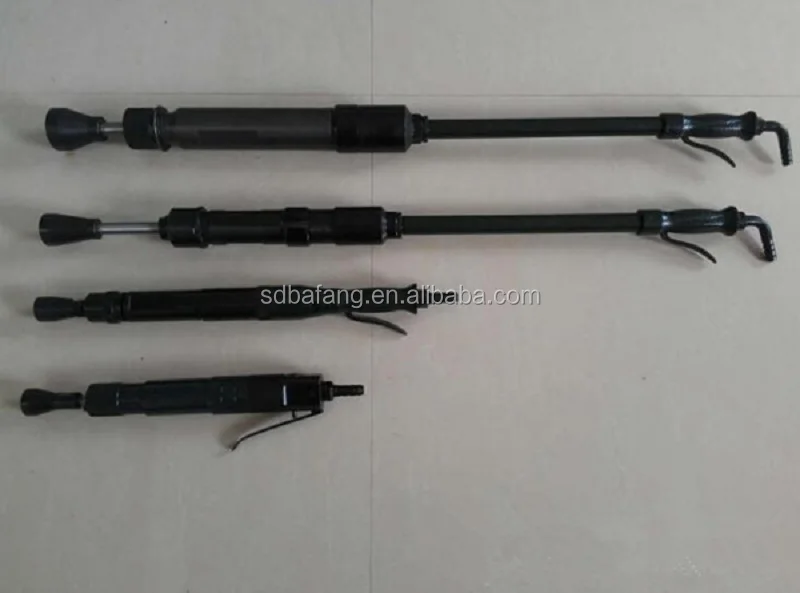

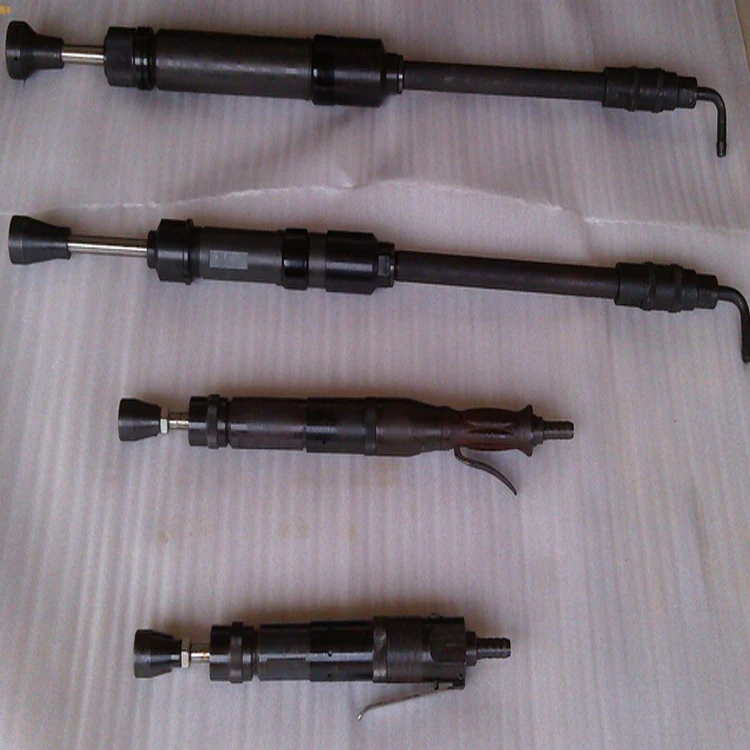

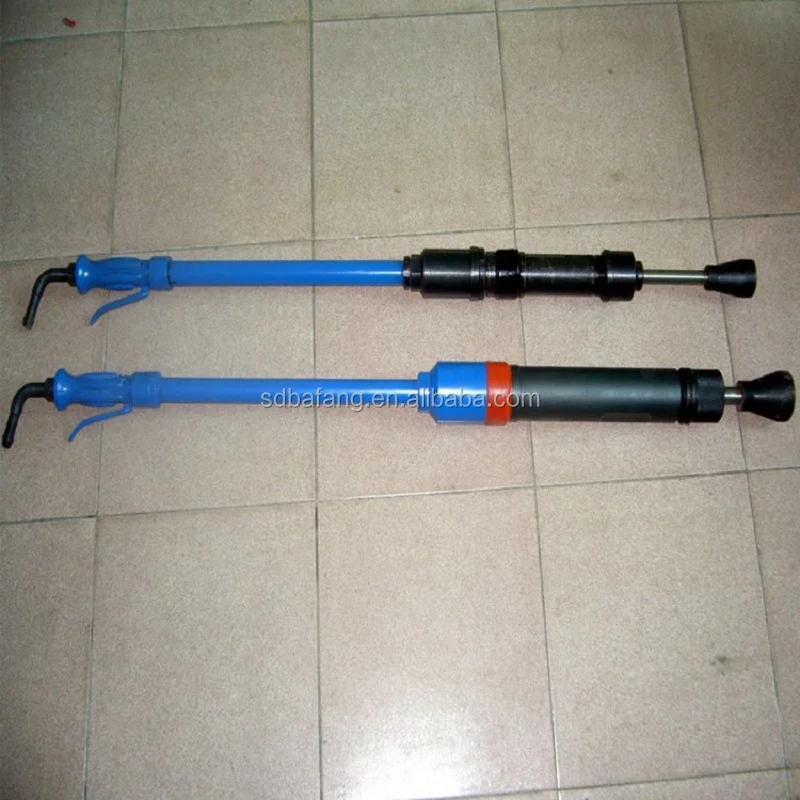

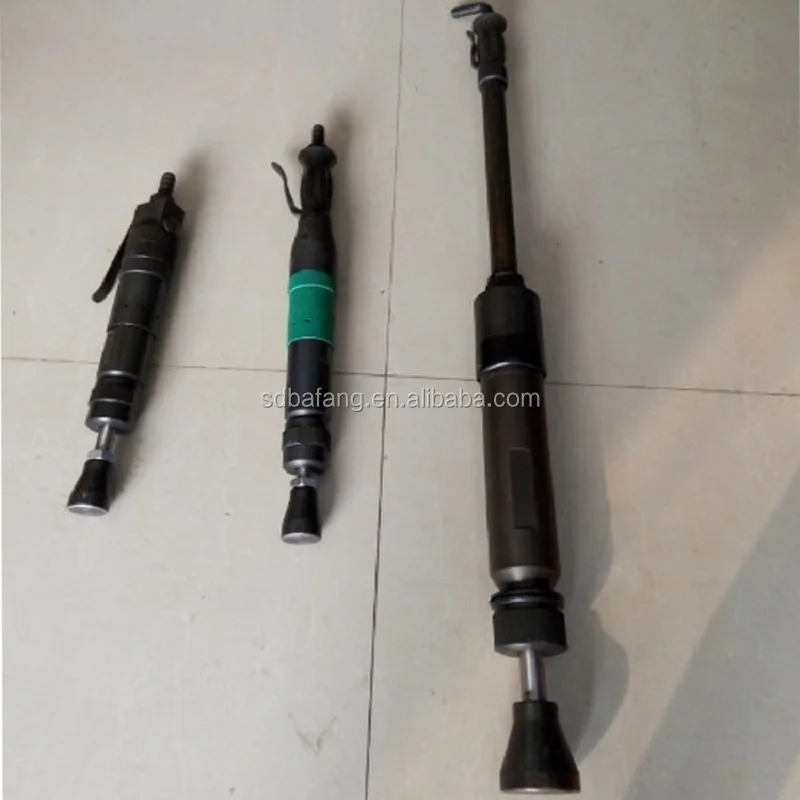

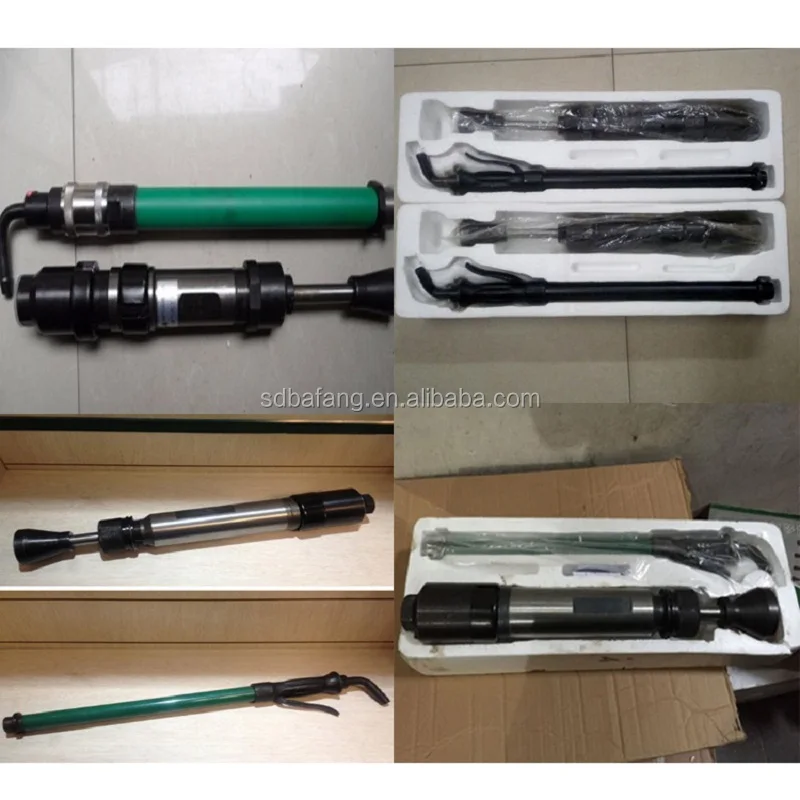

D6 D9 Cheap price pneumatic tamper/Air Pneumatic tampers



The pneumatic tamper is widely used in road construction,concrete and other hard objects demolition.It is featured by durable parts, good performance and easier operation, which is a classic products among breaking tools.



Tamping machine is a compressed air as the driving force of mechanized hand tools. Tamping suitable for medium sized castings, sand, and can also be used for operations such as concrete and brick.



The pneumatic tamper can be applied to tamping for small size sand-cast, and to the tamping of concrete adobe and bricks.



Main Parameter:

Type	D3	D4	D6	D9
weight	2.5kg	3.6kg	6kg	9kg
operation pressure	0.63 mpa	0.63mpa	0.63mpa	0.63mpa
air consumption	0.25 l/s	0.35l/s	0.45l/s	0.65l/s
Diameter of piston	17mm	20mm	25mm	32mm
Structure of travel	92mm	128mm	155mm	207mm
Diameter of hammer	32mm	36mm	42mm	54mm
internal diameter of air pipe	13mm	13mm	13mm	13mm
length	410mm	480mm	975mm	1180mm
