Lead Fluid Industrial Peristaltic Pump WG600F with YZ35 10ml/min to 13L/min large flow rate
- Category: >>>
- Supplier: Baoding Lead Fluid Technology Co. Ltd.
Share on (60337472354):
Product Overview
Description
Product Description

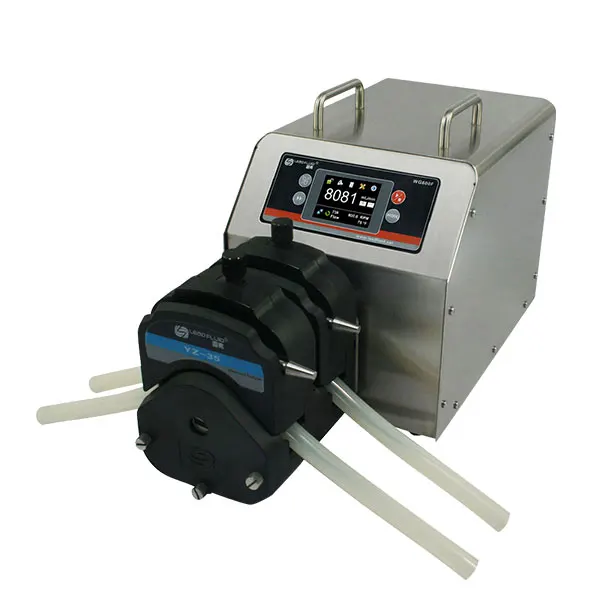

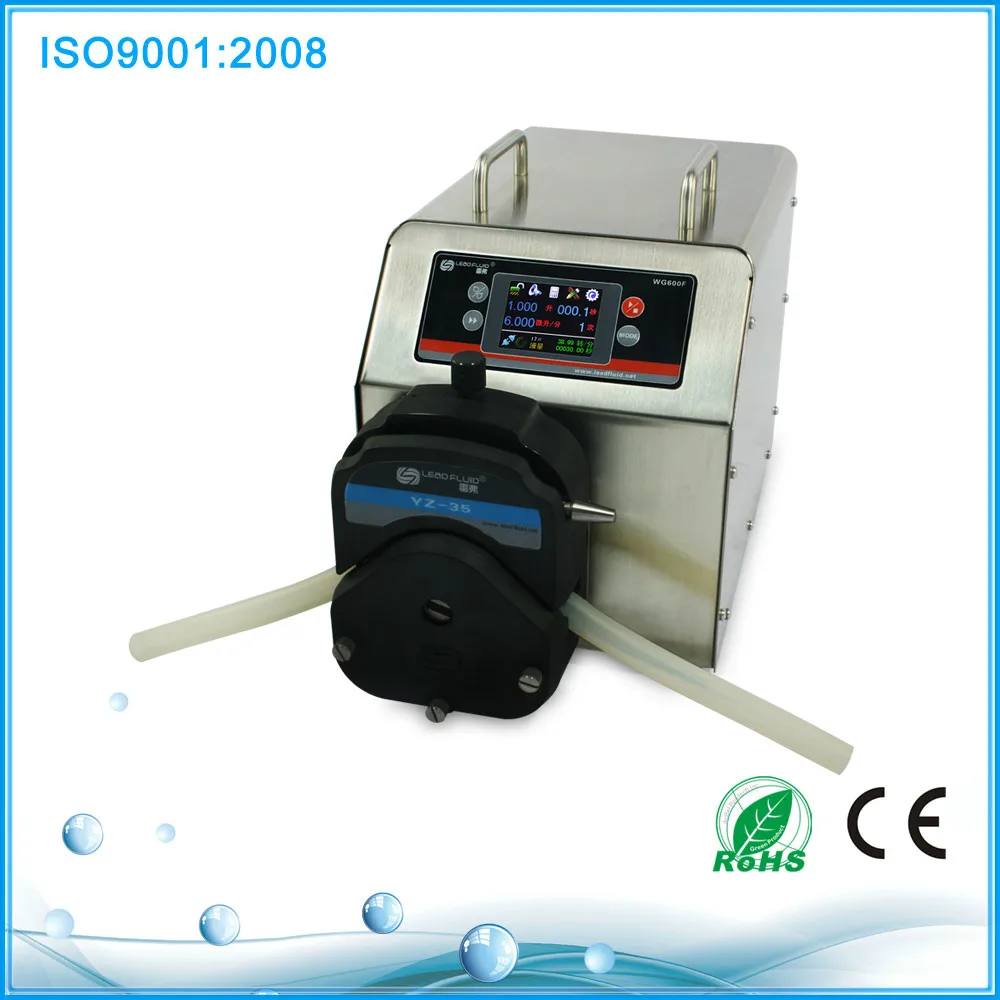

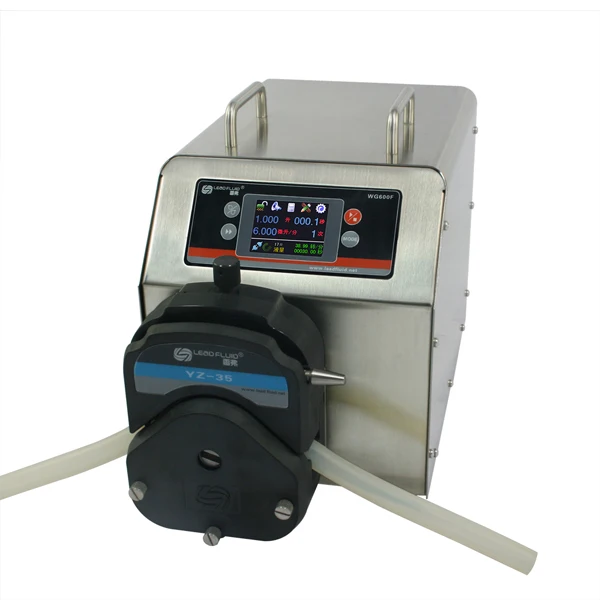

Lead Fluid WG600F industrial intelligent dispensing peristaltic pump, is suitable for transferring and dispensing large amount of fluid industry. Flow range 0.01-13 L/min, speed range 0.1-600 rpm, can cascade two pump heads, brushless servo motor drive with large torque, no maintenance, high rotating accuracy.
Specification
Warranty | 1 year |
Customized support | OEM, ODM |
Brand Name | lead fluid |
Model Number | WG600F |
Application | Automotive Industry, Commercial Buildings, Developing World Water Solutions, Drinking water treatment, Food and Beverage Industry, Industrial Utilities, Machining, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, wastewater treatment, Water Distribution, Water Treatment Solutions |
Structure | Multistage Pump |
Voltage | AC100~240V,50/60HZ |
Motor | DC Brushless Motor |
Material | 304ss |
Flow range | 0.01-13L/min |
Speed range | 0.1~600rpm,speed resolution0.1rpm,speed accuracy≤±0.2% |
Display | 3.5 inch HD color LCD |
Volume range | 100mL-9999L |
Interval time | 0.1～999.9 s/min/h |
Cycles | 0～999（0 Infinite loop） |
Suntion angle | 0～720° |
External control signal input | analog 0-5V, 0-10V, 4-20mA control analog, 5V, 12V, 24V input level optional |
Communication interface | RS485, MODBUS protocol is available |
Power consumption | 400W |
Dimension | 350×235×315mm |
Weight | 15kg |

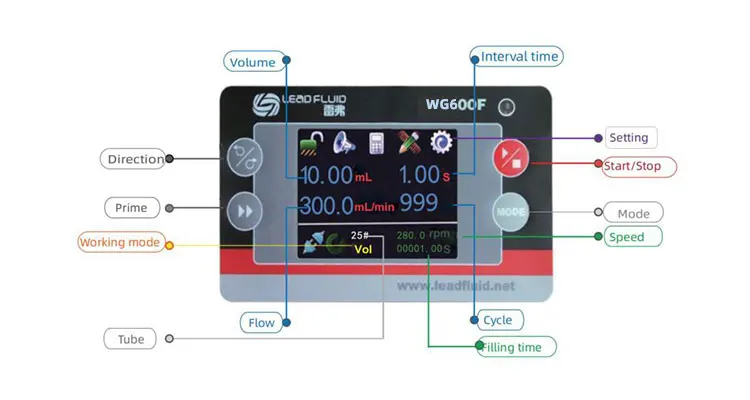

Color Screen Touch
HD color touch screen input and display parameters, with function mask buttons, convenient operation.
Multiple Working Modes
Multiple working modes are available Powerful, multi-purpose machine.
Servo Motor
DC brushless servo motor drive,powerful, speed accuracy≤±0.2%.
Drip-proof
Custom motor deceleration curve Reduce exit impact Prevent splashing and dripping
Anti Electromagnetic Interference
Super anti electromagnetic interference CE certification
External Control Function
Multiple external control function Various external control signal input/output RS485 communication interface MODBUS protocol is
available
available
Flow Parameters
Pump Head | Channel | Tubing (mm) | Flow Rate (L/min) |
WG600F | YZ35 | 1 | 73#82# |
2YZ35 | 2 | 73#82# |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

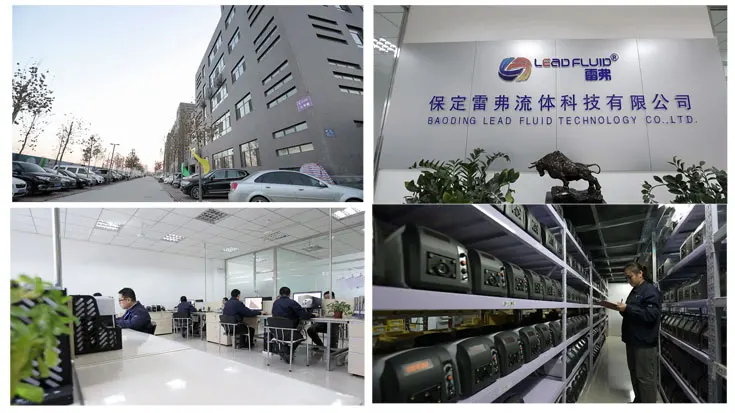

Company Profile
Baoding Lead Fluid Technology Co., Ltd. (with the former name of Baoding Yuren Technology Co., Ltd.) was established in October 1999. It is a high-tech joint-stock company, mainly engaged in peristaltic pump.syringe pump research and development, production and sales; as well as related precision control of fluid, such as research and development, production and sales of stepper motor, drive and controller. We undertake all types of intelligent flow control system design, transformation, debugging and technical advice (including the overall program). Peristaltic pumps are particularly useful in agriculture, biological technology, filtering, chemical industry, environment protection, the pharmaceutical industry, printing industry, water treatment industry,waste water treatment etc. Our Company is located in Baoding, Hebei Province, with convenient transportation of railroads and highways. We sincerely look forward to your visit and cooperation!
CERTIFICATIONS
Exhibition
