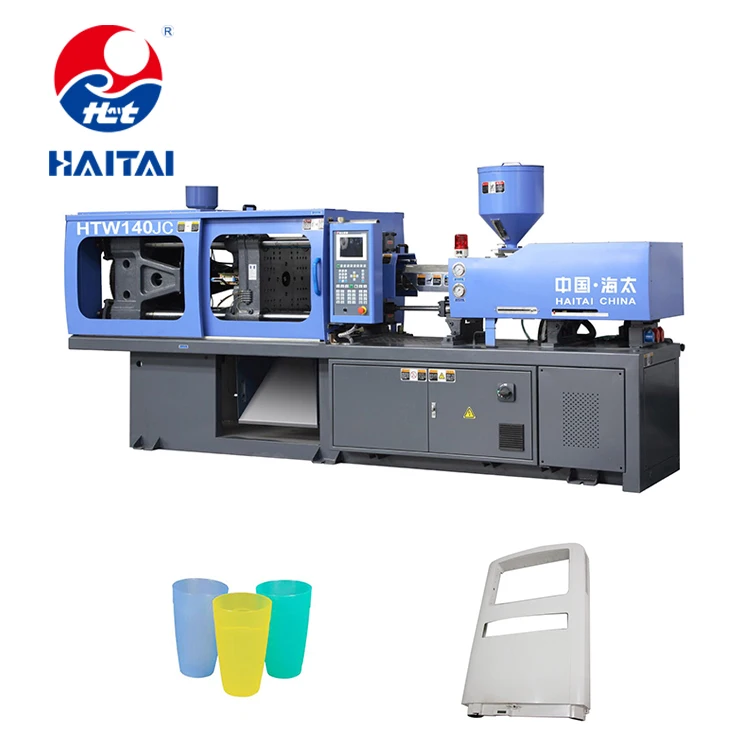

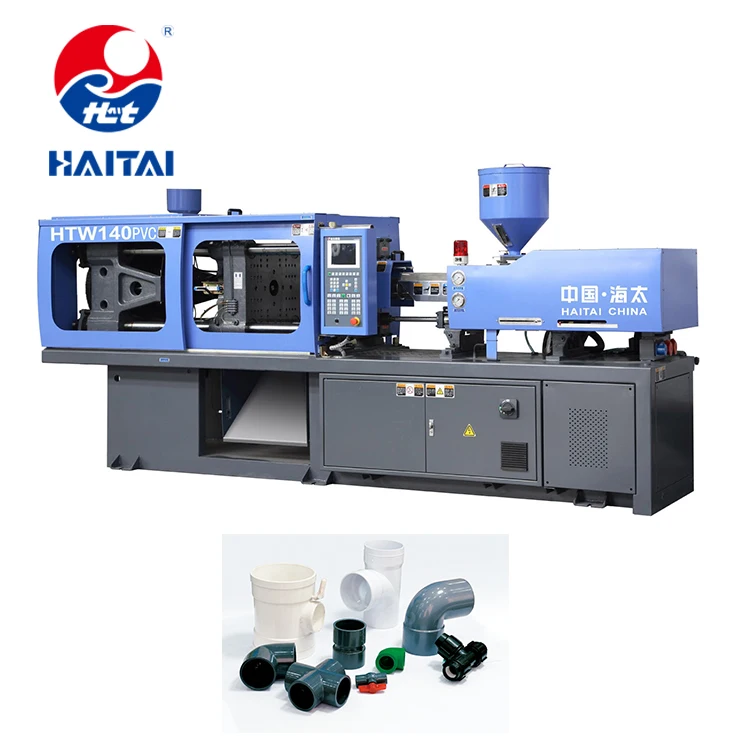

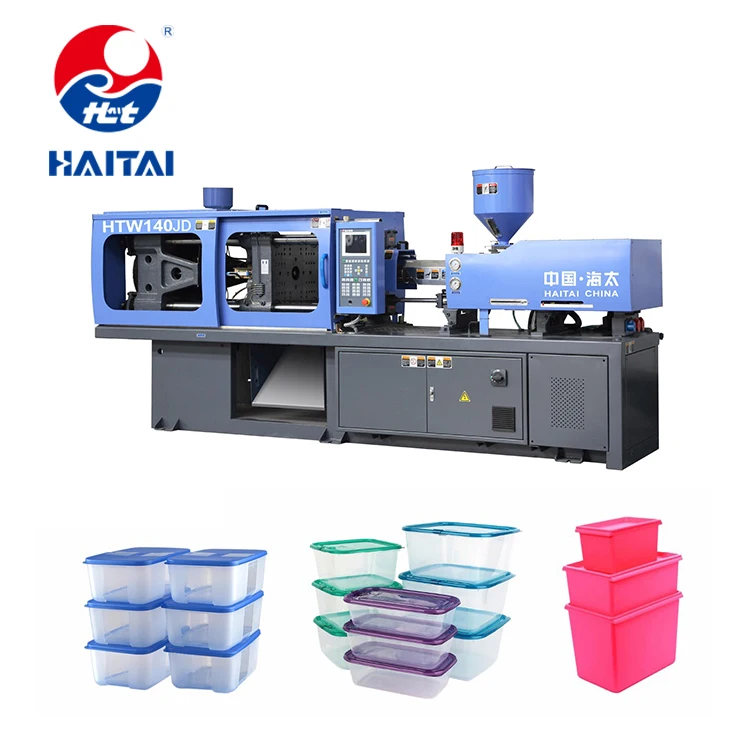

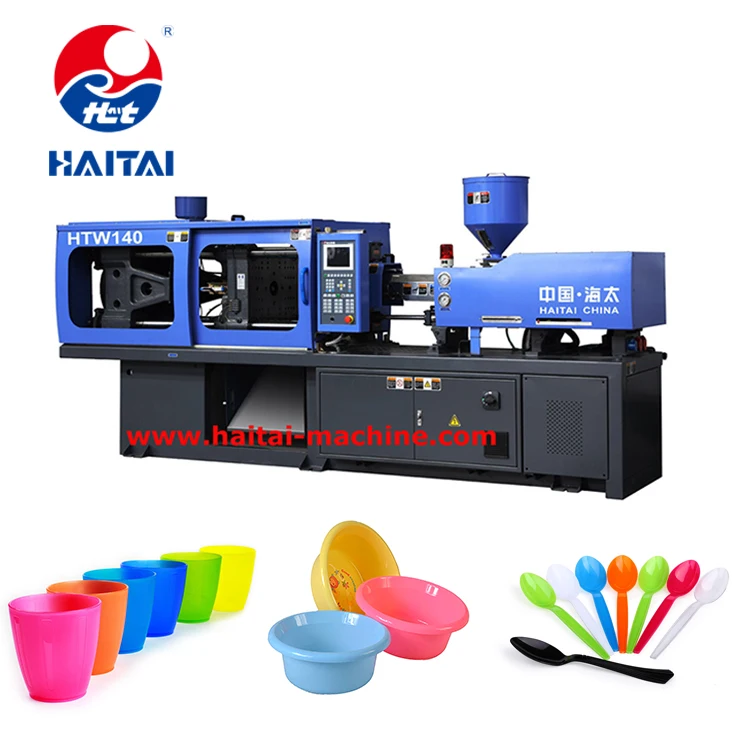

HTW140 PVC Factory Price good Full automatic pvc pipe fitting making injection molding moulding machine

Product Overview

Description



HTW140 PVC  Factory Price good Full automatic pvc pipe fitting making injection molding moulding machine





1. SPECIFICATIONS



Main advantages of HTW/UPVC injection molding machine:

(1) Air cooling fans on barrel, for fast reaction time and precise temperature control

(2) New special screw geometry optimized for UPVC, achieving stabilized plasticising and excellent production

(3) Wider moving safety doors at back and front, to accommodate bulky core pulling cylinders

(4) Machine equipped with core pulling controls

(5) Automatic oil lubrication pump

(6) Equipped with automatic mould height adjustment system



2. TECHNICAL PARAMETERS

SPECIFICATION		HTW140
		A	B	C
INJECTION UNIT
Screw diameter	mm	38	42	45
Screw L/D ratio	L/D	22.1	20	18.6
Shot volume(theoretical)	cm3	193	235	270
Injiection weight(ps)	g	176	213	246
Injection rate	g/s	94	115	132
Injection pressure	Mpa	205	170	147
Screw pressure	rpm	190
CLAMPING UNIT
Clamping force	kN	1400
Open stroke	mm	380
Space between tie bars(W×H)	mm	410×410
Max.Mold height	mm	450
Min.Mold height	mm	160
Ejector stroke	mm	120
Ejector force	kN	50
OTHERS
Max.Pump pressure	MPa	16
Pump motor power	kW	13
Heating power	kW	7.9
Machine dimension(L×W×H)	m	4.48×1.11×1.9
Oiltank cubage	L	270
Machine weight	t	4.0

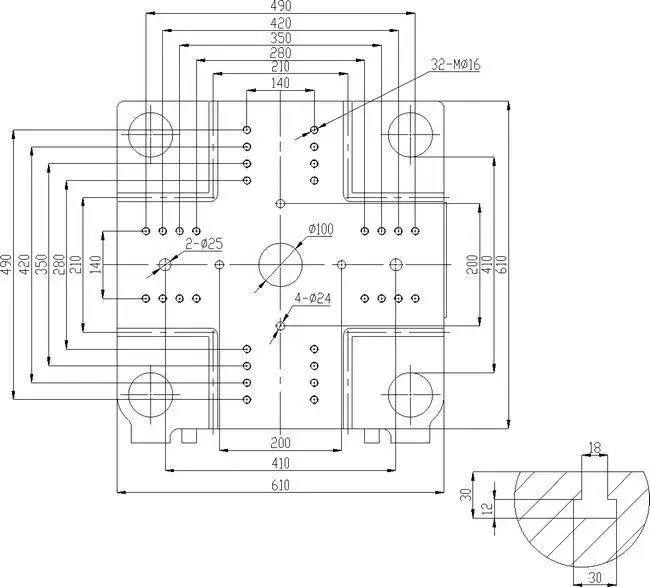

PLATEN DIMENSIONS

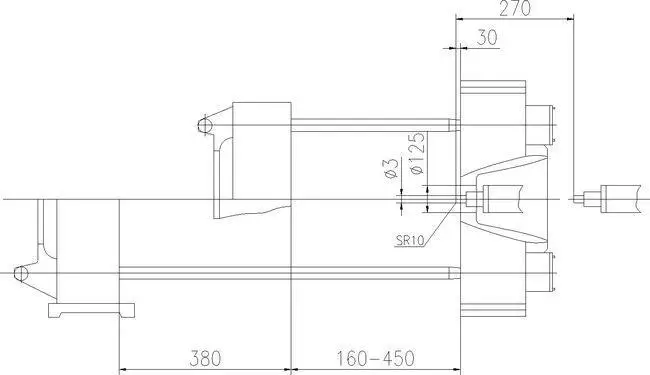

MOULD SPACE DIMENSOINS
