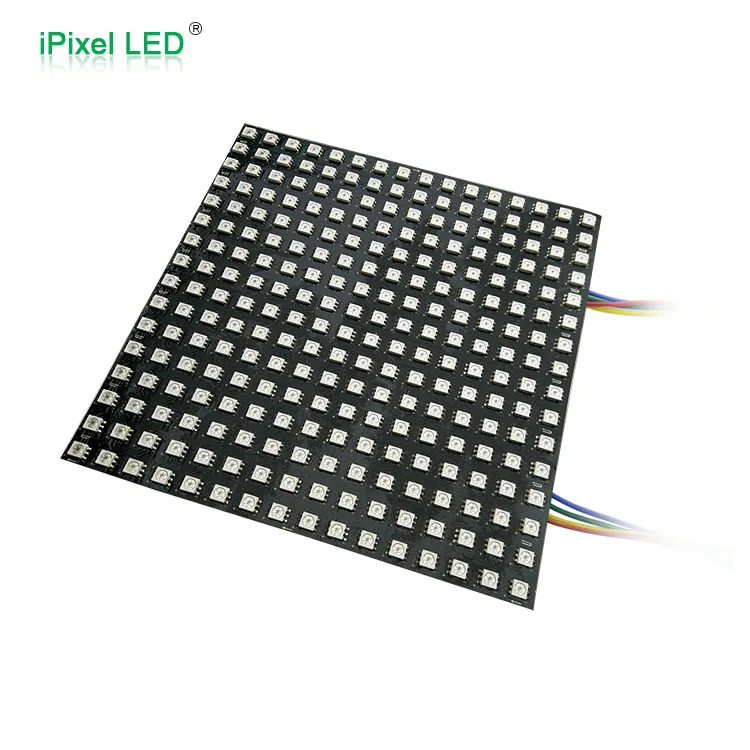

16x16 led matrix,256pixels ,IC APA102 flexible led panel display

• Individually addressable RGB LEDs (16*16 LEDs)


• 24-bit color control (8-bit PWM per channel); 16.8 million colors per pixel


• Additional color-independent brightness control (5-bit PWM); 32 brightness steps per pixel


• SPI control interface


• 5 V operating voltage


• Each LED Matrix draws approximately 8A at full brightness


• 160 mm width (16 LEDs) or 160 mm width (16LEDs) Pitch : P10


• Flexible,bendable IP20 rating


• Black strip color


• Power/data connectors on both strip ends for easy chaining

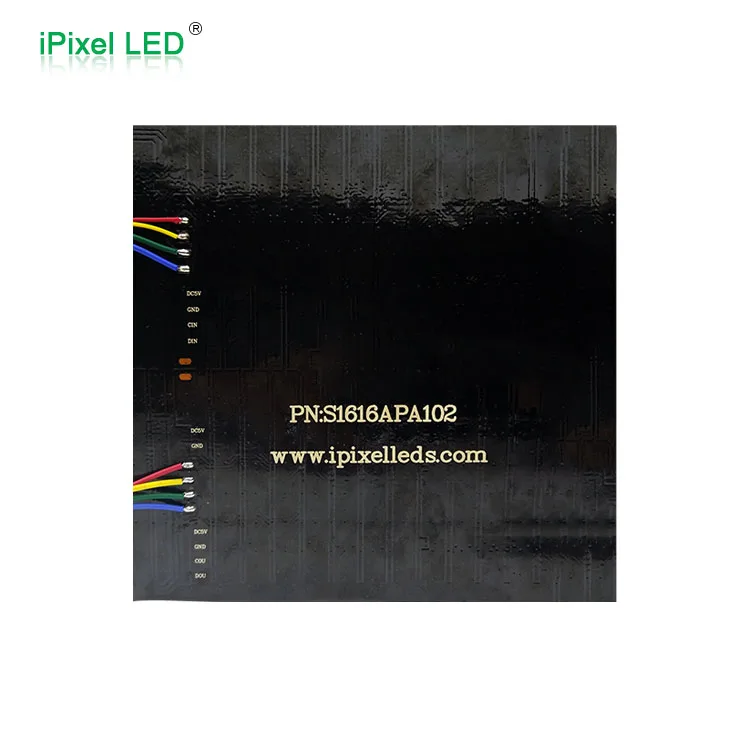

You can see this is the back side of our apa102 16x16 led matrix, there have 3 weld pad,

in the middle is DC5V+ and GND-, for connect power supply. both side weld pad with DAT, CLK, DC5V+, GND 4 points.

so this matrix with 4pin male and female connectors.
