MY 380F Solid Ink Coding Machine

Product Overview

Description

Specifications

Adopt photoelectric mechanism technology, automatic temperature Control, Auto counting, adjustable print position.

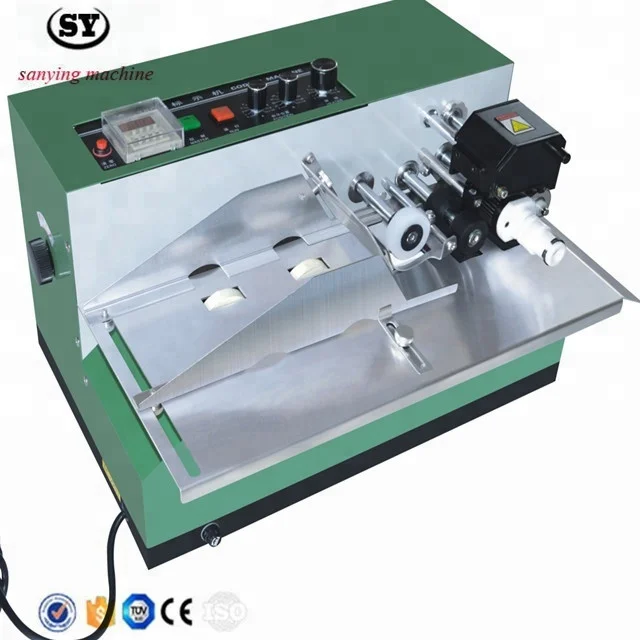

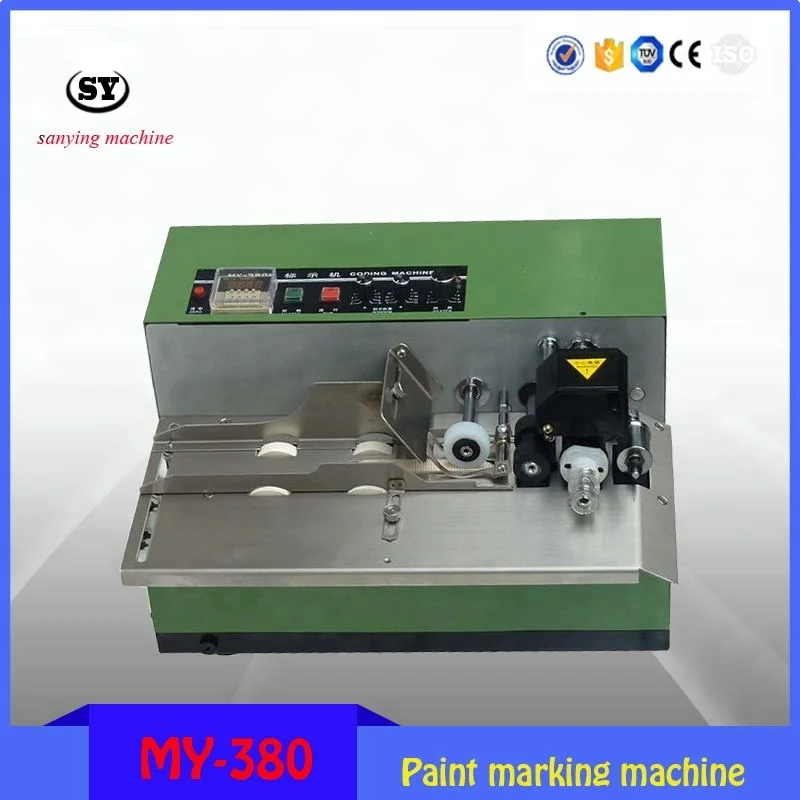

  380F Solid-Ink Coding Machine





Description:.
MY-380F solid-ink coding machine fit for printing label on paper, thin cardboard, plastic film and aluminum foil. Adopt solid-ink coding, characterized by high definition, instant printing & instant dry, various colors selectable and strong adhesion.



Features:
1. Adopt photoelectric mechanism technology, automatic temperature control, auto counting, adjustable print position.
2. The printing roller equipped to the machine can be used for both R arrange and T arrange of types. For types in T arrange, the machine can print 1-10 lines with 1-10 characters in each line. For types in R arrange, the machine can print 1-8 lines with 1-8 characters in each line. Types in sizes of 2mm, 2.5mm, 3mm are available as option.
3. Work efficiently and automatically at high speed, up to 30pcs per minute.



Parameters:

	MY-380F	MY-380F/W
Voltage(V/Hz)	AC 220/50  110/60
Power(W)	180
Solid Ink Roller(mm)	35×32   35×16
Printing Speed(pcs(/min)	≤300
Object Size(mm)	L:50-500 W:30-190	L:50-550 W:30-300
Max. Printing Line	T Arrange(10.5PT):11Lines (Max.10 characters/line) R Arrange(10.5PT):8Lines(Max.8 characters/line)
Printing Size(mm)	Within 60-250
Type Size(mm)	2×1.5( 8PT )  2.5×2(9PT)  3×3(10.5PT)  4×2.5(18PT)
External Dimensions (L×W×H)(mm)	440×345×300	440×465×300
Net Weight(Kg)	23	26

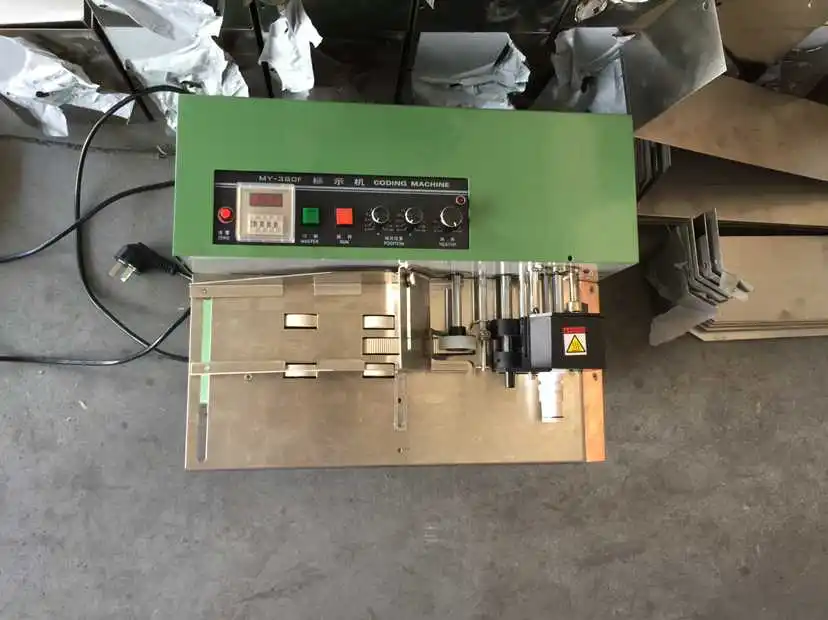

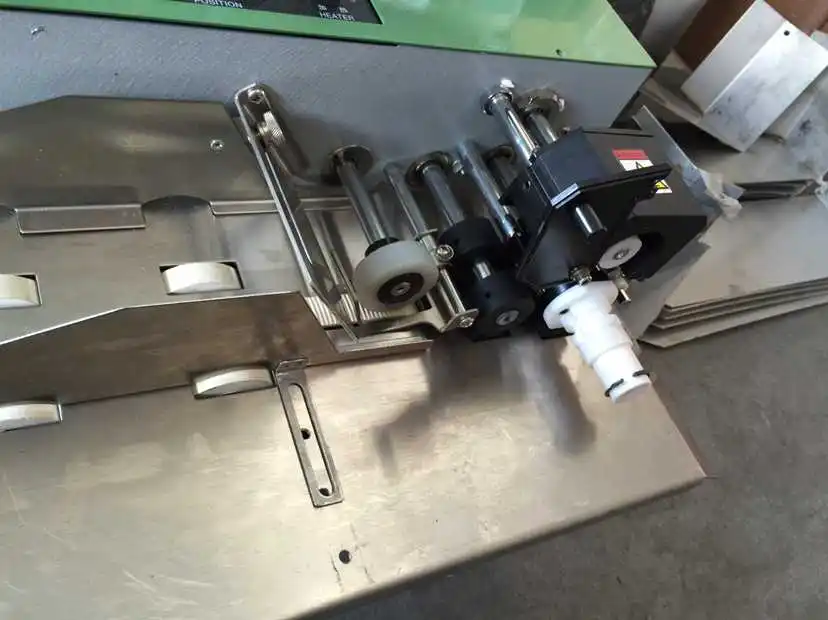

  Product photos



The Reason to Choose us ?

1.We are the real factory,with guarantee for quality and after-sale service !

   Besides the machines,we supply spare parts.

2.Competitive price,maybe not the lowest,the quality worths the value.

3.To supply the satisfying machine is our responsiblity,while to establish a long good cooperation relationship is our goal.



For any further information,please don’t hesitate to contact with us !

Thank you for inquiry ! Welcome to visit our factory !
