Few layer Boron Nitride films price (H BN film)
- Category: Other Chemicals >>>
- Supplier: Zhengzhou Dongyao Nano Materials Co. Ltd.
Share on (60338119583):
Product Overview
Description
High purity Hexagon Boron Nitride BN Powder
Product Description
Product performance：
The melting point of boron nitride is 3000 ℃, the density is 2.25g /cm3, the appearance is white loose powder with soft texture and smooth feeling, which is similar to the nature of graphite, belonging to hexagonal crystal system and sheet structure. So it is called "white graphite". This product has good electrical insulation, thermal conductivity, chemical corrosion resistance and lubricity, and has strong neutron absorption capacity. It is stable to almost all organic solvents and corrosive chemicals; Hexagonal boron nitride is chemically inert to almost all molten metals, and its physical and chemical properties remain basically unchanged below 1000 ℃ in air; It is still stable at 3000 ℃ in inert gas. Hexagonal boron nitride powder becomes white block after hot pressing and sintering, which is easy to machine, and the temperature resistance can be as high as 2000 ℃.
Technical Parameter：
Type | APS(D50) | Purity(%) | O(%) | C(%) | B2O3(%) | N(%) | Form | ||||||
BN-DY-001 | 1-3μm | ＞99 | ≤0.8 | ≤0.1 | ≤0.5 | 57.1-57.3 | HBN | ||||||
BN-DY-002 | 5-6μm | ＞99 | ≤0.8 | ≤0.1 | ≤0.5 | 57.1-57.3 | HBN | ||||||
BN-DY-003 | 8-9μm | ＞99 | ≤0.8 | ≤0.1 | ≤0.5 | 57.1-57.3 | HBN | ||||||
BN-DY-004 | 15-16μm | ＞99.5 | ≤0.5 | ≤0.1 | ≤0.3 | 57.1-57.3 | HBN | ||||||
Note | According to user requirements of nano particle can provide different size products. | ||||||||||||
Performance characteristics:
1: HC grade products are sintered at 1600-1800 ℃, with medium crystallization, excellent high temperature resistance and oxidation resistance, small original particle size and large agglomeration particle size. Because the particles are spherical, they are particularly suitable for filling, mold release agent for casting and injection molding and composite ceramics, and are also easy to be hot pressed.
2: The HN grade product is sintered at 1800-2000 ℃, and its performance reaches or approaches the advanced level of similar foreign products. The HN grade product is especially suitable for high-voltage switch nozzle because its particle size is similar to that of polytetrafluoroethylene and its particle size is uniform; At the same time, because of its excellent thermal conductivity, it is very suitable to be used as thermal conductive plastic or thermal conductive rubber; Because of its low oxygen content (generally less than 0.5%), it is also particularly suitable for special ceramic raw materials.
3: HS grade hexagonal boron nitride products are also sintered at 1800-2000 ℃, with high crystallinity and more uniform particle size. The heat conduction, insulation, lubrication, high temperature resistance and molten metal corrosion resistance of hexagonal boron nitride with high crystallinity are better than ordinary products. It can be used in various high-end fields, including cosmetics and thermal conductive materials, and its performance reaches or approaches the advanced level of similar foreign products.
4: HF grade hexagonal boron nitride products have small particle size, high crystallinity, high purity and low content of water-soluble boron oxide, which are suitable for the application of products with small particle size requirements.
1: HC grade products are sintered at 1600-1800 ℃, with medium crystallization, excellent high temperature resistance and oxidation resistance, small original particle size and large agglomeration particle size. Because the particles are spherical, they are particularly suitable for filling, mold release agent for casting and injection molding and composite ceramics, and are also easy to be hot pressed.
2: The HN grade product is sintered at 1800-2000 ℃, and its performance reaches or approaches the advanced level of similar foreign products. The HN grade product is especially suitable for high-voltage switch nozzle because its particle size is similar to that of polytetrafluoroethylene and its particle size is uniform; At the same time, because of its excellent thermal conductivity, it is very suitable to be used as thermal conductive plastic or thermal conductive rubber; Because of its low oxygen content (generally less than 0.5%), it is also particularly suitable for special ceramic raw materials.
3: HS grade hexagonal boron nitride products are also sintered at 1800-2000 ℃, with high crystallinity and more uniform particle size. The heat conduction, insulation, lubrication, high temperature resistance and molten metal corrosion resistance of hexagonal boron nitride with high crystallinity are better than ordinary products. It can be used in various high-end fields, including cosmetics and thermal conductive materials, and its performance reaches or approaches the advanced level of similar foreign products.
4: HF grade hexagonal boron nitride products have small particle size, high crystallinity, high purity and low content of water-soluble boron oxide, which are suitable for the application of products with small particle size requirements.

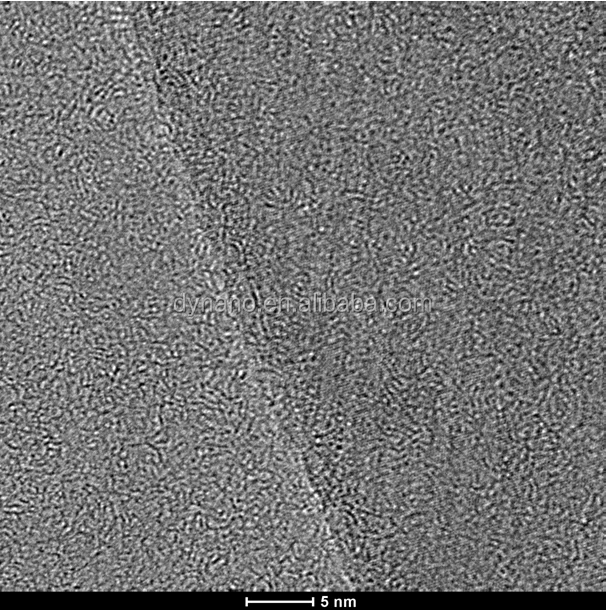

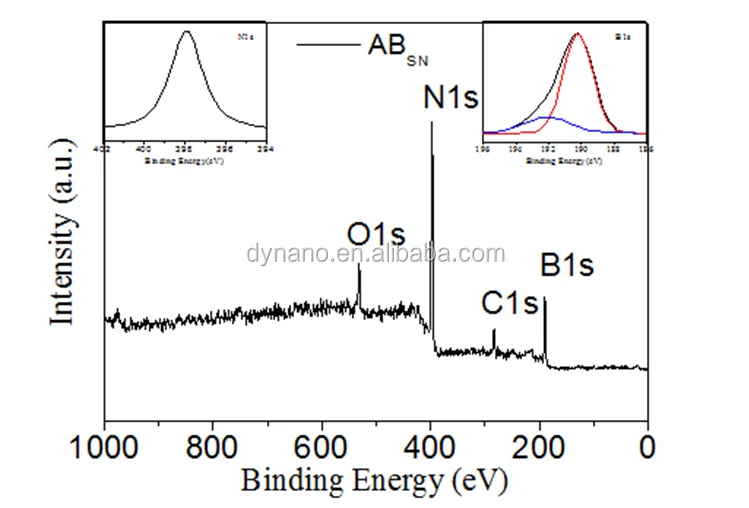

Test report：
Packing & Delivery
1 | Packing | 100g/bag, 500g/bag, 1kg/bag, 25kgs/bag/drum or according to your requirements. |
2 | Delivery Time | In 2-3 days after receive the payment. |
3 | Storage | It should be stored in dry, cool and sealing of the environment. |
Company Profile
Zhengzhou Dongyao Nano Materials Co., Ltd. mainly engaged in sales of the project of metal nano materials, nano inorganic materials, organic materials, green environmental protection material,mechanical equipment, the products have been sold to the world more than 50 countries and regions.The company has passed ISO9001:2008 international quality system certification, has authorized 5 patents of invention and 15 utility model patents. The company always adhere to the"technology leading, customer first, integrity management" principle, is committed to building the world's nano materials gold supplier.
FAQ
1 | Q:What is the payment way? A: Alibaba Credit Insurance, Western union, Bank transfer (T/T), Alipay all for Option. |
2 | Q: Can your company provide free samples for testing? A: Yes, we can supply some samples as required for your test. |
3 | Q: What is the delivery method? A: DHL, EMS, TNT, Fedex,UPS etc. |
4 | Q: What product parameters and test reports can you provide? A: The testing center can provide information such as SEM, COA and PSA. If necessary, it can entrust a third-party testing agency for testing, such as SGS etc. |
