Max Machinable Width 1200MM Marble Bullnose Skirting 45 Degree Edge Stone Granite Tile Polishing Machine Equipment for Sale

Product Overview

Description

Max Machinable Width 1200MM Marble Bullnose Skirting 45 Degree Edge Stone Granite Tile Polishing Machine Equipment for Sale



Description

Designed and manufactured according to the up-to-date concepts and structural principles

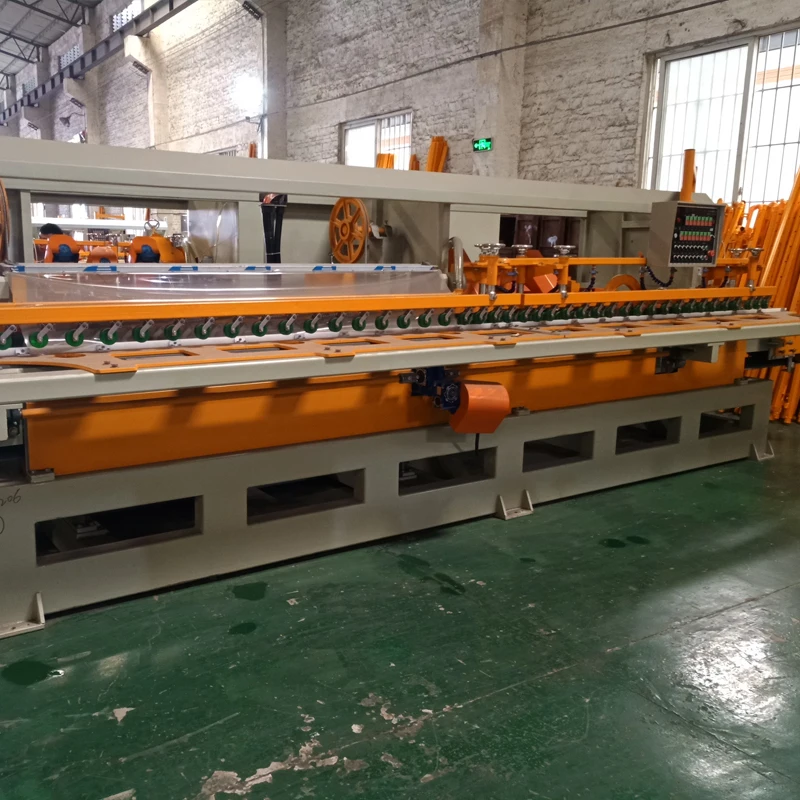

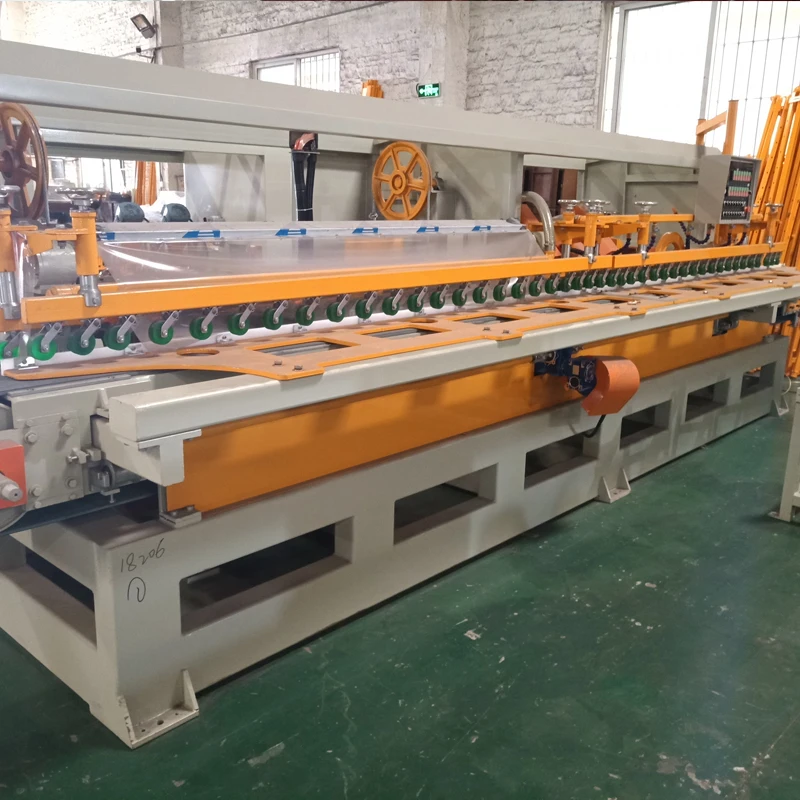

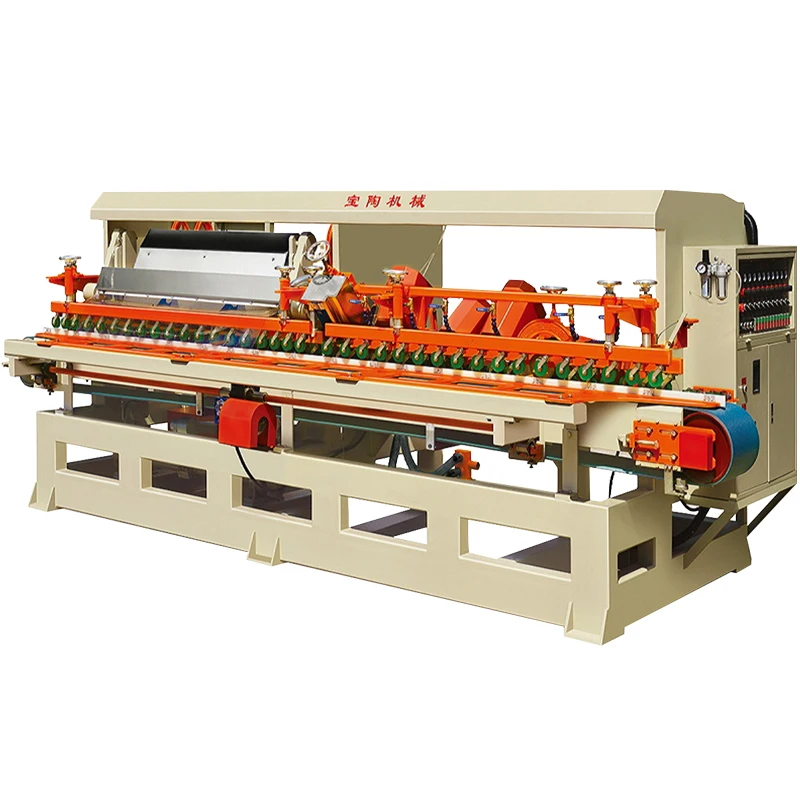

Automatic multi-spindle belt polishing machine, is remarkable for its performance and production on every kind of marble, granite, glass, tiles etc.

The motorized conveyor belt improves the working quality and allows the production of pieces continuously.

The guide positioned on motor side and the pressor bar guarantee, during working phase, a strong stability and an high level of finishing piece.

Its complete equipment allows it to perform all the finishing operations on the materials used in the building field, furnishings and monuments.

Automatic machines with 10 motor spindles for half bull-nose working, jolly, bevel and marble, granite, gres porcelain firing, agglomerate grinding.

ADVANTAGES OF MPC SYSTEM

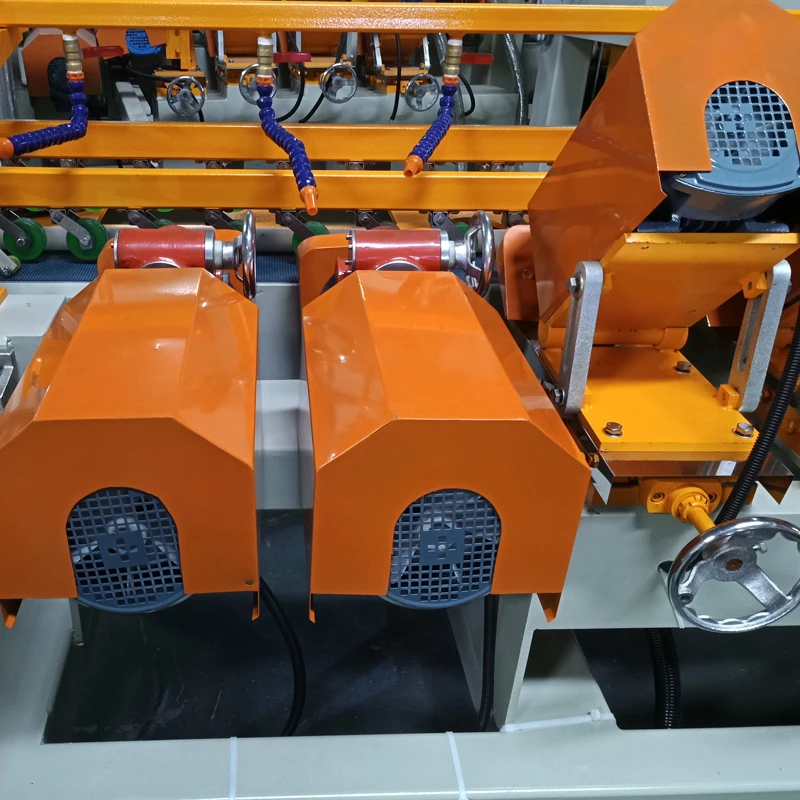

All adjustments are facilitated by the use of hand wheels and they do not require the use of tools.

In a pump wet tile tool, continuous water supply is needed; therefore it has to be linked to a wellspring of plain water.



Structure
On an electro-welded steel structure with grinded support plane runs the synthetic conveyor belt with a guide that avoids the lateral displacement, driven by a motor reducer with an electronic speed control.

The material is transported by polyurethane rollers with stainless steel axes.

The structure has a material-support system with motorized anti-slip rollers.

All our machines are protected against corrosion through a modern treatment that follows different phases: sandblasting, metallization and painting

The painted covers are subject to cataphoresis treatment, cartes in stainless steel.



Functions

Profiling on bullnose of all materials with polishing process and removing mark

Perfect “veletta” working on steps and kitchen of any dimension

Working off lat edge on marble and granite, with upper and lower bevelling and, at the same time, execution of water drip for the realization of current and wall-covering

Shaping of the edge on different material, such as granite, marble etc

With the simple replacement of tools it is easy to realize some processes like “bull”, “half-bull”, “becco di civetta” and also some profiles on customer ‘s request, of any length and thickness till 4 centimeters

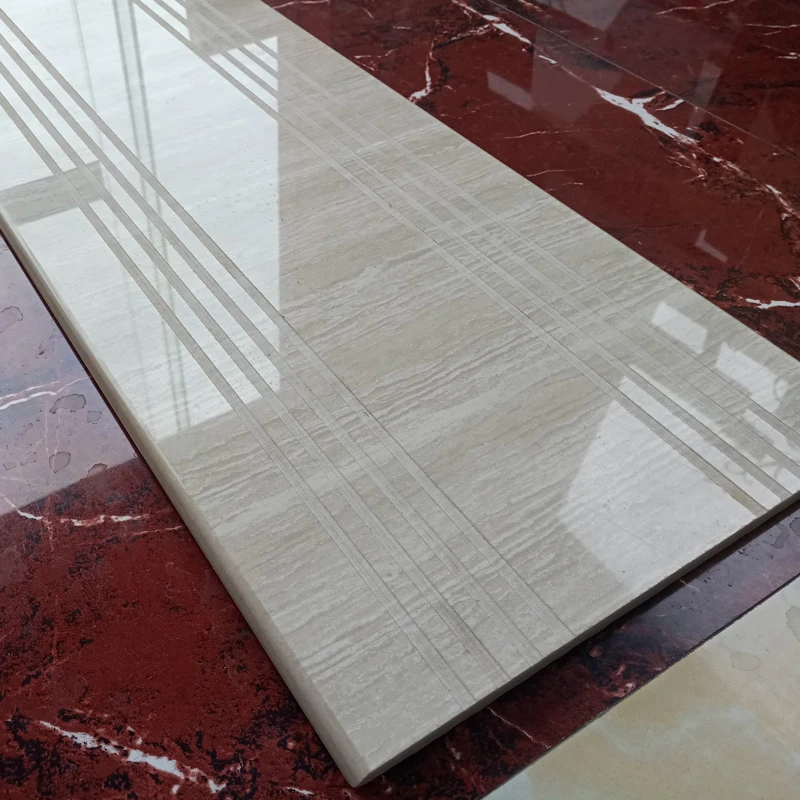

Open groove and polishing the groove for the tiles.

Parameters

Technical Data	UM	BT-1200-PSB-14
Working Thickness	MM	6-20
Working Width	MM	100-1200
Nos. of Conveyor Belt	PCS	1
Nos. of Grinding Wheel	PCS	1
Dia. Of Grinding Wheel	MM	200
Nos. of Chamfering Wheel	PCS	5
Dia. Of Chamfering Wheel	MM	150-200

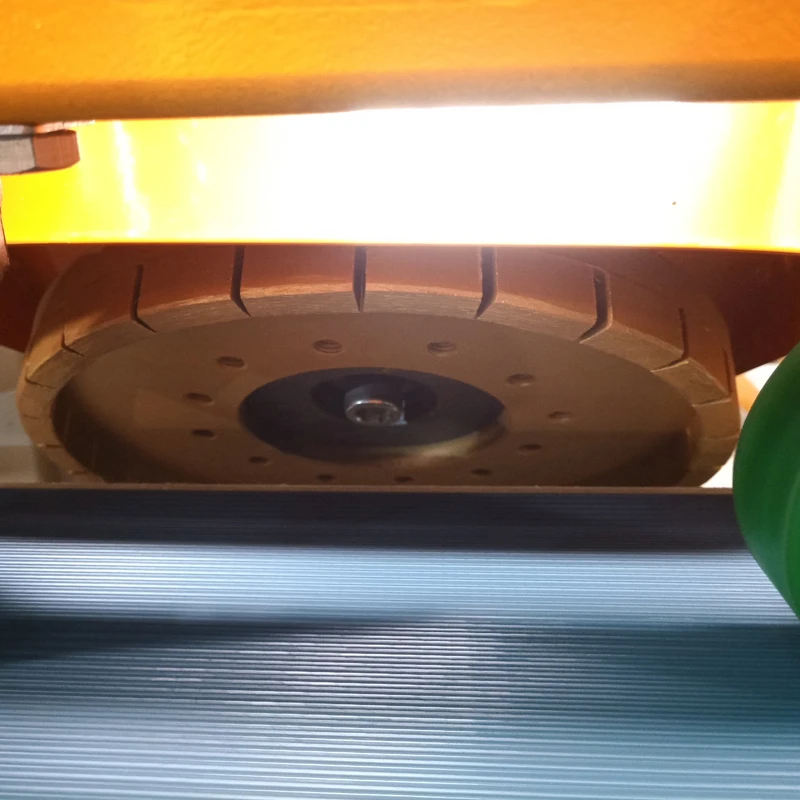

Nos. of Polishing Wheel	PCS	14
Dia. Of Polishing Wheel	MM	125
Groove Q’ty Available	SLIP	3-4
Dia. Of Opening Groove Wheel	MM	150
Polishing Speed	M/MIN	1.5-7.5
Total Power	KW	37.2
Electricity Consumption	KW/H	23
Air Consumption	L/MIN	55
Water Consumption	L/MIN	490
Machine Size	M	6 x 2.2 x 1.8
Machine Weight	KG	6200
