black plastic sheeting hdpe geomembrane for pool/fish farm pond liner

Share on (60338186029):


Price:

Quantity:


Product Overview

Description


black plastic sheeting hdpe geomembrane for pool/fish farm pond liner

Company Information

WHY Choose ZT?

As a professional manufacturer and sale of the earthwork product, ZT Co. insists to "people-oriented, win by quality" culture. This service has attracted many big companies in China including the likes of CSCEC, CRCC, and CNQC which have made repeat purchases from us.

ZT sincerely invites you to take an inspection tour around our factory.



Zinger we offer, Trust we harvest!

ASTM standard HDPE geomembrane with factory price

Production Equipment

hdpe geomembrane

Test Equipment

geomembrane

 Raw Material

geomembrane

Our Customers

ASTM standard HDPE geomembrane with factory price



Product Description

 Application



ASTM standard HDPE geomembrane with factory price



Specification

1. Product Introduction

Thickness

0.1mm-3.0mm

width

1-7m

Length

50-100m or as customers' requests

Material

LDPE, LLDPE, HDPE, EVA, ECB, PVC , CPE

Color

Black, white, blue, red, grey, and others

Port

Qingdao

Delivery

2-20 days

Packing

woven bag or as customers' requests



2. Product Feature



1)     Good physical and mechanic performance

2)     High tearing resistance, strong deformation adaptability

3)     Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance

4)     Good adaptability to high and low temperature, non-toxicity, long service life

5)     Good waterproof, drainage, anti-seepage and damp proof effects

6)     Complete width and thickness specifications, low cost and easy installation.



3. Product Application Range



1)     Domestic and Hazardous Waste landfills

2)     Landfill closures

3)     Heap leach mining and tailing dams

4)     Biogas Management

5)     Floating Covers

6)     Waste water treatment reservoirs

7)     Water conveyance channels and reservoirs

8)     Temporary tanks

9)     Industrial sludge storage and drying ponds

10)  Secondary containment

11)  Architectural ponds and lakes

12)  Brine evaporation ponds

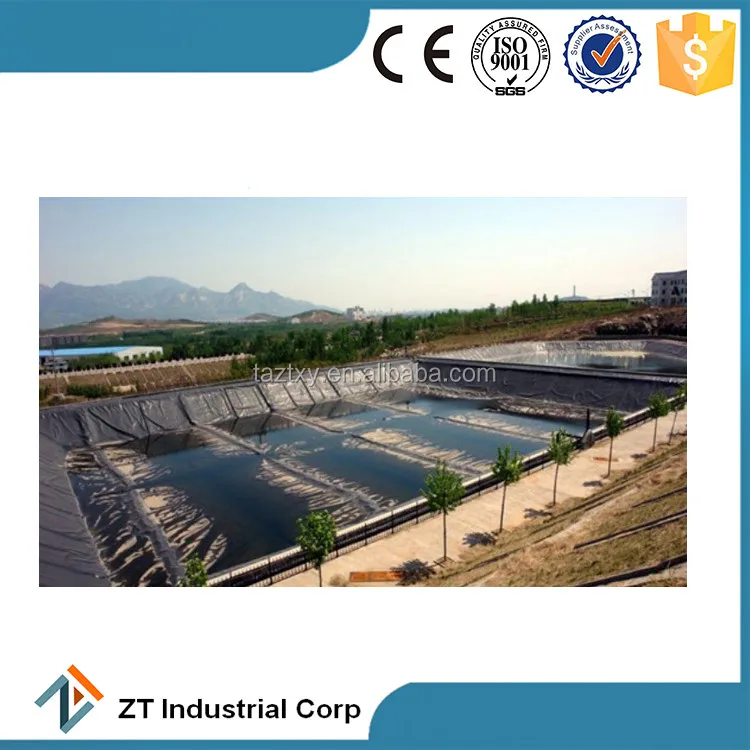

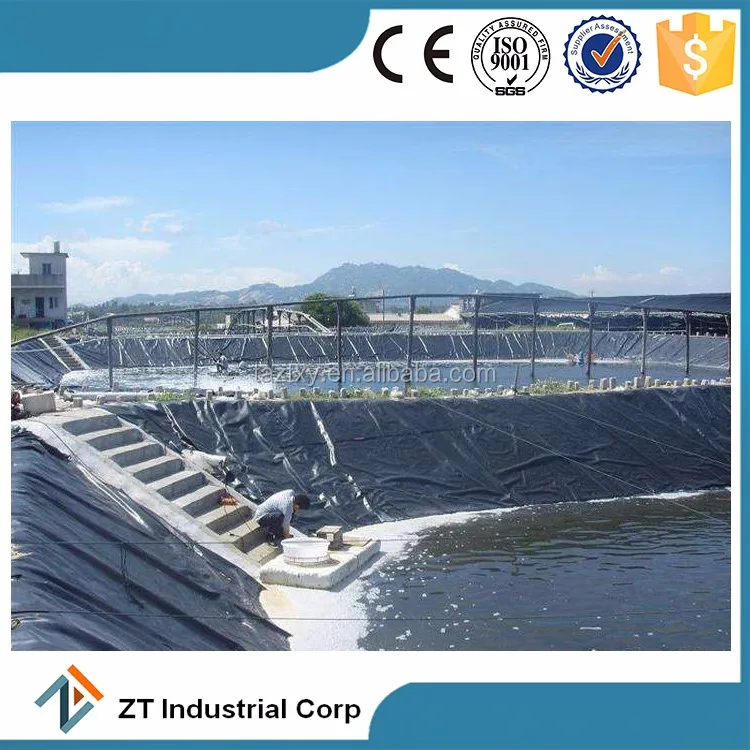

13)  Aquaculture ponds

14)  Food and water grade reservoirs and tanks

Technical Parameter



4.Product Technical Parameter

HDPE Geomembrane ASTM standard



No.

Item

Test Value

0.5mm

0.75mm

1.0 mm

1.25 mm

1.5 mm

1.8mm

2.0mm

2.5 mm

3.0mm

1

Minimum Density(g/cm³)

0.94

2

Strength at yield, N/mm

7

11

15

18

23

27

30

38

45

3

Strength at break ,N/mm

10

21

28

33

43

51

57

71

85

4

Elongation at yield,%

13

5

Elongation at break,%

700

6

Tear Resistance N

56

93

125

156

187

219

249

311

373

7

Puncture Resistance N

120

263

352

440

530

618

703

881

1059

8

Stress Crack Resistance, hrs

400

9

Carbon Black Content, %

2.0-3.0

Carbon Black Dispersion

1 or 2

10

Standard OTI Min

100

High Pressure OTI Min

400

11

Impact Cold Crack at -70°C

Pass

12

Water vapor permeability(g.cm/cm2 .s.Pa)

≤1.0×10-13

13

Dimensional Stability (%)

±2





PVC Geomembrane



Items

I

II

Tensile Strength Mpa  ≥

8.0

12.0

Elongation at Break %

200

250

Size change rate in heat treatment %

3.0

2.0

Bending low Temperature °C

-20°C

-25°C

Anti-penetrating

Not leaking

Impermeability

Impermeable
