double shaft coal mixer
US $7999-$8699
lightweight foam concrete machine mixer and pump,Integrated mixing equipment
- Category: >>>
- Supplier: Zhengzhou Anjit New Equipment Co. Ltd.
Share on (60338256839):
Product Overview
Description
Product Description
Lightweight foam concrete machine mixer and pump
Foam concrete wall making machine
Contents:
SYT-20 Foam concrete making machine+SYT-30 Hydraulic foam concrete conveying pump
Capacity: 10-15m3/h
The hydraulic pump is with 70m straight steel pipes +50m high pressure rubber pipes ( we also accept clients special requirement on the pipes).
SYT20 Foam Concrete Making Machine
Specification of Combined Foam Concrete Making Machine | |||
Model | SYT-20 | Mixing motor | 11kw |
Output volume | 1500L | Winding motor | 5.5kw |
Material input volume | 2000L | Water pump motor | 1.1kw |
Capacity | 5-10m3/h(feed by manual) 10-15m3/h (feed by batcher) | Vibrating motor | 0.55kw |
Main shaft revolution | 32r/min | Foam pump | 3kw |
Hopper lifting speed | 22m/min | Air compressor | 5.5kw |
Overall dimension | 2600*2250*2800mm | Max. moved speed | ≤15km/h |
Total weight | 2800kg |
|
|
SYT-30 Hydraulic foam concrete conveying pump
Specification Of Hydraulic Foam Concrete Conveying Pump | |
Capacity | 20 m³/h |
Max. theoretical conveying pressure | 8 Mpa |
Max. theoretical horizontal distance | 500 m |
Max. theoretical vertical distance | 180 m |
Conveying pipe inside diameter | Φ70/Φ64 |
Max. particle size of aggregates | 8 mm |
Pump head quantity | 2 Pcs |
Oil cylinder (material cylinder) quantity | 2 Pcs |
Oil cylinder inside diameter*stroke | Φ80*1000 mm |
Material cylinder inside diameter*stroke | Φ140*1000 mm |
Max. pressure of hydraulic system | 24 Mpa |
Oil pressure box volume | 320L |
Motor power | 30 KW |
Dimension (L*W*H) | 4200*1420*1750 mm |
Weight (whole machine) | 1900 kg |

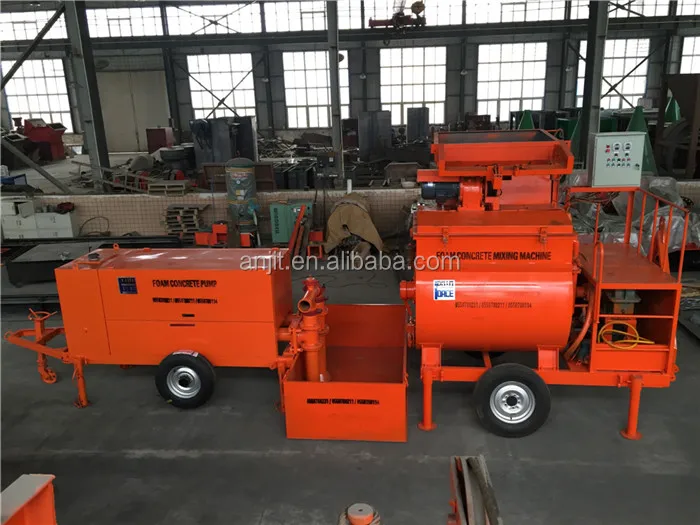

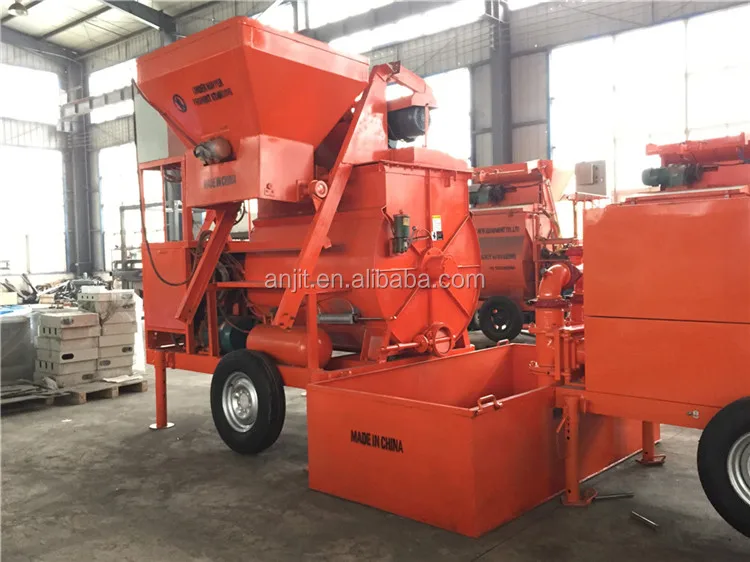

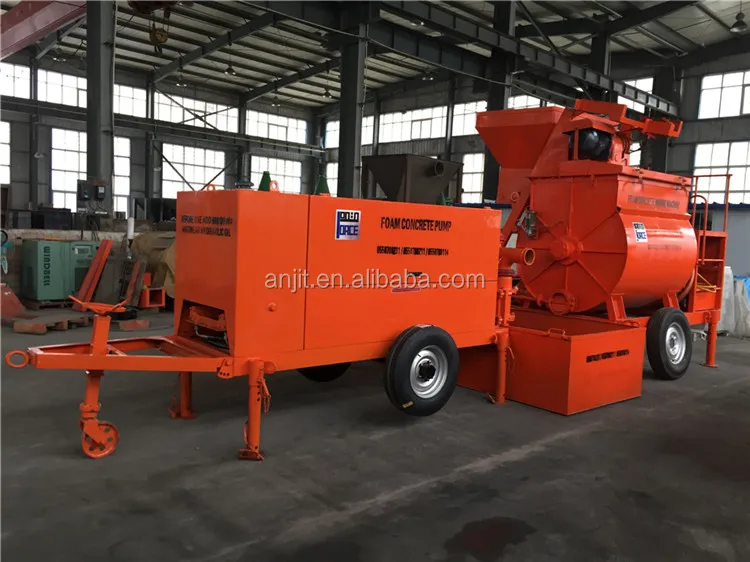

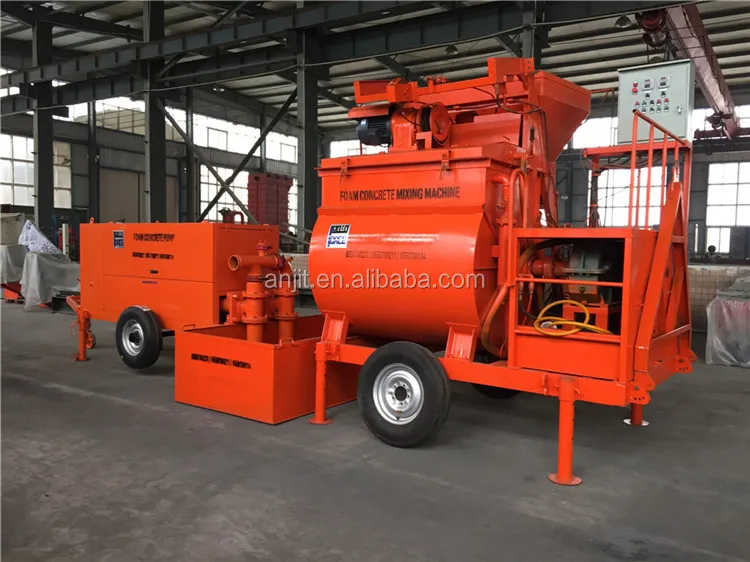

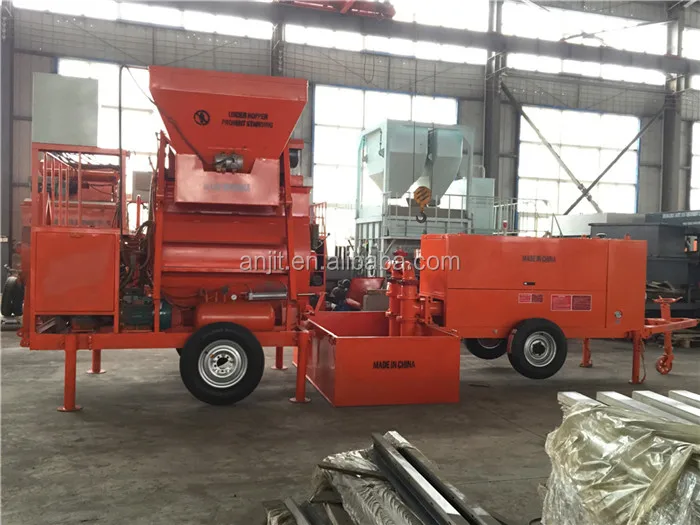

Details of Lightweight foam concrete machine mixer and pump in the pictures:
Packaging & Shipping
Packing: Naked
Shipping: The whoel set foam concrete wall making machine need 1SET 40HQ
SYT-20 foam concrete mixer size 2600*2250*2800mm (L*W*H).
SYT-30 hydraulic foam concrete pump size is 3100*920*1300mm (L*W*H)
Our Services
Remote guidance is often offered to clients, definitely we can send technician to clients plant for installation and training workers there on the basis of clients special requirement.
Company Information
Zhengzhou Anjit New Equipment Co., Ltd,situated at High-tech Industries Development zone in Zhengzhou city, established in 2011 specializing in Cellular Lightweight Concrete(CLC) Machines, such as GYC-60B foam concrete wire cutting machine, GYC-60H foam concrete sawing machine, block mould, foam cement mixing machine, foam concrete pump, demoulding machine and others, which are widely used as a green materials in construction buildings.
Eco-friendly & save energy 30% machine, Excellent quality, reasonable price and perfect service make our products enjoy a good market at home and abroad. Till today the continuous improvement of CLC machines have been exported to Iraq, India, Indonesia, Philippines, Bangladesh, Ghana, Ecuador, Iran, Kazakhstan, Canada, Libya, Afghanistan, Willemstad, Myanmar, Pakistan, Thailand, Kyrgyzstan, Angola, Argentina, Mongolia, Saudi Arabia, Turkey, Mexico, and Qatar.
With a perfect service system, Our engineers and technicians can make specific design proposal, install & commission machines, train workers for customers and good service for clients.
With rich experience in foreign trade we can help more and more foreign clients to find the right machines and get what they want machines and products.
We are waiting for your coming or contacting for business cooperation!!!
Contact us today to benefit from what we offer!!!
