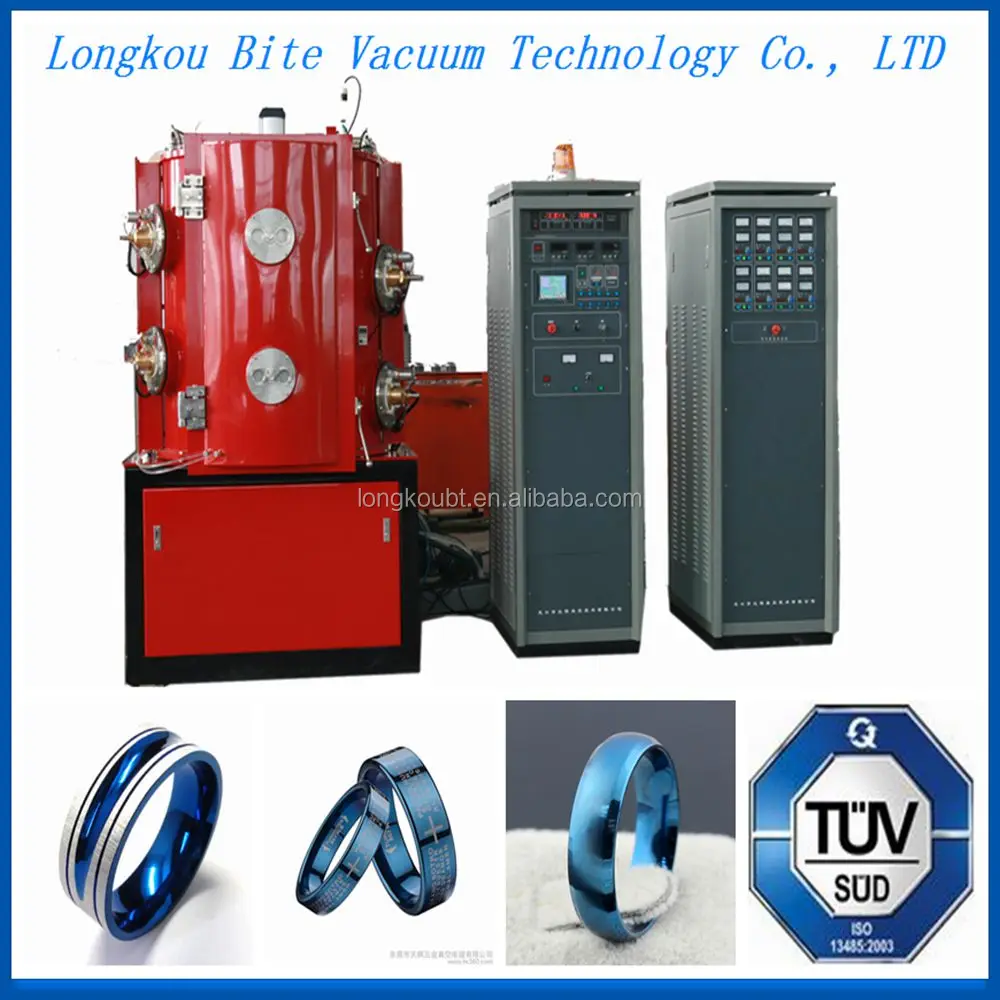

pvd titanium nitride ring coating machine/imitation jewelry pvd gold ring plasma vacuum plating/coating equipment

Product Overview

Description

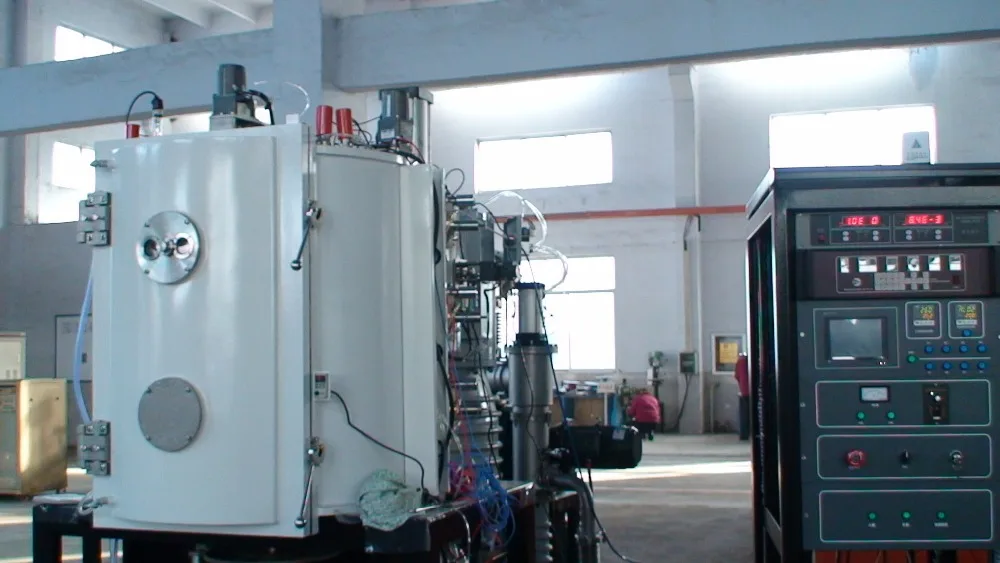

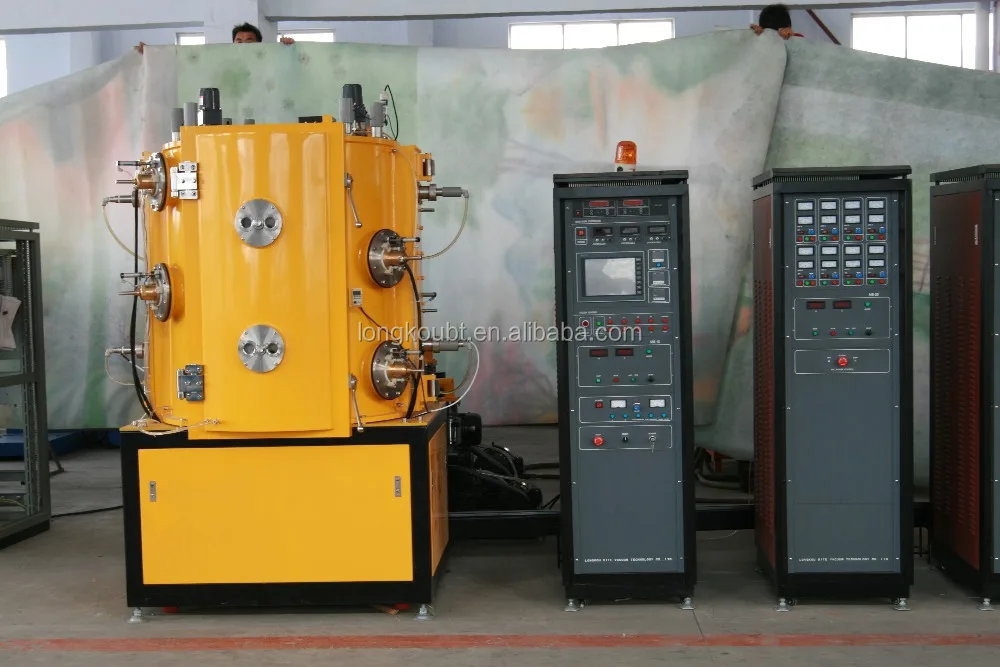

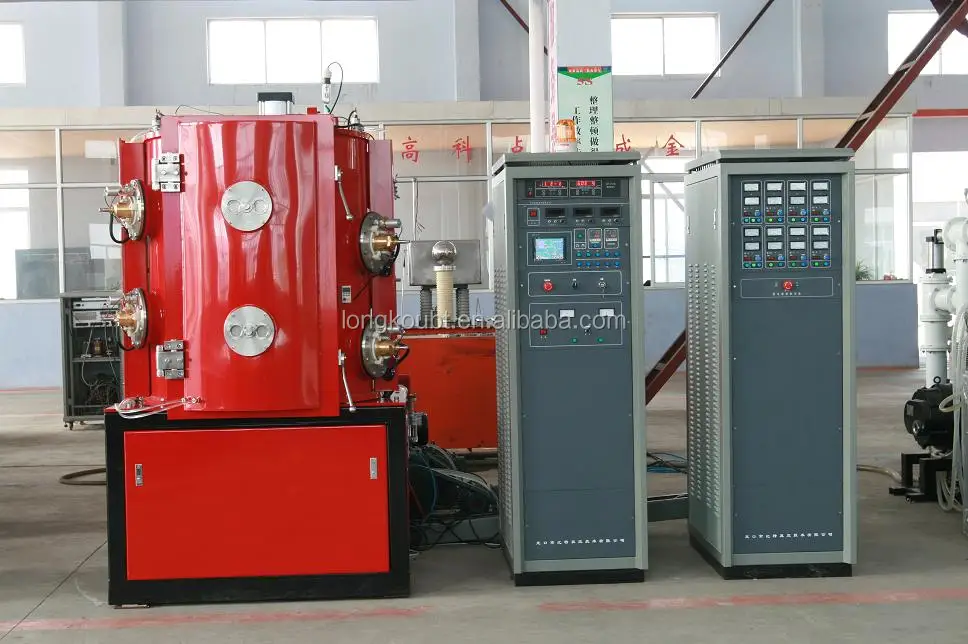

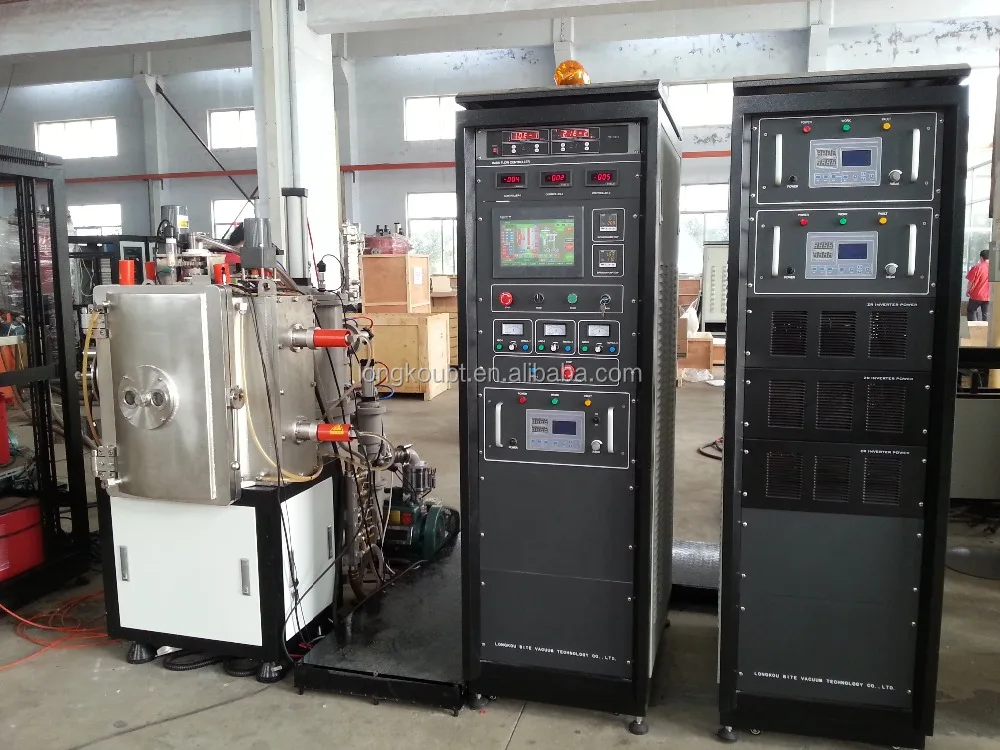

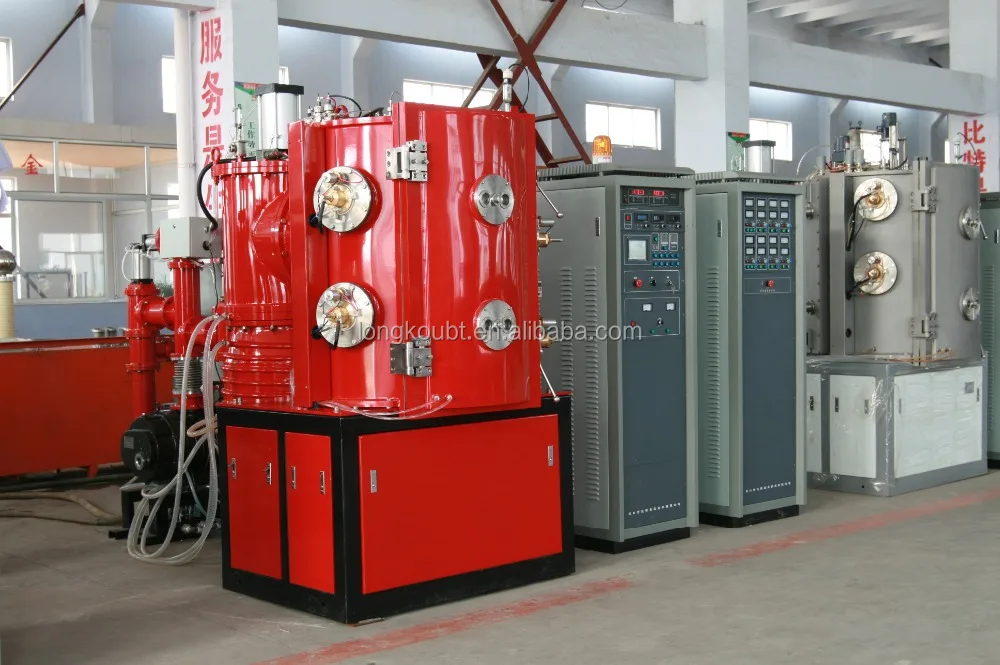

PVD Jewellery Gold RingTitanium Nitride Vacuum Metalizing Coating Machine Equipment



1.PVD metallizing equipment adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.



2. The imtation jewelery gold ring vacuum coating equipment is equipped  with Touch screen and PLC centralized control, a computerized automatic gear-shifting vacuum gauge, a three-flow controller, a set of contravariant arc power and four-circuit contravariant arc power, 4 side-installed heating tubes, and a PID temperature control device. It becomes a key equipment in the decoration industry widely used for plating various materials, such as TiN ,TiC ,ZrN ,CrN ,Ti ,Ni ,Cr ,Cu ,Au ,and Ag etc.





3.Advantages of jewelery gold ring vacuum plating machine (vacuum PVD coater):

1) Simple visual interface for the operator, process control system runs on Windows system interface and easy to use
2) Vacuum pump system efficiency,  which increases productivity due to shorter batch times
3) High performance layer monitoring system is equipped for enhanced production result
4) Automated work cycle, which requires less workers per shift and training time, low production cost

5) Repeatable and reliable coating

6) Safter and Environmentally-friendly process guarantee

7) Highest yield

4. Coating properties:

• Excellent layer properties

• Longer lifetime

•  Smooth surface
• Many bright, metallic colors, decorative or functional
• Excellent scratch protection









Machien Technical Parameter:



	Parameters	Model No.	Quantity
The structure of the vacuum chamber	Vertical front door , Double or cooling tank cooling
dimension of vacuum chamber	900×1000		1
pumping speed	1×105Pa~3×10-3Pa≤15min
limit vacuum	≤8×10-4Pa
system form a complete set	Maintaining the pump	2X-15	1
	Mechanical pump	2X-70	1
	Diffusion pump	KT-500	1
	roots-type pump	ZJP-300
workpiece system	Rotation of the planet forms(8 roating shaft, since the amount)		8
heating methods	Edge installation of stainless steel heating tube		4
ion bombardment	20KW inverter bias	PLS-20KW	1
Arc target	40-200A adjustable	TIG-250	3
magnetron target amount	one plane target or Cylindrical target		2
Magnetron power	30KW IF power	MF-30KW	1
working methods	PLC semi-auto control or PC+PLC auto control
working gas	Ar N2 O2
total power	40KW
compress air	0.4~0.8MPa
water-cooling system	hydraulic pressure/water temperature:≤25°C/≥0.25MPa(user provide for himself)

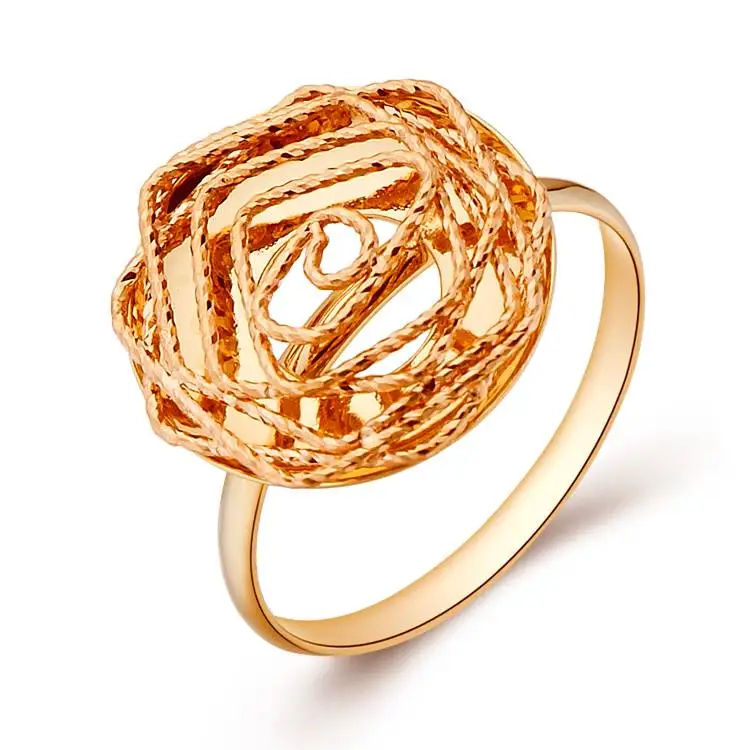

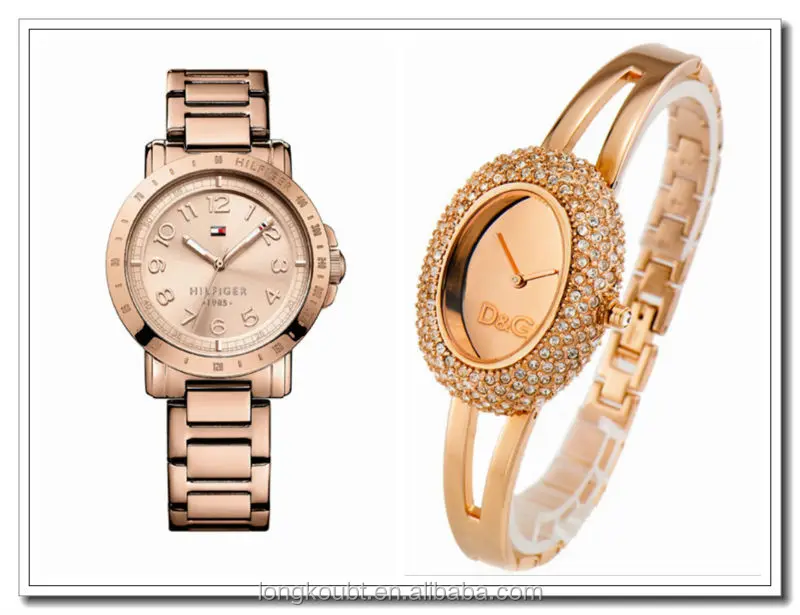

Fine Finshed Sample

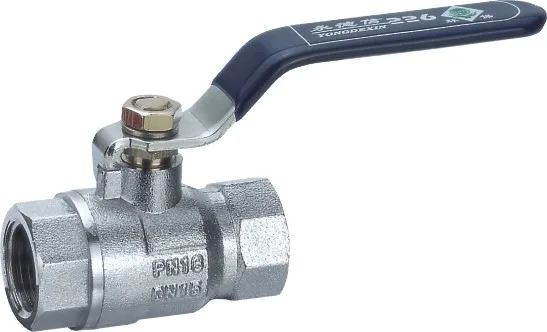

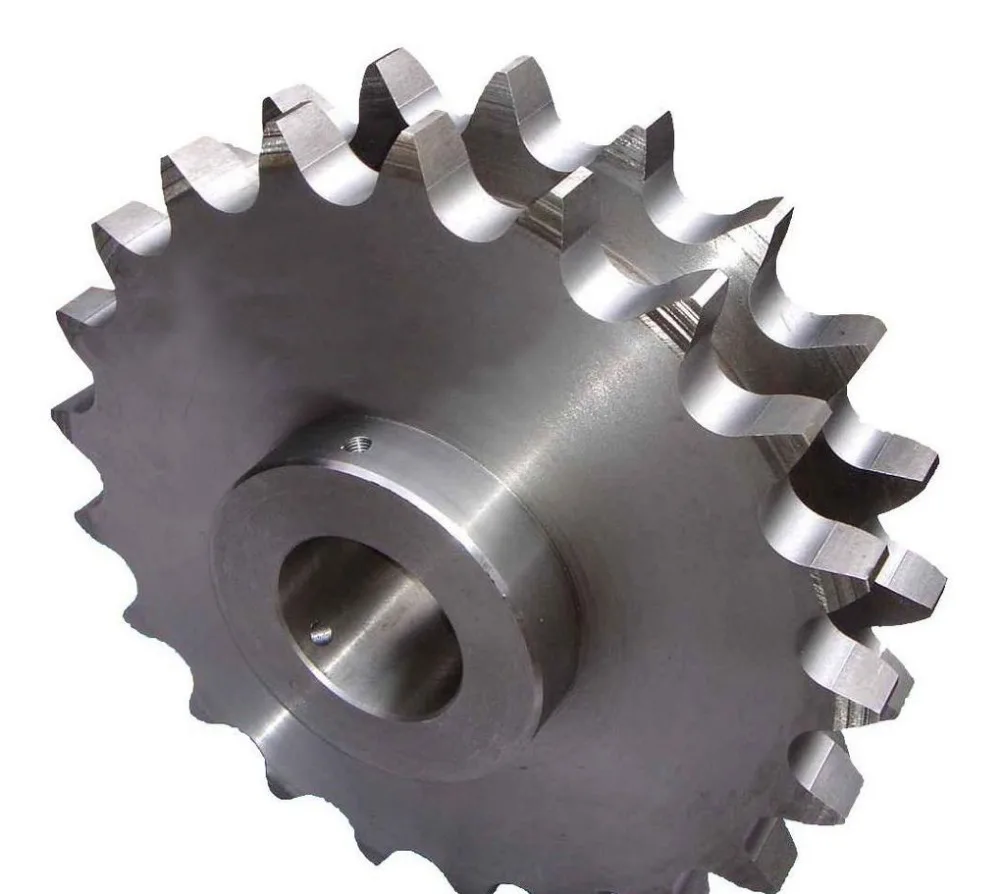

We can also finish to coat:

Bright and firm finish

Anti-corrosion and oxidation







Packing/Loding/Shipping

Always On Time Delivery

Professional packaging for export in case damage duiring shiping

Wooden packing, Carton packing or customized
