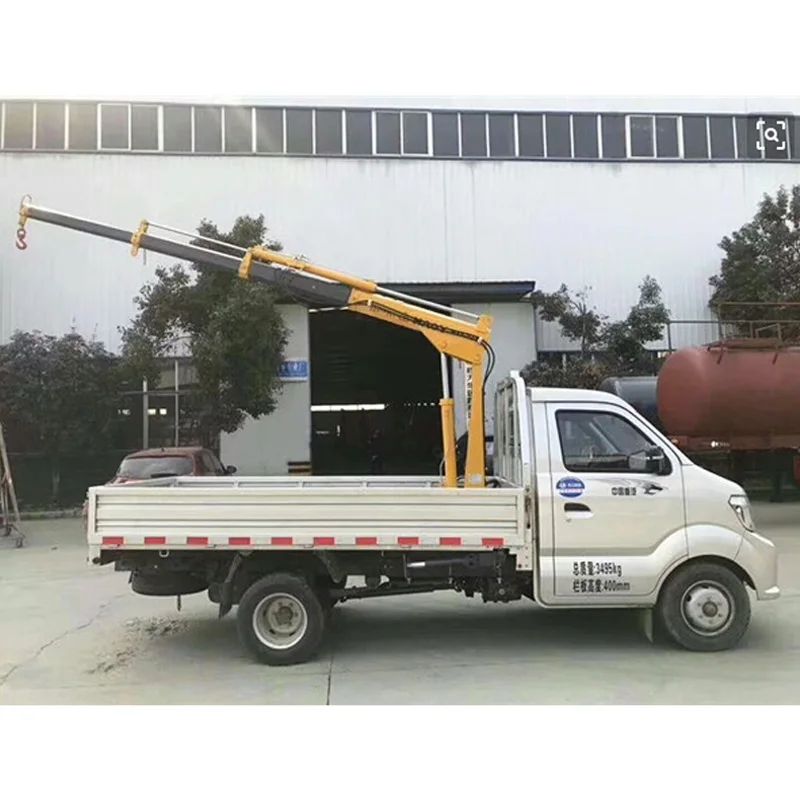

Manual Electric Truck Crane for Pickup
- Category: Truck Cranes >>>
- Supplier: Xuzhou Bob-Lift Construction Machinery Co. Ltd.
Share on (60338642341):
Product Overview
Description
PRODUCT DESCRIPTION

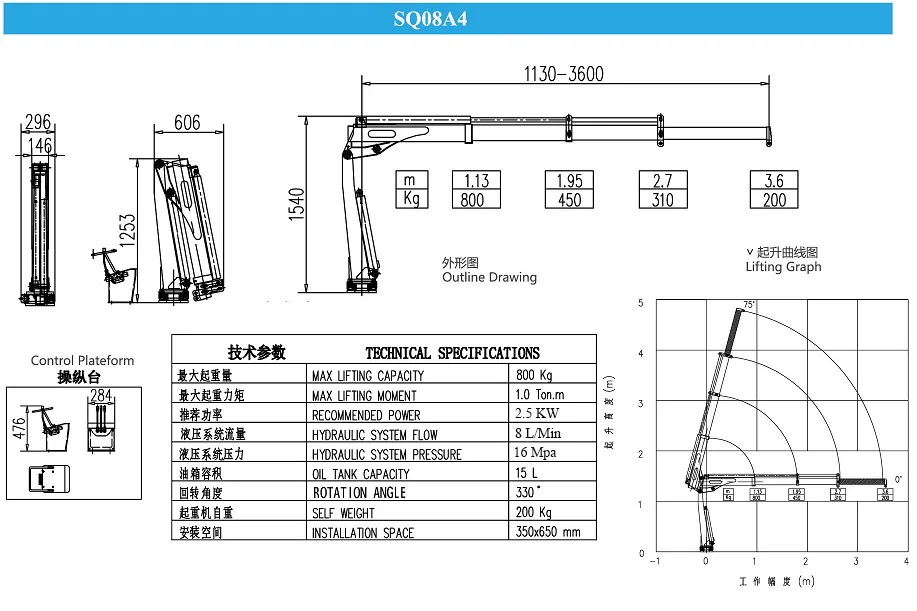

Item | Unit | SQ08A4 |
Max Lifting Capacity | Kg | 0.8 |
Max Lifting Moment | Ton.m | 1 |
Recommend Power | Kw | 2.5 |
Hydraulic System Flow | L/min | 8 |
Hydraulic System Pressure | Mpa | 16 |
Oil Tank Capacity | L | 15 |
Installation Space | m | 350*650 |
Self Weight | Kg | About 200 |
Rotation Angle | 。 | 330 |
PRODUCT PROCESS
PRODUCT PACKING
PRODUCT APPLICATION
SUCCESSFUL PROJECT
12T Knuckle Crane in Germany
15 Sets Knuckle Cranes to Sudan
3.2T Telescopic Cranes to Thailand
COMPANY PROFILE
FAQ
1) How many years of your factory?
We have 16 years production and nearly 10 years experience, we exported to more than 50 countries & regions.
2) Which kind of payment you can be accepted?
Normally both of T/T & L/C at sight are ok for us.
3) How about the delivery time?
20-40 working days after received 30% T/T or L/C.
4) What's your warranty?
Normally is 1 year, if large quantities we can negotiate.
5) What's your MOQ?
MOQ: 1 set
6) Can you accept OEM service?
Yes for sure my friend.
7) Optional Attachment?
Remote Control, Basket, Auger, Grapple, Top Seat, Rear Legs
We have 16 years production and nearly 10 years experience, we exported to more than 50 countries & regions.
2) Which kind of payment you can be accepted?
Normally both of T/T & L/C at sight are ok for us.
3) How about the delivery time?
20-40 working days after received 30% T/T or L/C.
4) What's your warranty?
Normally is 1 year, if large quantities we can negotiate.
5) What's your MOQ?
MOQ: 1 set
6) Can you accept OEM service?
Yes for sure my friend.
7) Optional Attachment?
Remote Control, Basket, Auger, Grapple, Top Seat, Rear Legs
