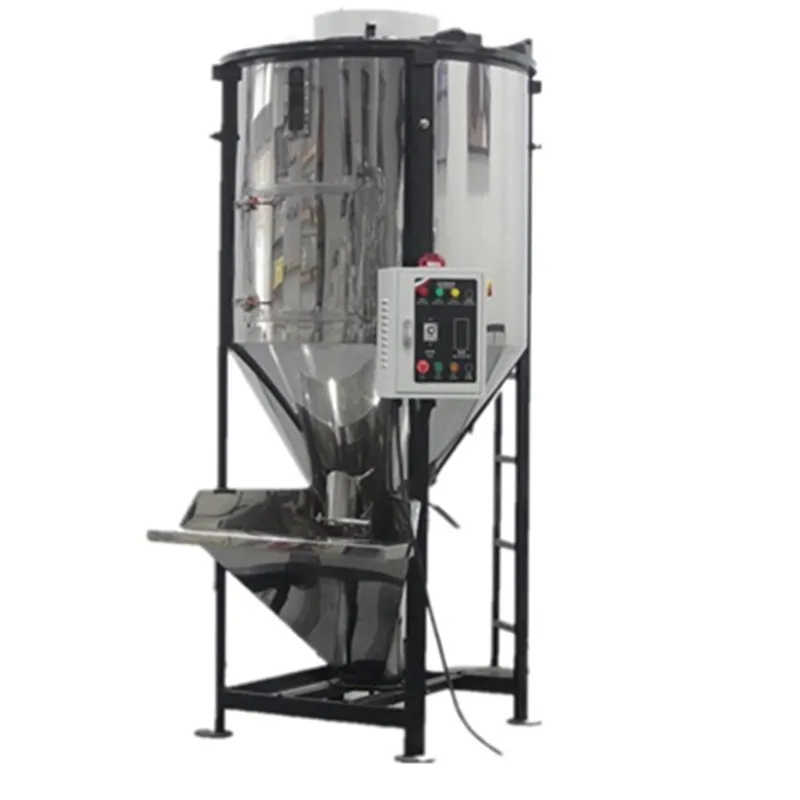

vertical color mixer cyclone with heater dryer for plastic granules with electrical heater

Share on (60338654513):


Price:$2,000.00

Quantity:


Product Overview

Description


Turui,Best quality! Vertical color mixer cyclone with heater dryer for plastic granules with electrical heater!!!

we have finished machines in stock!!!

made by Turui machinery co.,ltd



Characters





1.Characters:



1. Spiral mixing is of low energy consumption.
2. Spiral circulation and mixing makes materials mixed more evenly and faster.
3. Made of stainless steel, easy to clean, avoids corrosion.
4. Equipped with automatic stop device



5.Time can be set as desired.



6.With temperature control PID,temperatrue can be set.
5. Motor with overload protection to protect itself.
6. Detachable design for easy maintenance.
7. Drying type can be customized. With electrical heater,forced circulation air blower.



8.Capacity can be customized, like 0.5T-10T.

Product Description



Working principle:

It is using rotary of screw to lift materials from bottom to top and sprayed like umberalla shape,fall down to the bottom.This is a circle. Through this circle,materials(granules,flakes,and powder) will be evenly mixed. Better performance than tranditional mixer.Different weights of different mateirals will not disturb mixing result.



Application

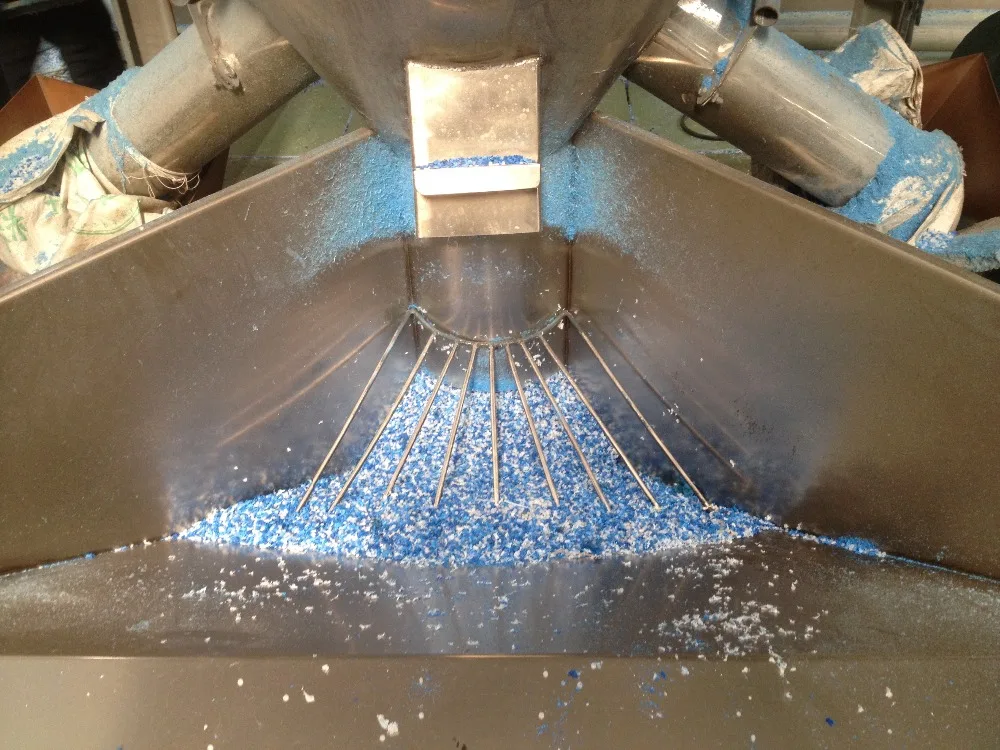

 IMG_4108

It is suitable for all kinds of plastic materials,such as raw materials mixed with masterbatch,granules mixed with powder,virgin materials mixed with recycled materials. In the same time of mixing,it can dry the materials as well through its forced air blower.



Technical Parameters



MODEL

TR-LHG500

TR-LHG 1000

TR-LHG2000

TR-LHG3000

TR-LHG5000













1

Effective Volume

T

0.5T

1T

2T

3T

5T

2

Power of Motor

KW

2.2

4

5.5

7.5

11

3

Motor rotary

R/m

300-350

300-350

300-350

300-350

300-350

4

Heating Power

kw

24

36

42

48

60

5

Fan

kw

0.75

1,5

2.2

3

4

7

Voltage



380V 50Hz

380V 50Hz

380V 50Hz

380V 50Hz

380V 50Hz

9

Overall Size

mm

1150*2350

1400*2350

2000*2800

2100*3700

2500*4350

10

Weight

kg

500

800

1200

1500

1800
