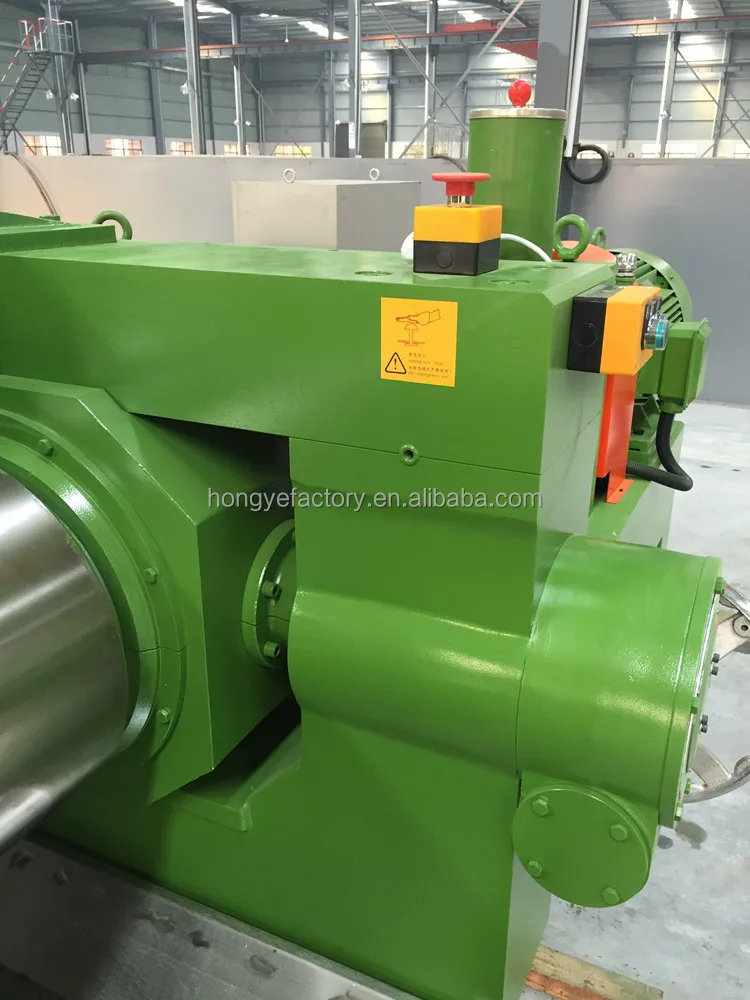

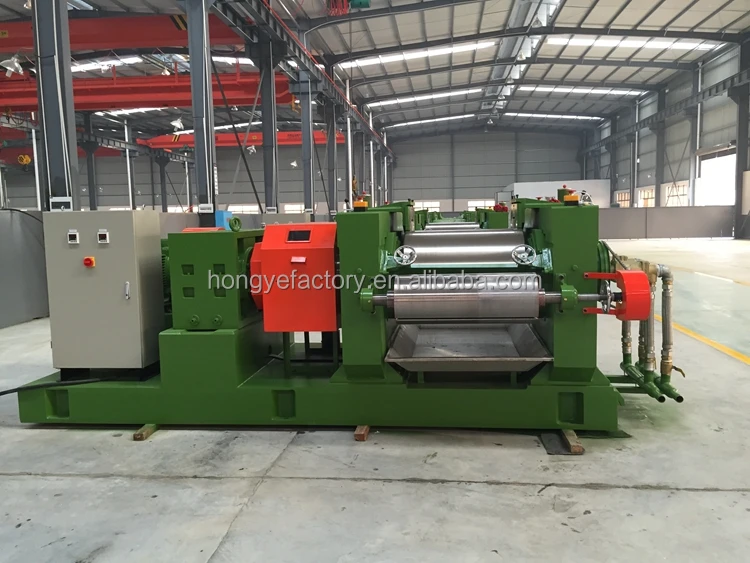

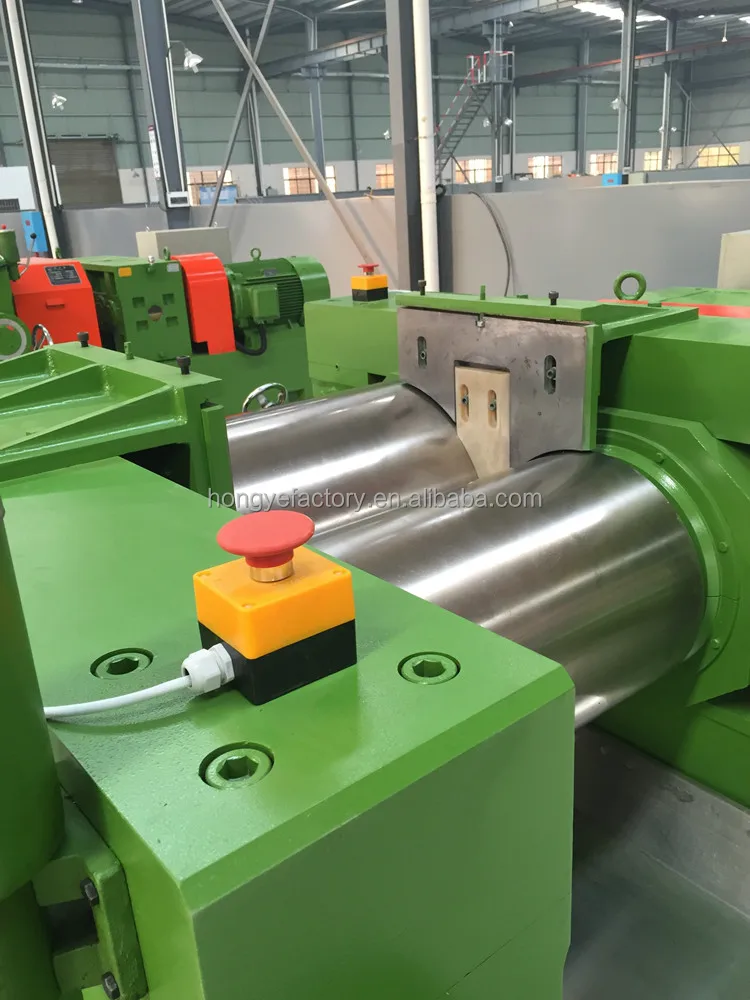

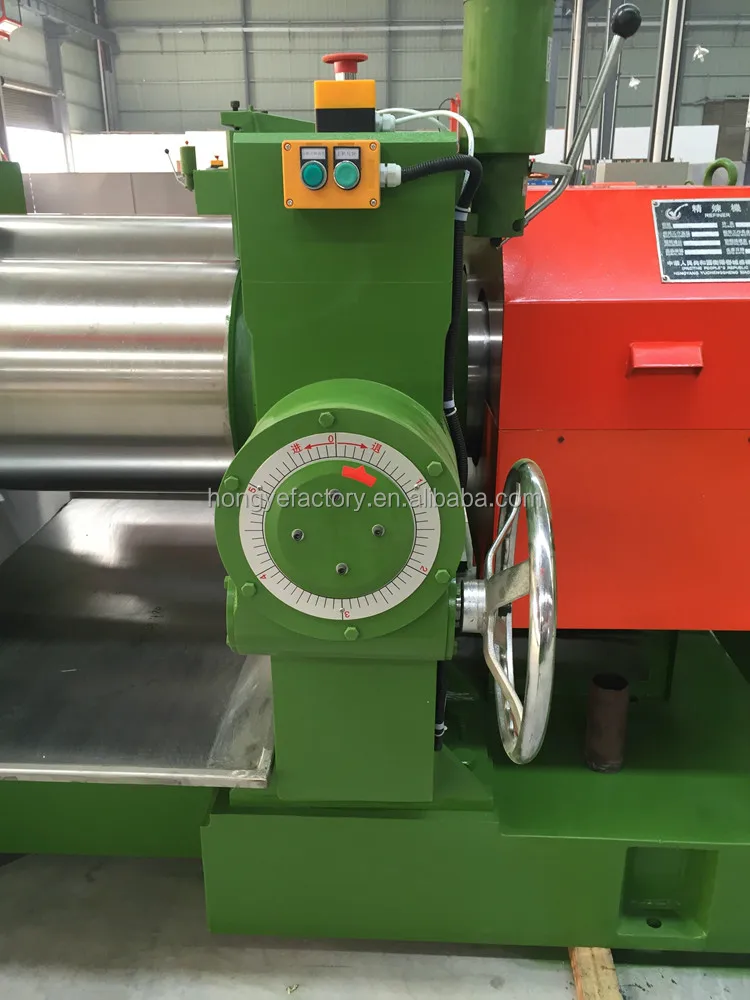

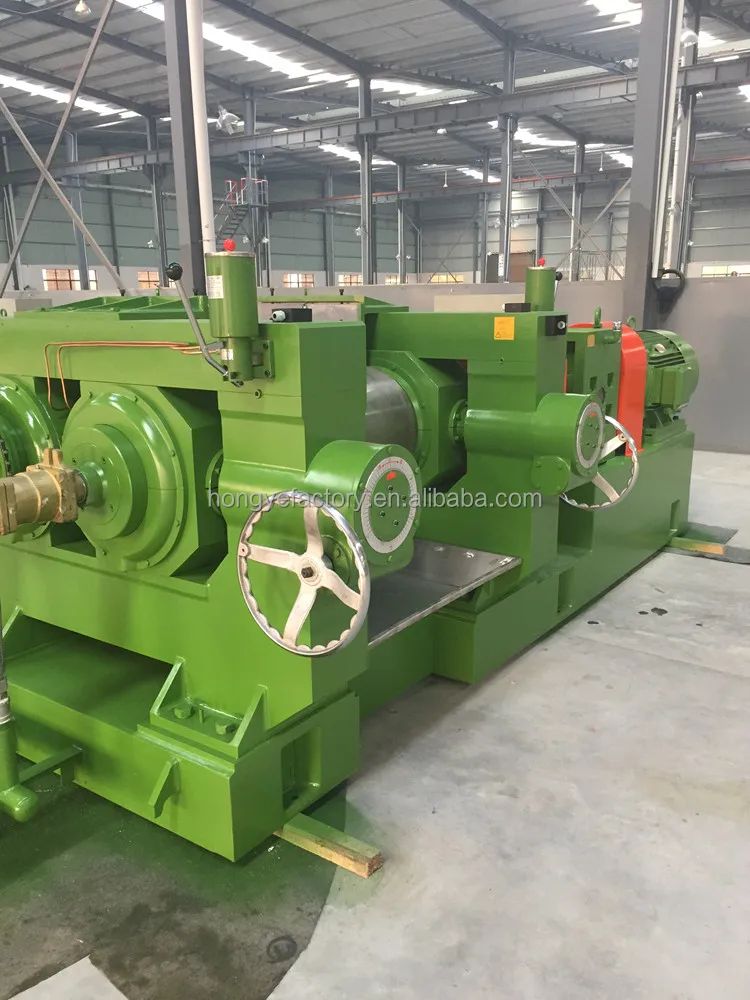

two roll rubber refiner mixing mill for reclaimed rubber

Share on (60338660530):


Price:RUB 778,181.00 - RUB 4,669,086.00

Quantity:


Product Overview

Description





Product Description

 Name: two roll rubbe refiner mixing mill for reclaimed rubber

Item No: XKJ-480



Specifications

  •  Easy to operate and maintain
  • Chilled alloy cast iron roll

Features:

  • The machine adopts the whole base, convenient installation, right way and left way transmission, routine according to the right transmission supply.
  • The roll is made of chilled cast iron, the roll surface is hard and anti-wear. The internal cavity of the roll is processed to make temperature well proportioned on the roll surface.
  • The machine is equipped with an overload protection device to prevent the major components from being damaged due to overloading.
  • The machine is also equipped with an emergency device. When an emergent accident happens, just the emergency stop button, and the machine will stop immediately. It is safe and reliable.
  • The machine is equipped with scraper and wind-up unit, which can take the reclaimed rubber away from the wind-up roller.
Technical parameters



Model& Description

XKJ-480 rubber refiner

Working diameter of front roll(mm)

480

Working diameter of rear roll(mm)

610

Working length of rolls(mm)

800,915,1000(a wide range of size provided)

Linear of front roll(m/min)

32.8

Friction ratio of rolls

1:1.82(provide a wide range of speed ratio)

Max. roll nip(mm)

10

Lubrication way

Thin oil lubrication or dry oil lubrication

Output(kg/h)

350

Main motor power(kw)

55 or 75

Revolution(r/min)

980

Reducer

Hard tooth surface reducer

Overall dimension(L*W*H)mm

4400x2450x1900

Weight(kg)

16000
