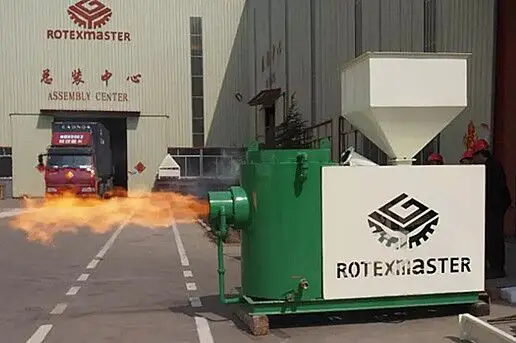

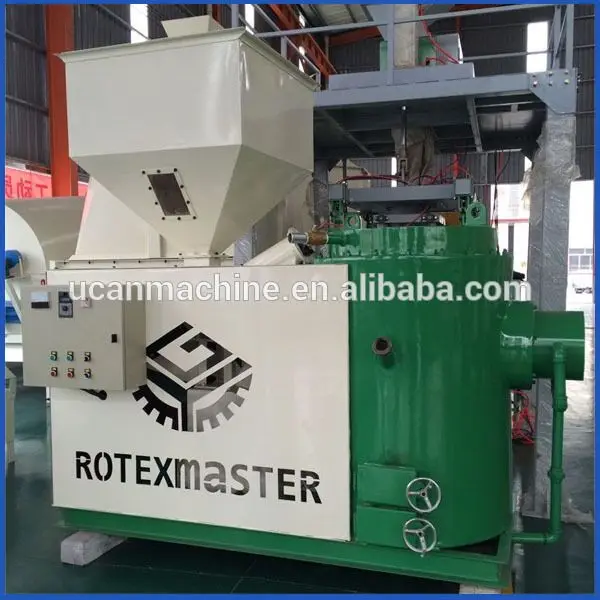

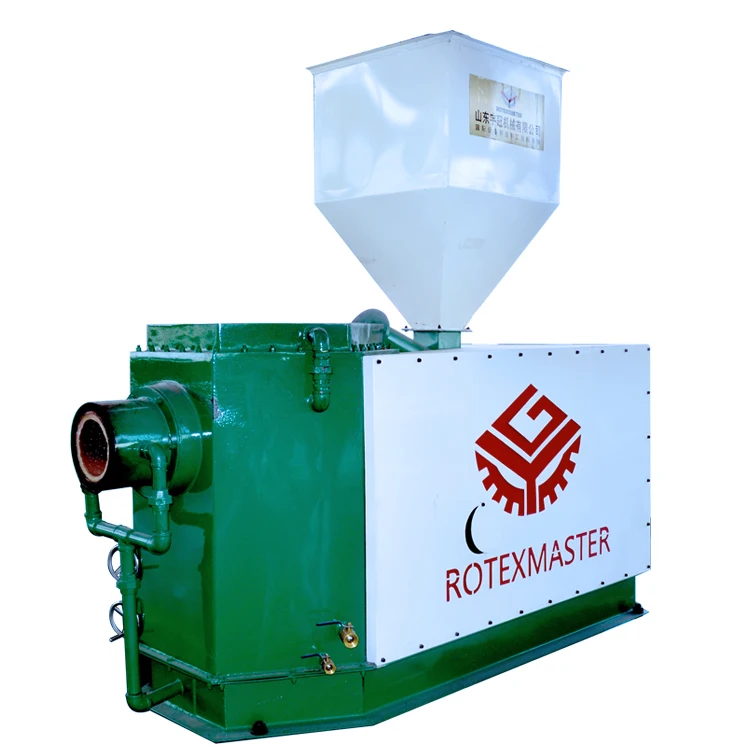

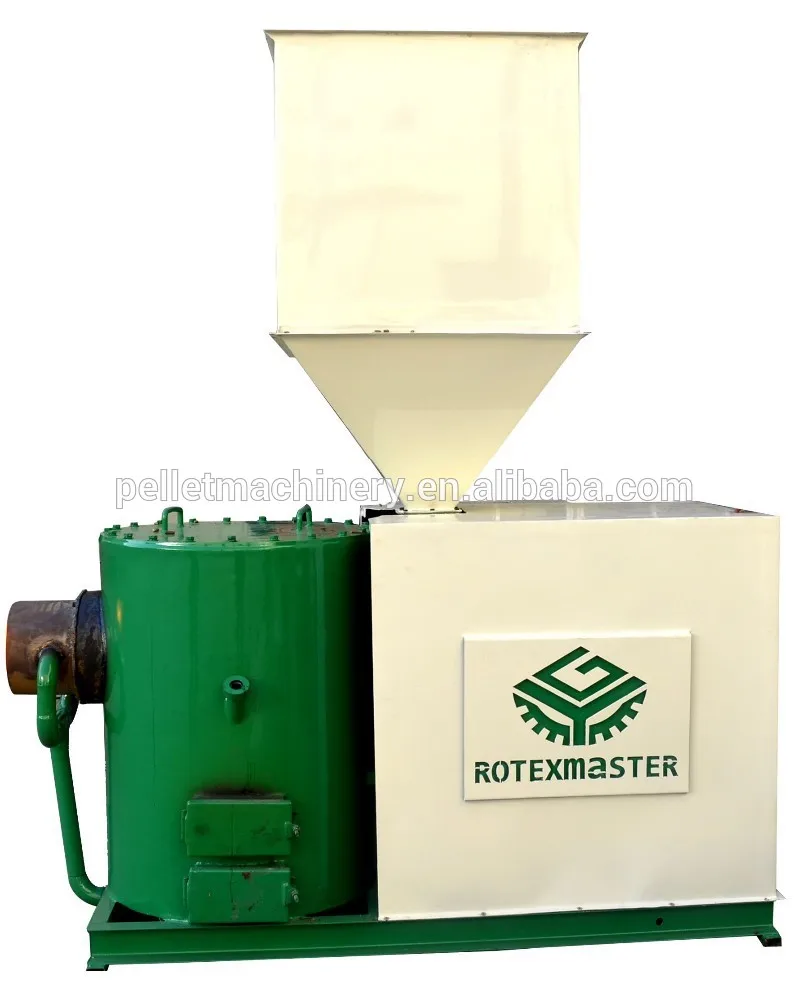

Industrial Wood Chip Burner/Wood Pellet Burner

Product Overview

Description

Industrial Wood Chip Burner/Wood Pellet Burner--



Brief Introduction of Biomass pellet burner:

Pellet Burner is the equipment of changing forest waste, scraps into high quality fuel gas, no harmful emission, protects the limited fossil resources, use the renewable energy enough, in line with the world, especially the energy conservation and emission reduction national conditions of our developing country.

Wide application of biomass burner repalce kerosene burner:

Pellet Burner is suitable for steam boiler, fuel oil, gas, coal boiler, various kinds of organic spray drying equipments, large-scale farming factories, cereal and food drying, tobacco drying, various kinds of large, medium, small workshops, greenhouse heating and etc.

Main data of Various type biomass pellet burner:



Model	Calorific  value (10*104kcal)	Power  (Kw)	Consumption  of fuel(Kg)	Crater Center  Distance (mm)	The Crater  Diameter (mm)	Dimension(mm)	Equipment Protection Way
YSKR20	20	0.75+0.37	11-40	630	140	1200*600*1970	Air-colled
YSKR30	30	0.75+0.55	20-70	680	140	1500*800*2020
YSKR45	45	0.75+1.1	25-120	790	170	1800*950*2040
YSKR60	60	1.5+2.2	40-170	930	170	1900*1000*2250	Water-cooled
YSKR90	90	1.5+2.2	60-240	1050	170	2200*1050*2250
YSKR120	120	1.5+2.2	80-350	1050	260	2500*1200*3400
YSKR180	180	3+4+1.5+1.5	100-550	1150	260	3270*1900*3440
YSKR240	240	3+5.5+1.5+1.5	130-700	1150	325	3500*2100*3730
YSKR300	300	3+5.5+1.5+1.5	150-900	1250	325	3950*2100*3270

a)Energy saving features: waste recycling, benefits and beneficial to serve the society;Features of Biomass burner:

b)Environmental protection features: biomass burning emissions, zero emissions of carbon, nitrogen oxides, sulfur dioxide emissions is low;

c)Renewable characteristics: biomass, inexhaustible;

d)Generalized features: wide raw materials range, no region limited;

e)Less investment, quick capital recovery;

f)Convenient transportation, transportation radius small, fuel price stability;

g)Convenient operation, safe, long service life;

h)Wide range of load adjusting, strong adaptability;

i)Can match to the user’s heat devices, energy saving and environmental protection.

Our services:

1.Guarantee 1 year .Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.

2.24-hour technical support Internet or by Telephone, free instructions and Problem solving.

3.Free installation and fully test before sending and free training for operators

4.New drawing and technical parameters will change without notice to the user, please understand.

5.we also supply engineer available to service machine oversea. We are CE and ISO certification.

6.our machine have good quality,high efficiency,low cost,the cost performence is highest.

Pls contact me without any hesitation,if you interested in this kind of machine,I will give you more details!
