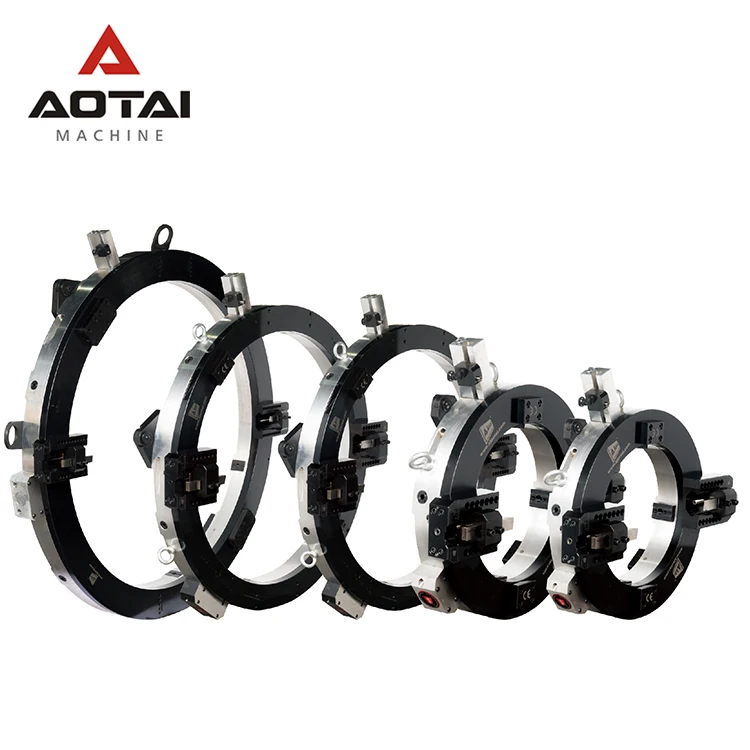

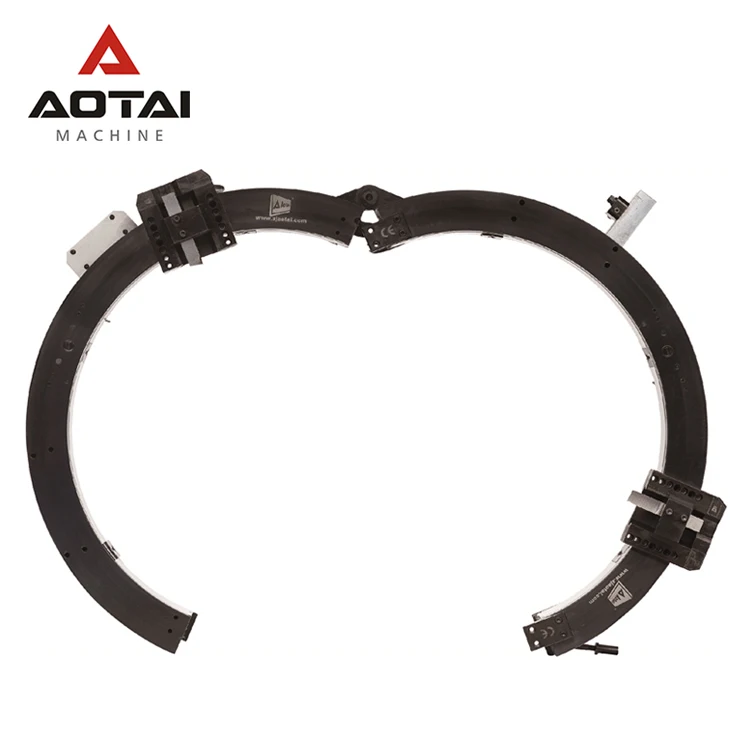

SPLIT FRAME CLAMSHELL PNEUMATIC ORBITAL PIPELINE PIPE CUTTING AND BEVELING FACE MACHINE
SPLIT FRAME CLAMSHELL PNEUMATIC ORBITAL PIPELINE PIPE CUTTING AND BEVELING FACE MACHINE
SPLIT FRAME CLAMSHELL PNEUMATIC ORBITAL PIPELINE PIPE CUTTING AND BEVELING FACE MACHINE
SPLIT FRAME CLAMSHELL PNEUMATIC ORBITAL PIPELINE PIPE CUTTING AND BEVELING FACE MACHINE
SPLIT FRAME CLAMSHELL PNEUMATIC ORBITAL PIPELINE PIPE CUTTING AND BEVELING FACE MACHINE
SPLIT FRAME CLAMSHELL PNEUMATIC ORBITAL PIPELINE PIPE CUTTING AND BEVELING FACE MACHINE
SPLIT FRAME CLAMSHELL PNEUMATIC ORBITAL PIPELINE PIPE CUTTING AND BEVELING FACE MACHINE

SPLIT FRAME CLAMSHELL PNEUMATIC ORBITAL PIPELINE PIPE CUTTING AND BEVELING FACE MACHINE

Share on (60338940112):


Price:$5,500.00 - $5,800.00

Quantity:


Product Overview

Description


PRODUCT SHOW

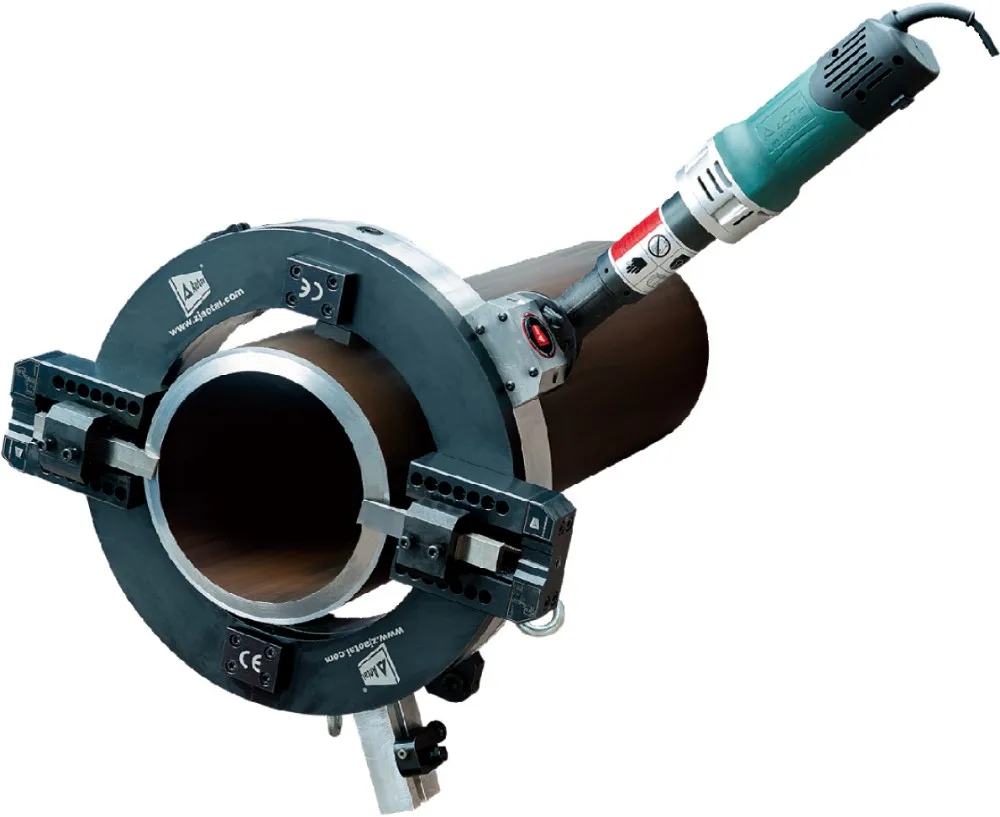

Electric:

Electric:
Convenient power supply
Stable Performance
Popular choice
Electric requirement:220-240V 1PH 50/60HZ
Carbon brush Motor:1.43KW,1.7KW,2.4KW
Brushless Motor: 1.5KW,2.0KW,3.0KW
Double motor for big model or heavy duty

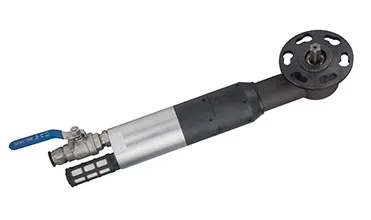

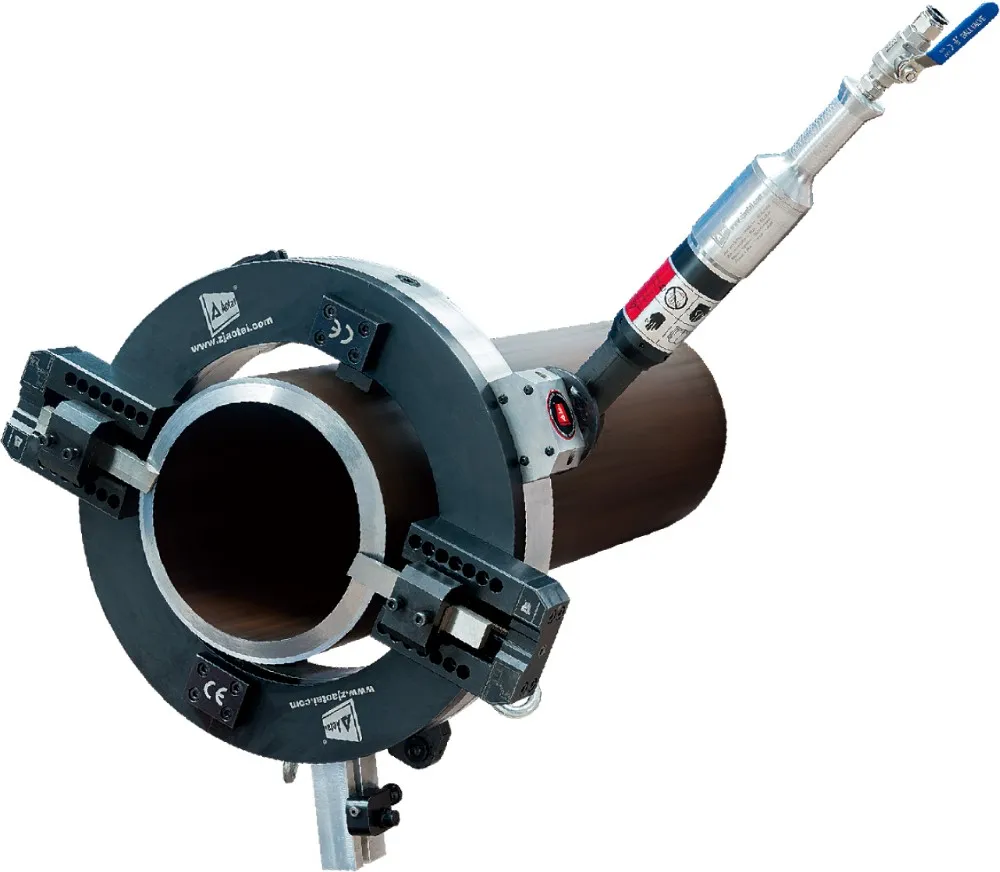

Pneumatic:

Explosion Proof
Stable Performance
Easy to maintenance
Air requirement:1500-2000L/min @0.63-0.8Mpa
Power:2HP,3HP,4HP
Double motor for big model or heavy duty

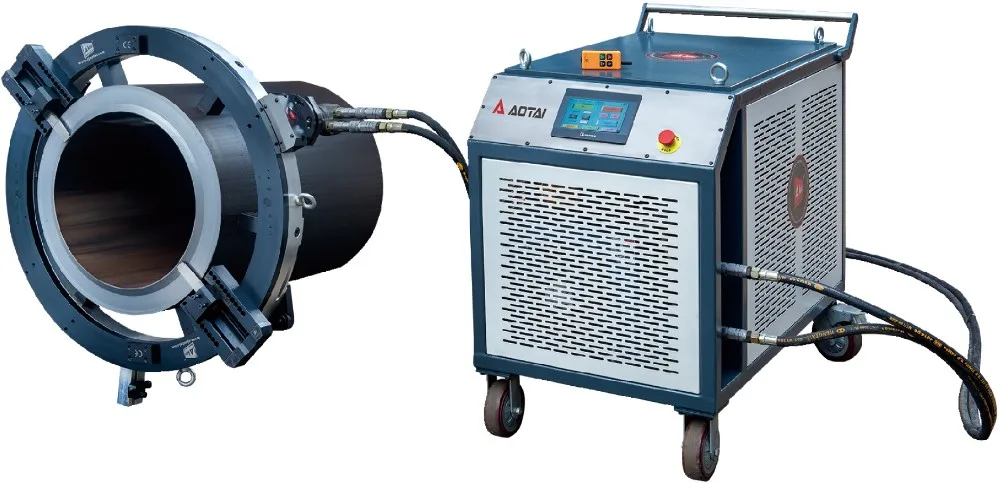

Hydraulic:

Powerful drive, High efficiency
Stable Performance, Low noise, Anti-explosion
Ideal for heavy wall thickness & large size pipe
Hydraulic requirement:28-50L/min @13Mpa
Electric requirement: 380V 3PH 50/60Hz
Rated Pressure:13MPa
Rated flow:28L/min
Max.Torque:380NM

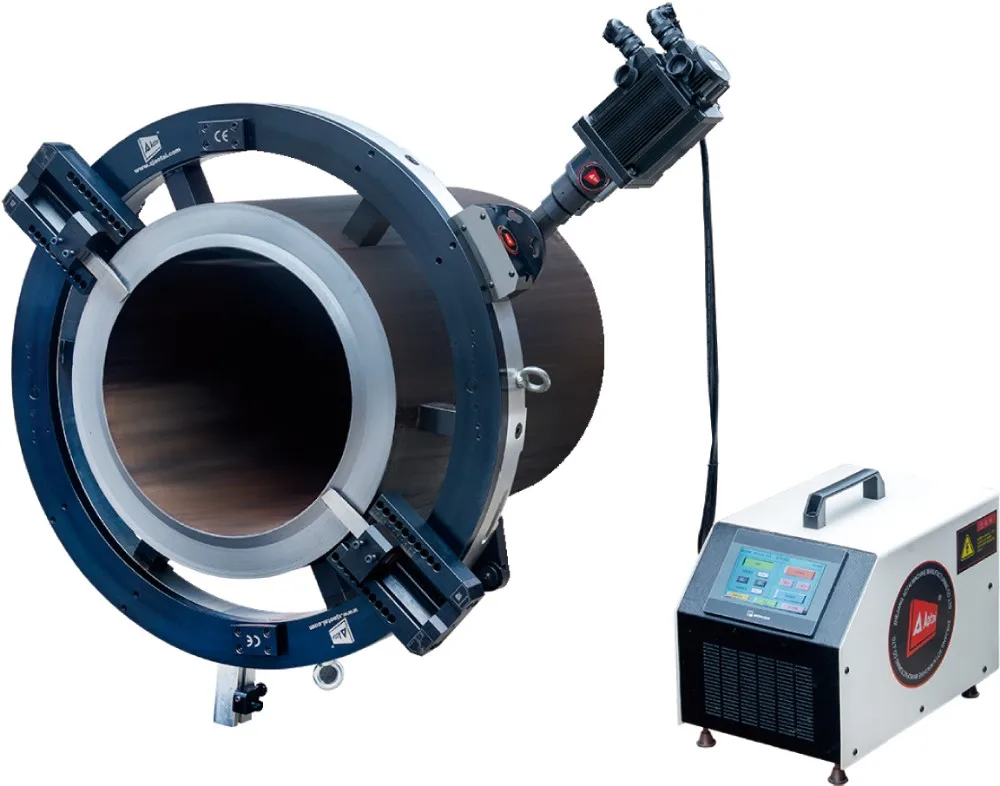

NC:

Powerful drive, High efficiency
Low noise ,Stable Performance
Ideal for heavy wall thickness & large size pipe
Electric requirement: 230V 1PH 50/60Hz;
380V 3PH 50/60Hz
Power:2.0KW or 3.0KW
Double motor for big model or heavy duty

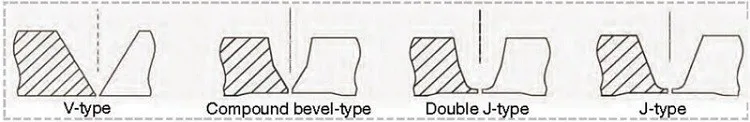

BEVELING SHAPE

*other beveling shape, angle and pipe material, please declare before order

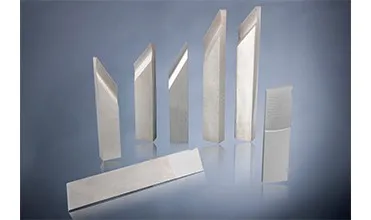

TOOLINGS

Form Style

Material:M42 and M35
Type:Sever,bevel,double bevel,
compound bevel,counterbore
Angle:0°,30°,37.5°,
Double 30°,37.5°+10°
Size:90mm,150mm,200mm

Insert style

Material:Holder HSS ;
Insert: HSS-Co or Carbide
Type:Sever,bevel,double bevel,compound bevel,
Angle:0°,30°,37.5°,
Double 30°,37.5°+10°
Size: 90mm,150mm,200mm

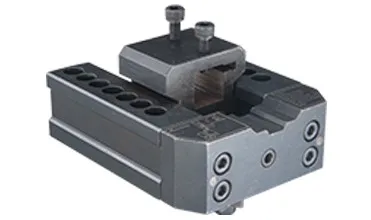

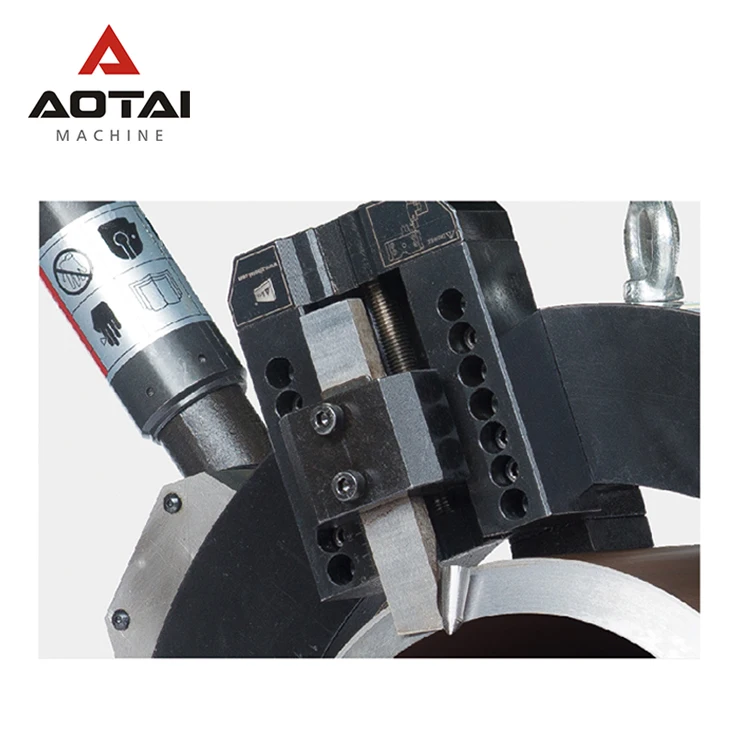

TOOL SLIDE

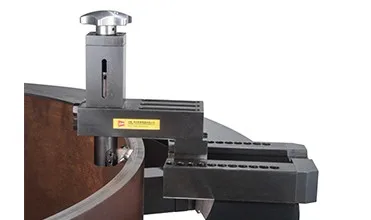

Counterbore slide

Used for pipe inside diameters.
Radial travel:110mm
Axle travel:100mm

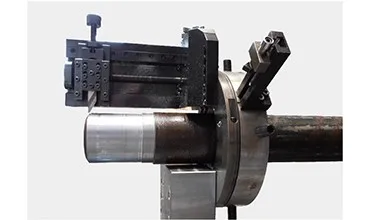

Surface turning slide

Surface turning, removal anti-corrosion layer
Radial travel:110mm
Axle travel:200mm

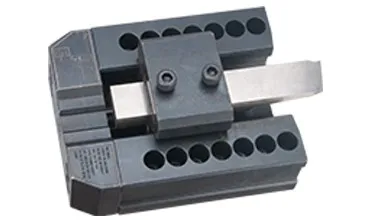

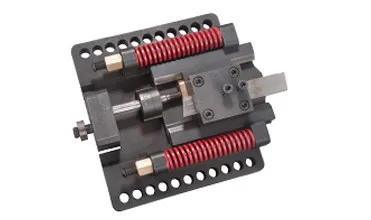

Standard Tool Slide

Used for conventionalpipe
Wall thickness of single point:30mm
Wall thickness of multi point:110mm
Radial travel:154mm

OD Tacking Slide

Solution for out-of-round pipe
The max. wall thickness:110mm
Radial travel:110mm

MODEL & RELATED
\t
Electric
\t
Pneumatic
\t
Hydraulic
\t
Numerical Control
\t
Capacity(O.D.mm)
\t
Cutting thickness
\t
Weight(kg)
\t
ISD-168
\t
ISF-168
\t
HYD-168
\t
SKD-168
\t
1''-6''
\t
≤50mm
\t
63
\t
ISD-219
\t
ISF-219
\t
HYD-219
\t
SKD-219
\t
2''-8''
\t
≤50mm
\t
85
\t
ISD-273
\t
ISF-273
\t
HYD-273
\t
SKD-273
\t
4''-10''
\t
≤50mm
\t
94
\t
ISD-323
\t
ISF-323
\t
HYD-323
\t
SKD-323
\t
6''-12''
\t
≤50mm
\t
110
\t
ISD-355
\t
ISF-355
\t
HYD-355
\t
SKD-355
\t
8''-14''
\t
≤50mm
\t
117
\t
ISD-406
\t
ISF-406
\t
HYD-406
\t
SKD-406
\t
10''-16''
\t
≤50mm
\t
125
\t
ISD-457
\t
ISF-457
\t
HYD-457
\t
SKD-457
\t
12''-18''
\t
≤50mm
\t
140
\t
ISD-508
\t
ISF-508
\t
HYD-508
\t
SKD-508
\t
14''-20''
\t
≤50mm
\t
150
\t
ISD-610
\t
ISF-610
\t
HYD-610
\t
SKD-610
\t
18''-24''
\t
≤50mm
\t
165
\t
ISD-762
\t
ISF-762
\t
HYD-762
\t
SKD-762
\t
24''-30''
\t
≤50mm
\t
175
\t
ISD-914
\t
ISF-914
\t
HYD-914
\t
SKD-914
\t
30''-36''
\t
≤50mm
\t

\t
ISD-1066
\t
ISF-1066
\t
HYD-1066
\t
SKD-1066
\t
36''-42''
\t
≤50mm
\t

\t
ISD-1220
\t
ISF-1220
\t
HYD-1220
\t
SKD-1220
\t
42''-48''
\t
≤50mm
\t

Related products

AOTAI COMPANY

    Aotai Machine manufacturing Co., Ltd is specialized in the research, develop and manufacturing of welding equipments and welding technology supports. It is a high tech enterprise engaged in scientific research, develop, product manufacturing and trade .In the past years, we have imported advanced equipment and technology such as Japanese Zimarac digital controlled tooling machine multiple processing center, digital controlled tooth moving machine and tooth rolling machine. We have continuously updated our products and technology and our company have passed ISO9001 quality certification. And we are member of grade one supplier network for China Petroleum & Natural Gas Group Company

    Aotai company has supplied superior quality equipments and technical services to China nucleus, aerospace, petroleum, chemical, power supply construction and boiler industry. And our exported products are widely used in the large scale piping projects in Kuwait, Sudan, Pakistan and etc. and are well accepted and supported by our foreign clients.

    We take credit and sincerity as the base of our development and we will utilize our advanced technology to service all our clients.

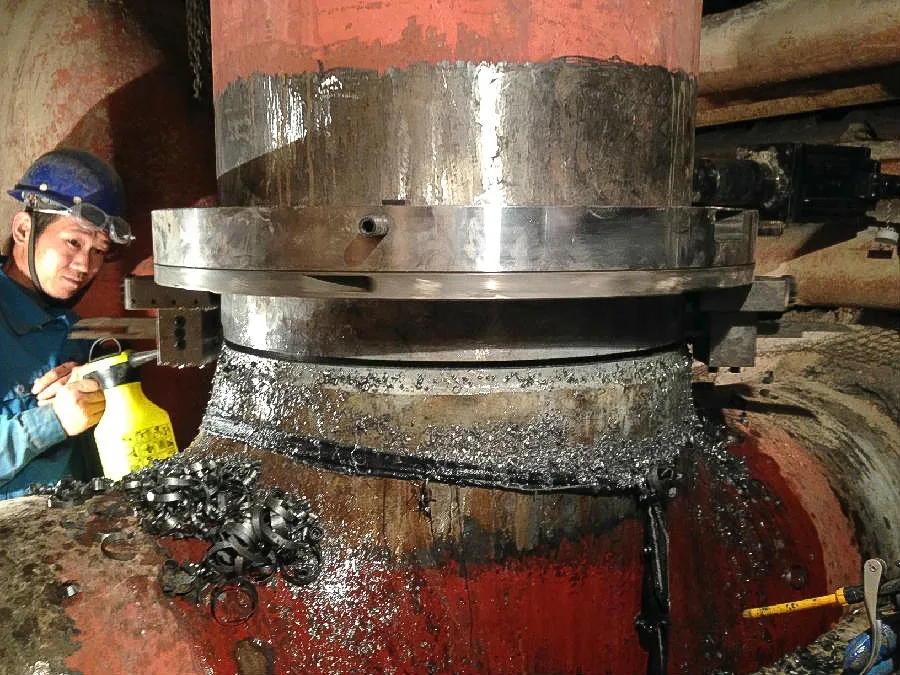

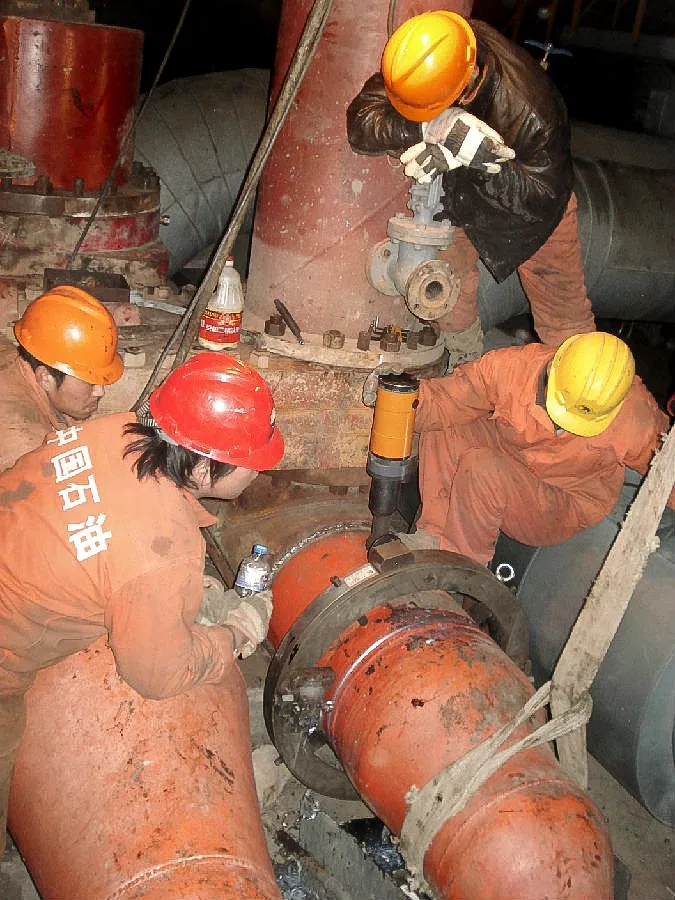

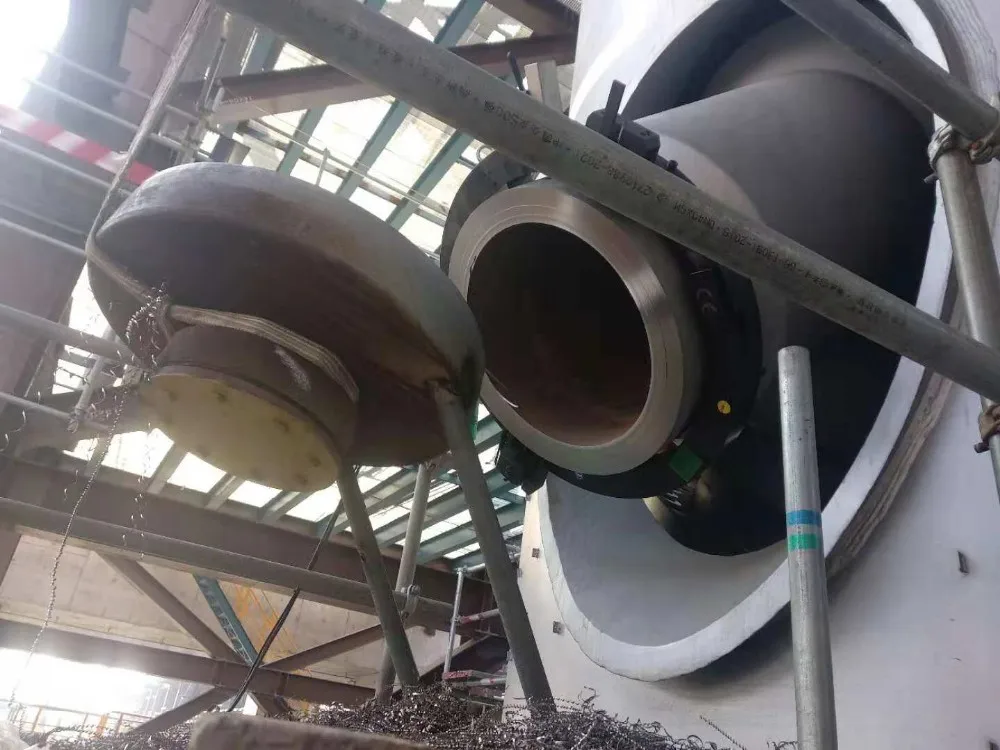

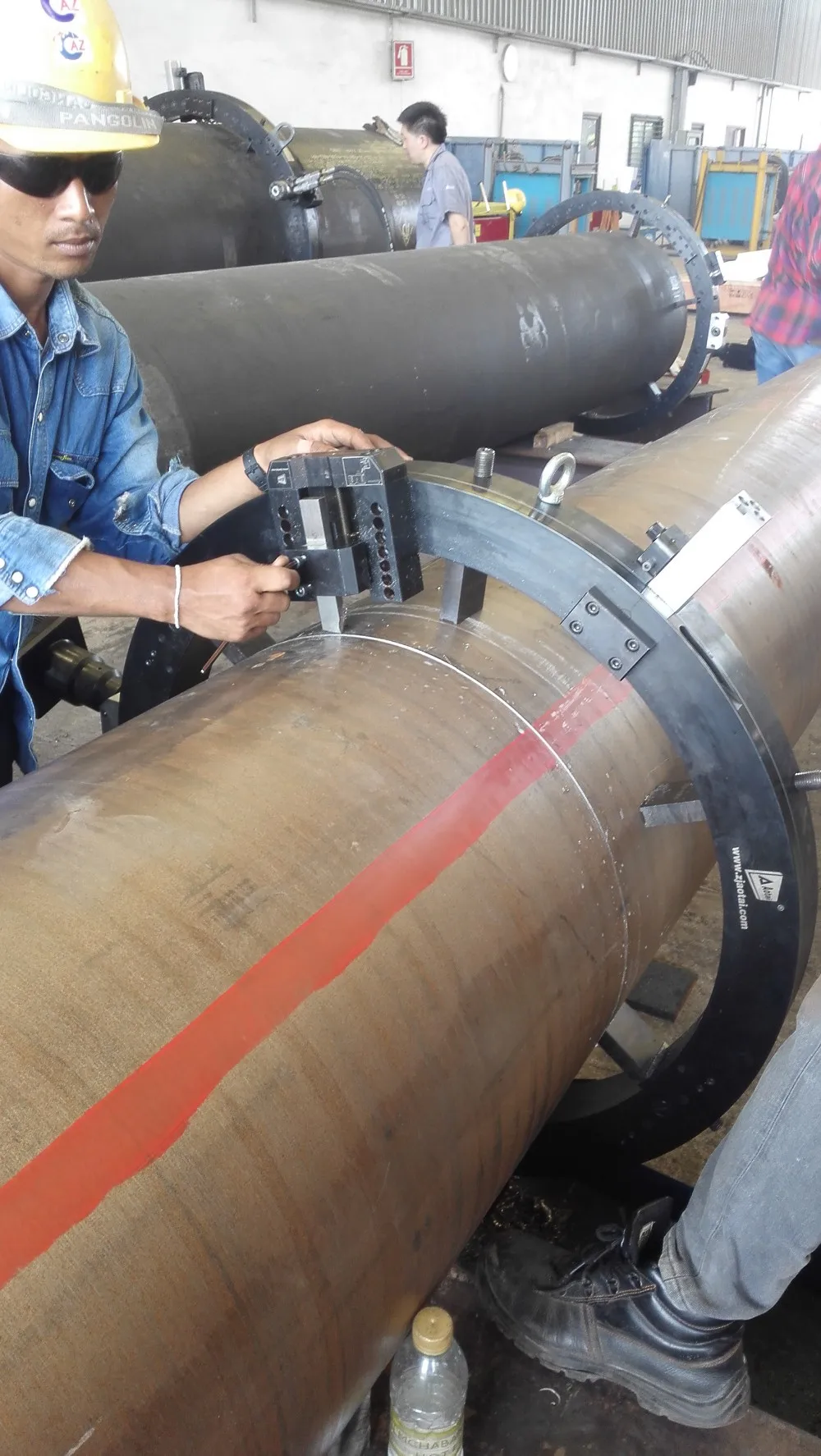

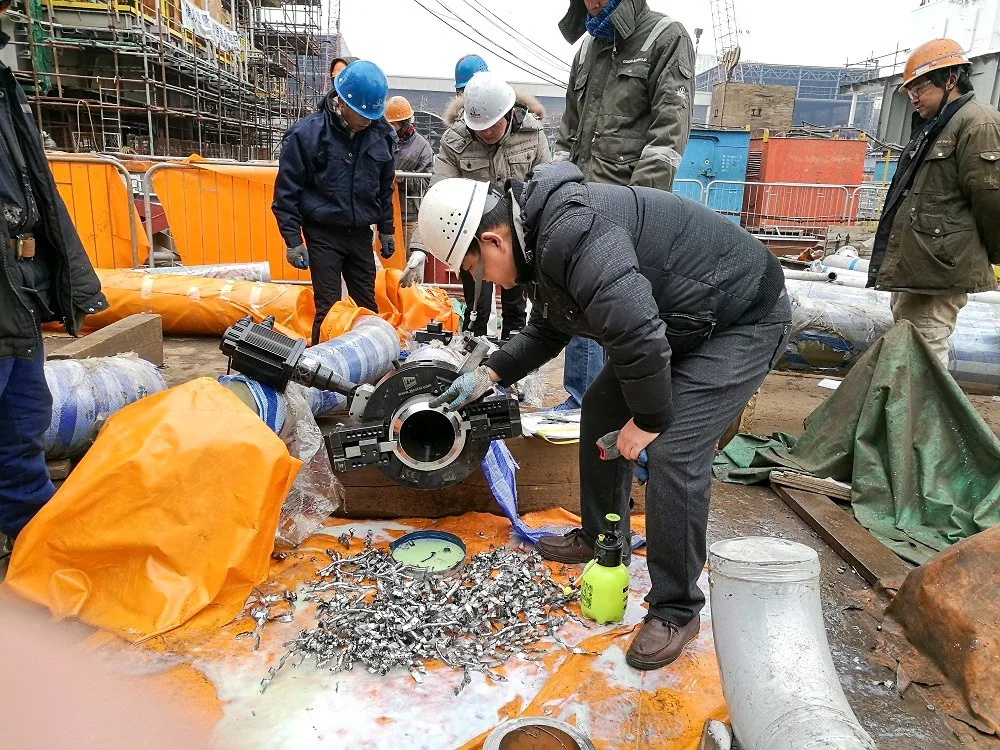

ON-SITE PROCESS
FAQ & ORDER GUIDE

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. Or 30 days , it's depand to quantity.

Q: What is your terms of payment ?

A:

1) T/T 50% deposit, the Balance shall be paid after the goods inspected but before the shipment;

2) If all the cost is less than USD $ 10000, T/T 100% required in advance.

Before you place order to us, please let us know the following information:

*Choose the right Model


*Confirm your electric power supply ( Voltage, frequency and phase)


*Confirm the beveling angel required


*Confirm the welding joint required (U, V, Double V or Compound preparation)


*Advise your pipe material ( Carbon steel, stainless steel or others)


*Other special demands about machine


*The spare parts needed


*If the pipe wall thickness more than 30mm, inform us in advance (Important)
