Our hand rotary tiller is available for various of farming management with accessories below.
Product Description

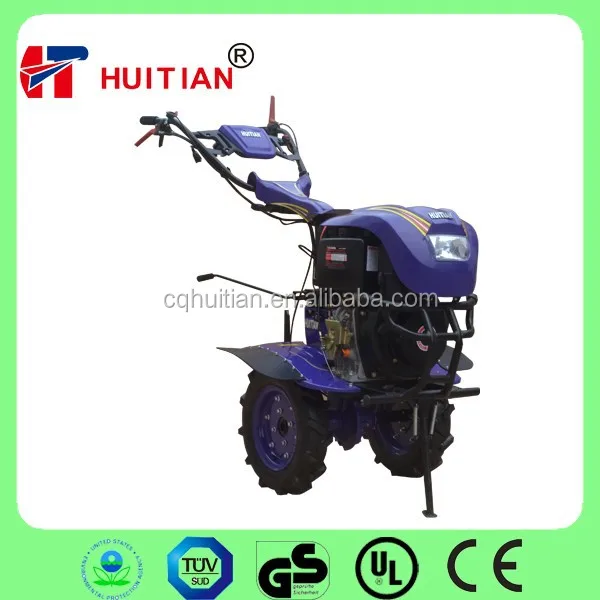

Specifications of our Rotary Hoe Walking Tractor
Model
HT135
HT135E
Tiller
Transmission
Gear Driving,Straight Connection
Clutch
Wet Friction Plate
Gear Shifting
-1,0,1,2
Tilling Depth(mm)
150~300
Tilling Width(mm)
1350
Productivity(m^2/h)
≥800
N.W./G.W.(kg)
156/167
171/182
Dimension(mm)
1750×1350×1100
Tyre&Blade
Tyre Size
4.00-8(standard);4.00-10/5.00-12(optional)
Blade
HT-4(standard);optional refer to blades series
Engine
Engine Model
KM186F
Engine Type
single cylinder,vertical 4-stroke,air-cooled diesel
Bore × Stroke(mm)
86 × 70
Fuel Tank Capacity(L)
5.5
Displacement(ML)
418
Max. Power HP(kw)/rpm
9(6.3)/3600
Starting
Manual Start;Electric Start
Packing
20'GP/40'HQ Capacity(sets)
48/144
Packing Dimension
980×560×840
Package Material
Carton Box with Iron Frame/Wooden Box

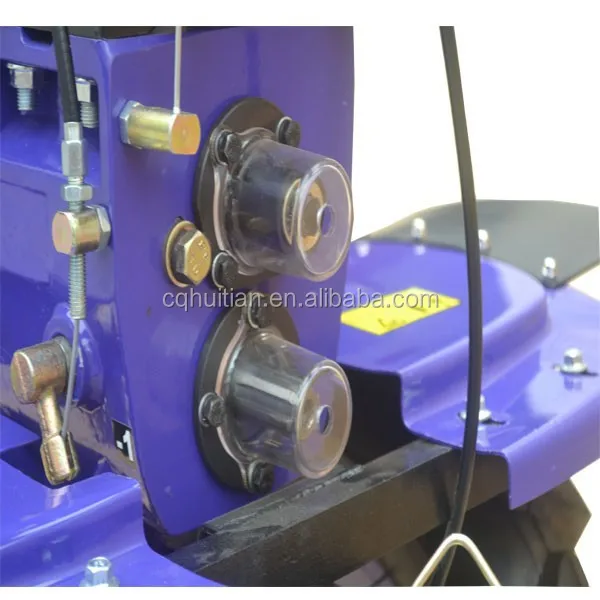

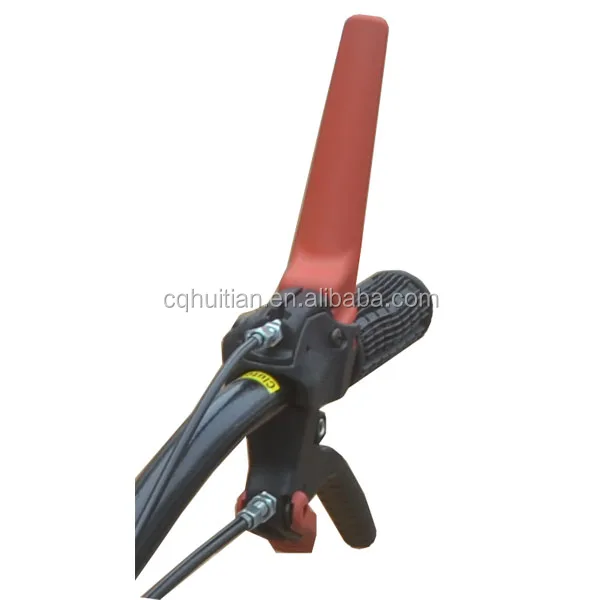

1 Oil Switch & Reverse Gear Grip & Swerve Grip
2 Emergency Stop Switch
3 Twin Export Axles
4 Dust Cover & Lambdoidal Wheel
5 Engine Bumper
6 Tool Box & Starter Switch
Our Services
Why Choose HUITIAN
Application Extension
We have diverse installable equipment for your choice to expand application with the Rotary Hoe Walking Tractor
Aiming at Rotary Hoe Walking Tractor for 21 years!
Technical Patents
Certificate
Trade Assurance Supplier($40,000)
Company Information
About Us
Founded in 1994,Huitian company has developed into an enterprise with a workshop of 40,000 square meters,which is equipped with 11 assembing lines,6high pressure stamp beds,and 30sets Rotary Hoe Walking Tractor,We have more than 300 staff,18 of them are profession engineers,and 27of them are titled management staff.
Our annual output surpassed 100,000sets mini tillers,50,000 square meters green house,and 200,000sets general machines.Our company has passed the ISO9001 quality system attestation,and carries CE,GS, and EPA certificates.Products are exported to over 60countries in Europe,South America,Africa,Middle East,and Asia,and are famous in both domestic and overseas brand in Chongqing,and Customer Satisfed enterprise.
Concept Maps of the New Factory

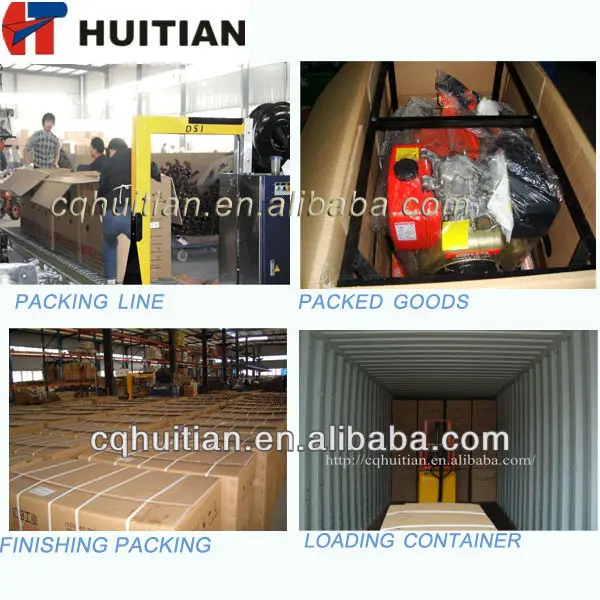

Packaging & Shipping
FAQ
You May Concern
1.If there are some trouble with the Rotary Hoe Walking Tractor,how can I get help from you?
Our technician is always at the position to solve your problems,please picture the wrong part and sent it to us,we will contact you ASAP.
2.What is the material of the blade?
The blade is made by Steel Type SC.
3.What is the payment term?
Usually, we accept T/T or L/C. 30% deposit first,70% balance against the copy of B/L.
4.What is the MOQ?
The MOQ is 1pc.
5.How long is the delivery time?
Generally,it takes 15-30days after depositing,it depends on your order.
