GYTA33(G652D) direct bury outdoor 12 24 48 72 96 144 288 core anti rodent Armoured Fiber Optical Cable

Product Overview

Description



    GYTA33(G652D) direct bury outdoor 12/24/48/72/96/144/288 core anti rodent Armoured Fiber Optical Cable





Feature

• High quality optical fiber provides good transmission performance
• Accurate fiber excess length control ensures excellent mechanical and temperature performance
• Special filling gel filled loose tubes provide perfect optical fiber protection
• All section water blocking ensure the cable core reliable performance of moisture-proof and water block
• Corrosion resistance phosphated steel wire with high Young's modulus as central strength member givesdesirable tensile strength
• Longitudinally Armor with both side coated aluminum tape and stranded steel wires armoring meet therequirements of high crush resistance, tensile strength, bulletproof property, heavy duty direct buryunderwater installation
• Strict craft and raw material control enable lifespan over 30 years



Performance

• Applications:Long-distance communication and indoor communication
• Way of laying: Direct burial, underwater laying
• Operating temperature: -40 ~ + 70 °C
• Bend radius: static 15x cable diameter

                            Dynamic 30x cable diameter

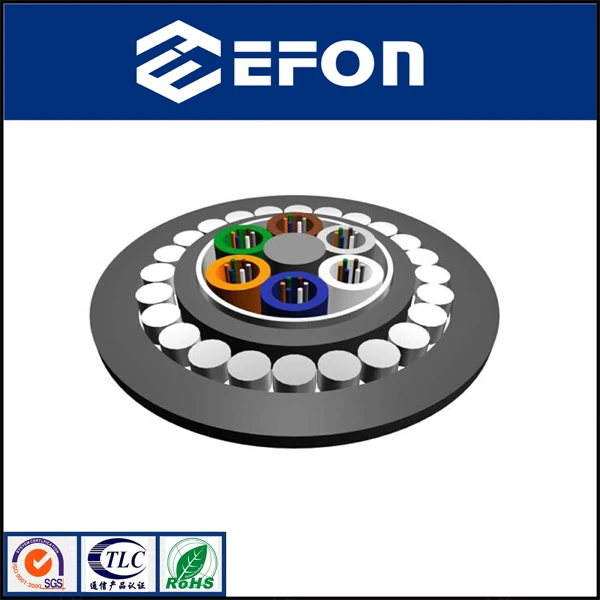

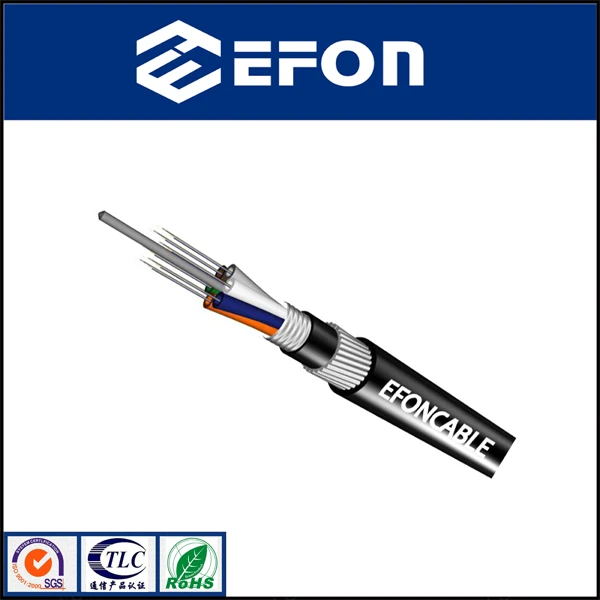

GYTA33  single mode armoured fiber optical cable

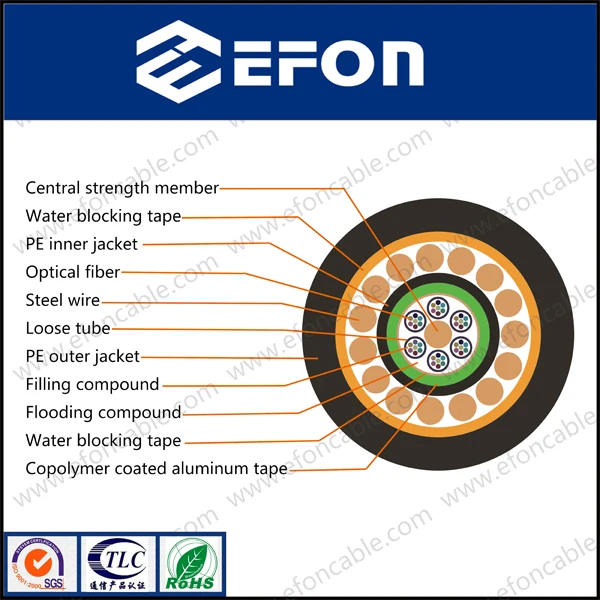

Structure and Technical Specifications



Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fibers per Tube	No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
					Short Term	Long Term	Short Term	Long Term
2~30	15.5	407	6	5	10000	4000	5000	3000
32~36	16.0	437	6	6	10000	4000	5000	3000
38~60	16.6	463	12	5	10000	4000	5000	3000
62~72	17.2	499	12	6	10000	4000	5000	3000
>72	Available upon customer’s request

Note:

1. According to different applications, GYTA333, GYTS33, GYTS333, GYTY53+33, GYTY53+333, GYTA53+33, GYTA53+333 can provided.

2. Special cable structure can be designed and manufactured on customer’s request.







We produce and test cable comply with following standard:



Mechanical Performance
Max Tension Performance	IEC 60794–1-2-E
Max. Operation Tension	IEC 60794–1-2-E1
Crush Test	IEC 6079 –1-2-E3
Impact Test	IEC 60794–1-2-E4
Repeated Bending	IEC 60794–1-2-E6
Torsion Test	IEC 60794–1-2-E7
Cable bend	IEC 60794–1-2-E11A
Attenuation Coefficient	ITU-T G.652
Structural Test	IEC-60793-1-20
Environmental Performance
Temperature Cycling	IEC 60794–1-2-F1
Water Penetration	IEC 60794–1–2-F5B
Filing Compound Flow	IEC 60794-1-E14



 MORE INFORMATION







         P R O D U C T I O N   L I N E



 T E S T  C E N T R E



 D E T A I LS



   P A C K E G E

PACKING
Packing	3km-5km/wooden drum ,iron-wooden drum with fumigated or not
Packing Size	Depend on cable size and packing length
Packing Photo	iron-wooden drum                                           wooden drum
