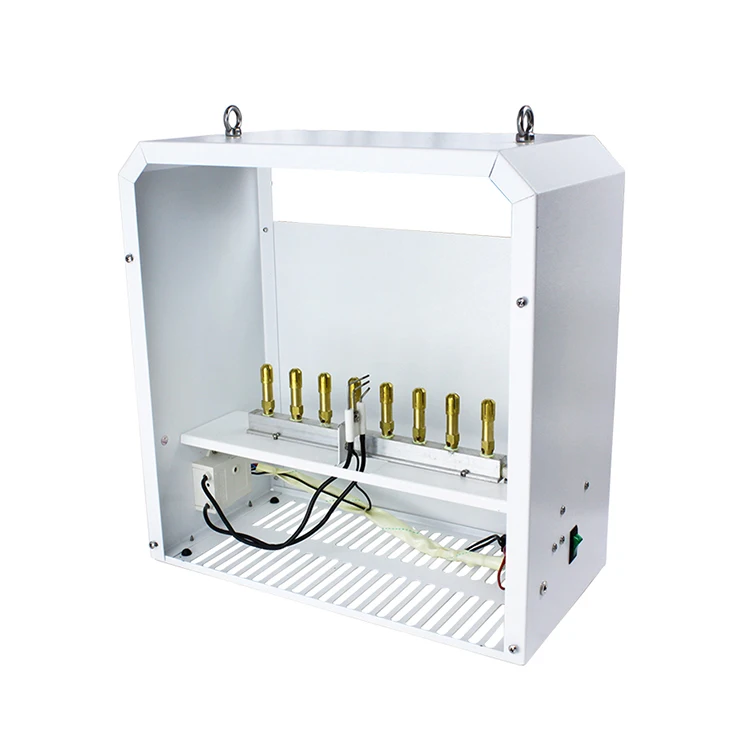

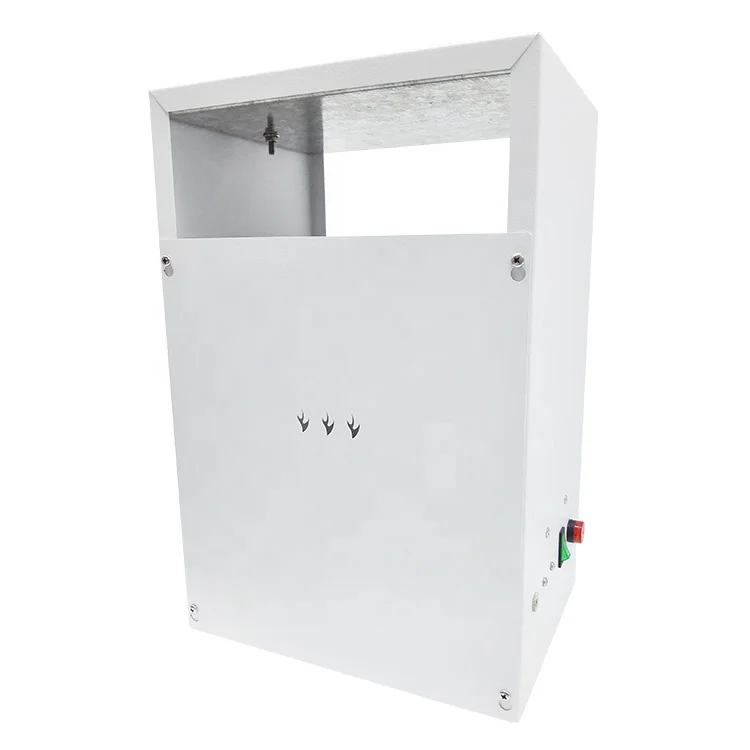

Agricultural Greenhouse 8 Burners Carbon Dioxide Electronic CO2 Generator/ frequency generator / gas burner

Product Overview

Description



Technology performance parameter:



Features for Co2 generator:



1. Available in both propane or natural gas models with 4 burners or  8 burners

2.  Safety “tip-over” switch shuts down Propane or natural gas in case the CO2 generator falls or gets knocked over

3.  Constructed of powder-coated steel  to keep out moisture, rust and discoloration

4.  2 Amps,120 Volts/240 Volts, 50Hz/60 Hz

5. Available in 3 stage altitude: 0-3500 ft, 3500-6000 ft, 6000-10000 ft.



Technology design:

1. Advanced "2-stage" electronic ignition module eliminates open pilot flames and ensures proper operation.
2. Dual-solenoid valves provide complete redundancy with the gas controls.
3. Tip over, or "tilt switch" function that instantly shuts off gas flow if the unit is not upright.
4. Multiple heat shields provide extra protection to the critical components.
5. Uses clean-burning precision milled brass burners and only the highest quality components for assembly.
6. Individually pressure tested for leaks to ensure reliability,each unit is approved by highly qualified QA personnel.



Technology parameters for Co2 generator:



Name	Agricultural Greenhouse 8 Burners Carbon Dioxide Electronic CO2 Generator/ frequency generator / gas burner
Model	4 burners/ 8 burners
Type	Natural gas
Reductor Input Pressure	114mmH20 (4.5''W.C.)
Reductor Ourput Pressure	40000BTU/Hr
Exhaust way	Force exhaust
Ignition way	High-pressured pulse spark
Safety Setting	Flameout protection, cut protection
Area of greenhouse (cubic feet)	<=3200
Wastage of fuel(each burner)	0.225(kg/hr)
Input/Output	100~240VAC/ 12VDC 1.5-2.0A

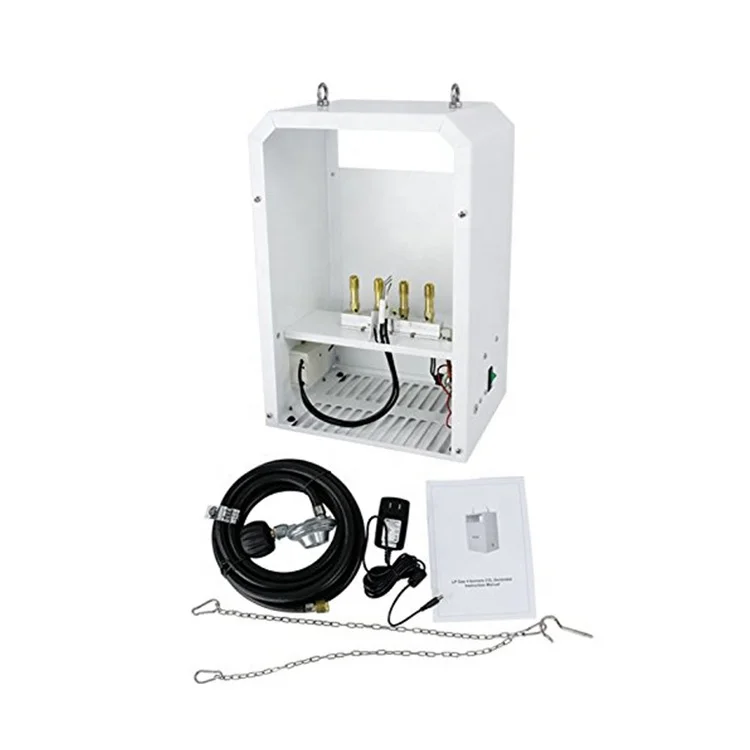

Package	1-Mainframe, 1-power supply adapter, 1-regulator 2-tubes 2-screw plugs 1-thread seal glue 1-stainless steel chain 1-hanger 1-hex wrench 1-operation hand book



Inside of the generator



Generator  has 2  standards  burners.



4 burners generator:



8 burners generator:



Schematic diagram:





Who is Chin-Up ?



Chin-Up Hydroponics established in 1990s, is a leading manufacturer and supplier

of hydroponics equipment in China, specializing in Grow Light Reflector, Light Hanger,

Digital ballast, Carbon Filter, Inline Fan, grow tent and others accessories for hydroponics.



In addition, we have established close cooperation with reliable overseas and domestic

partners to produce and source new products and materials.



Meanwhile, All of our products are of the highest international standard and quality and

ETL approved. With more than ten years experiences in the fields of hydroponics, we are

playing a leading role in grow light industries both home and abroad.







                 CUTTING LASER MACHINE                                          THE MANUFACTURE IN REAL







Why Chin-Up garden greenhouse co2 generator Gas Burner?





We promise that never play tricks on materials:





• Reductor Input Pressure:  114mmH20 (4.5''W.C.)
• Reductor Ourput Pressure:  40000BTU/Hr
• Area of greenhouse (cubic feet):  <=3200
• Wastage of fuel(each burner): 0.225(kg/hr)
• Warranty: 3 years.
