KH DJJ automatic egg roll making machine ; egg roll maker

Product Overview

Description

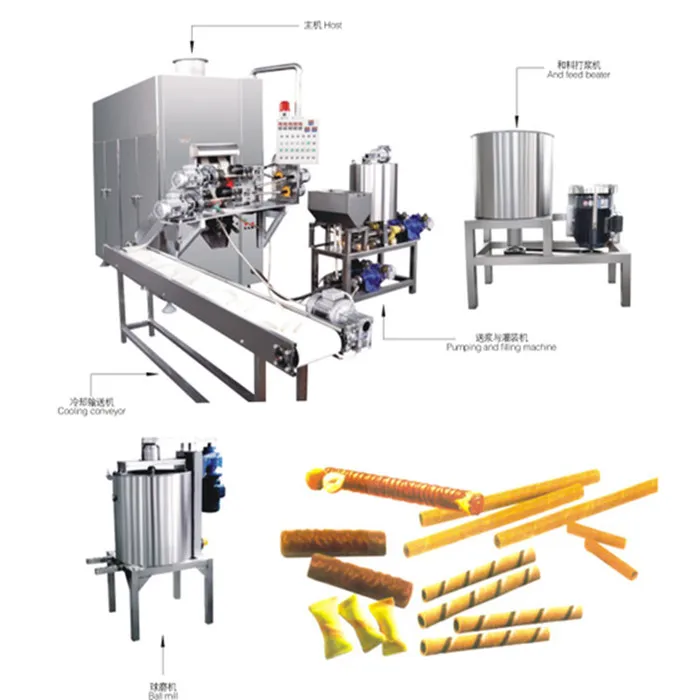

Automatic egg roll machine is using an new generation egg roll machine ,which is adopt the latest Japanese technology ,its combined by one material mixer , one baking machine,two pumping machine , two filling machine and conveyor,the material should be agitating by the mixer, put the material into baking machine by the pumping machine , Use knife cut the soft part, the soft part put into roller(the equipment(the equipment with two level roller) then be bar shape , the bar's length as your requirement,in the end ,send into conveyor , the heating machine heated by gas ,the heating system is automatic , there is alarm after finished heating.the equipments all with controller(can be programme).the motor is controlled by the transducer , the sheeter's thickness can be adjust , the bar's diameter can be adjust by change bar rod . the bar rod's speed can be controlled by the transducer motor , the length of bar can be adjust by the light eye. the bar can be filling cream or other material. we offer the recipe with free.





2.Main parameters of egg roll maker

Type	DJJ-R gas heating	DJJ-D electrical heating
Total power	8KW	35KW
Overall diemensions	3400*1700*2250	3400*1700*2250
Gas consumption	LPG 4.5kg/h Natural gas 8-9CBM/h
Production	hollow 30kg/h ; filled 60kg/h	hollow 30kg/h ; filled 60kg/h
Grilled round	diemeter 1800mm	diemeter 1800mm
Total weight	4T	4T

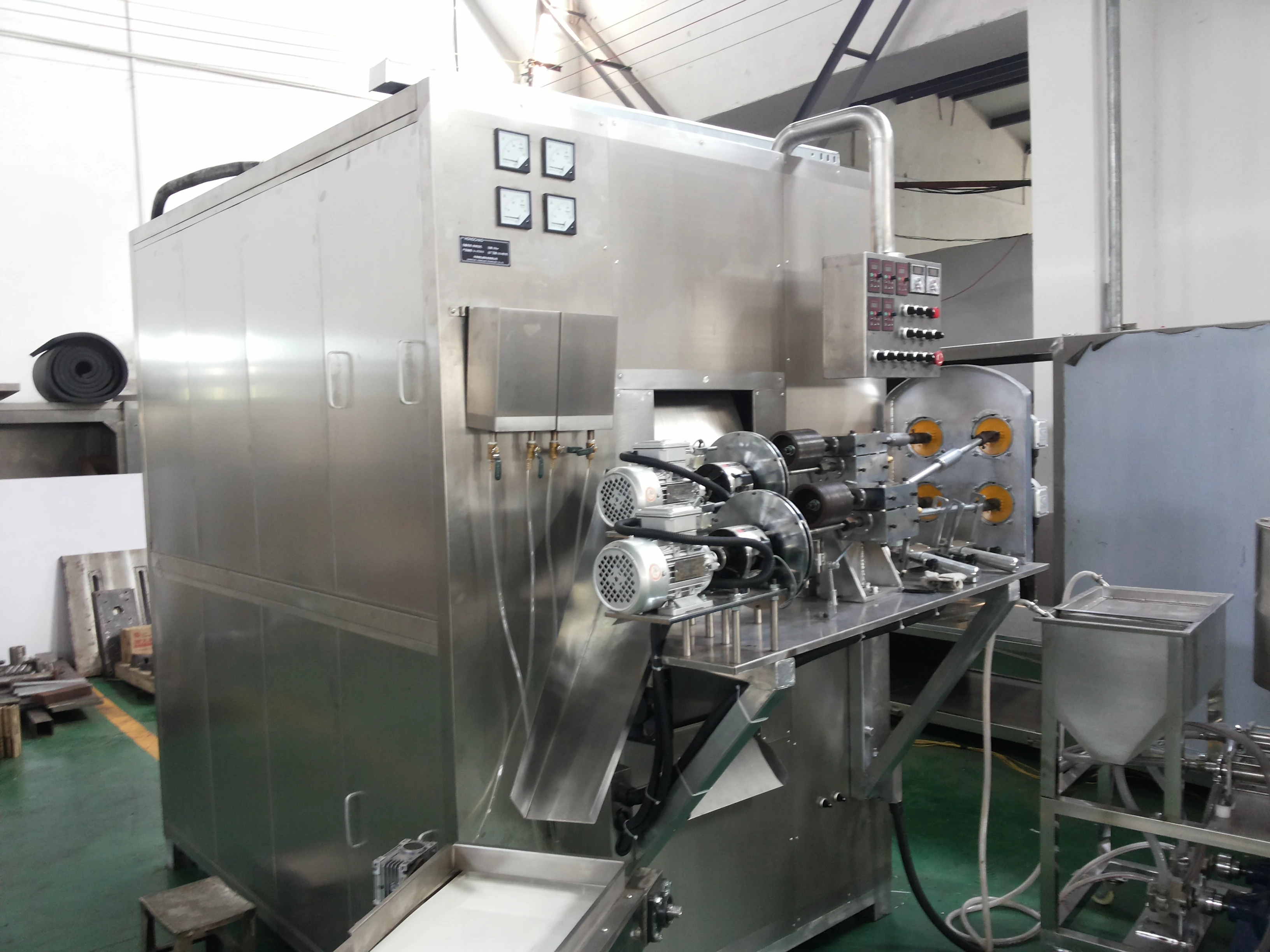

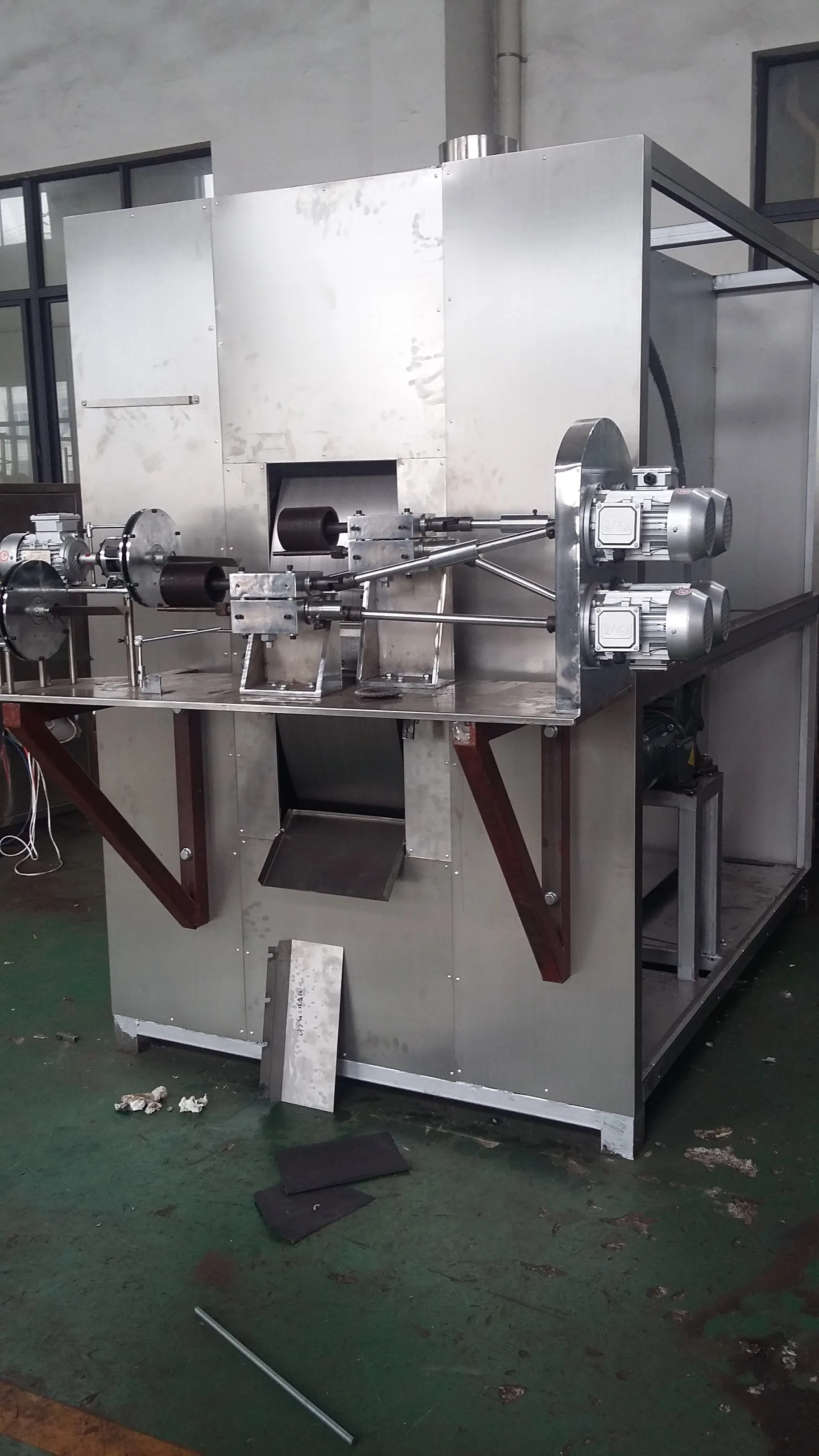

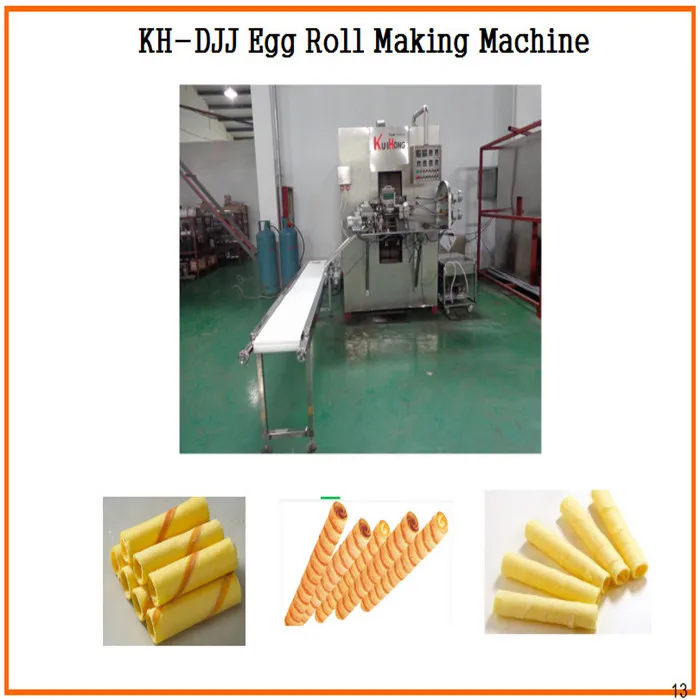

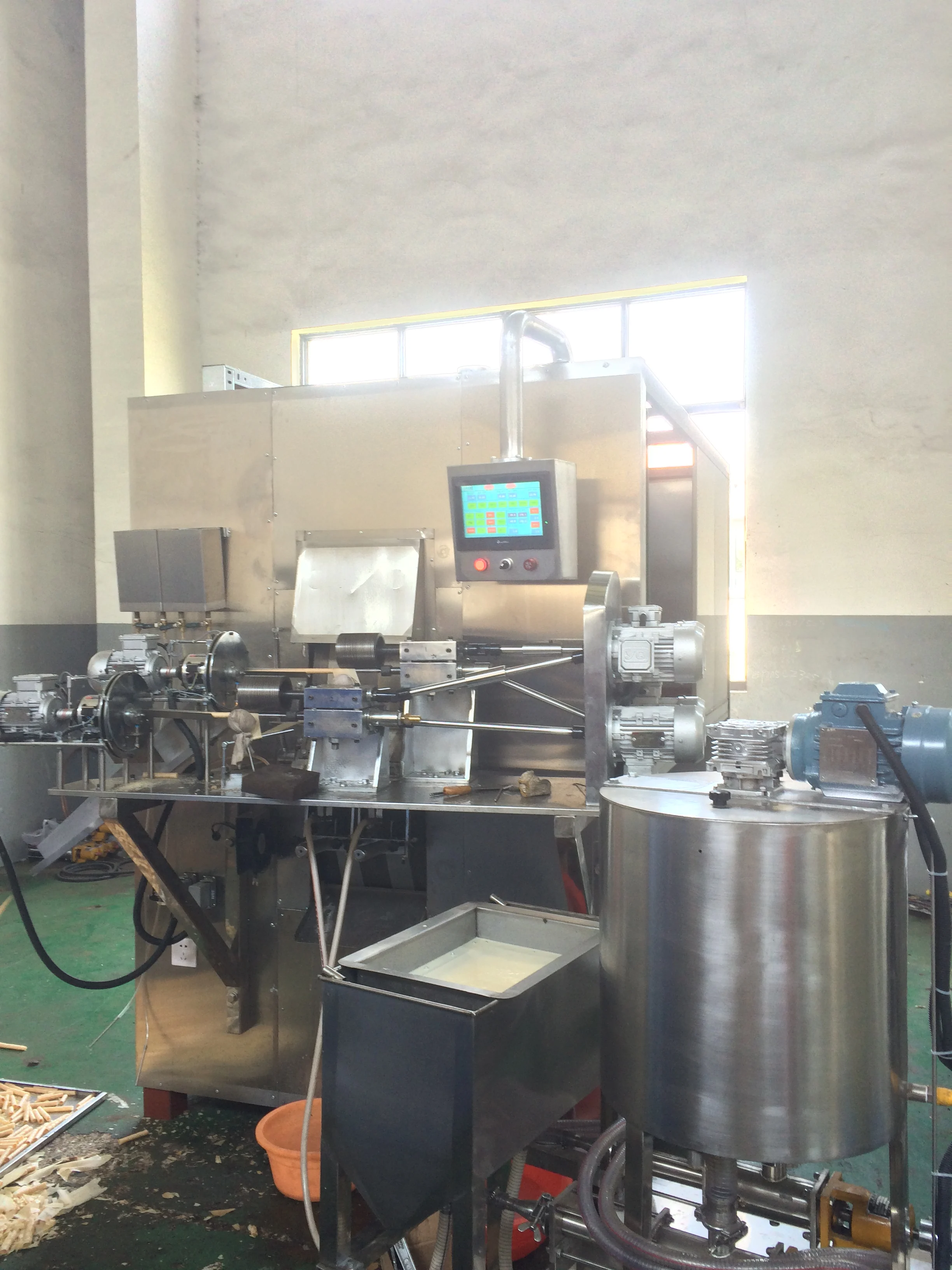

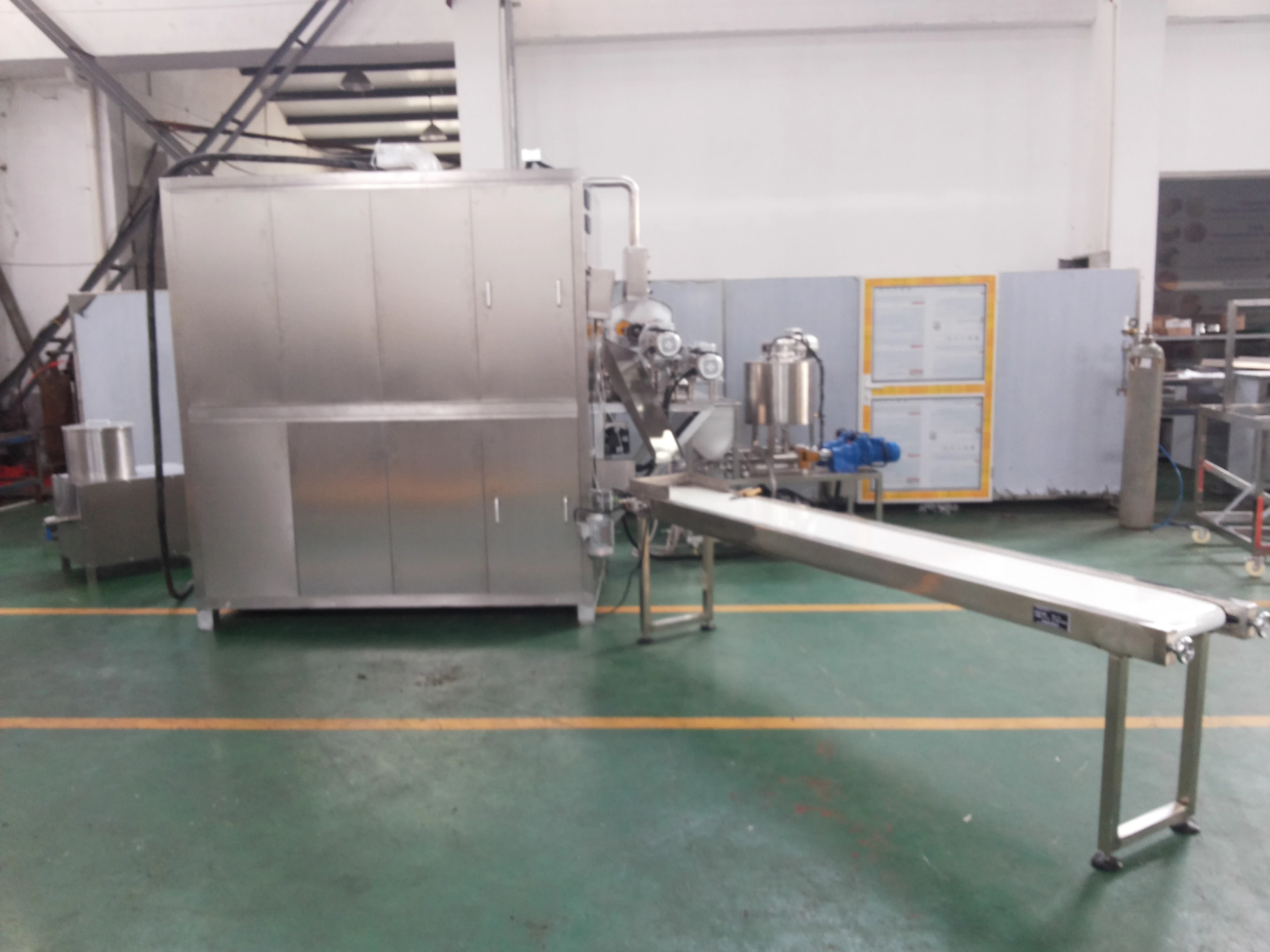

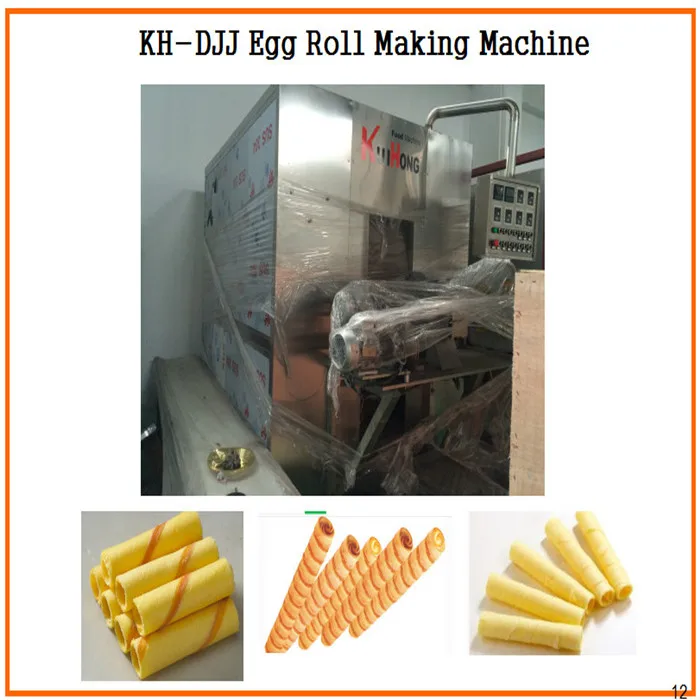

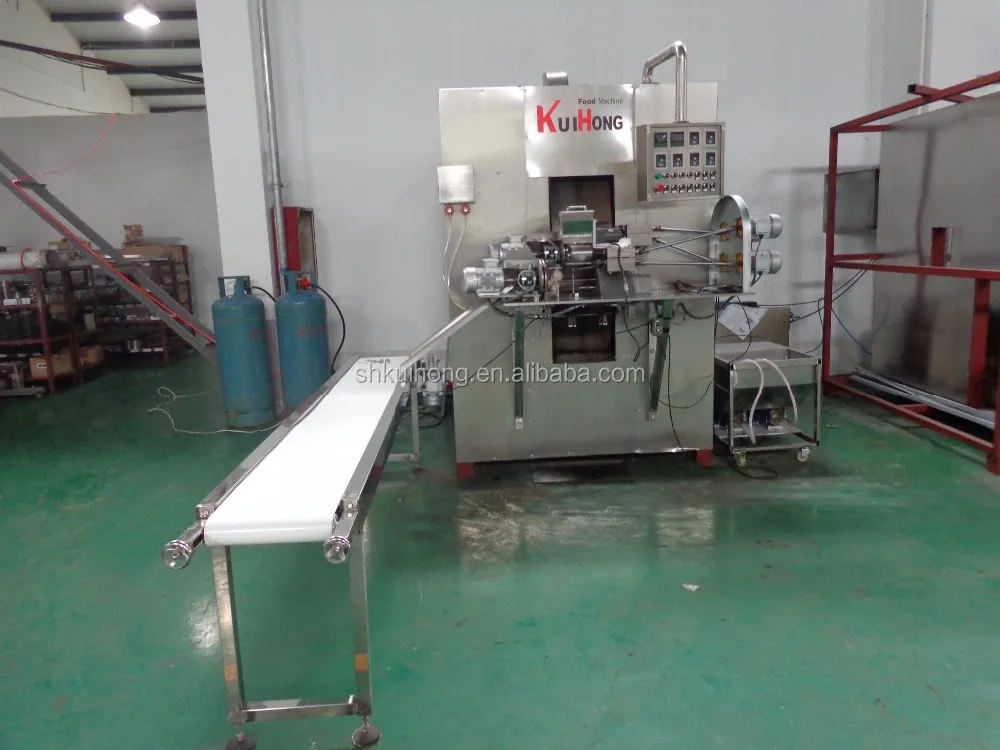

3.Real pictures in our factory of egg roll machine
