Impact resistance ASAPVC roofing sheet,industry profile roof tile,IT5 profile sheet

Product Overview

Description

A roof tile is one of the best ways to beautify your home,and its tested to last not just for years,but for decades..

Yuehao Impact resistance ASAPVC roofing sheet,industry profile roof tile,IT5 profile sheet are more and more popular in the world since it's excellent performance

1.save cost
2. Loading bearing: It can load 150 kg per square meter evenly;
3. Light weight: 5-6.0kg/square meter;
4. Water resistance: 100%;
5. Fire resistance: Self-extinguish off fire;
6. Anti corrosion;
7. Impact resistance and low temperature resistance;
8. Sound and heat insulation;
9. Small Thermal expansivity;
10. Environmental protection and energy conservation;
11. Easy to install





The Anti-Corrosion APVC Roof Sheet is developed based on international advanced technologies. It is an especially designed roofing material for corrosive substance manufacturing factories and areas with frequent acid rain.



 First layer: It is a kind of resin with superior weather resistance. Due to its resistance to UV radiation and chemical corrosion, this material provides our APVC roofing sheet with great durability.



 Second layer: Good quality modified PVC materials with high toughness is adopted toensure the strength while without compromising on the rigidity.



 Third layer: the special foam structured material which delivers good heat and sound insulation.



Fourth Layer: adopts a kind of white color high toughness material, which gives the buildings a sense of space and increases internal brightness.















Model	YH-APVC
Thickness	1.5±0.1mm	1.8±0.1mm			2.0±0.1mm		2.5±0.1mm			3.0±0.1mm
Weight	2.8±0.1kg/m2	3.4±0.1kg/m2			3.8±0.1kg/m2		4.8±0.1kg/m2			5.8±0.1kg/m2
Length	5800mm , 11800mm or customized

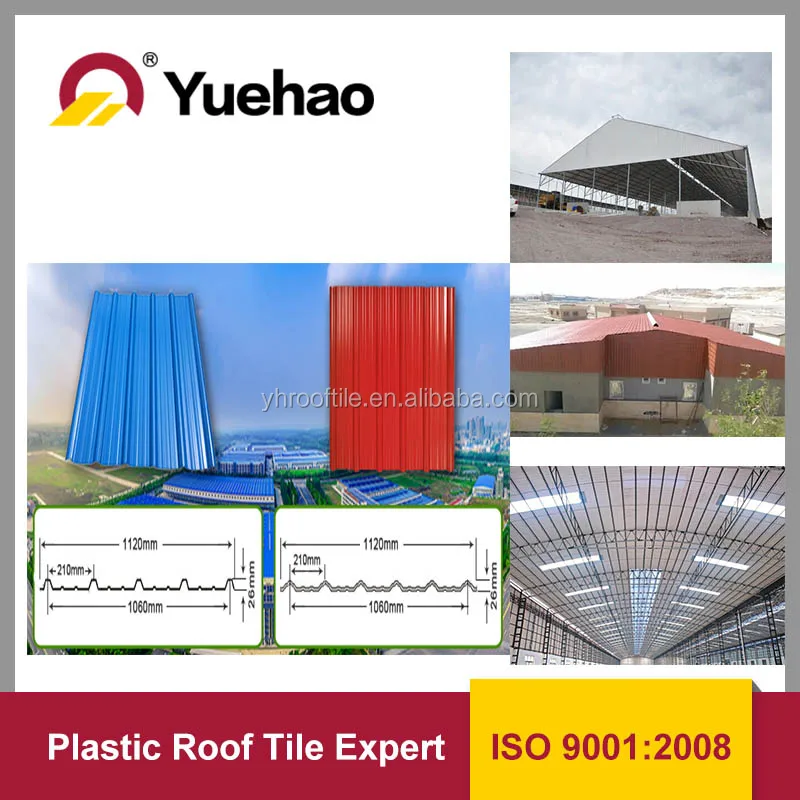

Overall width	930mm		1120mm			1350mm			according the profile
Effective width	840mm		1060mm			1260mm			according the profile
Purlin spacing	700~900mm
Container Load capacity	Thickness			SQ.M./20 FCL (21 Tons)				SQ.M./20 FCL (26 Tons)
	1.5mm			7200 m2				9000 m2
	1.8mm			6100 m2				7600 m2
	2.0mm			5500 m2				6800 m2
	2.5mm			4300 m2				5400 m2
	3.0mm			3600 m2				4500 m2









Test by SGS



Item	Content	Result	Standard
Environment	Pollution or environment friendly	No asbestos and Environment friendly Recycling material	GB6566-2001, A standard good for Environment
Heat distortion temperature	Under 70.0°C	No change	GB/T1634-2004
Vicat softening temperature	Under 75.2°C	No Softening	GB/T1633-2000
Hard to burn	B1 Grade	Oxygen index:35	GB/T2406-1993
Vertical Burning	FV-0	FV-0	GB/T2408-1996
horizontal Burning	FH-1	FH-1	GB/T2408-1996
Impact Resistance	no crack	0/10	GB/T8814-2004
Density	1.75-1.95	1.79	GB/T1033-1986
Corrosion-resistant	Acid (HCL,H2SO4,HNO3)5%	No change	QB/T3801-1999
	Alkaline(NaOH)5%	No change	QB/T3801-1999

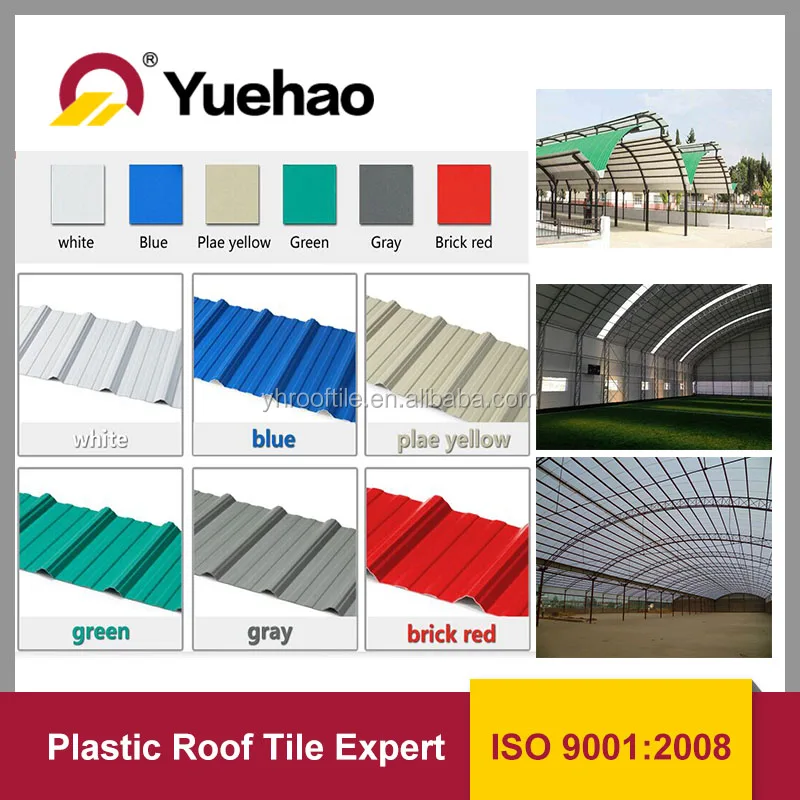

Product Pictures

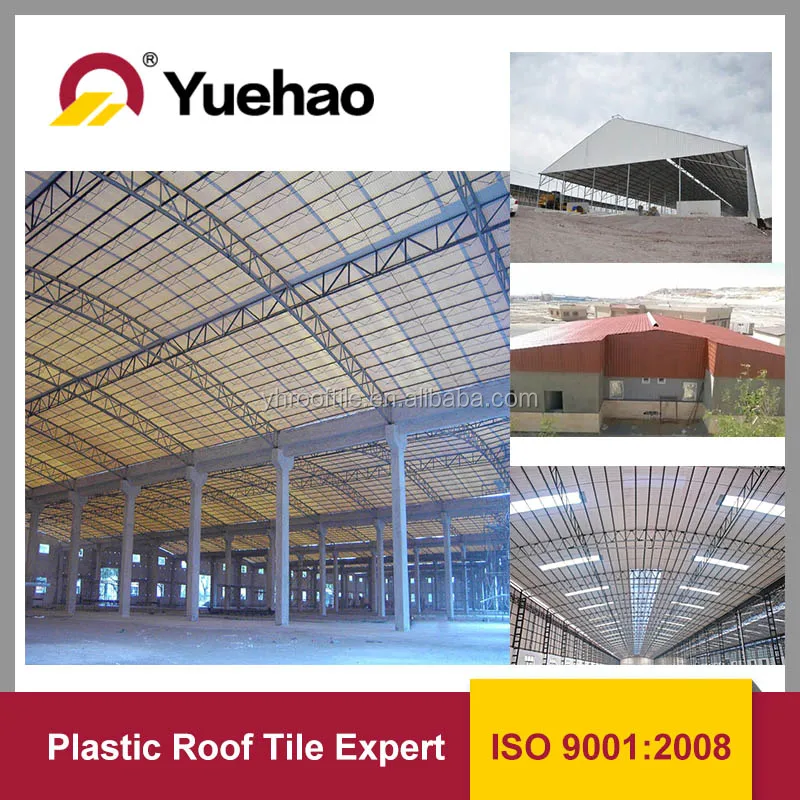

Application:







widely used for residential house,villa, workshop, warehouse, building lighting, greenhouse, sound-insulation walls and advertising boxes etc.We are the authorized supplier of roofing tiles for many government big projects in China,as well as Mid-East,South America etc.

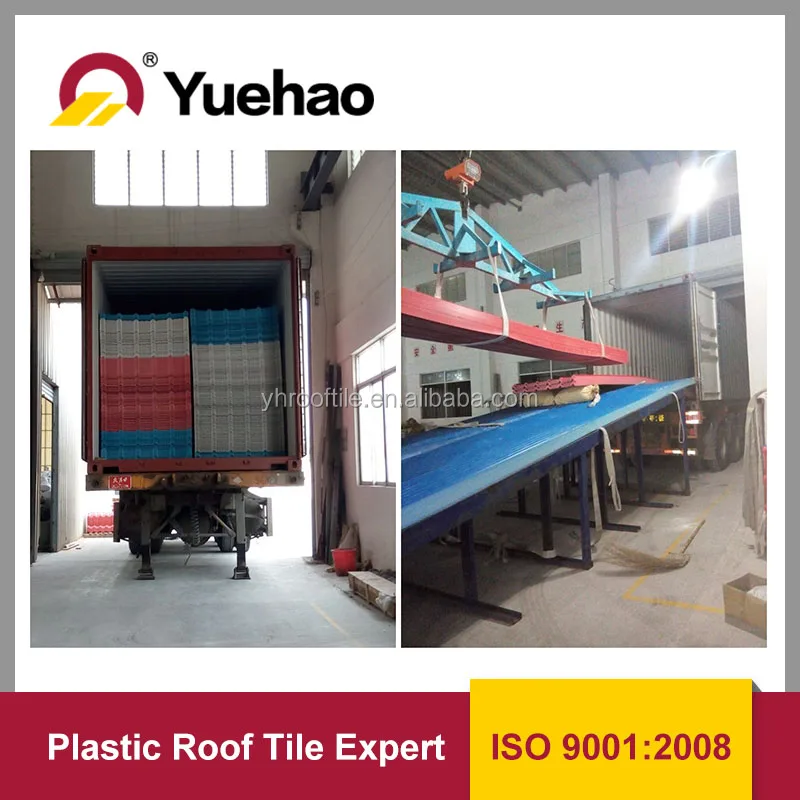

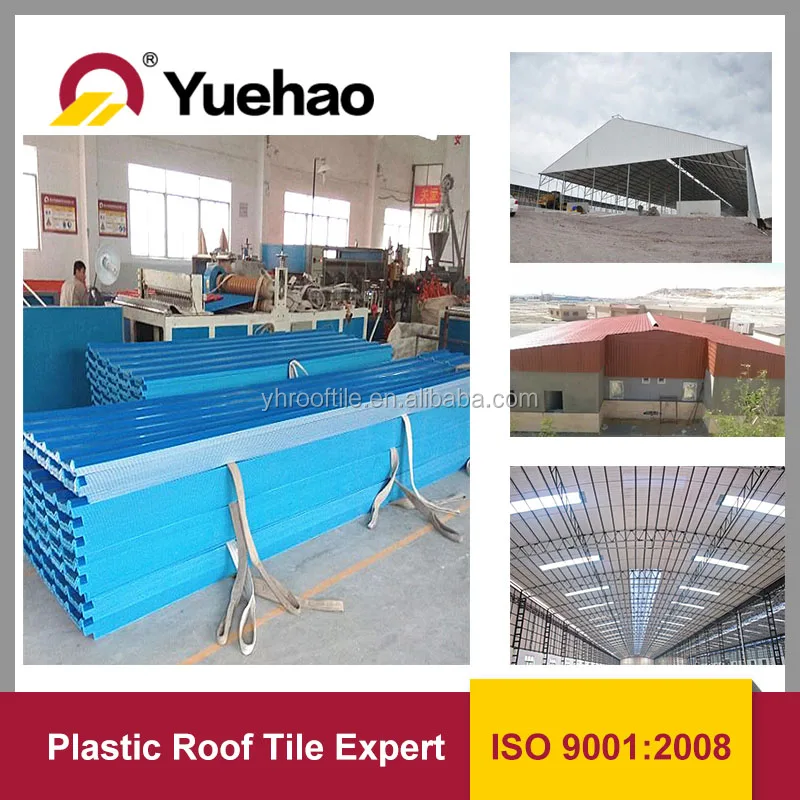

Factory Tour:







Foshan Yue Hao Building Materials Technology Co.,Ltd is a lead manufacturer of new-type engineering materials,specialized in producing selling ASA resin tiles, APVC  weather-resistant engineering tiles,PVC multilayer corrosion-resistant and heat-insulating tiles and other environment-friendly energy-saving products,which are widely used for workshop,warehouse,building,green house,sound-insulation walls,advertising boxes etc.



We have almost 20years solid factory experies,with latest equipment and technology,all our products have passed the evaluation of ISO9001 Quality System Certification.Besides, the Yuehao ASA tile has gained the title of Famous Brand in Guangdong Province. With the high quality and proffessional production/service team,we are the authorized supplier of roofing tiles for many successful projects in China, Mid East,South America etc..



Located in Sanshui Lubao Industrial Park, We sincerely welcome you to visit us!
