Product Overview
Description

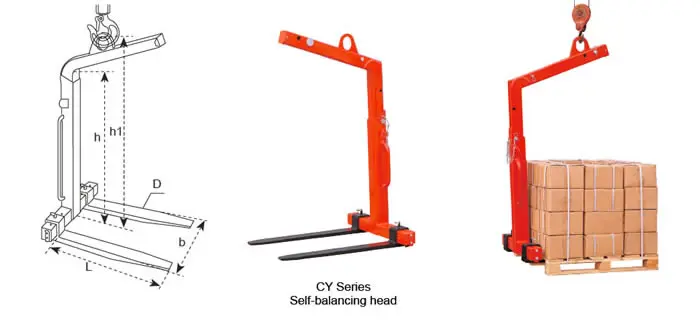

Crane Fork CY Series
• No slings or chains necessary.
• Crane operator will not need to leave cab of lorry or crane.
• Forks will remain horizontal when loaded and unloaded.
• Adjustable fork width.
• Adjustable height.
Model | Work Load Limit | Adjustable Fork Width | Hook Height | Effective Height | Fork Length | Fork Cross | Overall Size | Net Weight |
WLL (tonne) | b (mm) | h1 (mm) | h (mm) | L (mm) | D (mm) | L×W×H (mm) | (kg) | |
CY10 | 1 | 350~900 | 1420~1920 | 1100~1600 | 1000 | 100×30 | 1120×920×1530 | 140 |
CY20 | 2 | 400~900 | 1655~2355 | 1300~2000 | 1000 | 120×40 | 1140×920×1775 | 220 |
CY30 | 3 | 450~900 | 1720~2420 | 1300~2000 | 1000 | 120×50 | 1140×920×1850 | 280 |
CY50 | 5 | 530~1000 | 1710~2410 | 1300~2000 | 1000 | 150×60 | 1160×1020×1850 | 380 |
