Product Overview

Description

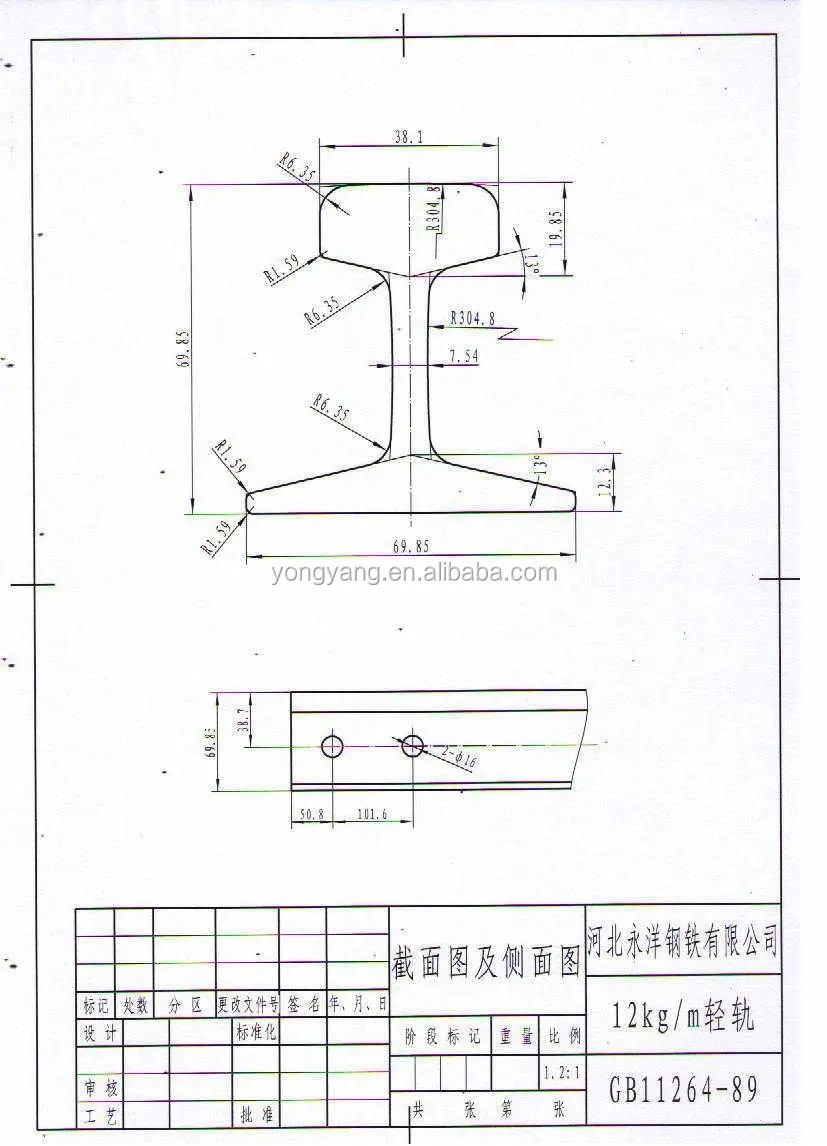

12kg Light Steel Rail, (Q235)







Product Introduction


Heavy Rail:
Specification(kg/m):    9KG,12KG,15KG,18KG,22KG,24KG,30KG
Standard:  GB11264-89
Material: Q235 55Q
Length(M): 6,8,9,10












QGC_0602()













 Inventory
































































































































































































































































THE LIST OF YYGT

Name of CommoditySpecificatonMaterialsStandard of ProductsTheory WeightLength of Dimension (m)Packed in bundle with iron wire (pcs/bundle)
Light Rail4kg/mQ235Q/YYG001-20084kg/m6,8,9,1075
8kg/mQ235Q/YYG001-20088.42kg/m55
12kg/mQ235GB11264-8912.2kg/m36
15kg/mQ235/55Q/50QGB11264-8915.2kg/m28
18kg/mQ235/55Q/50QYB222-6318.02kg/m21
22kg/mQ235/55Q/50QGB11264-8922.3kg/m21
24kg/mQ235/55Q/50QQ/YYG001-200824.46kg/m21
30kg/mQ235/55Q/50QGB11264-8930.1kg/m15
Heavy Rail38kg/mU71Mn/U71/45MnGB2585-2007 Q/YYG002-200838.73312,12.510
43kg/mU71Mn/U71/45MnGB2585-2007 Q/YYG002-200844.65310
50kg/mU71Mn/U71/45MnGB2585-2007 Q/YYG002-200851.51410
Crane RailQU70U71MnYB/T5055-9352.8kg/m12,12.510
QU80YB/T5055-9363.69kg/m10
QU100YB/T5055-9388.96kg/m5
QU120YB/T5055-93118.1kg/m5
I-beam of Mine Usage Steel9#20MnK/ Q235YB/T5047-200017.69kg/m8,9,1028
11#YB/T5047-200026.05kg/m18
12#YB/T5047-200031.18kg/m15
U-beam Of The Mine Channel Steel25U20MnK/ Q235GB4697-1991 Q/YYG006-200824.95kg/m8,9,10,1215
29UGB4697-199129kg/m15
36UQ/YYG006-200835.87kg/m15

Name of CommoditySpecificatonMaterialsStandard of ProductsTheory Weight (kgs/set)Length of Dimension (cm)Packed in bundle with iron wire (set)
Fish Plate8kgQ235BGB11265-890.8 +0.8 =1.6 50
1+1=2
12kgGB11265-891.1+1.1=2.245.550
2.6-3.0
15-18kgGB11265-893.6-4.053.5425
4.6-5.0
5.6-6.0
22-24kgGB11265-896.6-7.061.7320
7.6-8.0
8.4-9.0
30kgGB11265-8914.4-15.071.4810
16.4-17.0
43kgGB185-6357.0-58.0791





12kg



About Us


1, We are a professional manufacturer of all types of industrial rails under Chinese Standard which are used for mining or other industrial projects, and our main products include light rails, heavy rails, and crane rails, and accessories of fish plates, bolts and nuts etc. We have more than 20 years of history supplying above products.
2, We have continuously tried to improve product quality. Our annual production capability is more than one million tonnages.
3, Our products have already been exported to Poland, Romania, Russia, India, South America, Singapore, Philippines, Vietnam and Hong Kong, in 2001, we obtained the ISO9001:2000 quality management certification.
We hope to cooperate with more customers for mutual development and benefits.





Welcome your inquiries!

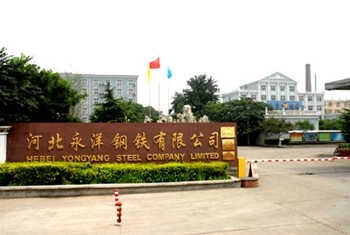

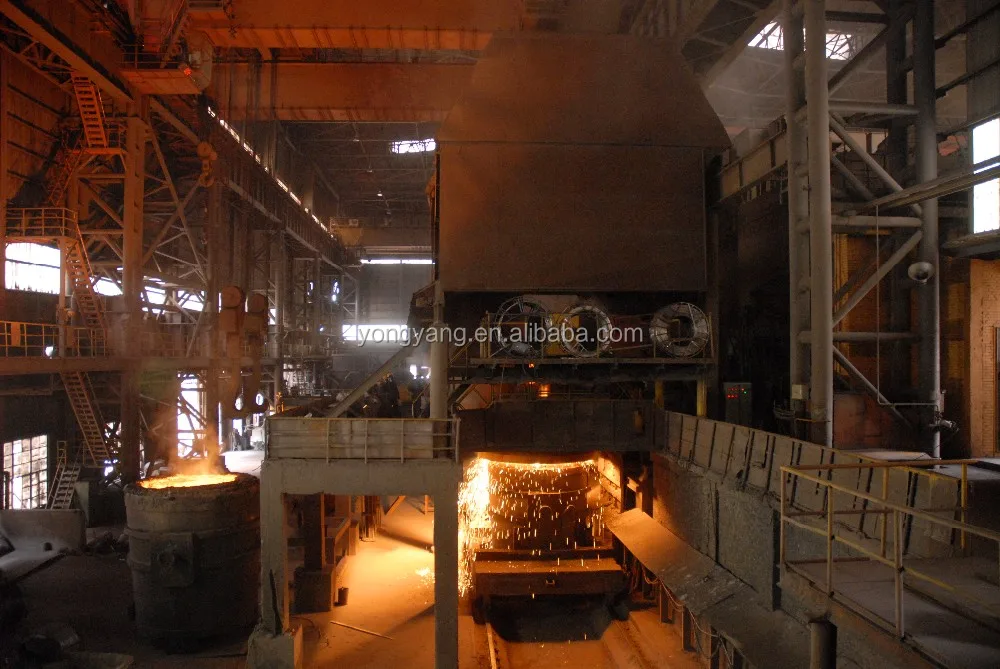

2009411102858641.jpg    QGC_0030
