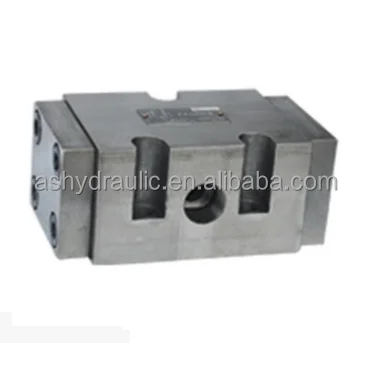

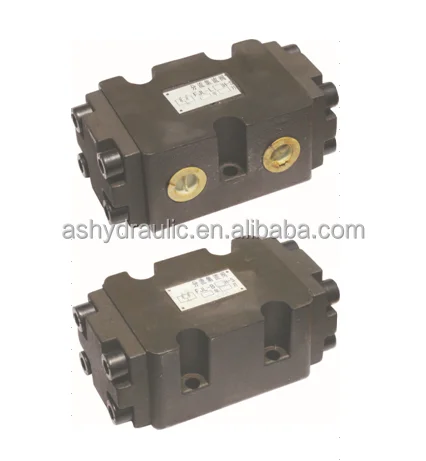

FL B10H,FL B15H,FL B20H,FJL B10H,FJL B15H,FJL B20H,FDL B10H,FDL B15H synchronous hydraulic shunt valve,hydraulic divider

Product Overview

Description

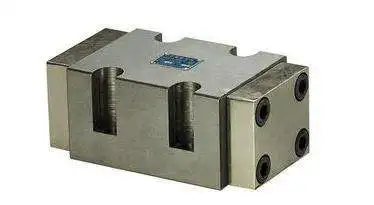

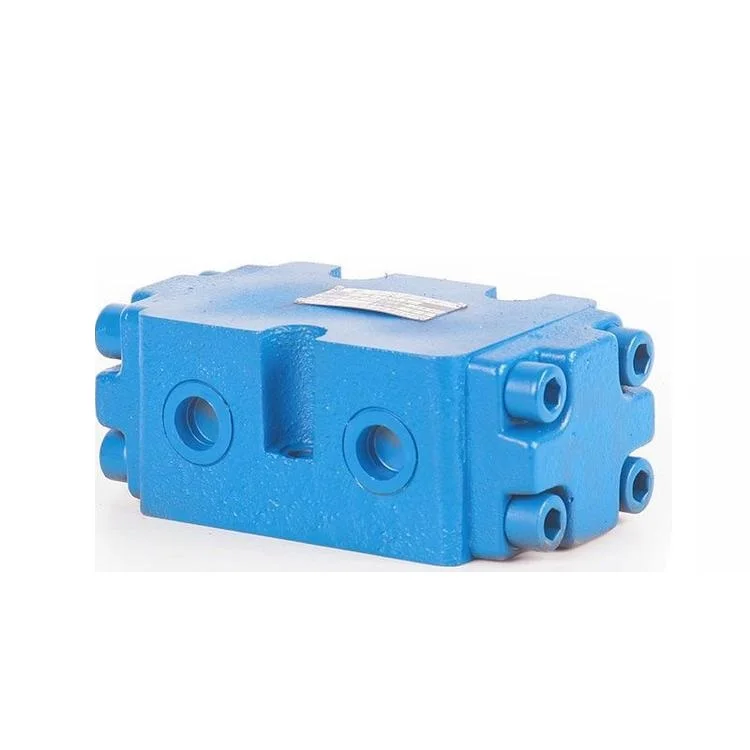

Hot sales FL-B10H,FL-B15H,FL-B20H,FJL-B10H,FJL-B15H,FJL-B20H,FDL-B10H,FDL-B15H synchronous hydraulic shunt valve,flow divider and combiner

1. Hot selling Chinese made valves

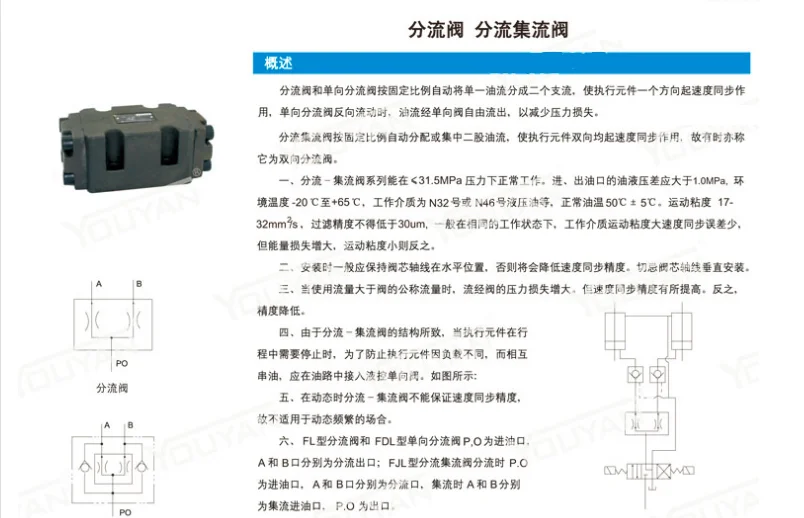

2. The flow dividing valve is also called the speed synchronous valve, which is the general name of diverter valve, collecting valve, one-way diverter valve, one-way collecting valve and diverter collecting valve

3. The split flow collecting valve is automatically allocated or concentrated with two oil streams according to the fixed proportion, so that both the actuating elements are synchronized with each other, so it is sometimes called as two-way shunt valve

4. Can be combined freely with flow distributing and collecting valve

5. Max. operating pressure 31.5Mpa

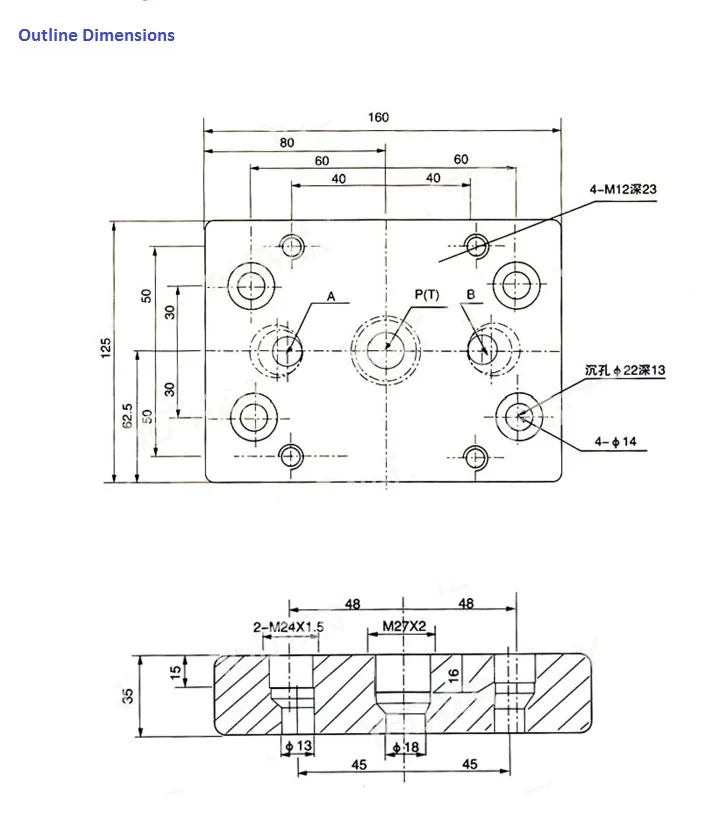

6. For flange connection, for subplate mounting

7. Very competitive price

8. 1 year of warranty

9. Short delivery time

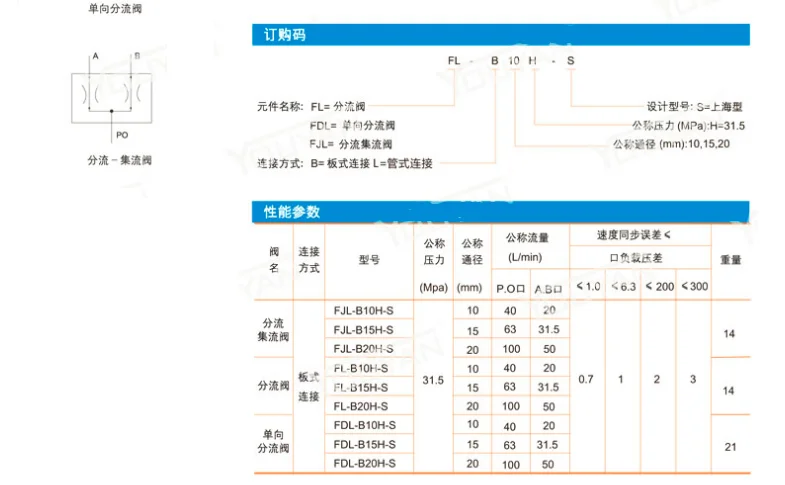

Some models for your reference:

FJL-B10H-S	FJL-B15H-S	FJL-B20H-S
FL-B10H-S	FL-B15H-S	FL-B20H-S
FDL-B10H-S	FDL-B15H-S	FDL-B20H-S
FL-L15H	FL-L20H	FL-L10H
FJL-L10H	FJL-L15H	FJL-L20H
FDL-L10H	FDL-L20H	FDL-L15H

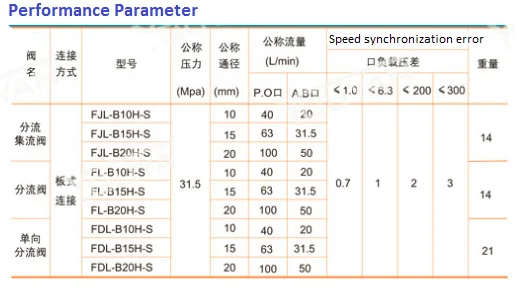

 Technical Specifications:
