Automatic Easy Open End Making Machine EOE Production Line
Automatic Easy Open End Making Machine EOE Production Line
Product Description

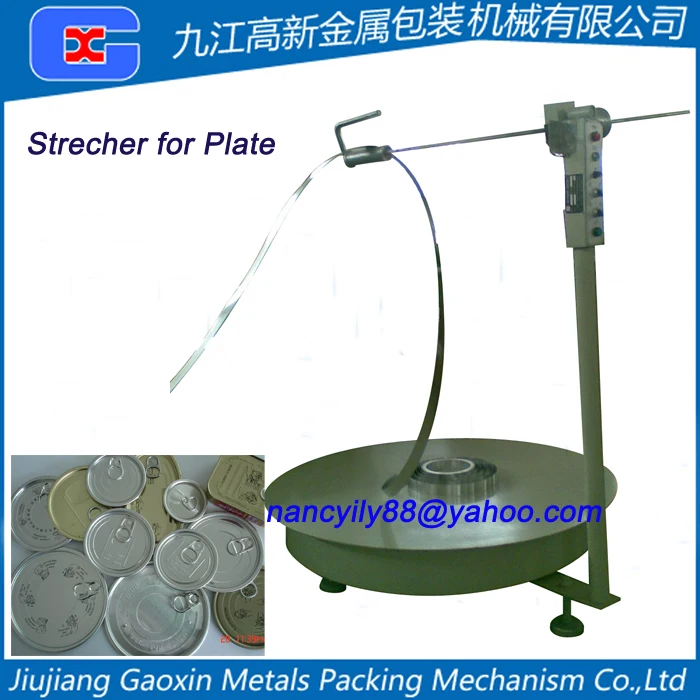

1)Stretaher for plate
Usage:It is used to stretch the sheet for the next working procedure of making ring pull.

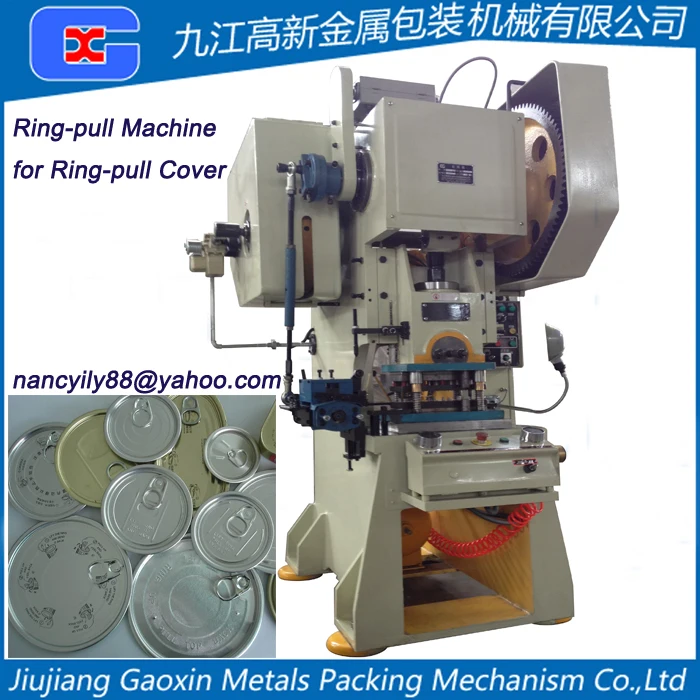

2)25T open punch+progressive die(Ring-pull machine)
| Production Capacity | 80-120pcs/min |
| Nominal pressure | 25T |
| Motor power | 3KW |
| Overall Dimension | 1200*1000*1800mm |
| Weight | 2600kg |
Usage:25T punch equipped with progressive die is used to punch into shape of ring pull.

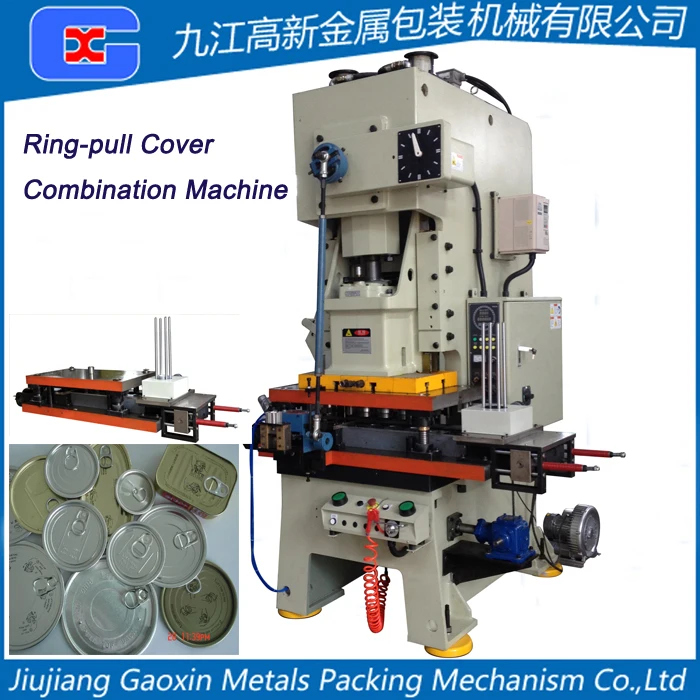

3)GT2A8 Multi-position punch(Easy-open cover combination machine)
| Slide Stroke | 12.5-120mm |
| Times of Slide Stroke | 90-110/min |
| Power | 5.5KW |
| Weight | 8000kg |
| Worktable | 850*500mm |
Usage:
The function of the machine is closed to multi-position press machine which can complete the working procedures of embossing, ruling and riveting in a stroke for the forming of easy open lid/cover.

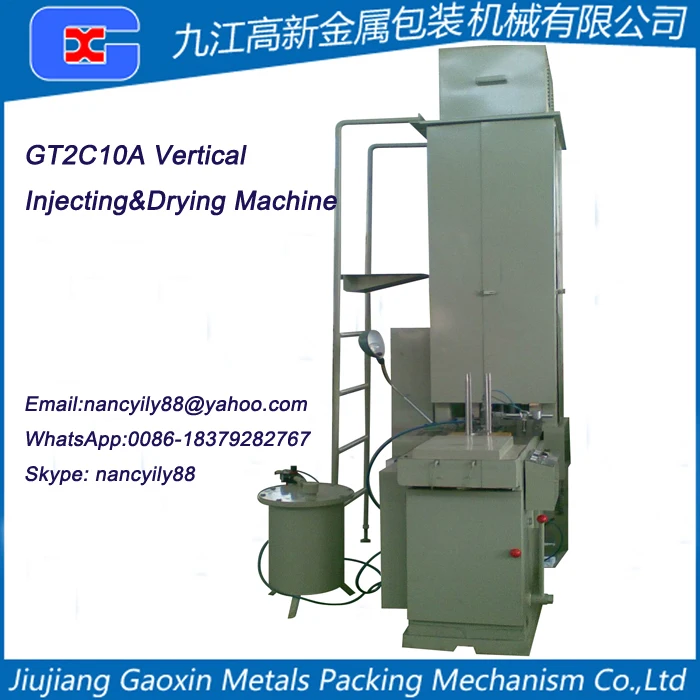

4)GT2C10 Vertical injecting&drying machine
| Production Capacity | 80-110/min |
| Applied lid/cover diameter | 52-153mm |
| Motor power | 1.1KW 380V 50HZ |
| Drying power | 16.5KW |
| Dryer temperature | normal 250℃,doordinate in it |
| Overall dimension | 1800*980*1980mm |
| Weight | 2000kg |
Usage:
The machine applies to inject and dry for coating spray on the tin cap ruling portions for rust proof.

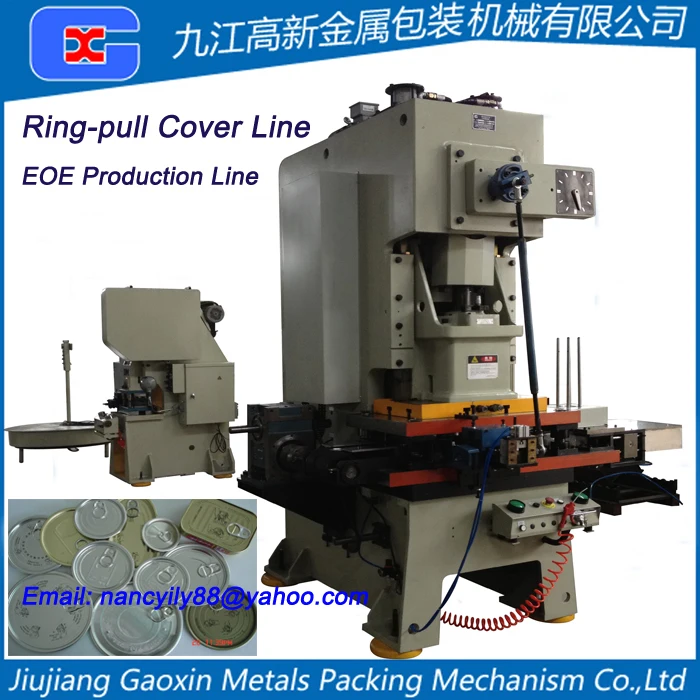

Easy Open Cap Production Line
