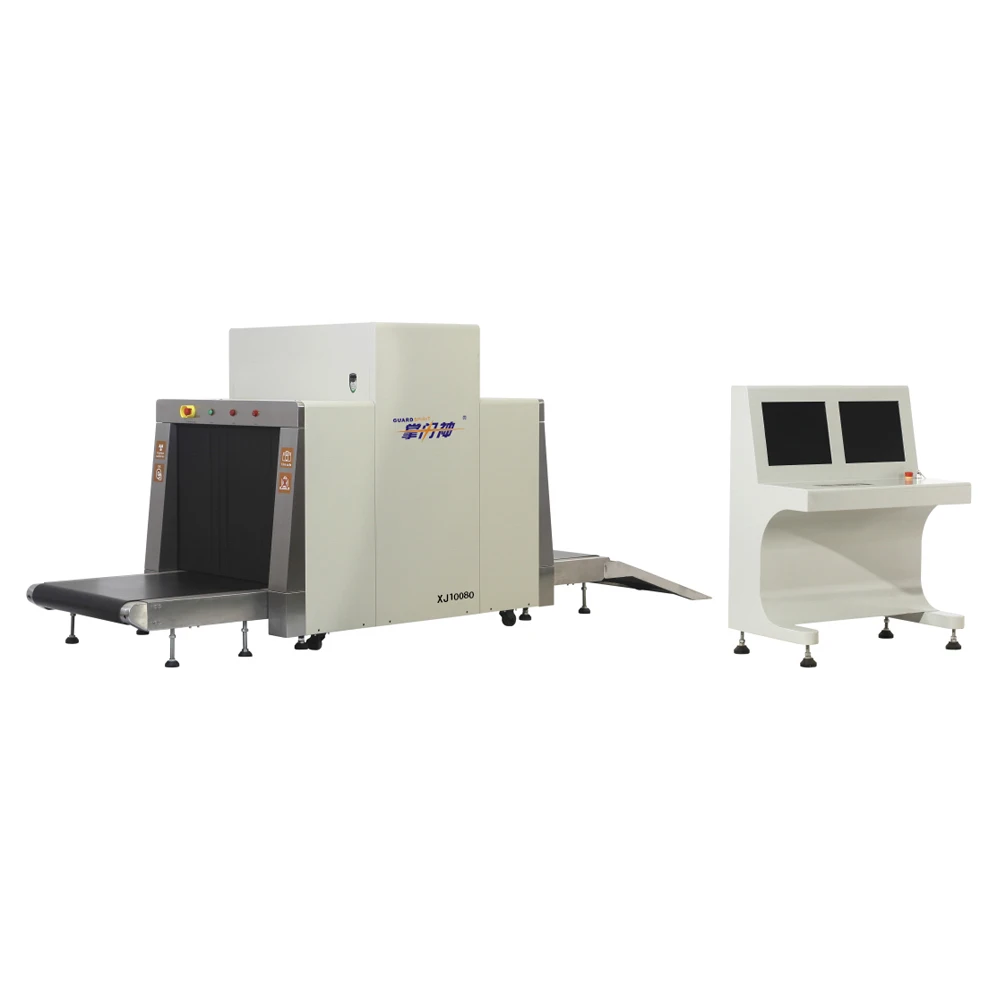

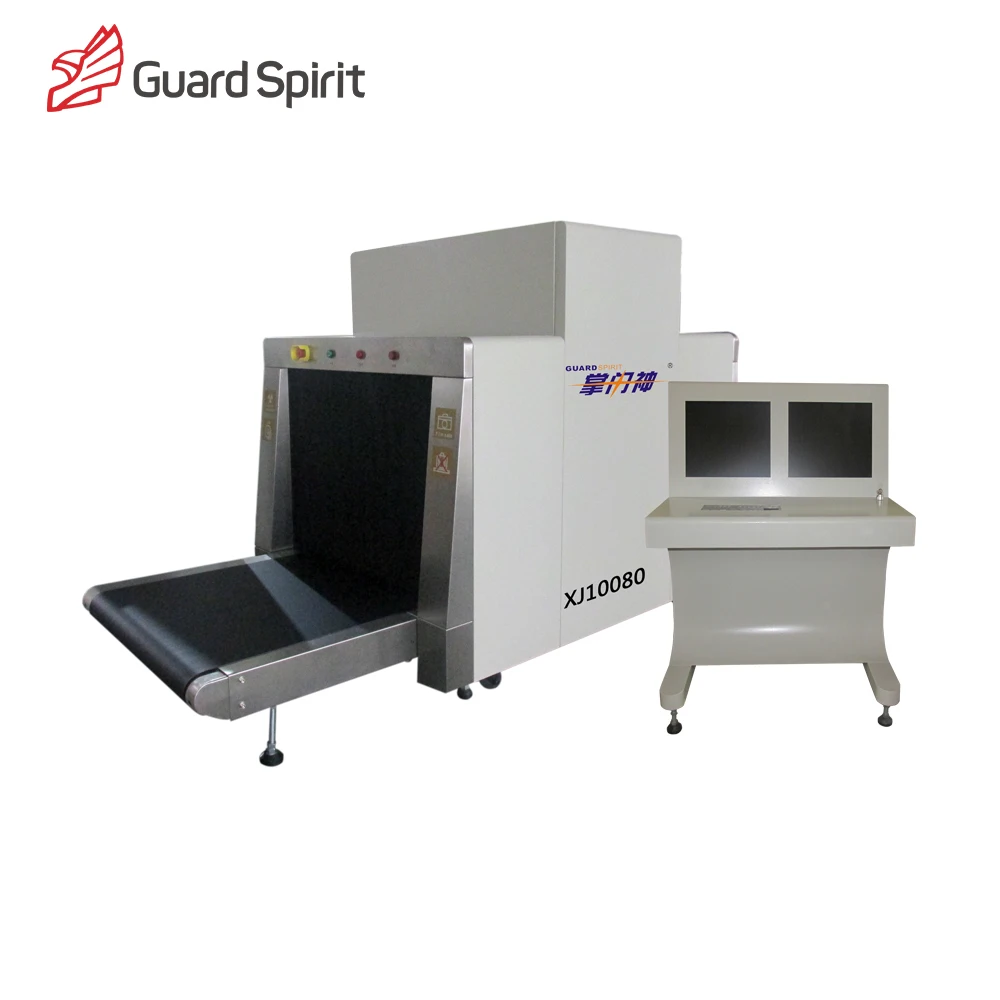

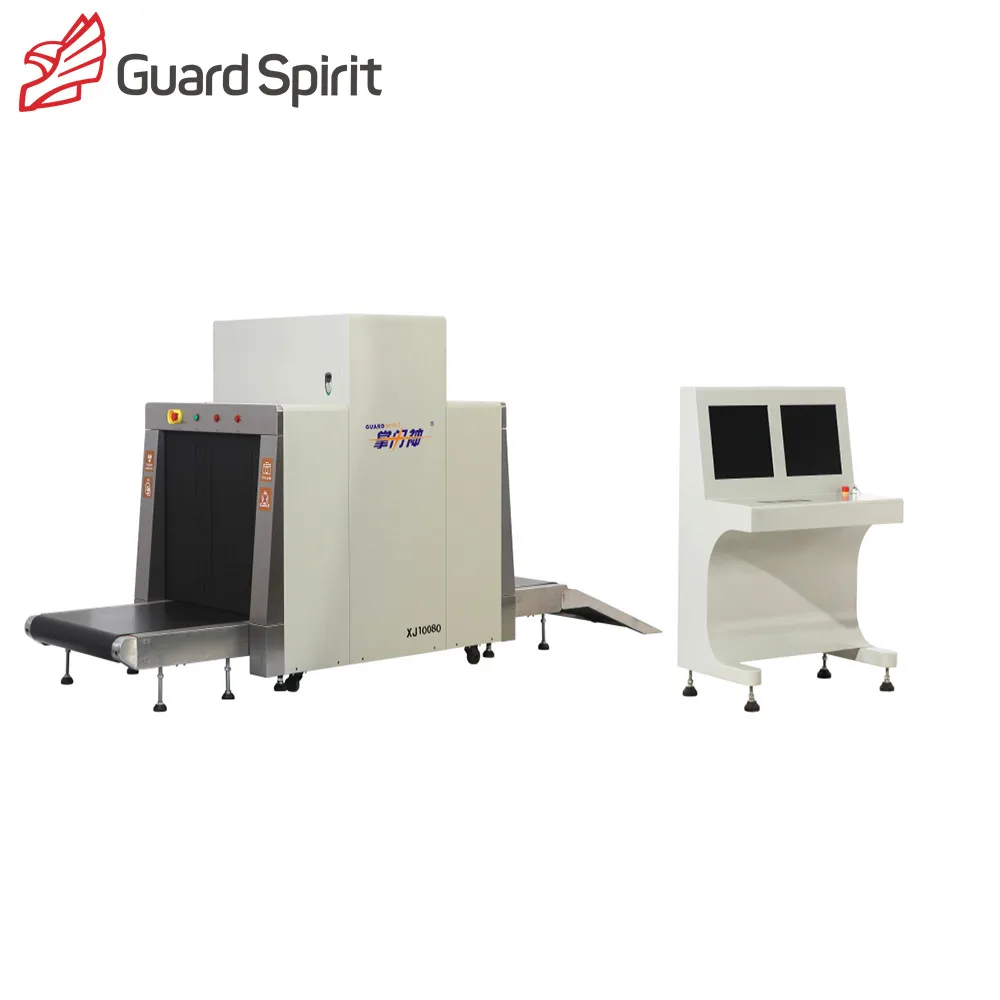

Airport 10080 x ray baggage scanner x ray inspection machine x ray baggage scanner

Product Overview

Description





General Specifications

Tunnel Size : 1000(W)×800(H)mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 230 kg

Single inspection dosage: < 1.5μGy

Leakage radiation: <0.2µGy/h

Wire Resolution: 0.101mm metal line

Steel Penetration: 38MM armor plate

Film Safety: For ISO 1600

X-RAY GENERATOR

Orientation: Downward

Tube Current:0.4~0.7MA(adjustable)

Anode Voltage:100~160KV(adjustable)

Angle: 60°

Generator cooling/working periods:

Sealed oil bath with forced air/100%

OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC

Operating Temperature: 0oC to 45oC

Relative Humidity:

20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power wastage: 1.0 KW (Max)

Noise<58DB

X-RAY Sensor:

L-shaped array detector 24bit



(More details,please feell free to contact us on-line.)



Certificate

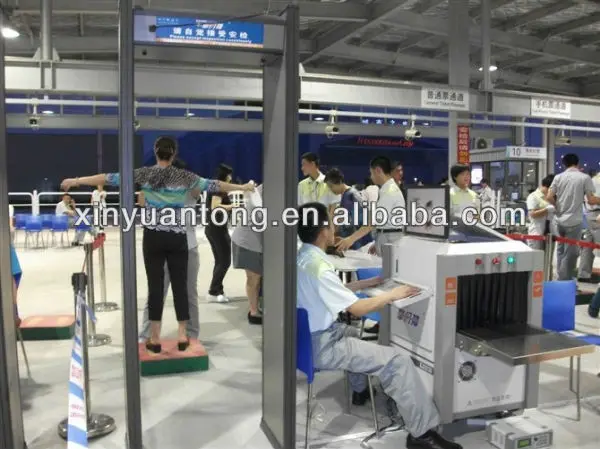

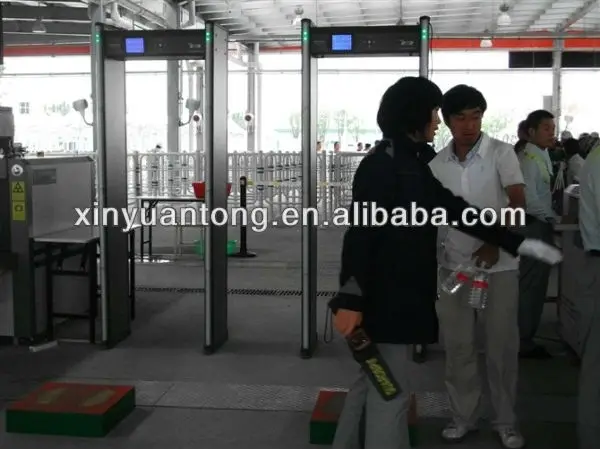

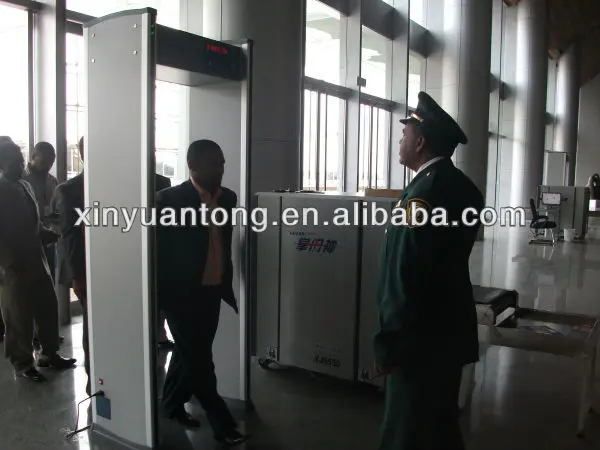

Project & Exhibition

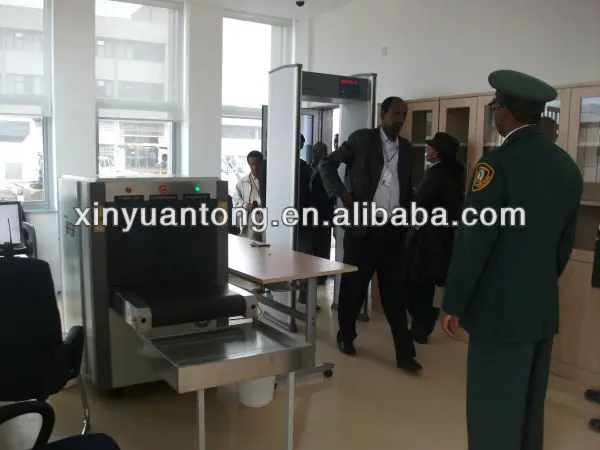

2012 18^TH African union summit meeting

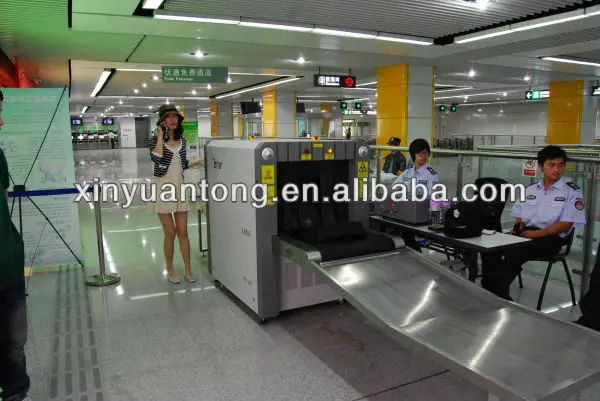

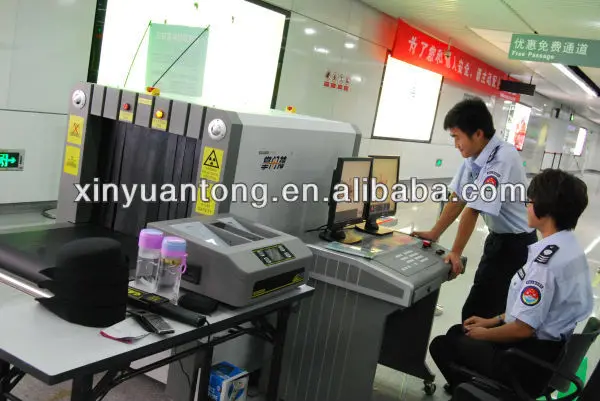

2011 Universiade Shenzhen Metro





2010 Shanghai World Expo
