Product Overview

Description





KOSOO CTMS

Heat-shrinkable identification marker sleeves are designed to meet the requirements of high- performance identification of wire and cable, tools, hoses and equipment. Made from reliable flame-retardant polyolefin with outstanding properties, sleeves can also be used as electrical insulation. Marks are permanent after printing.



Features/Benefits

Flexible, highly flame-retardant.
Sleeves meet the print performance requirements of SAE-AS81531.
Markers can also provide insulation and strain relief.
Marks are permanent after printing; mark performance improves after shrinking.
Free of PCBs, PCPs, polybrominated biphenyls (PBBs), polybrominated biphenyl oxides and ethers (PBBOs, PBBEs and PBDEs) and toxic heavy metal compounds, which are classified as environmentally hazardous substances. Conform to European RoHS environmental directive.

Operating temperature range: -55℃~125℃
Minimum shrink temperature: 70℃
Minimum full recovery temperature: 110℃


Specifications/Standards
UL224 E214175 125℃ VW-1
SAE-AS81531, MIL-STD-202


Physical properties:
Tensile strength 10.4MPa min.
Elongation 200% min.
Low temperature flexibility No cracking
Heat shock No cracking, dripping or flowing


Print performance:
UL224 50 rubs, legible
MIL-M-81531 50 rubs, legible
MIL-STD-202 30 strokes, legible


Electrical properties:
Dielectric voltage withstand 2.5kV, 60 sec No breakdown
Dielectric strength 19.7kV/mm min.
Volume resistivity 1014Ω·cm min.


Chemical properties:
Corrosion No corrosion
Flammability Average burn time is less than 1 minute
Fluid resistance: (23℃, 24 hrs) Followed by print performance tests of SAE-AS81531








item
value
Place of Origin
China
Guangdong
Brand Name
KOSOO
Model Number
CTMS
Type
Insulation Sleeving
Material
Composite Polymer
Application
LOW VOLTAGE
Rated Voltage
600V
Tensile Strength
10.4MPa min
Shrink ratio
3:1
Operating temperature range
-55℃-125℃
Minimum shrink temperature
70℃
Minimum full recovery temperature
110℃
Standard color
yellow,white
Material
polyolefin wire marker sleeve
Tensile strength
10.4 MPa min
Low temperature flexibility
No cracking
UL224
50 rubs, legible
Dielectric strength
19.7KV/mm min




Size
(inch)
Inside diameter
Recommended use range
As supplied (min.)
After recovery (max.)
3/32
2.4 (0.093)
0.8 (0.031)
0.9-2.0 (0.035-0.079)
1/8
3.2 (0.125)
1.0 (0.042)
1.1-2.7 (0.044-0.105)
3/16
4.8 (0.187)
1.6 (0.062)
1.8-4.1 (0.069-0.160)
1/4
6.4 (0.250)
2.1 (0.083)
2.3-5.5 (0.091-0.215)
3/8
9.5 (0.375)
3.2 (0.125)
3.5-8.0 (0.137-0.320)
1/2
12.7 (0.500)
4.2 (0.166)
4.7-10.8 (0.183-0.425)
3/4
19.1 (0.750)
6.35 (0.250)
7.0-16.3 (0.275-0.640)
1
25.4 (1.000)
8.5 (0.333)
9.3-21.6 (0.366-0.850)
1 1/2
38.1 (1.500)
19.1 (0.750)
21.0-33.0 (0.825-1.300)
2
50.8 (2.000)
25.4 (1.000)
27.0-48.0 (1.063-1.890)






Guangzhou Kaiheng Enterprise Group Co., Ltd. is a diversified group primarily involved in the research and development, sales and production of new polymer materials, heat shrinkable tubing, cross-linked special wires and cables, PVC tubing and other electronic products. Our company enjoys convenient transportation and beautiful surroundings.

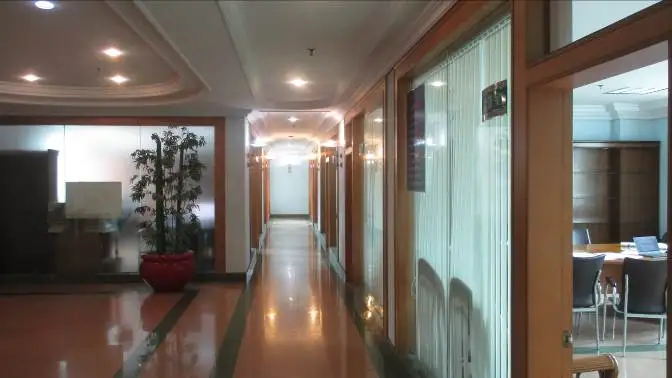

Covering an area of more than 100,000 square meters, our factory is composed of modern standard plants, office buildings and R&D centers. Since our establishment, our group and our underling companies have kept up a strong development momentum by adhering to the corporate tenet to have good faith and be united, to stick to our words, to succeed with science and technology, and to keep abreast of the time.

We have a strong technical team consisting of professors, experts and engineers of profound background, and have set up a research and development center on polymer materials on a cooperative basis with the local government. Through both internal development of new solution for tomorrow's challenges and the acquisition of advanced equipment and technologies, we will deliver even more value to our customers. Our expertise in material science, product design and process engineering allows us to develop, manufacture and sell high-performance, superb quality products.

We sincerely welcome customers from around the world to cooperate with us for mutual benefit.
