Copper pipe Copper tube Connection pipe

Product Overview

Description



Copper pipe, Copper tube, Connection pipe



1.Copper pipe details

copper tube / copper pipe

Item	Copper pipe ,copper tube ,brass pipe ,brass tube ,bronze pipe,bronze tube, copper tube / copper pipe
Type	straight copper pipe,pancake coil copper pipe,capillary copper pipe
Standard	GB/T1527-2006,JIS H3300-2006,ASTM B75M,ASTMB42,ASTMB111,ASTMB395, ASTM B359,ASTM B188,ASTM B698,ASTM B640,etc
Material	T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920, TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300, TU1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200, C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300, C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600,C70620,C71000, C71500,C71520,C71640,C72200,etc
Shape	Round,Square,Rectangular,Oval,half-round
Round	OD:2.5mm-45mm (1/16"-36") WT:0.15-5mm(SCH5S-SCH160S)
Square	Size:2*2-1016*1016mm(1/16"-40") WT:0.1-120mm
Rectangular	Size:2*4-1016*1219mm(1/16"-48")  WT:0.1-120mm
Length	1m,2m,3m,6m,or as required
Hardness	1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc
Surface	mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required
Price Term	Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU, etc
Payment Term	TT,D/P,L/C,Western Union,etc
Application	1. Pancake Coil for ACR, General Engineering Applications  2. LWC Coil for ACR, General Engineering Applications 3. Straight Copper Tubes for ACR and Refrigeration  4. Inner-grooved copper tube for ACR and Refrigeration 5. Copper Pipe for Transportation System of water, gas and oil 6.PE-coated copper tube for water/gas/oil transportation system  7.Semi-finished Copper tube for industrial applications
Contact	If you have any question ,please feel free to contact me  we are sure your inquiry or requirements will get prompt attention.

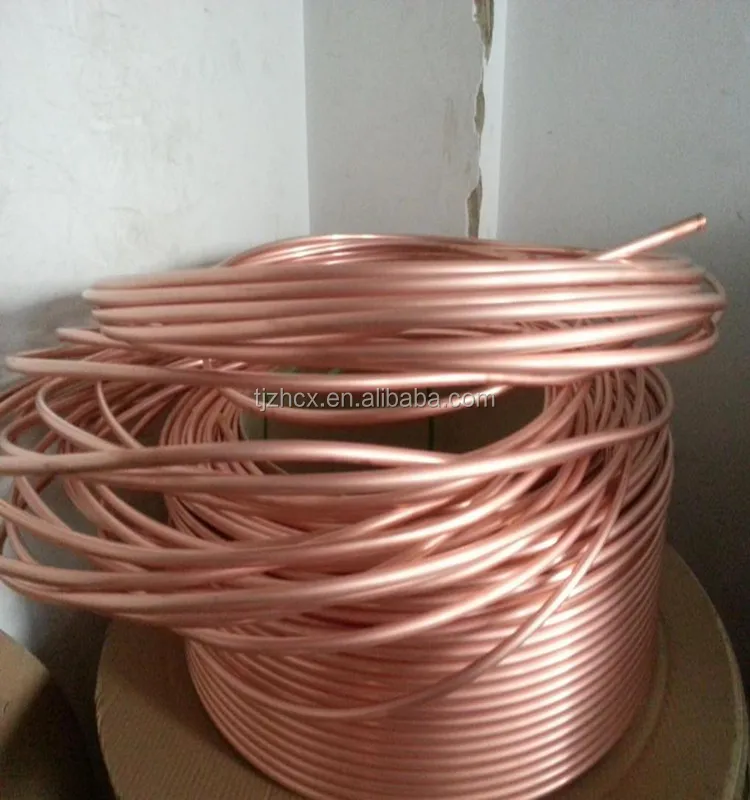

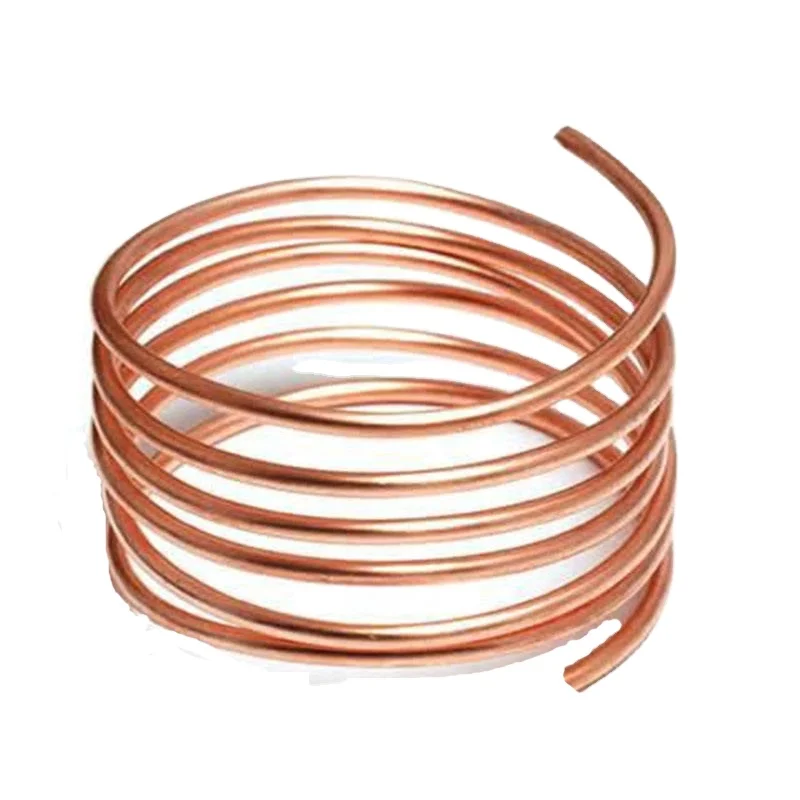

copper pipe coil



Copper grade

GB	ISO	EN	DIN	BS	NF	JIS	ASTM
T1	Cu-OF	Cu-OF	OF-Cu	C103	Cu/c2	C1020	C10200
T2	Cu-ETP	Cu-ETP	Se-Cu	C101	Cu/a1	C1100	C11000
T3	/	/	/	/	/	C1221	/
TU0	/	/	/	/	/	C1011	C10100
TU1	Cu-OF	Cu-OF	OF-Cu	C103	Cu/c2	C1020	C10200
TU2	Cu2-OF	Cu-OF	OF-Cu	C103	Cu/c2	C1020	C10200
TP1	Cu-DLP	Cu-DLP	SW-Cu	/	Cu/b2	C1220	C12000
TP2	Cu-DHP	Cu-DLP	SF-Cu	/	Cu/b1	C1220	C12000
TAg0.1	CuAg0.1	/	CuAG0.1	/	/	/	C11600

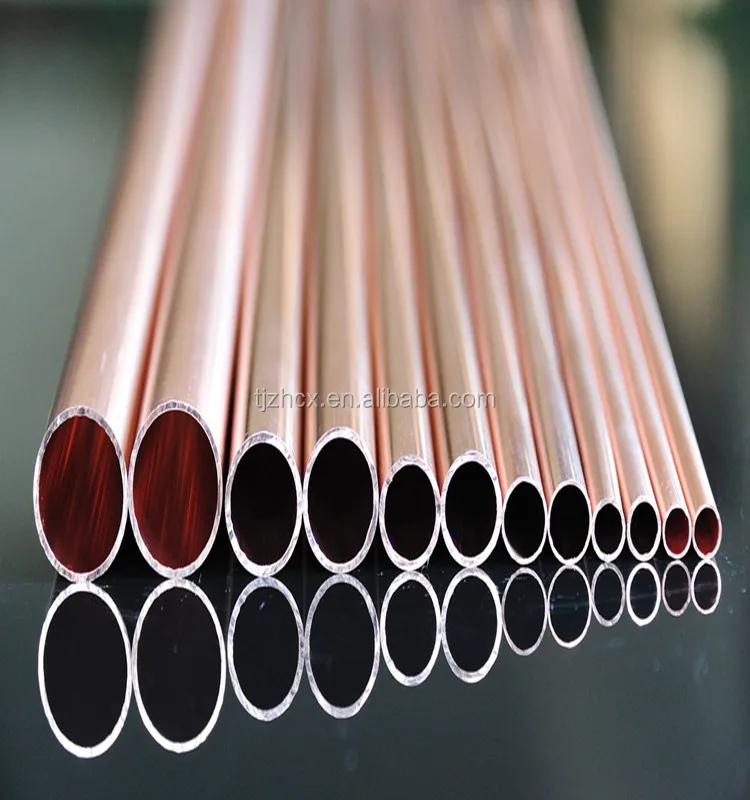

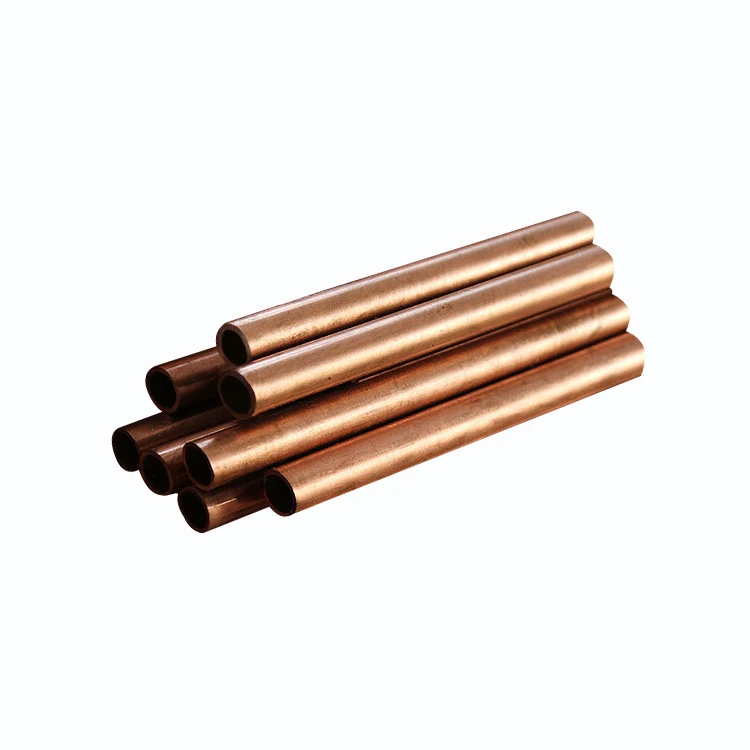

staright copper pipe





Copper chemical details

Grade	Cu+Ag	O	Ag	P
C10200	≥99.95%	≤0.0010%
C11000	≥99.95%	/
C10400	≥99.95%	≤0.0010%	≥0.027%
C10500	≥99.95%	≤0.0010%	≥0.034%
C10700	≥99.95%	≤0.0010%	≥0.085%
C10910	≥99.95%	≤0.005%	/
C10920	≥99.90%	≤0.02%	/
C10930	≥99.90%	≤0.02%	≥0.044%
C10940	≥99.90%	≤0.02%	≥0.085%
C11300	≥99.90%		≥0.027%
C11400	≥99.90%		≥0.034%
C11500	≥99.90%		≥0.054%
C11600	≥99.90%		≥0.085%
C12000	≥99.90%		/	0.004-0.012%
C12200	≥99.90%		/	0.015-0.040%
C12300	≥99.90%		≥0.0136%	0.015-0.040%

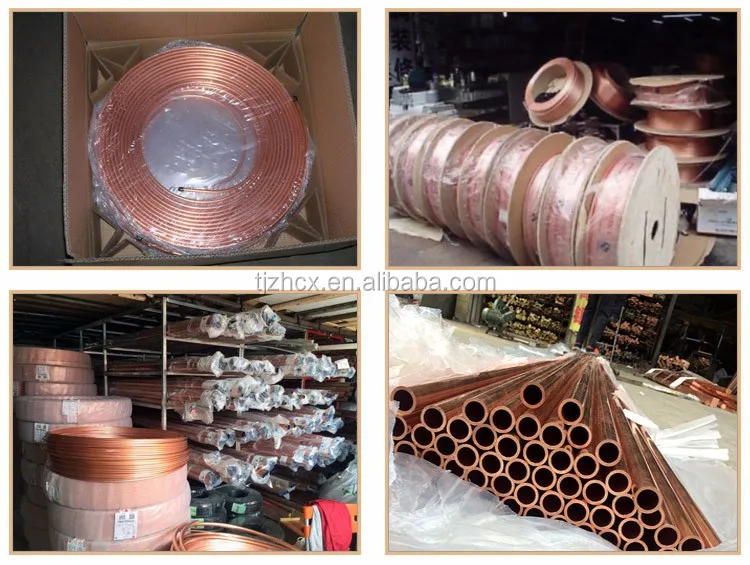

2.Copper pipe packages & shipping:

When we get order from customers, according to requests, the packing and delivery will be done quickly.For different size, we use different modes of bundling and packing

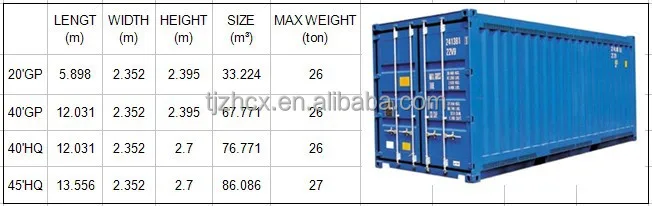

Container loading capacity:







3.Company information:

our company

Company profile:

Tianjin Zhonghua Innovatated Steel Tube Commercial Co.,Ltd was founded in 2005,which located in Tianjin,China,close to one of the biggest steel manufacturing base-Daqiuzhuang.We are a leading company and professional manufacturer with more than ten years’ experience in steel product export business.Our strong capacity, reliable quality, low price, diversified variety and excellent service,We have technicist and staff more than 500,with strong technician, advanced equipment and scientific management.

Company strength:

We are looking forward to setting up business relationships with customers from all over the world.

    ♦   More than 20 years experience.

    ♦   R&D strength.

    ♦   Provide OEM and ODM services.

    ♦   Assist material (Standard, Steel Grade) selection and metallurgical properties of our products.

    ♦   Assist inspection and interpretation of specifications to Classification Society.

    ♦   Assure products to meet requirement.

    ♦   Minimize logistics of dealing with large shipments.

    ♦   Investigate problems when they occur.

We would like to assure you that our steel pipes are made from top quality materials and workmanship,

and we are 100% sure that you will be totally satisfied with your purchase.



our market

4.FAQ:

1.Q: Do you have the copper pipe in stock?

A: We have copper pipe in stock ,also can produce according to your order.



2.Q: Are you professional at your products?

A: ZHCX has over 10-year experience on service end-user and knows well about characters and usage of material, professional suggestion about products can be offered when you needed.



3.Q: What’s the delivery time?

A: 15~30days after receiving T/T prepayment or LC date.



4.Q: Can I get some samples free?

A: Free sample can be provided if you require to check the quality.



5.Q: How can we trust you?

A: ZHCX steel has been cooperated with ALIBABA on trade assurance since 2014

Trade assurance is a service by alibaba designed to crest trust in trade,providing buyers with a set of features and protections to help ensure suppliers honor important details of the contract. If supplier does not meet the shipping time or per-shipment product quality requirements in the contract,Alibaba.com will refund up to the covered amount for your order. You can link //tradeassurance.alibaba.com/.that you can trade with us with confidence.



6.Q: What can you do for us?

A:We always shorten delivery time for our buyer.

We always package steel products well.

We always fix steel product in container well to make it safe arrive at destination port.

We always provide best and professional forward service and after sales service.
