Most Common Used Types of Welding Electrodes AWS 5.1 E6013 E7018 with Good Price

Product Overview

Description

Most Common Used Types of Welding Electrodes AWS 5.1 E6013 E7018 with Good Price



Most Common Used Types of Welding Electrodes(Welding Rods) E6013 and E7018 Introduction:

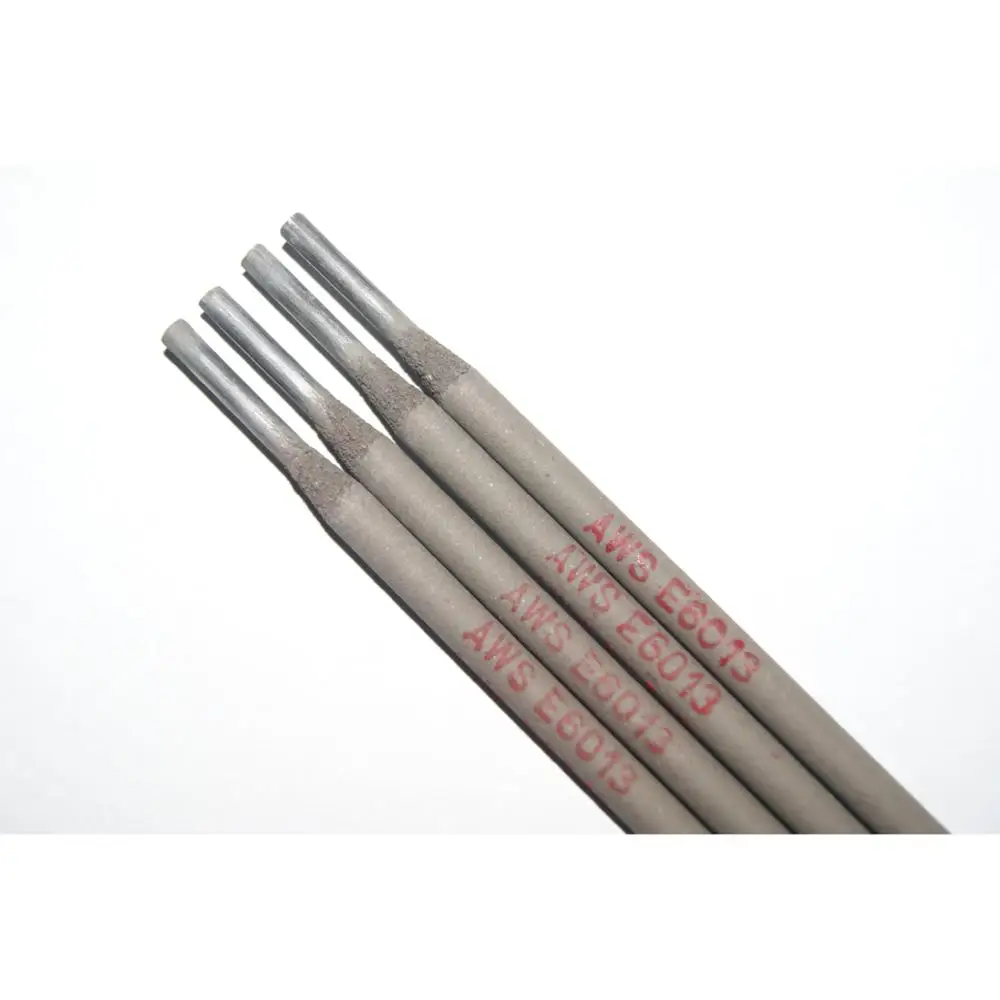

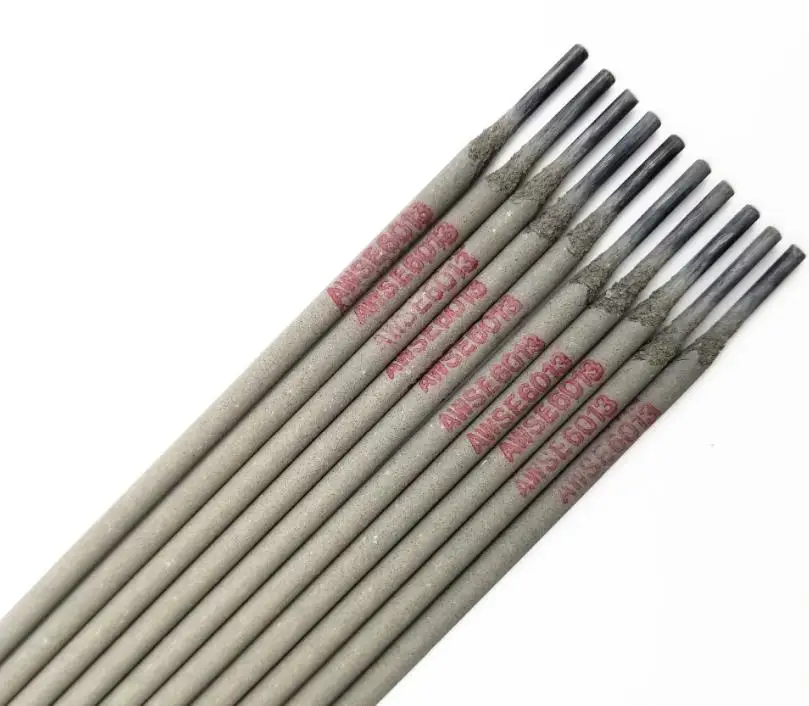

Welding Electrodes(Welding Rods) E6013



1. Model No.: Welding Electrodes(welding rods) AWSE6013(J421, J38.12) 2. Available size:2.5x300mm, 2.5x350mm, 3.2x350mm, 4.0x400mm, 5.0x400mm

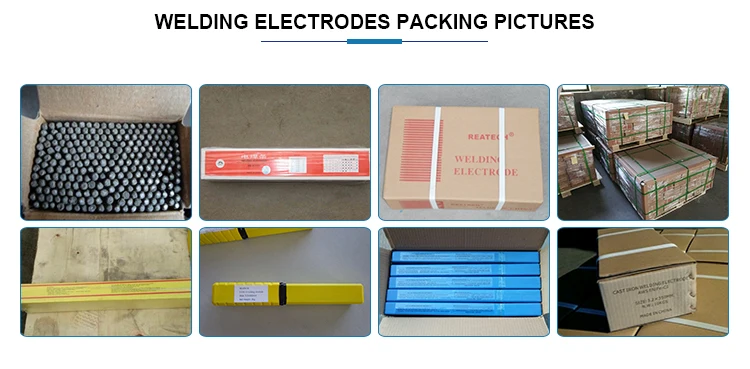

3. Packing: 5kgs/box, 20kgs/carton, 1000kgs/pallet, we could do according to the customers ‘request.

4. Delivery time: Within 15 days after confirmation

5. Application: The E6013 welding electrodes are widely used on both AC and DC in all position and suitable for welding sheet metal structure made of low-carbon steel, such as ships, vehicles, building, and general machinery.



Details Specification for Welding Electrodes(Welding Rods) AWS E6013(J421, J38.12)



Chemical Compossition of Deposited Metal (%)

	C	Mn	Si	S	P
Guaranteed value	≤0.12	0.3~0.6	≤0.35	≤0.035	≤0.040
Typical value	0.07	0.4	0.25	0.019	0.025



Sizes, Length & Recommended Current (AC/DC)

Diameter (mm)	φ2.0	φ2.5	φ3.2	φ4.0	φ5.0
Length (mm)	300	300	350	400	400
Current (A)	40~70	50~90	90~130	130~210	170~230



Mechanical Properties of Deposited Metal

	Rm (Mpa)	ReL(Mpa)	A(%)	KV2(J)	KV2(J)
Guaranteed value	σb≥420	σs ≥ 330	δ5 ≥ 17	(normal temperature)	-(0°C)
Typical value	460~540	≥ 340	18~26	50-80	≥ 47

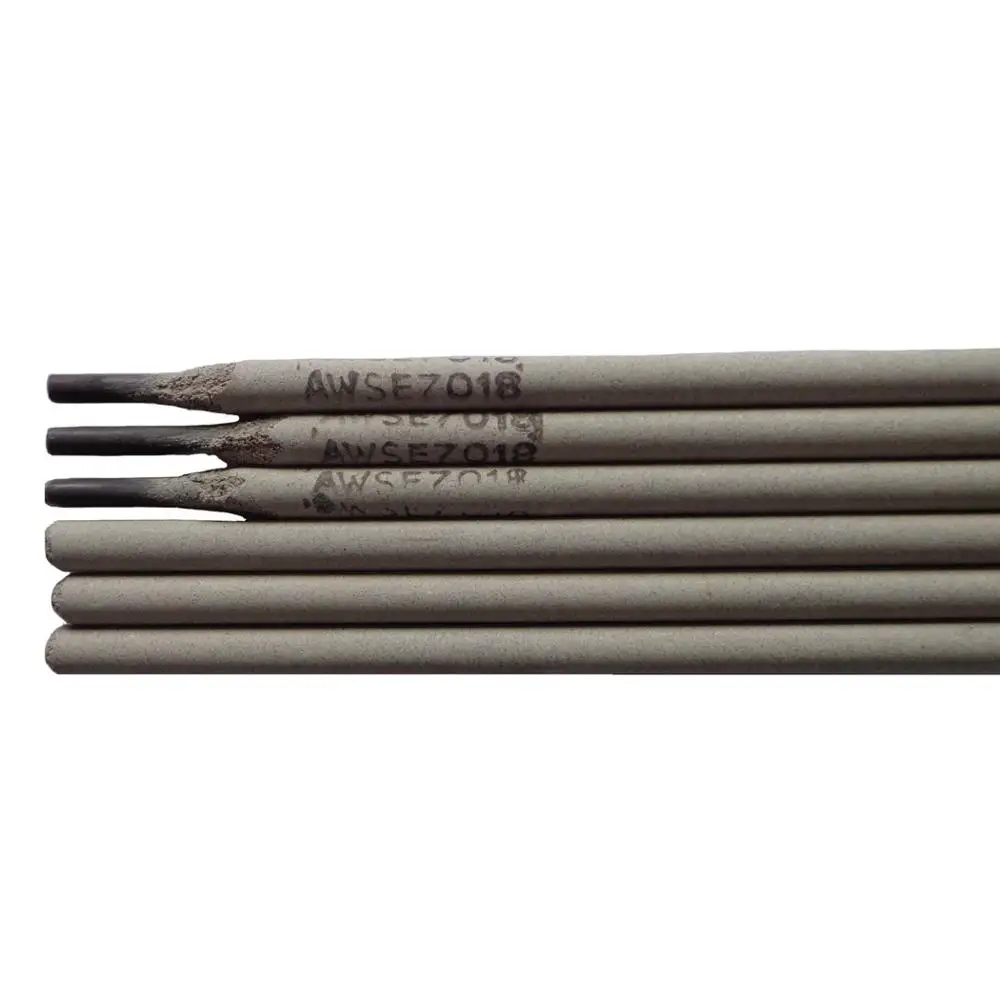

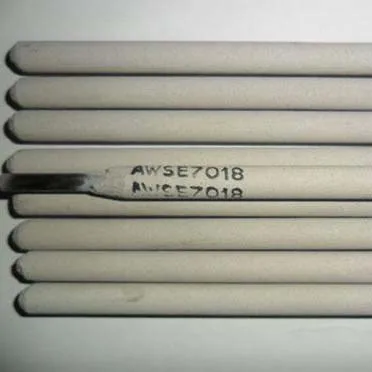

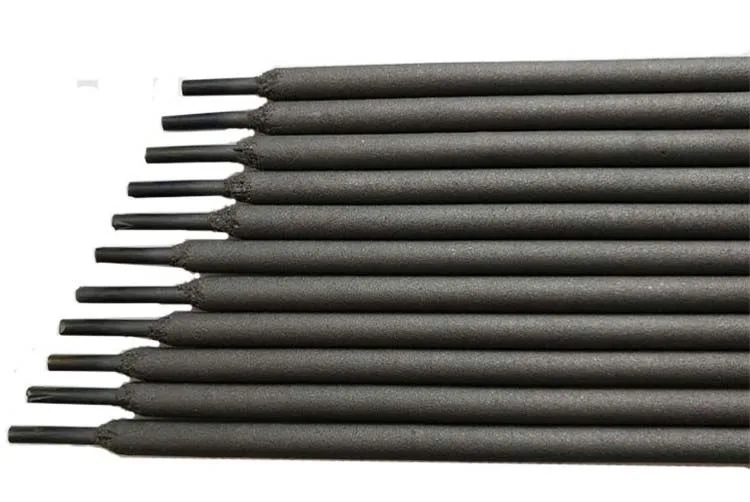

Welding Electrodes(Welding Rods) E7018





1. Model No.: Welding Electrodes(welding rods) AWSE7018

2. Available size: 2.5x300mm, 2.5x350mm, 3.2x350mm, 4.0x400mm, 5.0x400mm

3. Packing: 5kgs/box, 20kgs/carton, 1000kgs/pallet, we could do according to the customers ‘request.

4. Delivery time: Within 15 days after confirmation

5. Application: It is used on both AC and DC in
all position and suitable for welding important structures made of low alloy steel.

Details Specification for Welding Electrodes(Welding Rods) E7018



Mechanical Properties of Deposited Metal

Test Item	Rm(MPa)	ReL(Mpa)	A(%)	KV2(J)
Guarantee Value	≥490	≥400	≥22	≥27(-30°C)
General Result	520~580	≥410	24~30	80~200



Reference Current (AC, DC+)

Electrode Diameter(mm)	φ2.5	φ3.2	φ4.0	φ5.0
Welding Current (A)	60~100	80~140	110~210	160~230



Chemical Composition of Deposited Metal (%)

Chemical Composition	C	Mn	Si	S	P	Ni	Mo	Cr	V
Guarantee Value	≤0.12	≤1.60	≤0.75	≤0.035	≤0.040	≤0.30	≤0.30	≤0.20	≤0.08
