Tobee Effluent Handling
$12,600

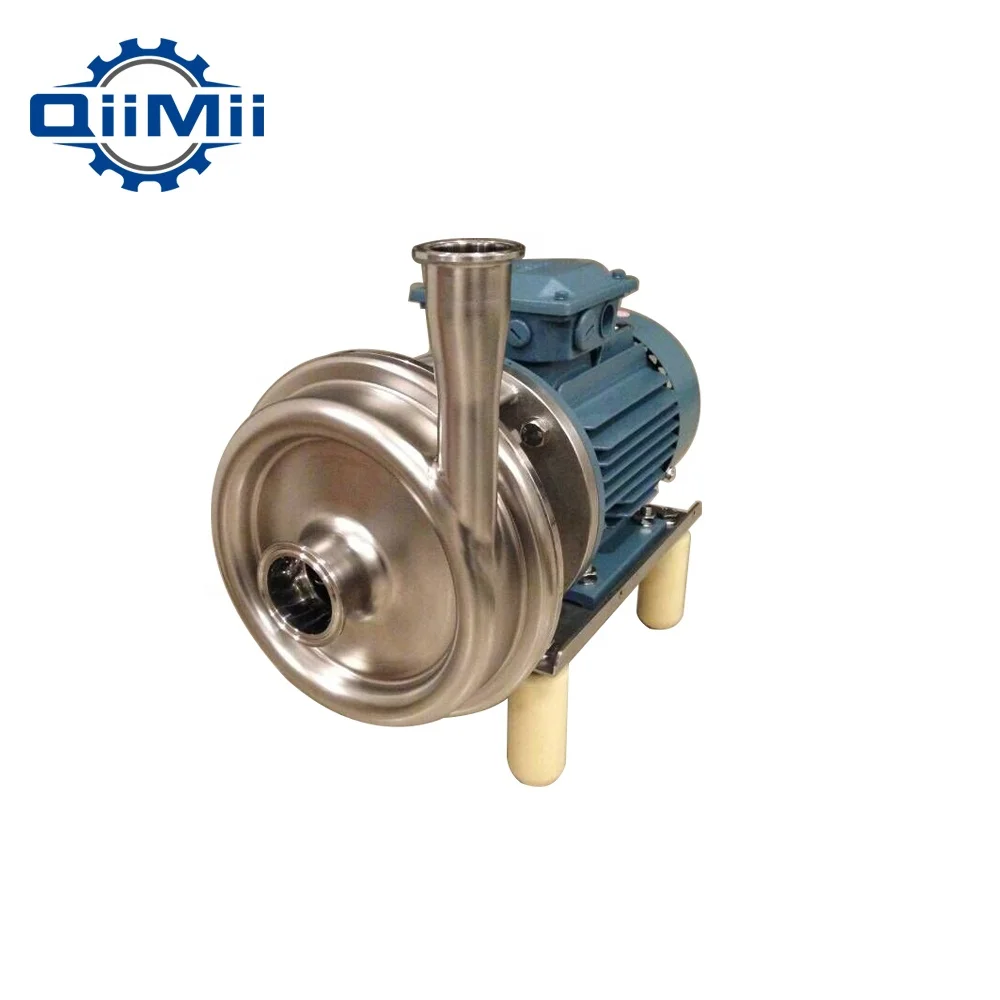

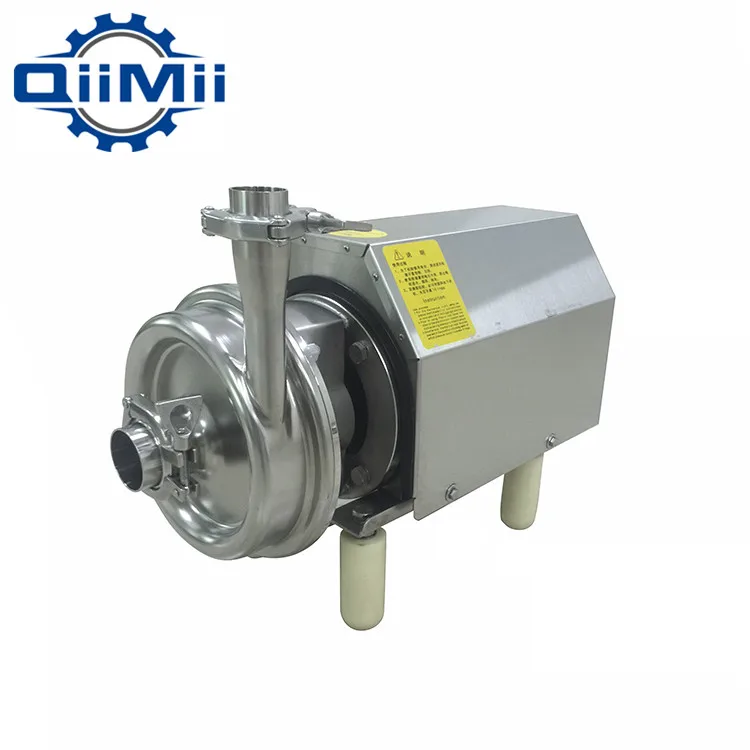

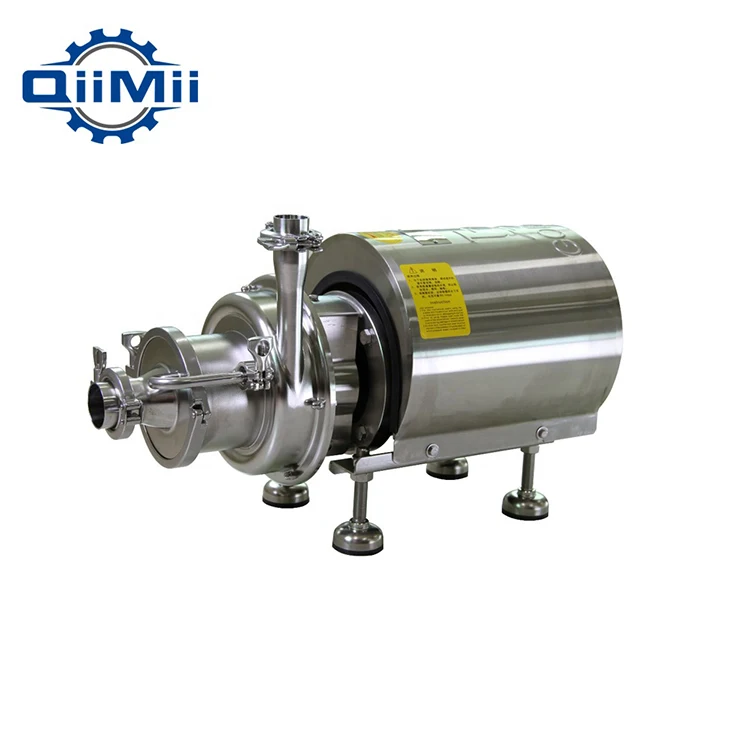

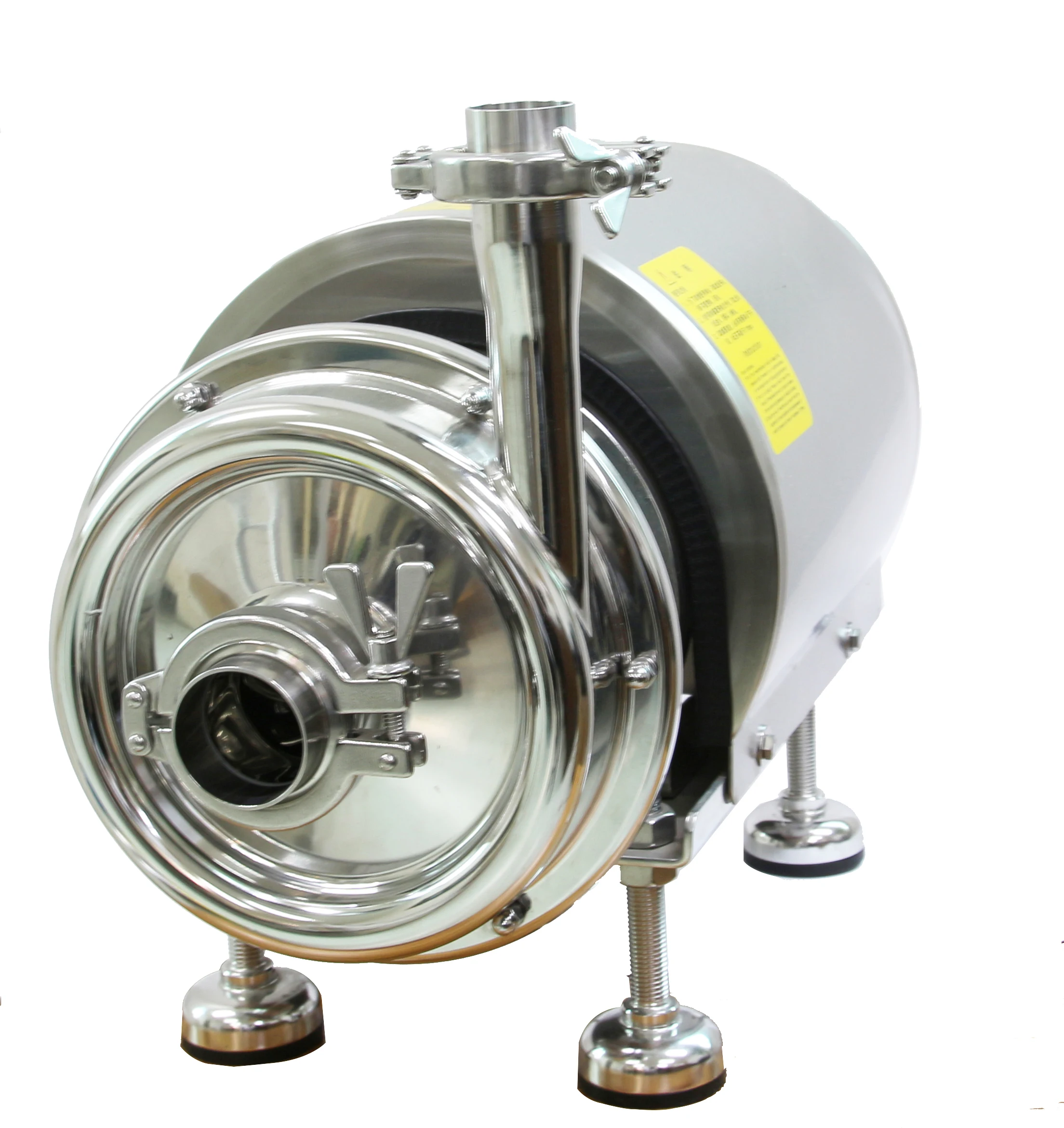

Sanitary Centrifugal Pumps, food grade pump, for Milk Water Beer Wine And Fruit Juice, 3 4kw, SS304/SS316
- Category: >>>
- Supplier: WENZHOU QIMING STAINLESS CO. LTD
Share on (60340351161):
Product Overview
Description
Product Description
Product Name: | Sanitary Self Priming Centrifugal Pump |
Material: | AISI 316L or AISI 304 |
Standard: | SMS, DIN, RJT, ISO/IDF |
Connection Way: | Clamp, Male, Flange, Weld |
Mechanisal Seal: | C, SIC, EPDM |
Power: | 0.55Kw-22Kw |
Rate: | 50Hz or 60Hz |
Max. Flow: | 62m³/h / 272GPM |
Max. Pressure: | 12bar / 174 PSI |
Max. Working Temperature: | 120℃ / 248 ℉ |
Max. Rev.: | 1450rpm |
Internal Surface Finishing: | Ra≤0.6 |
External Surface Finishing: | Mirror Polish |
Product information
Materials
Body Materials: AISI-304 or AISI-316L
Gasket Material:EPDM
Technical Specification
Model No.:PC
Max. Discharge Head:40m
Max. Flow:120m³/h
Max. Revolution:2900r/min
Temperature Range:-20~+135℃(EPDM)
Max. Inlet Pressure:58Psi/4Bar
Max. Outlet Pressure:94Psi/6.5Bar
Supply pressure for air actuator: 70 ~ 115psi
Voltage:AC 220V, 380V, 460V, 690V, 50HZ, 60HZ
Standards: DIN, SMS, ISO/IDF, BS/RJT, ASME/BPE
End Connections: Clamp, Union, Butt-weld, or others upon request
Body Materials: AISI-304 or AISI-316L
Gasket Material:EPDM
Technical Specification
Model No.:PC
Max. Discharge Head:40m
Max. Flow:120m³/h
Max. Revolution:2900r/min
Temperature Range:-20~+135℃(EPDM)
Max. Inlet Pressure:58Psi/4Bar
Max. Outlet Pressure:94Psi/6.5Bar
Supply pressure for air actuator: 70 ~ 115psi
Voltage:AC 220V, 380V, 460V, 690V, 50HZ, 60HZ
Standards: DIN, SMS, ISO/IDF, BS/RJT, ASME/BPE
End Connections: Clamp, Union, Butt-weld, or others upon request
Products Show
Recommend Products
Our Service
Our Company
QiMing is professional in manufacturing stainless steel products for food industry and export more than 50 different countries.
Let QiMing to your Flow Control Partner right now!
Let QiMing to your Flow Control Partner right now!
Shipping details
Packing Details : Packing, solid bicycle saddle, 50pcs/carton
Delivery Details : 3-30 days after order of Solid bicycle tire tubes
Delivery Details : 3-30 days after order of Solid bicycle tire tubes
Our Certifications
Quality is our corporate culture
QM stainless has been audited and certified as meeting the full requirements of ISO 9001, CE, including design, manufacture, inspection, customer service, and distribution functions.
Exhibition show
FAQ
Q: Why would I choose you?
Wenzhou QiMing Stainless Co., Ltd has been engaging in manufacturing sanitary valves, fittings, tank components and pumps for over 15 years, outstanding in production capacity, effective management, accurate lead time, on-time shipments and problems-solvingrate after sales.
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
Wenzhou QiMing Stainless Co., Ltd has been engaging in manufacturing sanitary valves, fittings, tank components and pumps for over 15 years, outstanding in production capacity, effective management, accurate lead time, on-time shipments and problems-solvingrate after sales.
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
