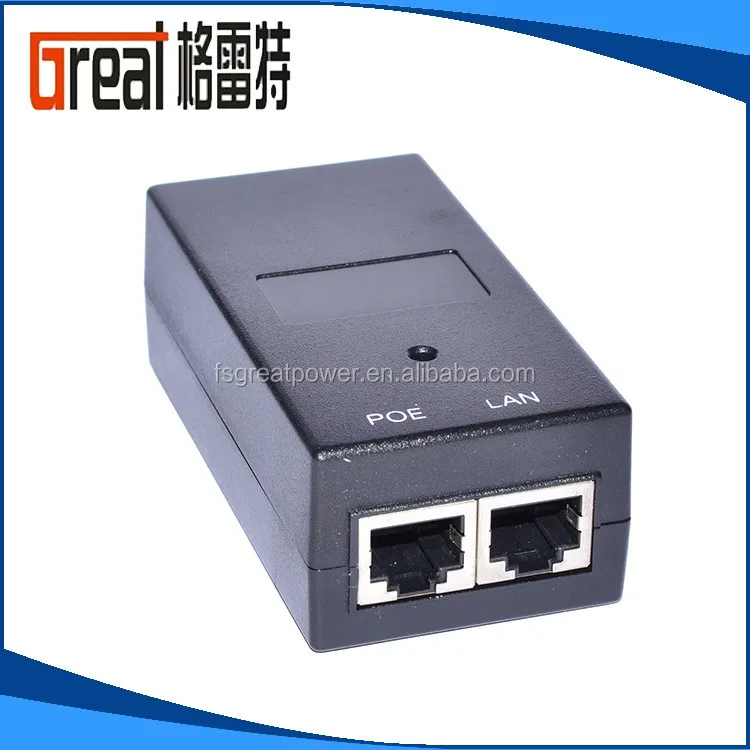

24V poe injector 12W desk top single port rj45 adapter Wifi CCTV camera security system POE ethernet switch poe AP power supply

Product Overview

Description

Model Number	GRT-240050
Input  Voltage	100-240Vac, 50~60Hz (92~264Vac)
Input Current	0.6A(RMS) max.
Input Type	IEC320-C6 or IEC320-C8
Output Voltage / Power	24V 0.5A 12W
Output type	Single outputa 1*RJ45 connector ---POE 1*RJ45 connector ----LAN
Ethernet speed	10/100Mbps   Pin45+/78-, 2 pairs
IEEE802.3 standard	Non-Compliance
Material	Plastic
Approval	CE/ROHS/FC
Warranty	one year
Output Ripple	1% Max
Efficiency	≥80%
Response Time	<1ns
Combined Load Regualtion	±3%
Combined Line Regualtion	±5%
LED indicator	Power on, Green   (With Plastic enclosure)
Operating Temp	0 to 40℃ (32 to 104℉)
Storage Temp	(-)20 to 85 ℃  ( -22 to 158 ℉)
Operating Humidity	10~ 90% Non condensing
Shipment	By Sea or By Air Express: DHL/UPS/TNT/FEDEX ect
Package	Inner white box + Outer box
Carton Size:	460*390*200mm  (L*W*H)
Qty/ Carton	50pcs







* Support long distance for data, upto 100meters

* Data and Power passed by the ethernet cable

* Full protection:Overload/Over current/ Over voltage/ Short circuit



* Application: IP Phone, Voip Phone, Wireless Networks Access Points, IP print servers, Blue tooth access points , Security Cameras, smart door systerm  and more
