plastic pe hd sheet/polyethylene wear block/extruded plastic shapes

Product Overview

Description

plastic pe hd sheet/polyethylene wear block/extruded plastic shapes



1.Abrasive resistance which always have in thermoelectricity polymer.

2.Best shock resistance even in low temperature.

3.Low frictional factor, and well sliding bearing material.

4.Lubricity( no caking, in adhesion) .

5.Best chemical corrosion resistance and stress craze resistance.

6.Excellent machinery process ability .

7.Lowest water absorption(<0.01%) .

8.Paragon electric insulativity and antistatic behavior .

9. Nice high energy radioactive resistance.

10.Density is lower than other thermoplastics (< 1g/m3).

11.Long using temperature range: -269°C--90°C.



Extruded Plastic Sled

2.  plastic pe hd sheet Main characteristics:

The main performance comparison

polyethylene wear block

High abrasion resistance

Materials	UHMWPE	PTFE	Nylon 6	Steel A	Polyvinyl  fluoride	Purple steel
Wear Rate	0.32	1.72	3.30	7.36	9.63	13.12

 polyethylene wear block

Good self-lubricating properties,low friction

Materials	UHMWPE -coal	Cast stone-coal	Embroidered  plate-coal	Not embroidered plate-coal	Concrete coal
Wear Rate	0.15-0.25	0.30-0.45	0.45-0.58	0.30-0.40	0.60-0.70

  Extruded Plastic Sled

plastic pe hd sheet
High impact strength, good toughness

Materials	UHMWPE	Cast stone	PAE6	POM	F4	A3	45#
Impact  strength	100-160	1.6-15	6-11	8.13	16	300-400	700



3. plastic pe hd sheet Size Available:



Dimensions:	Typical Thickness:
3000mm*1000mm	5mm-250mm
3000mm*1500mm
2000mm*4000mm
4000mm*1200mm
1200mm*3000mm

  Extruded Plastic Sled



 *If required,also available in thickness from 2mm-250mm HDPE Plastic board .





4.Technical parameter Of plastic pe hd sheet

Subject	Unit	Paraters
Tensile strength	Mpa	>30
Compression strength	Mpa	≥41.8
Bending strength	Mpa	≥32
Impact strength	KJ/m²	≥140
Ball identation strength	N/mm²	≥40.8
Surface resistivity	Ω	4.9×10¹³
Water absorption	%	0.0001
Relative  waer rate	G/cm²	≤0.09
Frication coefficent	%	<0.09

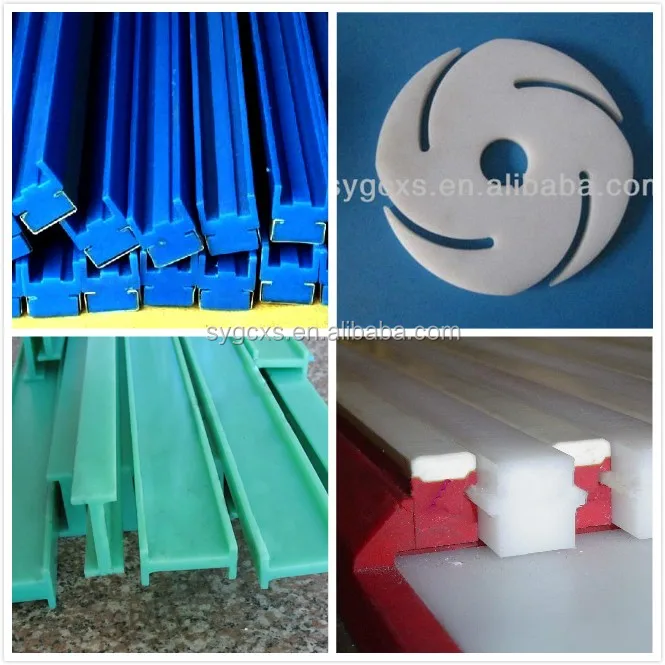

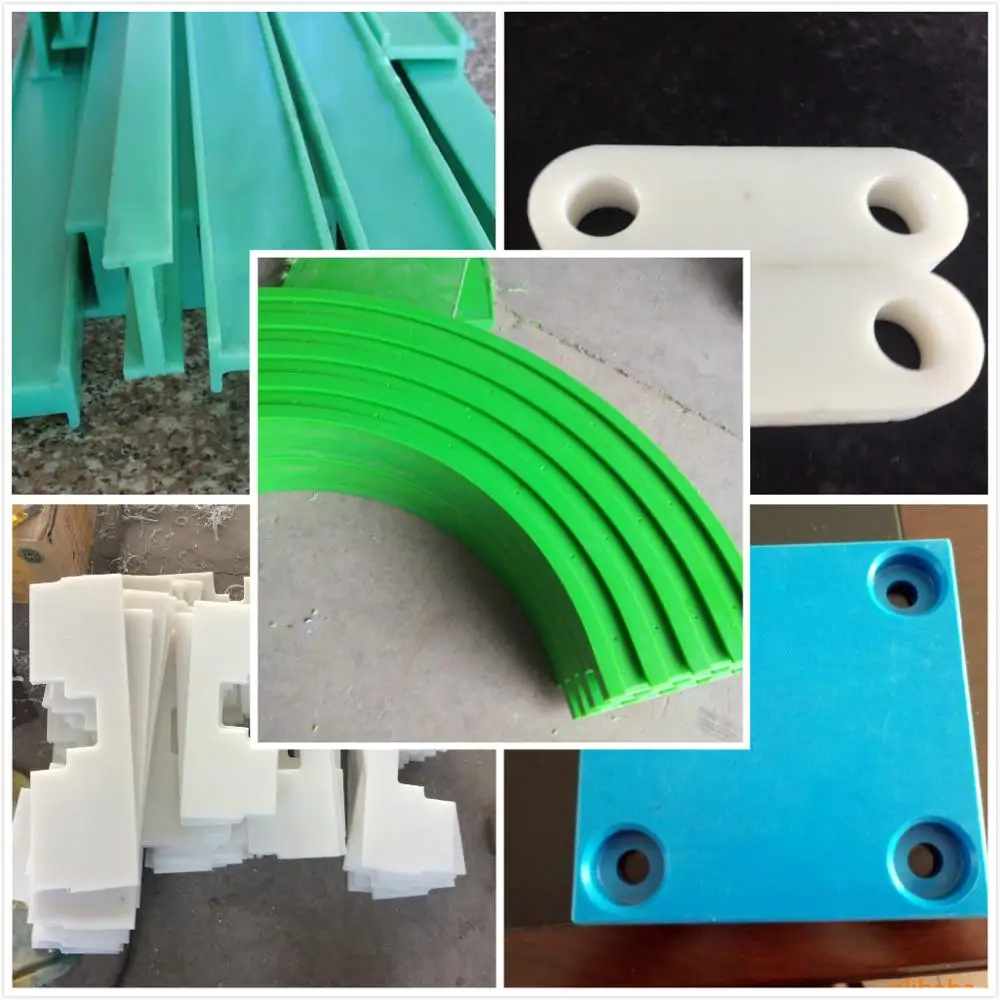

5.  plastic pe hd sheet Main Products show





 1. HDPE/UHMWPE Plate        2. HDPE/UHMWPE Liner

 3. HDPE Ground mat                  4. HDPE/UHMWPE Fender

 5. HDPE/UHMWPE Irregular parts   6. HDPE/UHMWPE Roller

 7. HDPE Textured board

plastic pe hd sheet







6. Machinery &  Packaging & Applictions



1.  Chemical Engineering: Corrosion and wear resistantance mechanical parts

2.  Thermal power: coal handling, storage of coal, warehousing chute lining

3.  Coal processing: sieve plate, filter, U-underground coal chute

4.  Concrete: cement raw and finished product silo silo lining

5.  Grain: food storage or chute lining

6.  Mining: sieve plate, chute linings, wear anti-bonding part

7.  Food industry: star-shaped wheel, transmission timing bottle screw, bearings, guide
     rollers, guides, slide blocks, etc.

polyethylene wear block
