Product Overview

Description

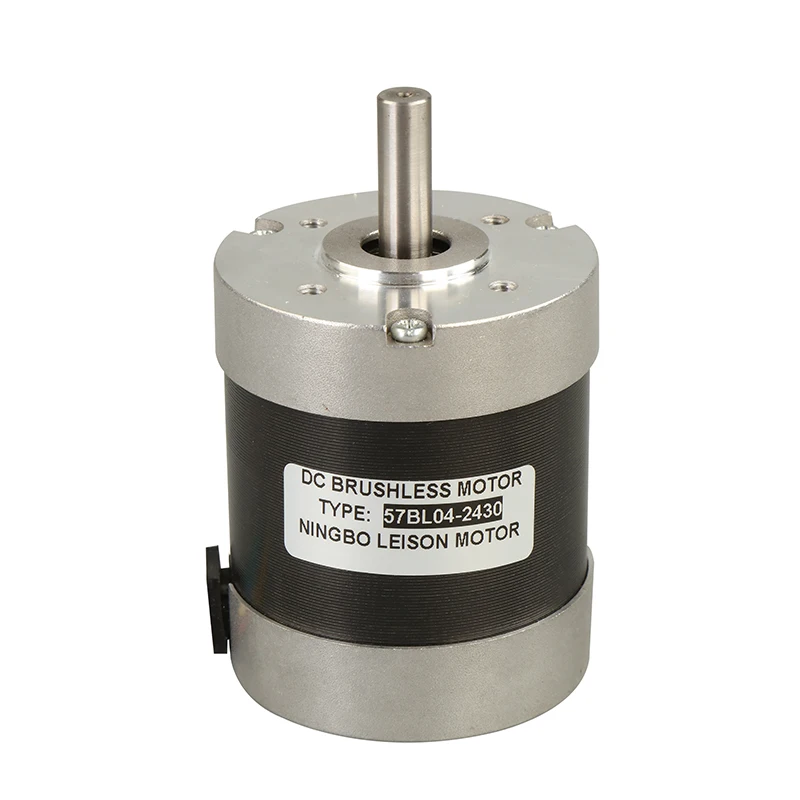

57BL 24V 3000RPM Brushless Dc Motors 24 Volt BLDC Motor





1.  Brushless Dc Motor Specification:













































































































































Model



57BL01



57BL02



57BL03



57BL04



57BL05



57BL06



Number of Poles



4



Number of Phases



3



Nominal Voltage   VDC



24



Rated speed   RPM



2500



3000



3000



3000



3000



3000



Continuous   Torque   N-m



0.057



0.11



0.165



0.22



0.33



0.44



Output Power   Watts



15



34



52



69



103



138



Peak Torque1   N-m



0.18



0.38



0.58



0.8



1.2



1.6



Peak Current   Amps



2.7



6.8



10.0



13.2



19.8



25.8



Line to line Resistance   Ohms



3.6



1.2



0.9



0.65



0.5



0.35



Line to line Inductance   mH



2.6



2.2



1.3



1.1



0.6



0.5



Torque constant   N-m/Amps



0.074



0.059



0.06



0.062



0.062



0.063



Back EMF   V/kRPM



7.75



6.2



6.3



6.5



6.5



6.6



Rotor inertia   g·cm2



32



42



58



72



106



140



Body Length (L)   mm



37



47



57



67



87



107



Mass   kg



0.43



0.5



0.67



0.75



1.0



1.25






Note : It's just the typical technical data for you reference, The specification such as voltage, speed, torque, shaft can customized, We can also offer BLDC5015 driver for this kind of motor!





Dimension and Wiring Diagram:





57BL DIM.jpgDriver details:





1.Voltage: 24~50VDC
2. Current output:15A Rated,45A Peak
3. Good price,better quantity
4. Good choice for 42mm and 57mm,86mmm diameter brushless dc motor










Company Information


 1. Basic Information






Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of various of motors with over 10 years experience.




Our product ranges include:

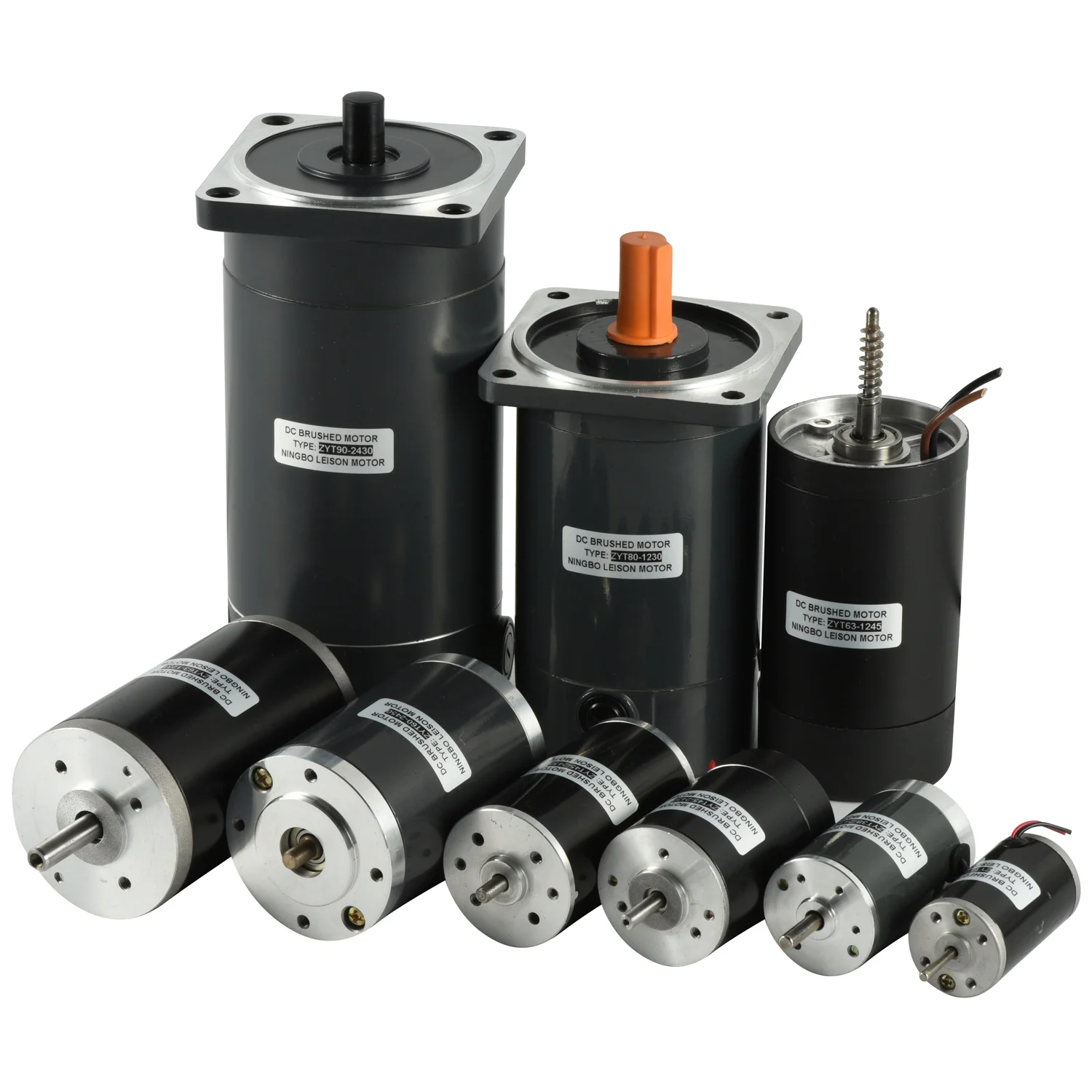

1) DC Brush Motor: 6-130mm diameter, 0.01-1000W output power
2) DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

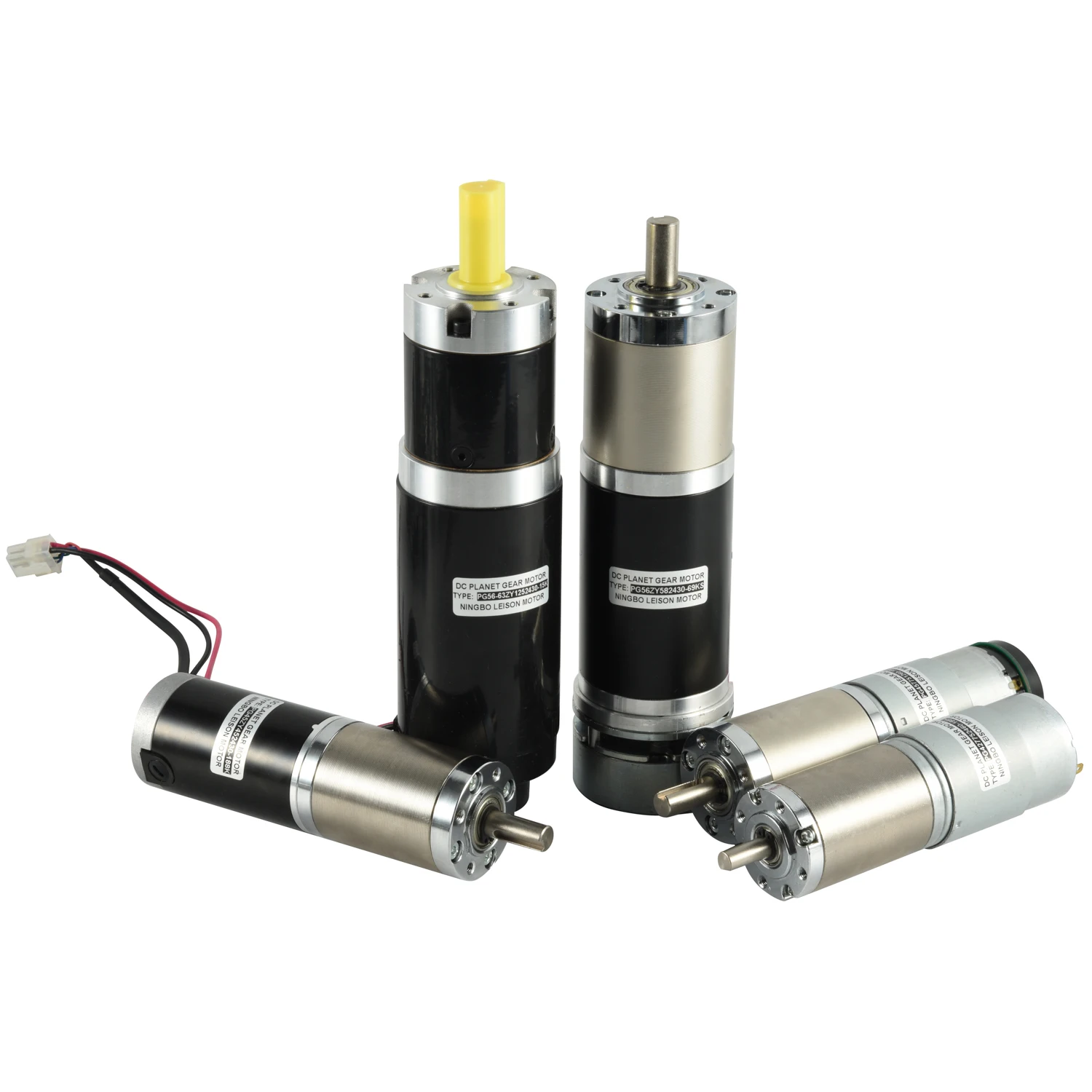

3) DC Planetary Gear Motor: 10-82mm diameter, 0.1-100W output power

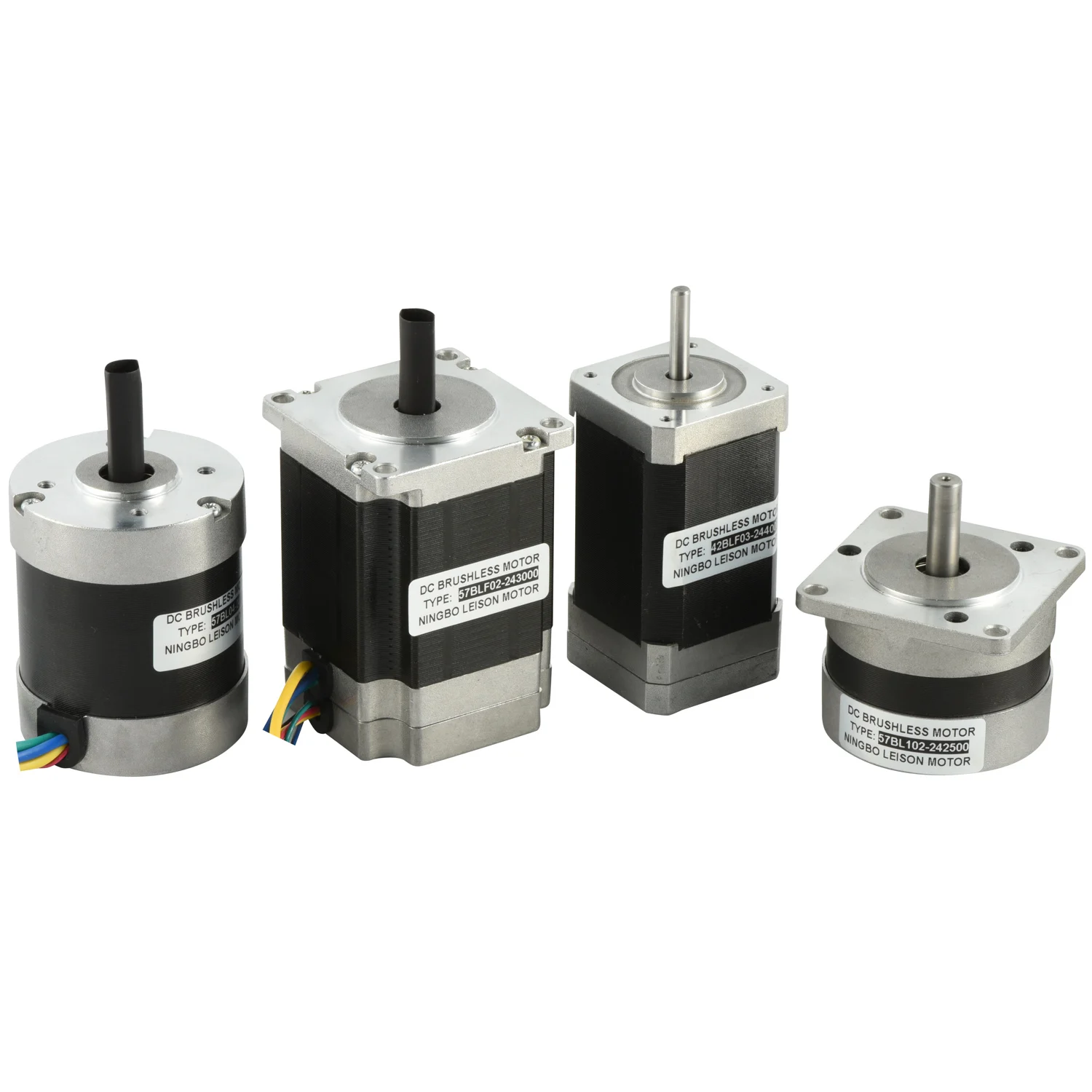

4) Brushless DC Motor: 28-110mm, 5-1500W output power

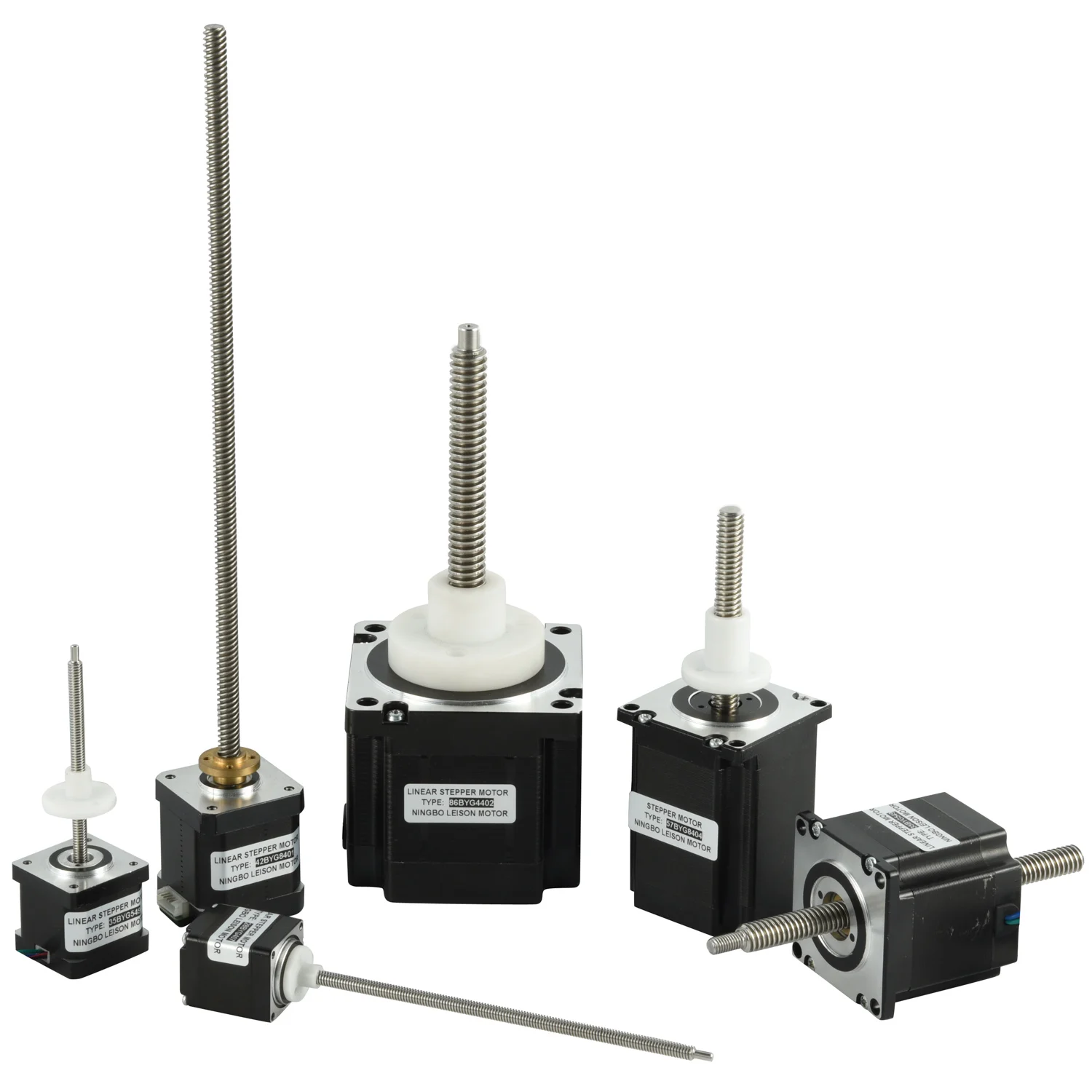

5) Stepper Motor: NEMA 08 to NEMA 43, Can with gearbox and lead screw
6) Servo Motor: 42mm to 130mm diameter, 50-4000w
7) AC Gear Motor: 49 to 100mm diameter, 6-140 output power
