Endress Hauser/ Analog pH sensor controller Orbisint 4 20ma CPS11 electrode/ph meter probe low price
Endress Hauser/ Analog pH sensor controller Orbisint 4-20ma CPS11 electrode/ph meter probe low price

Endress Hauser/ Analog pH sensor controller Orbisint 4 20ma CPS11 electrode/ph meter probe low price

Share on (60340528508):


Price:$260.00 - $300.00

Quantity:


Product Overview

Description



Analog pH sensor Orbisint CPS11 is Glass electrode for standard applications









Orbisint CPS11 is the all-rounder for pH measurement in process and environmental applications. It performs reliably and accurately even in highly alkaline media or hazardous areas. Designed for low maintenance and a long operating life, the sensor offers you best value for money.



Benefits




  • Robust electrode requiring low maintenance due to large, dirt-repellent PTFE ring diaphragm




  • Certified biocompatibility




  • Application under pressures of up to 16 bar / 232 psi




  • Long service life due to double junction reference system and thus long electrode poison diffusion path




  • Process glass for highly alkaline applications available






Field of application




  • Long-term monitoring and limit monitoring of processes with stable process conditions:
    - Paper industry
    - Plastics chemistry
    - Power plants (e.g. flue gas washers)
    - Incineration plants
    - Food industry
    - Breweries




  • Water treatment:
    - Drinking water
    - Cooling water
    - Well water




The electrode can be applied in hazardous areas, with ATEX,FM and CSA approval.













Features and specifications









































































Measuring PrincipleGlass electrode
ApplicationStandard applications in process and the environment. Long-term monitoring, processes with little change.
CharacteristicVery robust, heavy-duty version / high pressure, integrated potential matching, flat membrane available.
Measurement rangepH 0-14
Measuring principleGel compact electrode with PTFE ring-diaphragm.
Design- all shaft lengths with temperature sensor
- advanced gel technology.
- With dirt-repellent PTFE diaphragm.
MaterialGlass / PTFE
DimensionDiameter: 12 mm (0.46 inch) shaft length: 120, 225, 360 and 425 mm
(4.68, 8.77, 14.04 and 16,57 inch)
Process temperaturemax. 135°C (274°F)
Process pressuremax. 16 bar (230 psi)
temperature sensoroptional with integrated Pt100 or Pt1000
Ex certificationSimple operational equipment, no certification necessary.
ConnectionTOP68 connection head
Ingres protectionIP 68
Additional CertificationsBiocompatibility validated acc. to ISO 10993-5 USP (current version).
TÜV certificate for pressure resistance 16 bar, min. triple overpressure safety.











Product pictures:

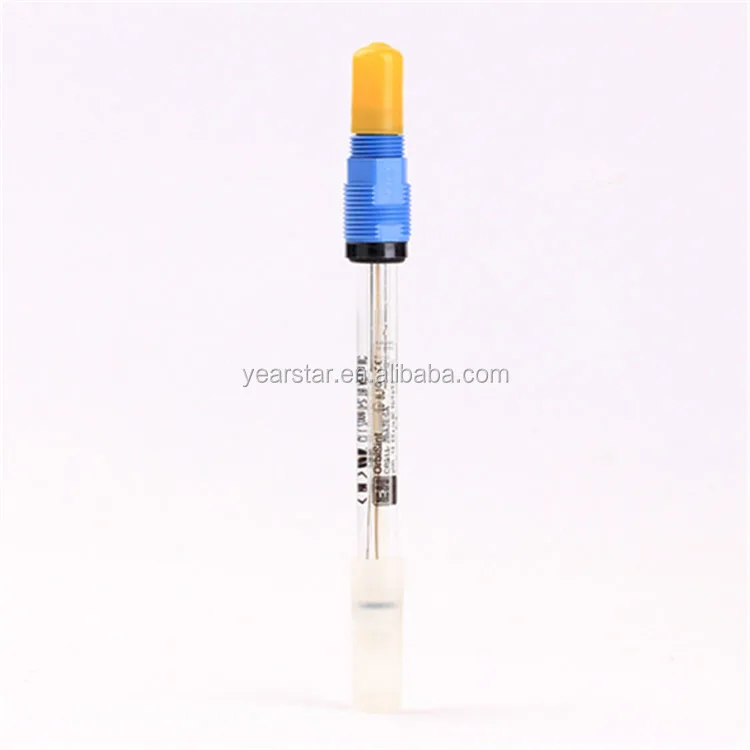

Endress Hauser PH meter price CPS11












                                                      Glass Electrode, dirt-repellent PTFE ring diaphragm

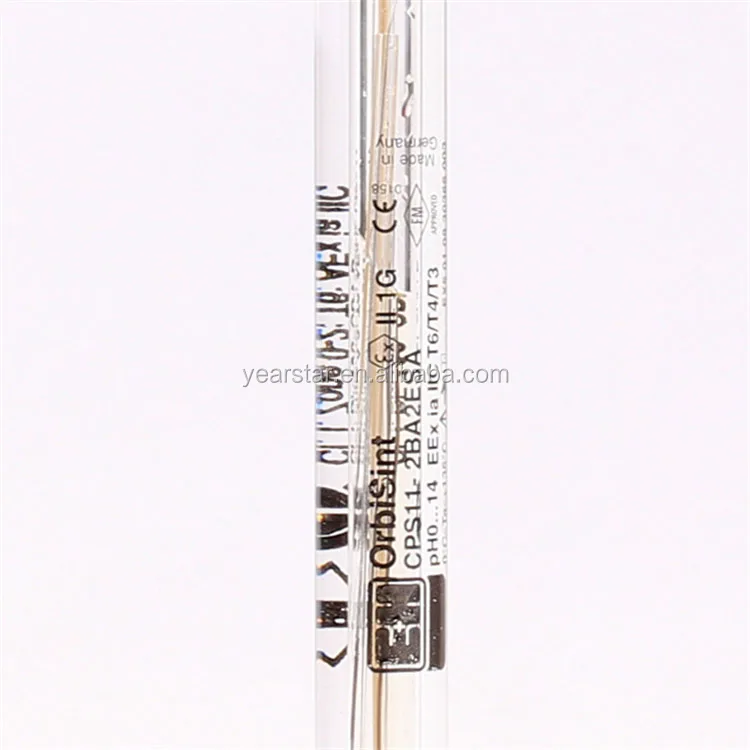

Endress Hauser ph tester sensor CPS11

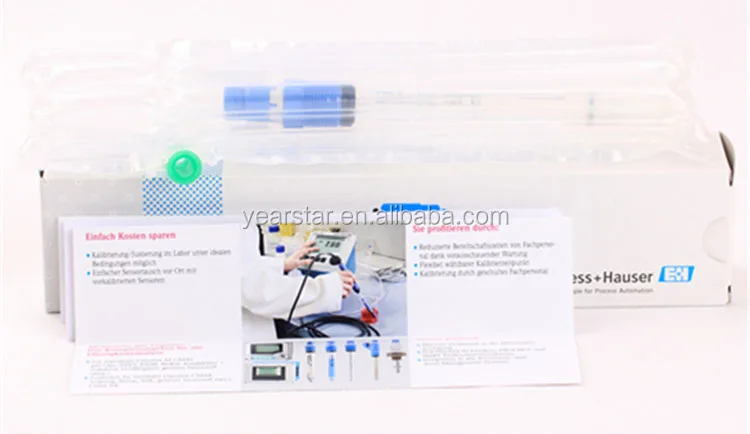

                                      Pack with airbag to reduce pressure during transportation.
Endress Hauser PH meter price CPS11





























ClassicCase|


application in Switzerland laragest milk     company

|Emmi

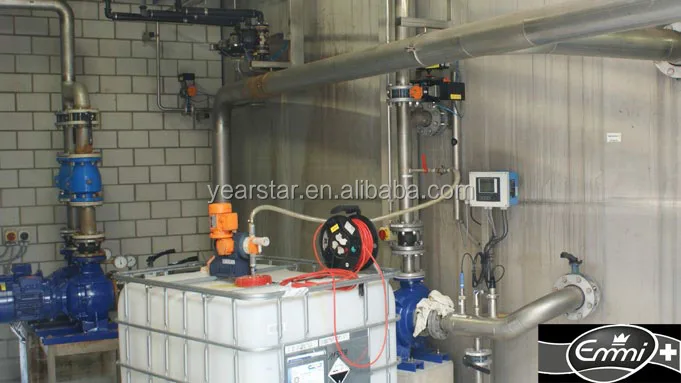

Endress Hauser beverage case

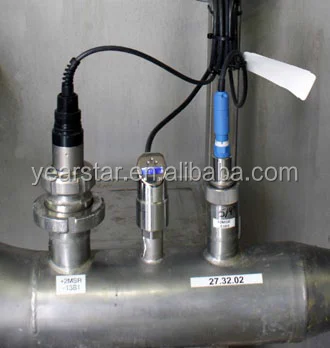

Endress Hauser beverage caseThe Memosens sensors Oxymax COS61D
and Orbisint CPS11D monitor oxygen or
pH values directly in the SBR (center:
a Ceraphant T PTC31 pressure switch)

Customer benefits:


• 40–50% energy savings in the
wastewater treatment process
thanks to precise regulation of
the oxygen pumps
• Cost savings across the entire
process
• Emmi's concept of sustainability is
backed up by long service intervals
and the systems' high degree of
stability.
• Simultaneous monitoring of
multiple measuring points and
parameters using multichannel
transmitters
• The energy-rich sludge can
eventuallybe
used in the production of biogas.
