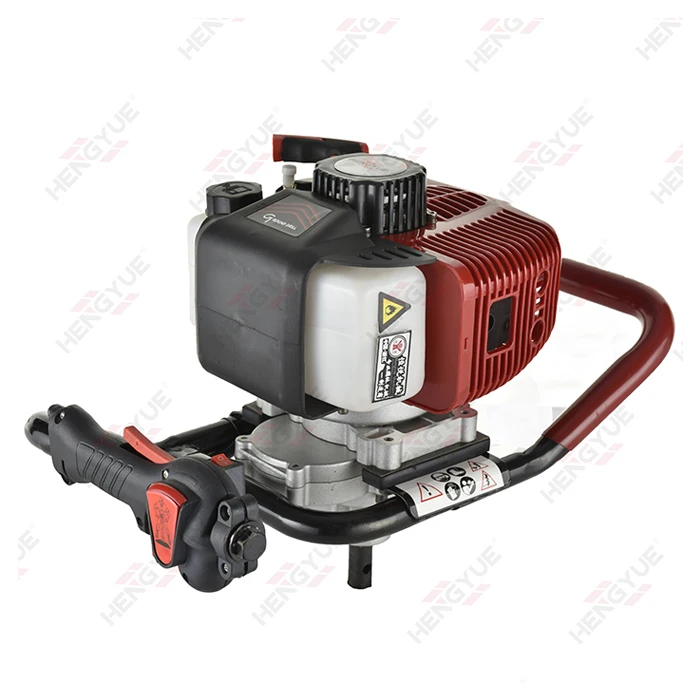

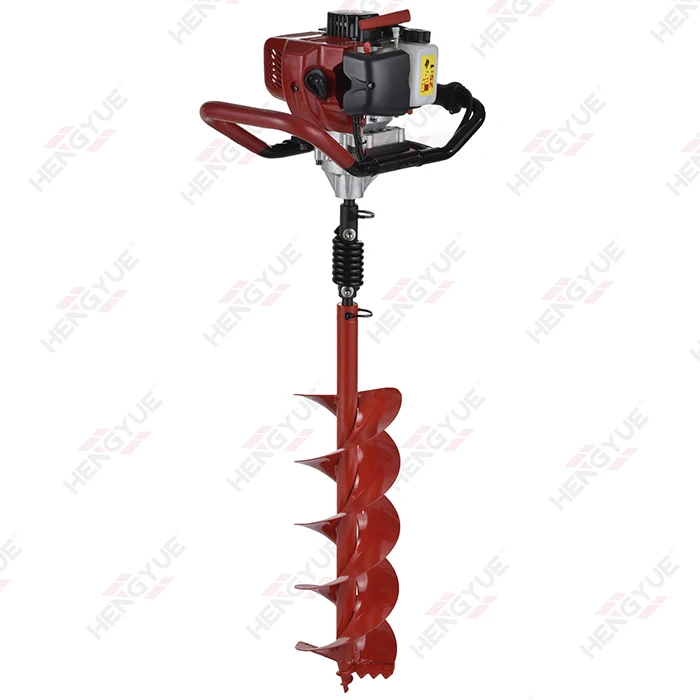

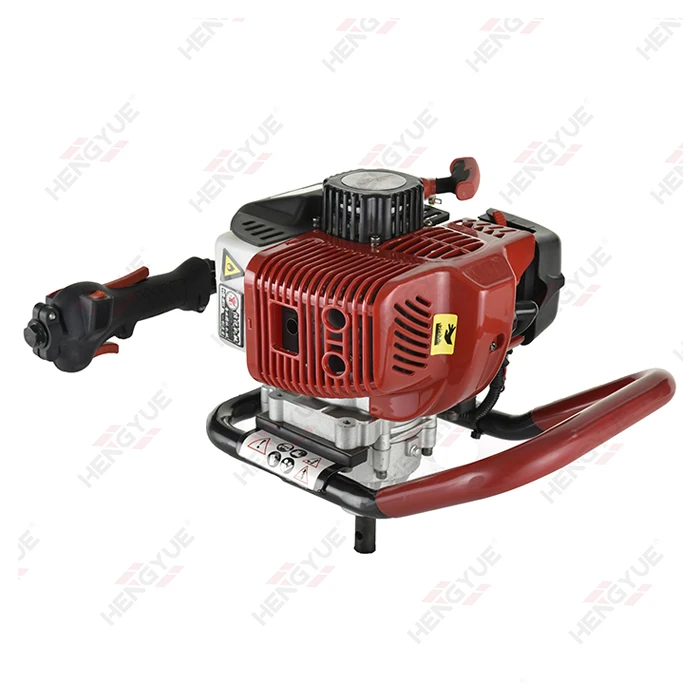

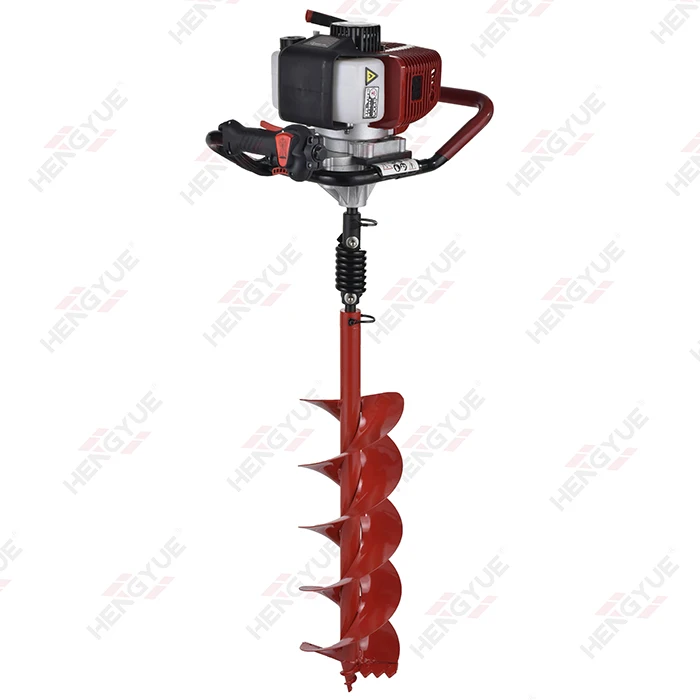

Ground drill machine Earth auger machine Gas post hole digger

Product Overview

Description

Notice : Order on alibaba website
1. The price only for earth auger macine with random accessories ( Manula , Tool kits bag , Ration tank , Funnel ) & EXW price
2. Package way :

2.1 Earth auger macine with random accessories ( Manual , Tool kits bag , Ration tank , Funnel ) package in one carton
2.2 Earth auger macine with random accessories + 3 pcs diffirent dia auger bits + 1 pcs 60cm extention rod + 1 pcs spring reducer package in one carton .



Certificate : CE  EMC  ISO9001-2015

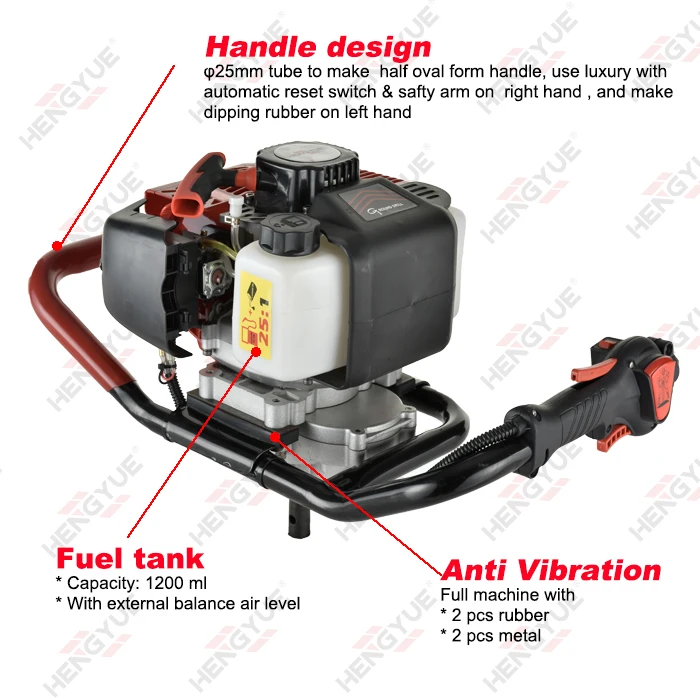

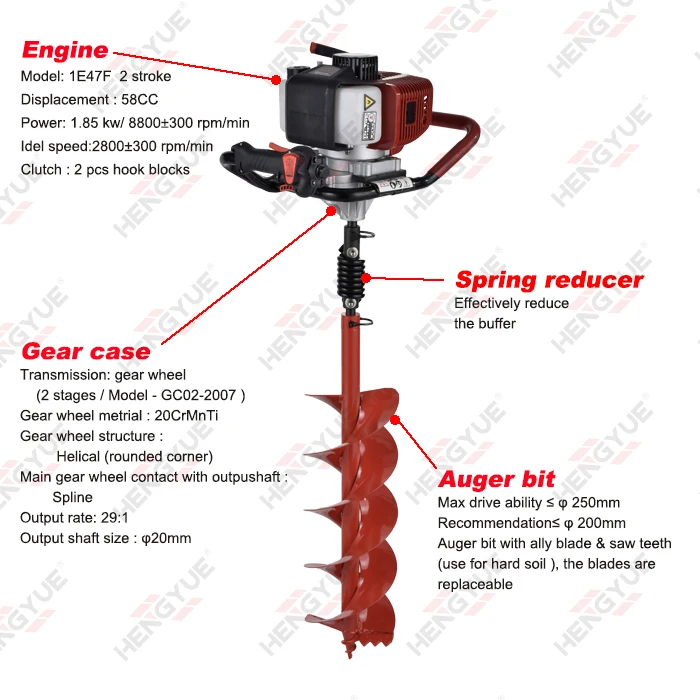

Engine model: 1E47F   2 stroke	Handle design:  half oval form handle, make dipping rubber on left hand
Engine power: 1.85kw / 8800±300 rpm/min	Trigger : (Optional )
Displacement : 58CC	* Simple type with safty arm
Max output speed:8800±300 rpm/min	* luxury with automatic reset switch & safty arm   (Bisc)
Fuel  tank capacity: 1200 ml	Vibration reduction system:2 pcs rubber & 2pcs metal
Fuel  tank :(Optional )	Transmission: Gear case  ( 2 stages / Model - GC02-2007 )
*Normal standard fuel tank	Gear wheel metrial :20CrMnTi
*With external balance air level  (Basic)	Gear wheel structure : Helical (rounded corner)
Fuel tank keeper:(Optional )	Main gear wheel contact with output shaft : Spline
* Without	Output rate:  (Optional )
* Simple metal	* 29:1  (Basic)
* Luxury / Plastic metrial  / Fully surrounded (Basic)	*10:1   /    5:1
Fuel: Gasoline mix 2 stroke Oil (25:1)	Output shaft type :(Optional )
Clutch : 2 Pcs hoof blocks	* Spline
Starting systerm : Recoil	* Cylinder φ20mm (Basic)
Starter: (Optional )	* Cylinder φ22mm
*Normal starter	Max drive ability : ≤ φ 300mm  auger bit
*Normal easy starter	Recommend drive :≤φ 250mm auger bit
*Supper easy starter: 2 pcs spings  & 1 pcs needle bearing (Basic)	Auger bit size :  φ40/60/80/100/150/200/250/300mm



Different drill bit you can choose   1. Different tips

HY-ZT01  A. Cast steel tip, which can not be take down                B. Simple blade, which can not be take down  C. Single laminae or double laminaes  HY-PT01  A. Easy tip  B. Simple blade , which can not be take down  C. Single laminae or double laminaes  HY-HJZT01  A. Cast steel tip, which can not be take down  B. Alloy sawtooth or flat blade , which can be take down  C. Alloy sawtooth or flat blade , which can be take down  D. Single laminae or double laminaes   HY-ZYHJ01  A. Cast iron twist tip, which can not be take down  B. Alloy sawtooth or flat blade, which can be take down  C. Whole metal disk plate in the bottom  D. Single laminae or double laminaes  HY-BYHJ01  A. Cast iron twist tip, which can not be take down  B. Alloy sawtooth or flat blade, which can be take down  C. Alloy sawtooth or flat blade, which can be take down  D. Half metal disk plate in the bottom  E. Single laminae or double laminaes  HY-CX01  A. Cast iron twist tip, which can be take down  B. Alloy sawtooth or flat blade , which can be take down  C. Alloy sawtooth or flat blade , which can be take down  D. Half metal disk plate in the bottom  E. Single laminae or double laminaes

HY-CX02  A. Cast iron twist tip, which can be take down  B. Alloy sawtooth or flat blade , which can be take down  C. Alloy sawtooth or flat blade , which can be take down  D. Half metal disk plate in the bottom  E. Single laminae or double laminaes HY-CX03  A. Cast iron twist tip, which can be take down  B. Alloy sawtooth or flat blade , which can be take down  C. Single laminae or double laminaes      HY-ICE01  A. Supper tip, which can be take down  B. XK5 material blade ,which can be take down  C. XK5 material blade ,which can be take down  D. Single laminae or double laminaes  HY-ICE02  A. Supper tip, which can be take down  B. XK5 material blade ,which can be take down  C. XK5 material blade ,which can be take down  D. Single laminae or double laminaes  HY-ICE03  A. Cast iron twist tip, which can not be take down  B. Alloy sawtooth or flat blade, which can be take down  C. Alloy sawtooth or flat blade, which can be take down  D. Half metal disk plate in the bottom  E - Single laminae or double laminaes  HY-CX04  A. Spring adapter, can reduce shake  B. Single laminae or double laminaes  C. Cast iron twist tip, which can not be take down  D. Whole metal disk plate in the bottom  E.Alloy sawtooth or flat blade, which can be take down

2. Different size and spare parts
