SUMMIT RHP F 1000/3000kg elevator lift spare part wire rope tension pressure sensor
- Category: >>>
- Supplier: Ningbo Summit Electric Co. Ltd.
Share on (60340766437):
Product Overview
Description

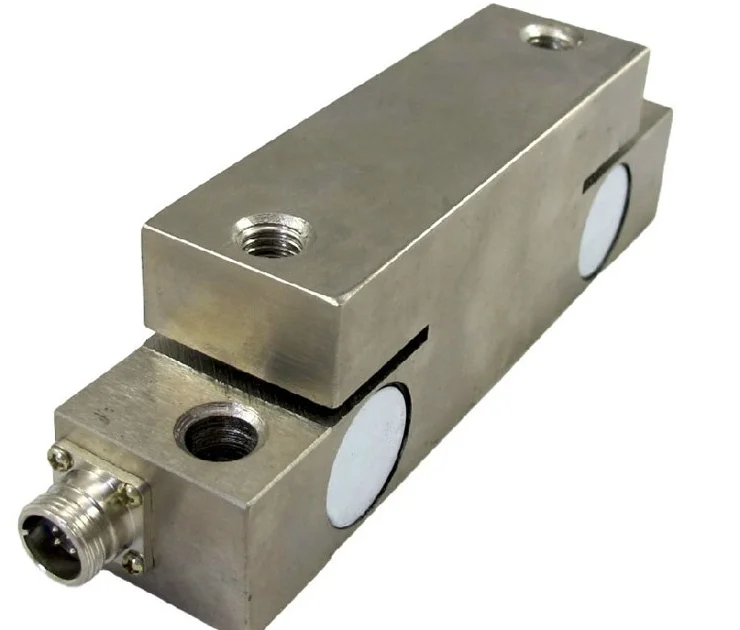

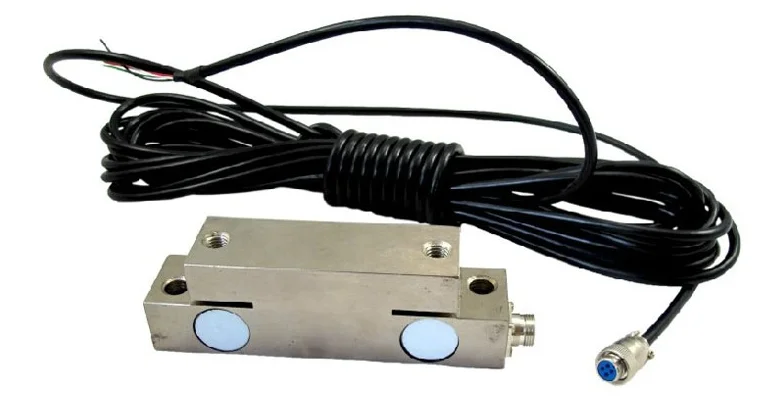

elevator lift wire rope tension pressure sensor
| Rated load | 1000/3000kg |
| Sensitivity | 2.0±0.02%mV/V |
| Total error | ±0.5% F.S |
| Creep error | ±0.02% F.S |
| TC SPAN | ±0.02%F.S/10℃ |
| Working temperature | -30℃~70℃ |
| Input impedance | 760±10Ω |
| Output impedance | 700±2Ω |
| Safe overload | 150% F.S |
| Ultimate overload | 200% F.S |
| Excitation | 5~12 DC |
| Max.excitation | 15V DC |
| Insulation impedance | ≥5000MΩ |
| Protection class | IP67/IP68 |
| Construction | Alloy Steel |
| Cable length | 5m |
