Product Overview
Description
HRVG-06A

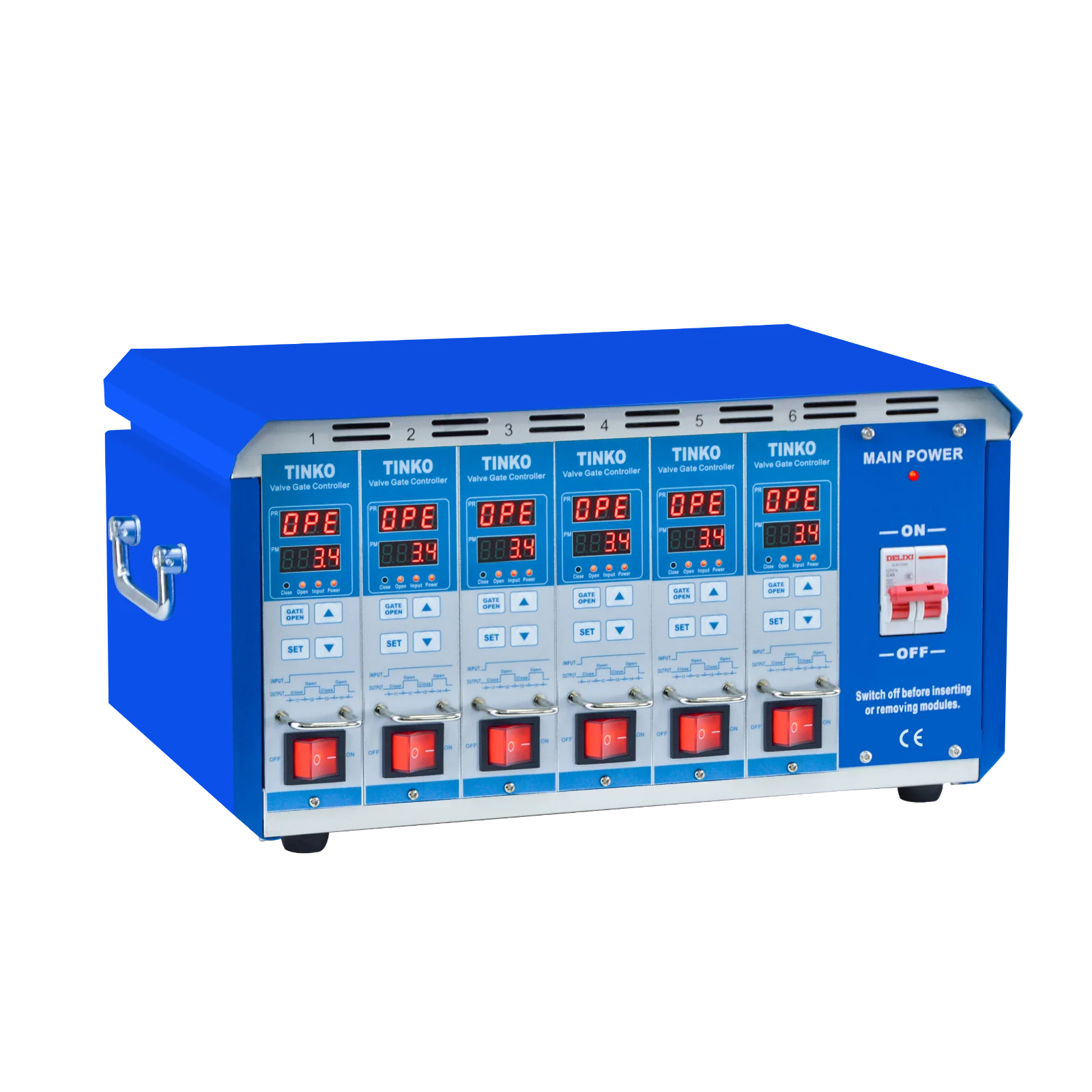

Hot Runner Sequential Valve Gate Controller Series
Products Description
1. General Specifications
Power Supply | AC85~265V, 50/60Hz | Mainframe | Blue |
Control Module | HRVG-12A | Module Qt'y | 6 |
Control Function | Auto / Manual | Control Mode | Mode-A / Mode-B / Mode-AB |
Input type | DC24V / Relay contact | Output type | AC220V / DC 24V / Relay contact |
Time Range | 0.0~999.9s / 0.00~99.99s | AC220V output: 3A DC24V output: 30W Relay contact: 3A | |
Working Temperature | 0~50℃(0~122℉) | ||
Storage Temperature | -20~70℃(-4~158℉) | ||
Working Humidity | 10~80%RH(No condensing) | ||
Connector Type | Customized | Wiring Mode | Customized |
2. Features
Light Handy and Easy to use
• Dual lines LED display
• Wide power supply range (AC85~400V)
• There are 2, 4, 6, 8, 10, 12, 24 zones for customers to select.
• Selectable output control mode (Mode-0 or Mode-1)
• Selectable input signal type (DC24V or Relay contact)
• Selectable output control mode (Mode-0 or Mode-1)
• Selectable input signal type (DC24V or Relay contact)
• Polarity can be ignored when input signal is DC24V
• Recover parameters default easily
Alarm when the followings occurred
1. Ultra-high or ultra-low Temperature
2. Thermocouple break, short or inverse
3. Thermocouple is out of its position
4. Heater break, short or overload
5. Output device is damaged
2. Thermocouple break, short or inverse
3. Thermocouple is out of its position
4. Heater break, short or overload
5. Output device is damaged
6. Over voltage of power supply
Protection activated in the following situations:
1. Over voltage self-protectd, max.AC500V
2. Thermocouple input protection, prevent module damaged by misconnection
3. Thermocouple & heater inverse protection, prevent thermocouple damaged by misconnection
4. Soft-start mode, avoid the moisture make the heater burn out
5.Heater dehumidified time can be extended

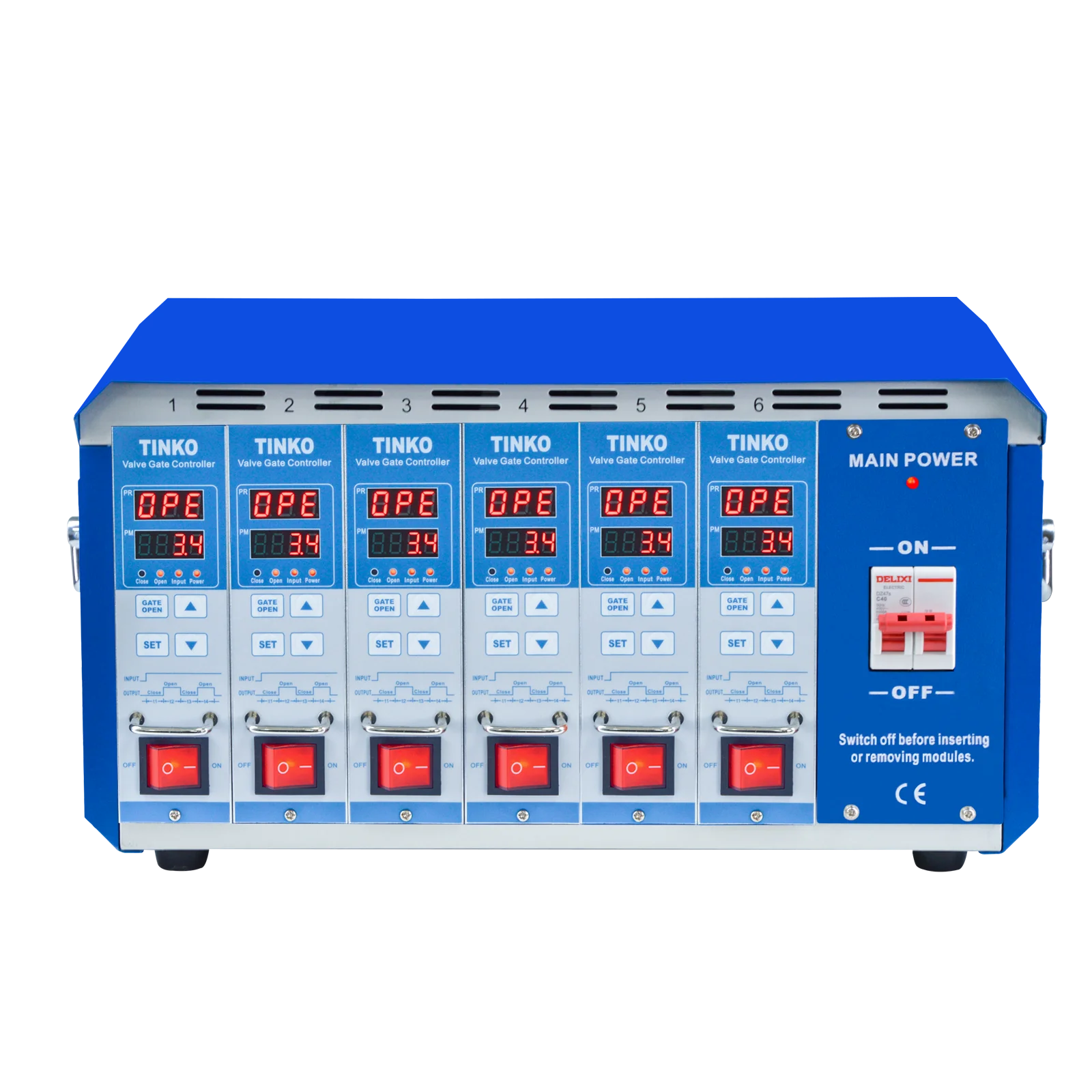

PANEL INTRODUCTION

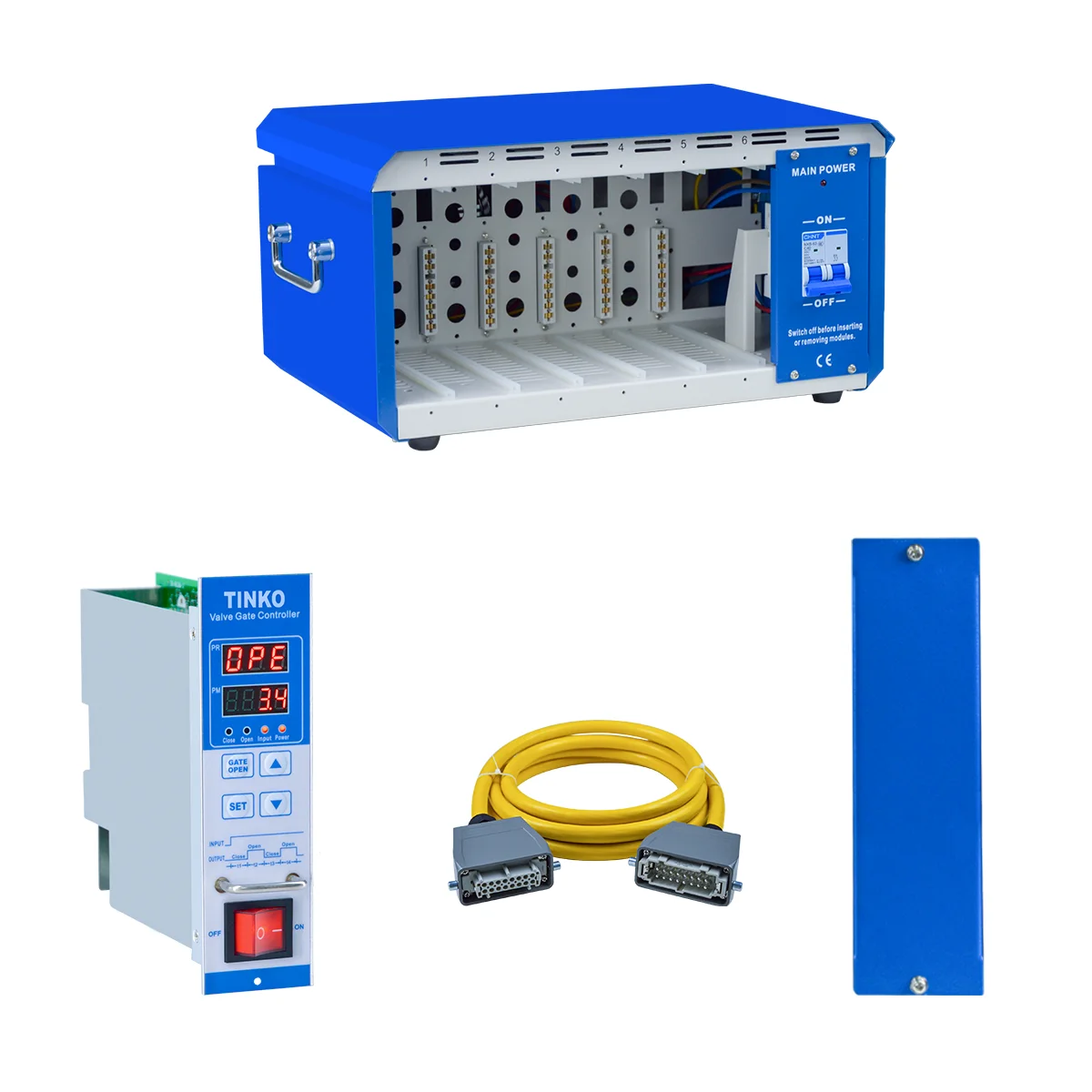

COMPONETS
■ Mainframe
■ Module
■ Connector
■ Cable
■ Blank plate (Exclude 2, 4, 6, 8, 10, 12, 24 zones or their integer multiple)
■ Connector
■ Cable
■ Blank plate (Exclude 2, 4, 6, 8, 10, 12, 24 zones or their integer multiple)

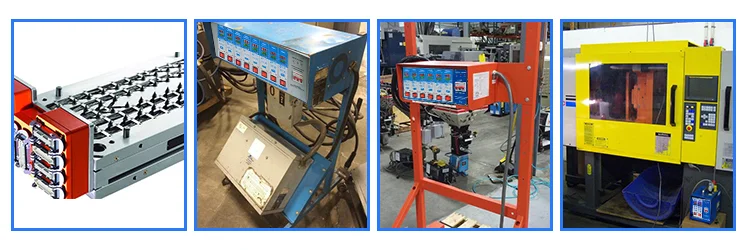

APPLICATIONS
Hot runner Injection Sequence Controller is a crucial part in the hot runner system.
Widely used in electronics, automobiles, medical, commodities, toys, packaging, architecture, office equipment and other industrial sectors.
More Options
APPLICABLE MODULES

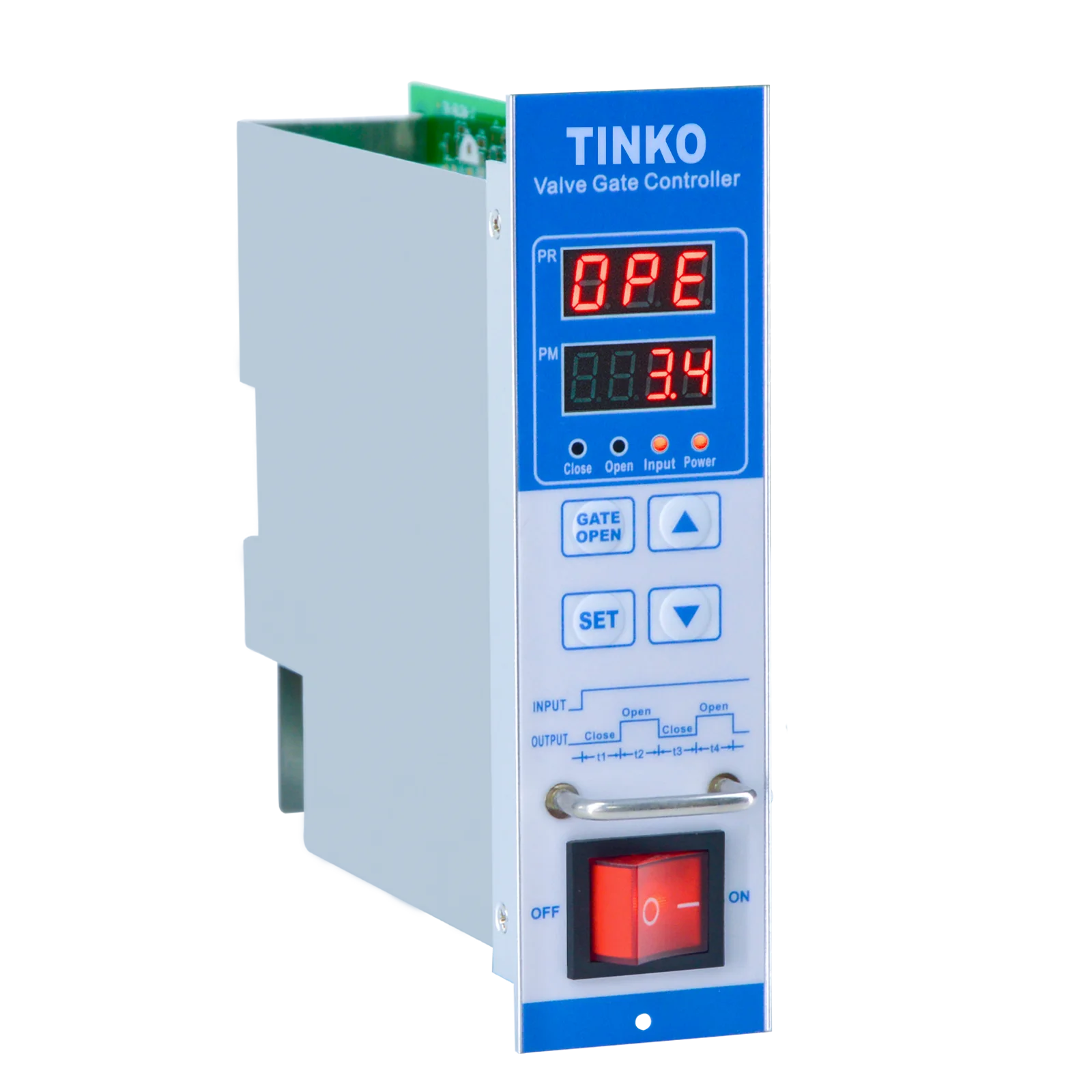

Hot Runner Injection Sequence Controller Module
• Dual lines LED display
• Wide power supply range (AC85~400V)
• There are 2, 4, 6, 8, 10, 12, 24 zones for customers to select. • Selectable output control mode (Mode-0 or Mode-1) • Selectable
input signal type (DC24V or Relay contact)
• Polarity can be ignored when input signal is DC24V
• Recover parameters default easily
• Wide power supply range (AC85~400V)
• There are 2, 4, 6, 8, 10, 12, 24 zones for customers to select. • Selectable output control mode (Mode-0 or Mode-1) • Selectable
input signal type (DC24V or Relay contact)
• Polarity can be ignored when input signal is DC24V
• Recover parameters default easily

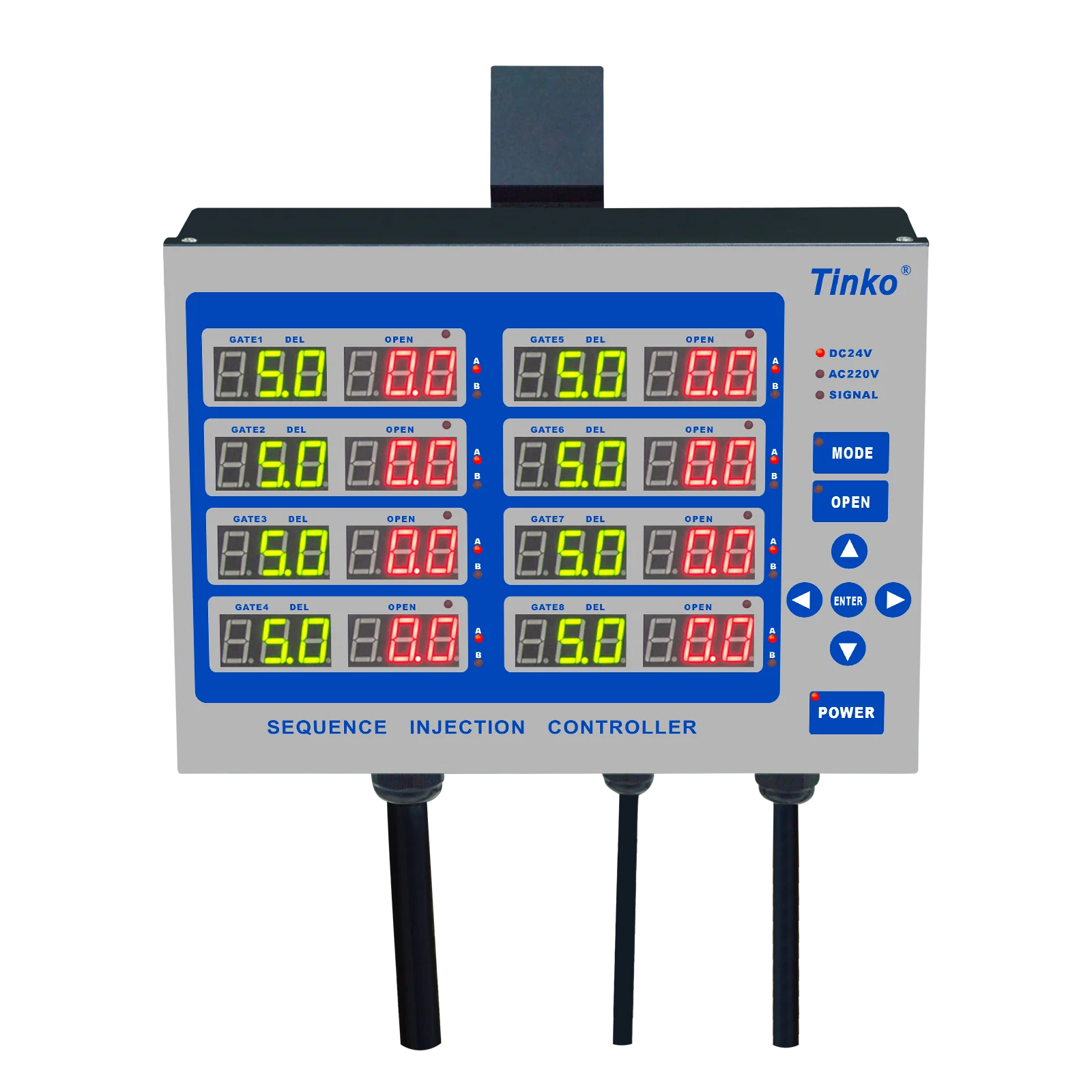

D600 — Injection Sequence Controller
• 8 zones injection sequence control
• LED display for delay time & open time for each zone
• Selectable time display mode (0.1s or 0.01s)
• Auto/Manual function• Selectable input signal type (DC24V or Switch)
• Selectable output signal type (AC220V, DC24V or Relay contact)
• Wide power supply range (AC85~400V)
• Polarity can be ignored when input signal is DC24V
• Optional DC24V/240V output for oil valve

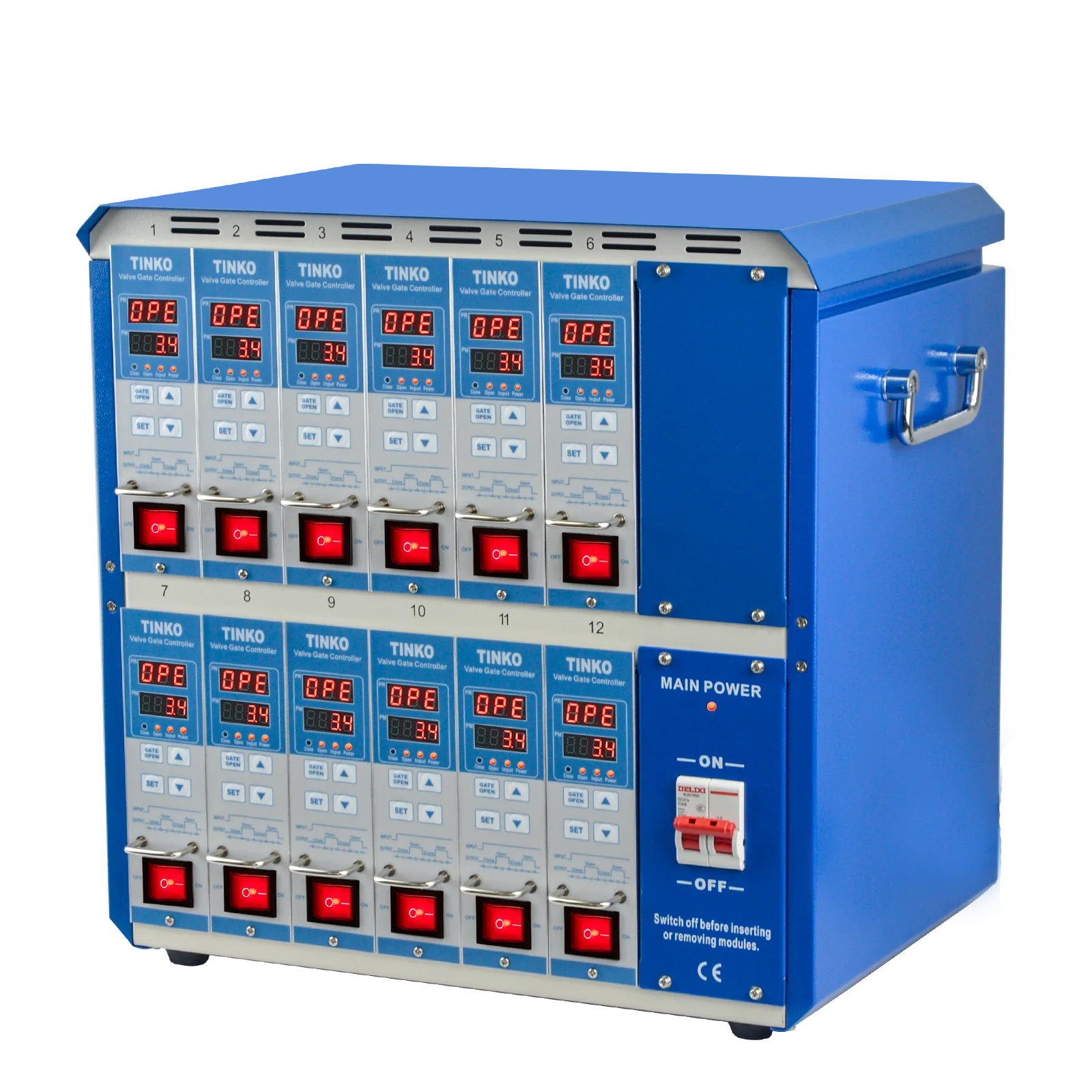

MAINFRAME
ZONE view more>>
■ 1~36 zones for you to choose
■ Customised to your requirement
HRVG ACCESSORIES
Don't know how to choose your product
If you have any doubt about the selection, don't hesitate to contact us. Just give us some pieces of information or pictures of your machine, we will assist you to pick up the suitable controller or module.
