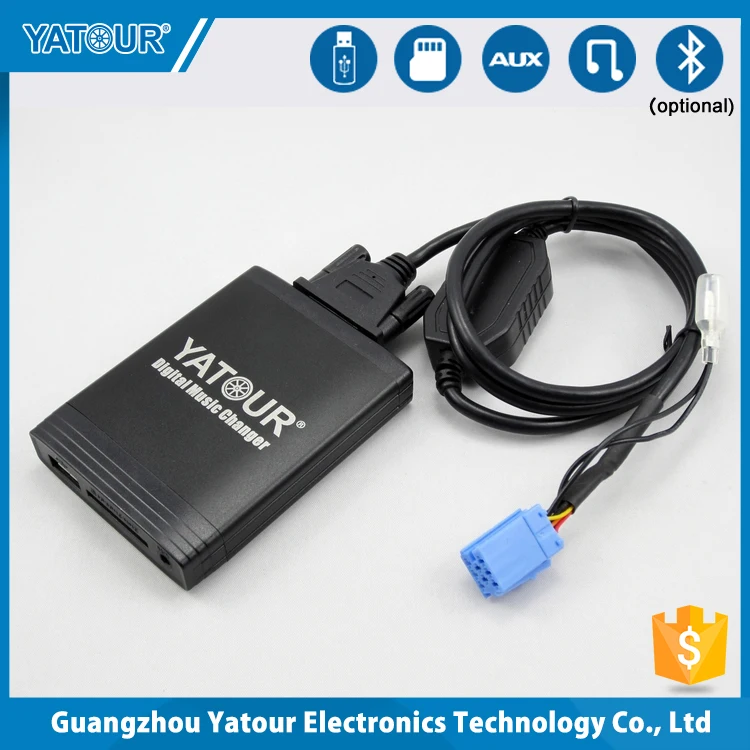

Автомобильный sd usb mp3 адаптер для citroen и peugeot

Product Overview

Description

car sd usb mp3 adapter for citroen and peugeot

1.  Features:

* Support USB / SD / AUX IN;

* Deliver Original CD quality sound through CD Changer port ;

* Plug and Play ;

* Direct controls from car radio panel ;

* Supports last position memory(LPM) ;

* Able to work together with original Mechanical Disc Box, arbitrary switch playing allowed;

* Optional Bluetooth function support.



2. Specifications :

Voltage input:11v~14.6v DC	Operational current: 200mA
Standby current : 3mA	Operating Temperature : -35 °C~+85 °C
DAC resolution : 20bit	Total harmonic distortion : 0.05%
SN ratio : 90dB	Frequency response : 20Hz-20KHZ



3. Compatible car :





4. Installation Diagram :

This device is only suitable for vehicles whose Head Unit (either Original or Refitting) is with CD Changer Port.



Note :  Mp3 / CDC Swith cable is optional , available for some vehicles only.



5. How to save music into folders :

1. Name folders as CD01 ,CD02 ,CD03...etc

2. The naming of songs is unrestricted .

3. Don't save music files in the folders of the sub directory , otherwise , can't recognized .

4. Support mp3 / wma .

Below is showing example .





6. Accessories:

1 pc Module , 1pc wireless harness , 1pc 3.5mm aux cable , 1 pc user manual

7. Package:

• Standard packing box : 210 x 150 x 60 mm

• Half-size packing box : 150 x 105 x 60 mm

• Module weight : 90g

• Gross weight : 220g~400g .
