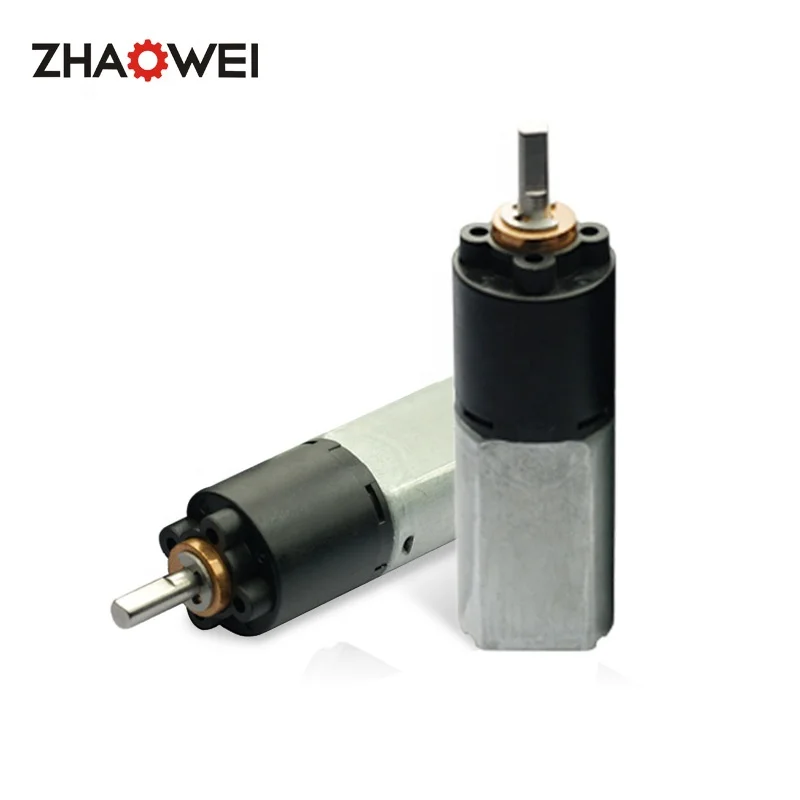

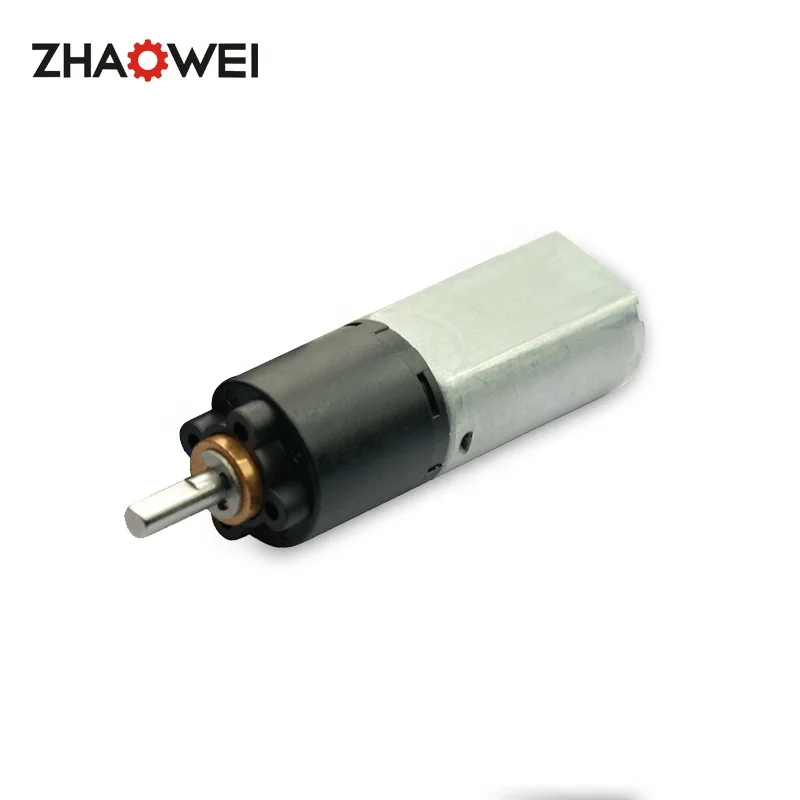

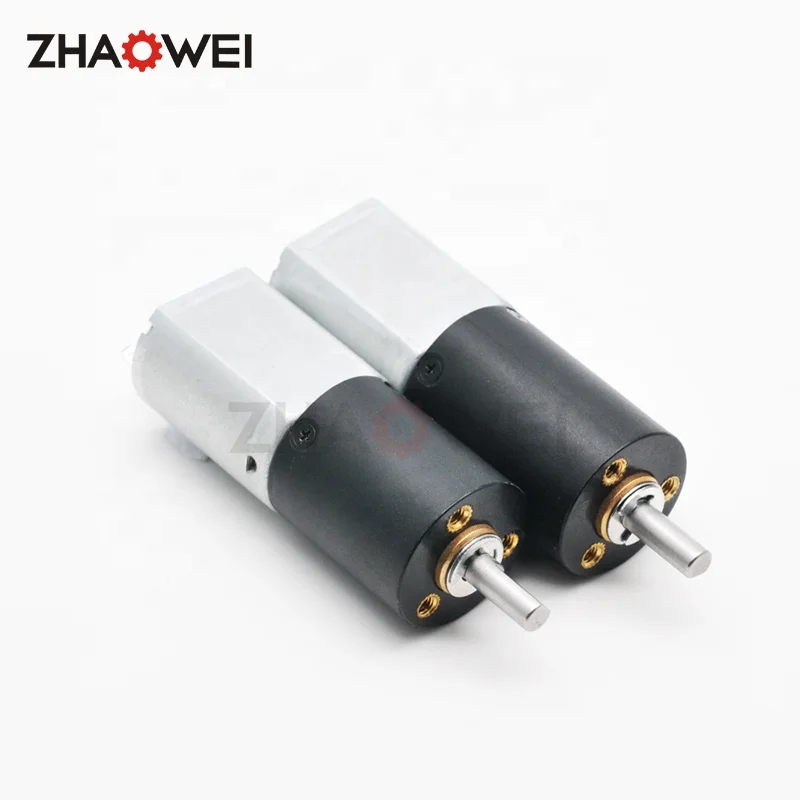

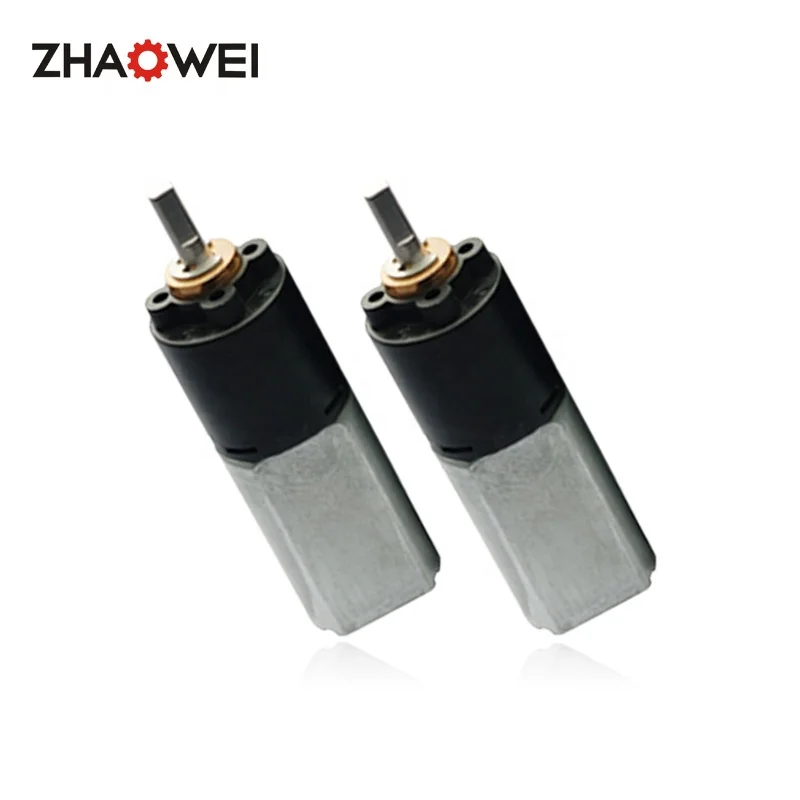

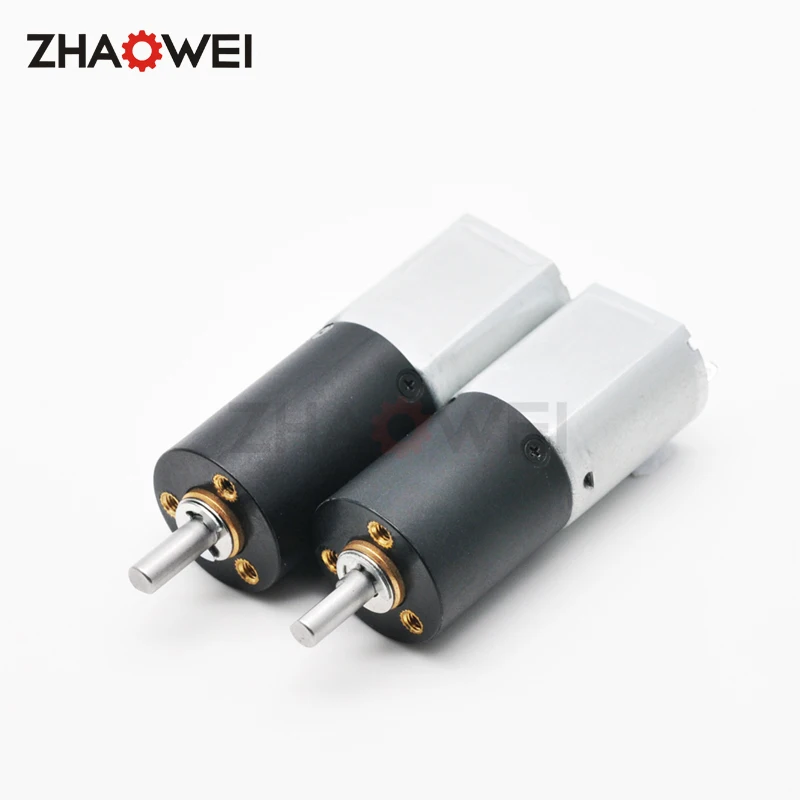

zhaowei 12 volt personal care 20mm planetary plastic gearbox gearhead motor
- Category: >>>
- Supplier: Shenzhen Zhaowei Machinery & Electronics Co. Ltd.
Share on (60341451467):
Product Overview
Description
| Motor Specifications:20mm motor | |
| motors(optional) | coreless motor,brushed motor,stepper motor,BLDC motor |
| voltage(optional) | DC 3-24v |
| input speed | <=15000rpm |
| current | 300mA max |
| Performance Data:20mm plastic planetary gearbox motor | |||||||
| Model | Rated Speed | Max Speed | Max Rated Torque | Max Instant Torque | Reduction Ratio | gearbox Length | Overall Length |
| rpm | rpm | gf.cm | gf.cm | mm | mm | ||
| ZWBPD020020-4 | 1875 | 7500 | 6000 | 15000 | 4 | 17.6 | 42.7 |
| ZWBPD020020-6 | 1250 | 5000 | 6000 | 15000 | 6 | 17.6 | 42.7 |
| ZWBPD020020-16 | 469 | 1875 | 6000 | 15000 | 16 | 22.9 | 48 |
| ZWBPD020020-24 | 313 | 1250 | 6000 | 15000 | 24 | 22.9 | 48 |
| ZWBPD20020-36 | 208 | 833 | 6000 | 15000 | 36 | 22.9 | 48 |
| ZWBPD020020-64 | 117 | 469 | 6000 | 15000 | 64 | 28.2 | 53.3 |
| ZWBPD020020-96 | 78 | 313 | 6000 | 15000 | 96 | 28.2 | 53.3 |
| ZWBPD020020-144 | 52 | 208 | 6000 | 15000 | 144 | 28.2 | 53.3 |
| ZWBPD020020-216 | 35 | 139 | 6000 | 15000 | 216 | 28.2 | 53.3 |
| ZWBPD020020-256 | 29 | 117 | 6000 | 15000 | 256 | 33.5 | 58.6 |
| ZWBPD020020-384 | 20 | 78 | 6000 | 15000 | 384 | 33.5 | 58.6 |
| ZWBPD020020-576 | 13 | 52 | 6000 | 15000 | 576 | 33.5 | 58.6 |
| ZWBPD020020-864 | 9 | 35 | 6000 | 15000 | 864 | 33.5 | 58.6 |
| ZWBPD020020-1296 | 6 | 23 | 6000 | 15000 | 1296 | 33.5 | 58.6 |
| * The above specifications are subject to change without prior notice. They are for reference only and can be customized as required. | |||||||
