High quality cheap portable cnc plasma flame cutting machine
- Category: >>>
- Supplier: Beijing Seigniory NC Equipment Co. Ltd.
Share on (60341503147):
Product Overview
Description

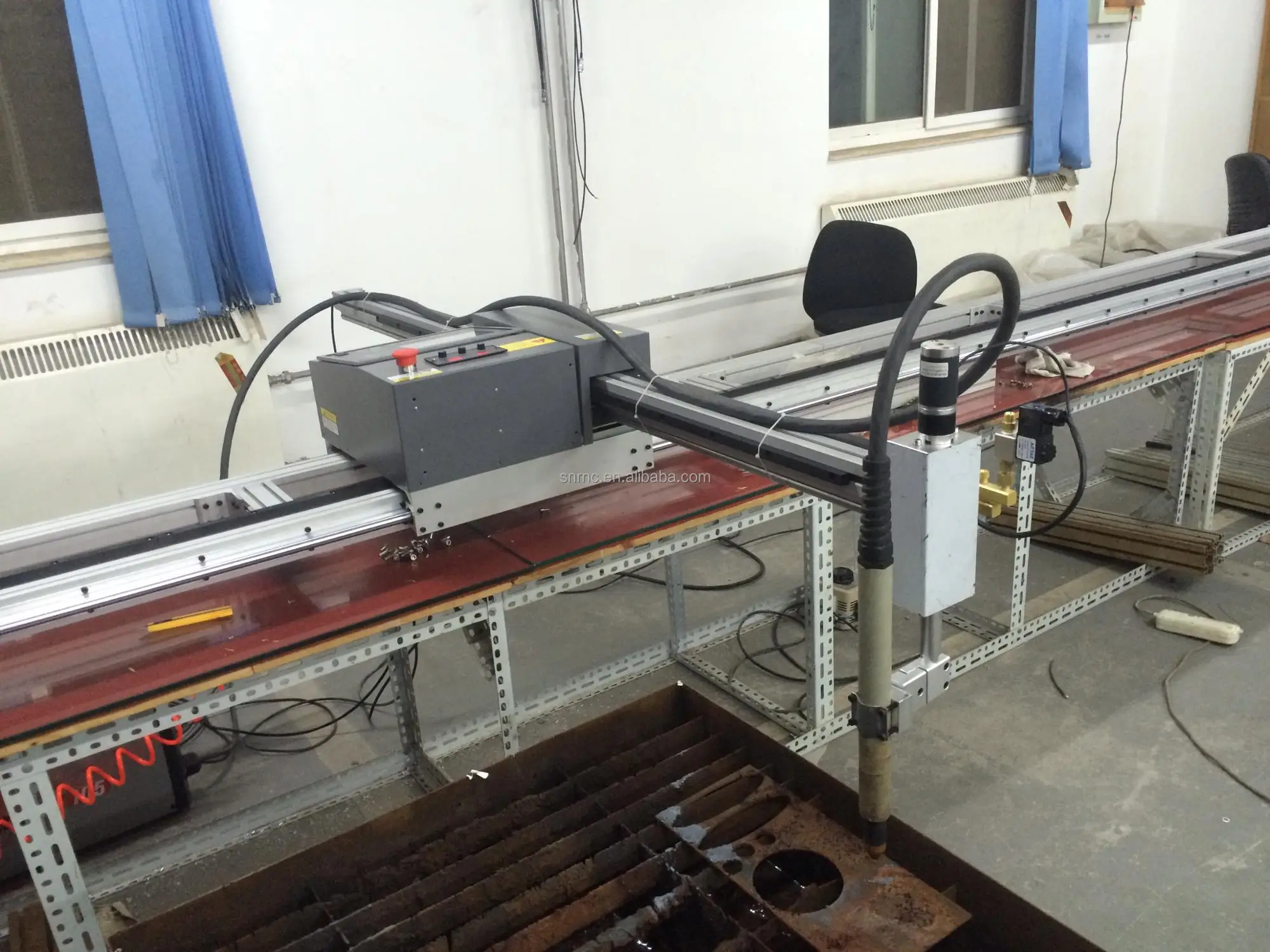

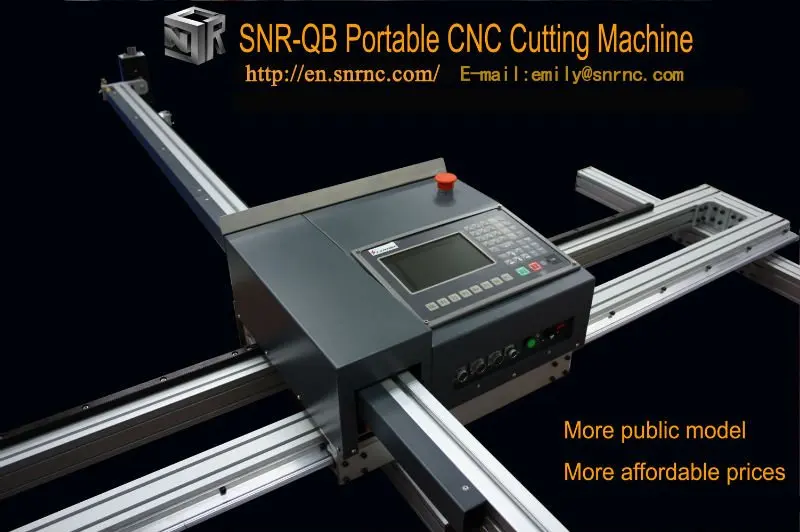

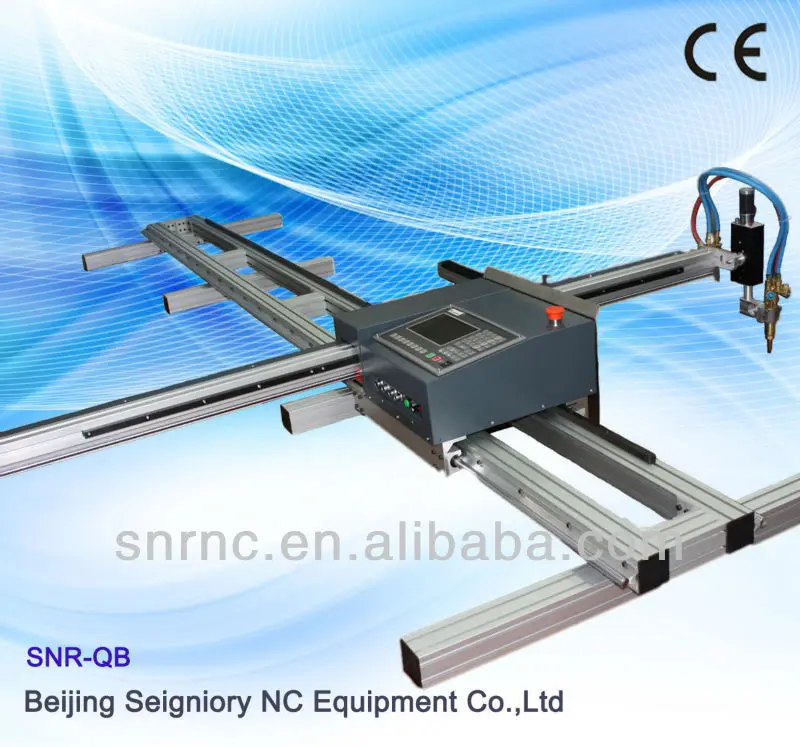

Portable SNR-QB1530 plasma cnc cutting machine
| Model | SNR-QB |
| Power Input | 220V |
| Rated Power | 200W |
| Cutting Type | Plasma/Gas |
| Cutting Area | 1500x3000mm |
| Cutting Thickness | 5-150mm(gas);2-20mm(plasma,plasma,up to plasma power) |
| Cutting Speed | 0-1m/min(gas);0-4m/min(plasma) |
| Sofeware | Fastcam(English,Spanish,French,Japanise) |
| Rail Width | 350 mm |
| Motor Type | Stepper motor |

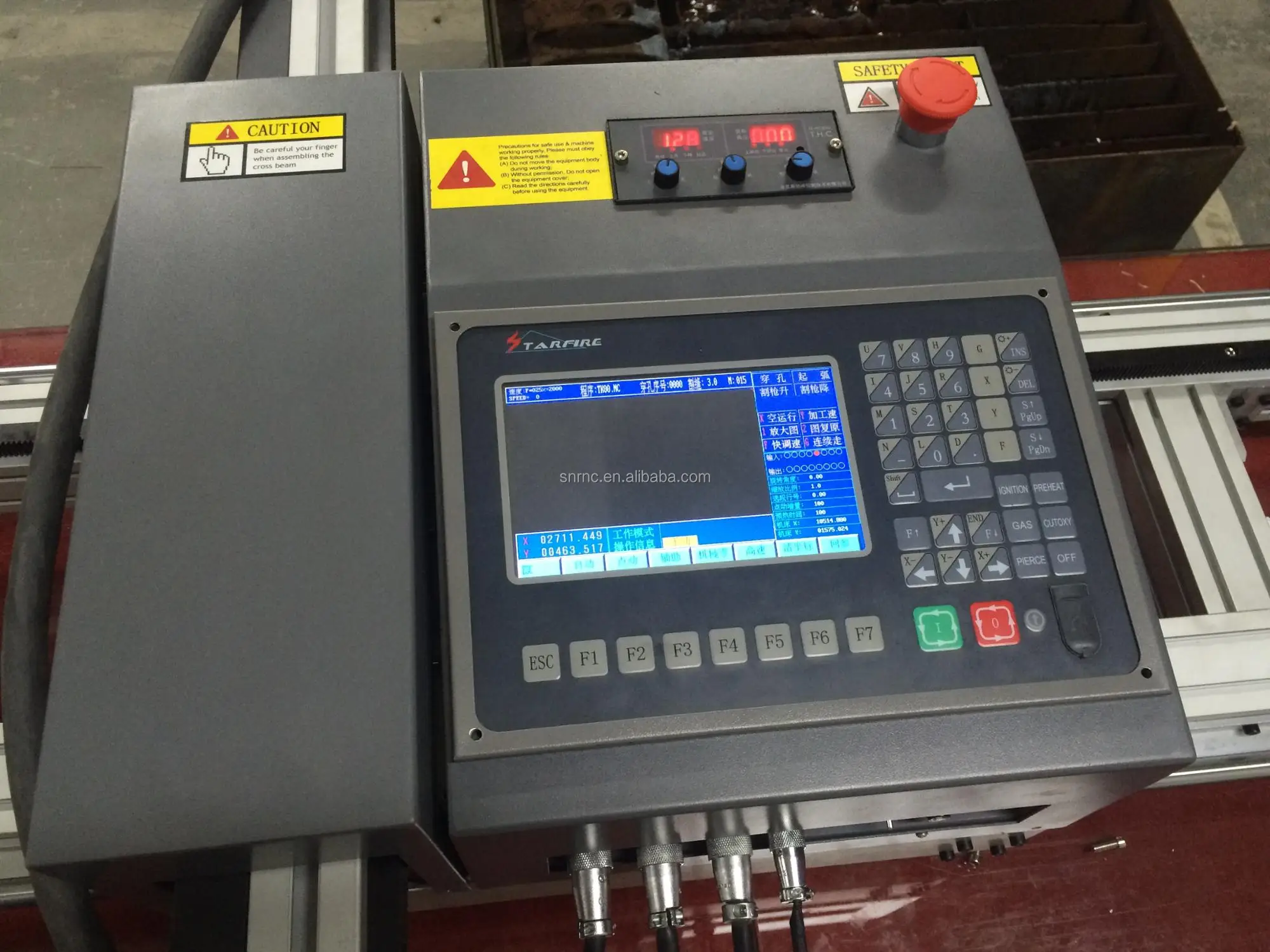

| CNC Control | SF-2100S |
| Display | 7.0 inch color |
| Weight | 150 kg |
II.The following character :
High reliability, such as anti-plasma jamming, and lightning strike, Surge.
32M large users program storage capacity.
In both English and Chinese interface conversion.
During plasma processing, auto-complete the speed control of the corner.
Variety of software features and practical flame / plasma cutting process.
In particular small line section procedure processing can be widely used in metal materials and advertisement, Iron.
4-axis can be expanded linkage functions.
Dynamic graphics, zoom in 1-8X the graphics, fixed point of automatic tracking.
Using USB Flash Drive reading procedure and timely upgrade software.
Built-in the rich graphics, makes programming easy to learn.

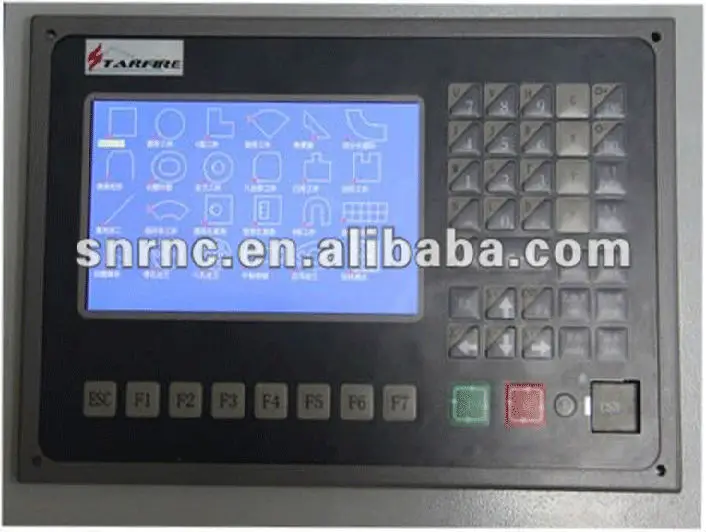

Using CNC of Beijng Starfire SF-2012AH system.
1)use plasma camble instruction,fulfill integrated design the cable and the cross arm of machine.
2)product details.
3)Modularization Design,so that it can be easily separated when maintain and repair.
4)The split design is convenient for product ,transport and packing.
5) Fastcam Software for free
6)Humanity operate interface, convenient to use
