220 Degree 16MP Fisheye lens with IR Cut Filter for IMX206 and IMX377 VR 360 Degree Camera

Product Overview

Description

    220D Degree 16MP Fisheye Lens with IR Cut filter for IMX206 & IMX377 VR 360 Degree Camera

Model No.	Sensing Area	Focal Length (mm)	Mount	Aperture (F)	Angle of View	BFL	Resolution	Weight
CA308A	1/2.3"	1.21	M12*P0.5	2.0	220°	3.95	16MP	20g



SAMPLE IMAGE

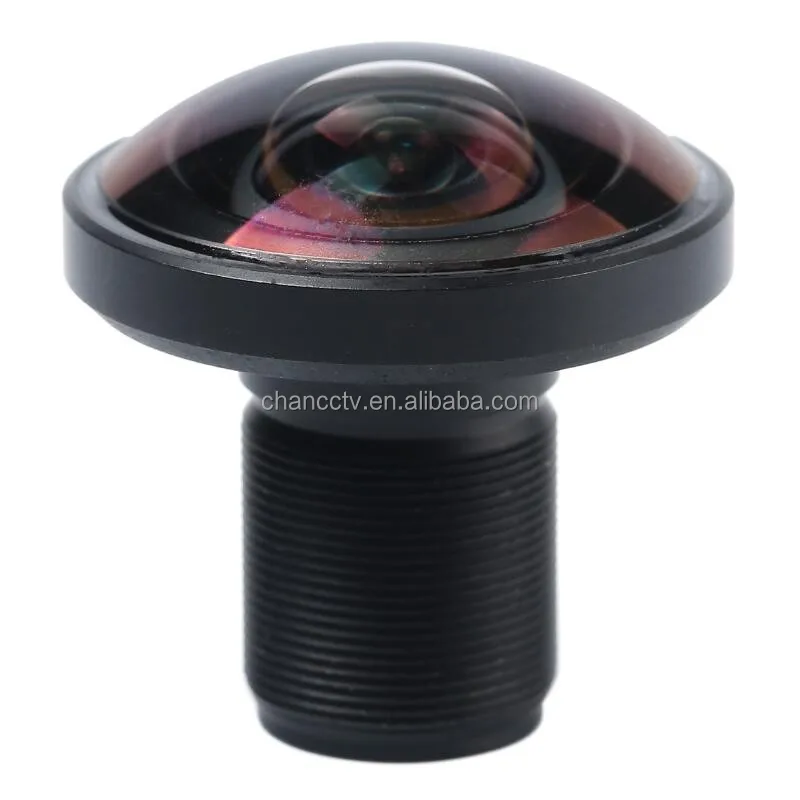

CA308A is a 1/2.3” 16MP fisheye lens. ChuangAn Optics designed this fisheye lens with low dispersion lens elements and the multi-layer coating process, which effectively reduces the impact of stray light. When using with a 1/2.3" sensor, you can get a circular fisheye image.





ChuangAn Optics began to develop fisheye lenses in 2013, provide solutions based on specific sensor. It is widely used in the following industries:

1. Sports camera

2. AR/ VR

3. High-end Automotive application

4. UAV/ Drone

5. CCTV surveillance

6. Industrial application

7. Astronomical observation

8. Meteorological monitoring

9. Forest Fire Prevention
