China Supplier New Technology Full Set Gold Plant / Gold Processing Plant / Gold Panning Plant for Washing Gold
Product Description
1. Description of Full Set Gold Plant/Gold Processing Plant/Gold Panning Plant for Washing Gold If want high profit, then 2 indicator of gold mining equipment should be guaranteed: Capacity and Recover Rate. Get more gold concentrate only if big capacity, Reduce gold loss only if high recovery rate.
Production Flow
2. Process Flowof Full Set Gold Plant/Gold Processing Plant/Gold Panning Plant for Washing Gold
Alluvial gold mining need same process and equipments: Feeding, Sieving, Separation, Refine etc......After sieving, the material should be feeded into separation machine. Gold specific gravity is about 19, sand specific gravity is about 3-5. The Principal Methods of alluvial gold (placer gold) are gravity dressing.
Now the most popular gold mining gravity equipment are: Sluice Box, Centrifugal Concentrator, Shaking Table. In recent years, concentrator is widespread used, and the effect is good. Concentrator recovery rate is up to 98%.
Description of this Complete Alluvial Low Clay Gold Processing Machine

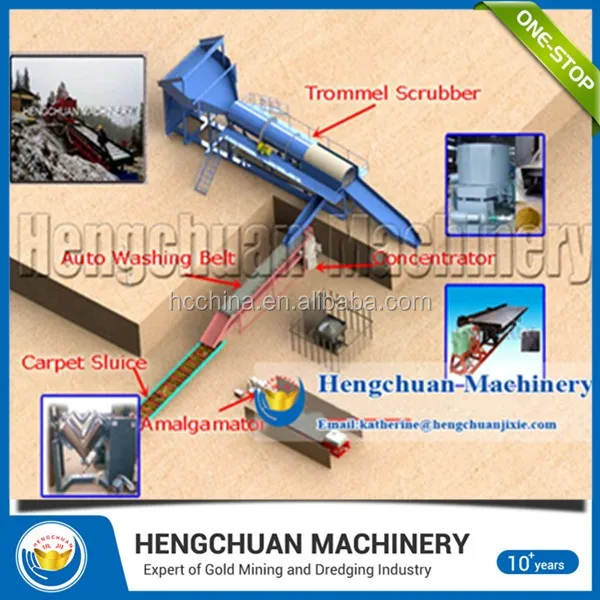

Step 1. The raw ore is fed onto the gold trommel by excavator or loader; Step 2. The gold trommel washes and classifies the raw ore. The upper sizes without gold are discharged as tailings, while the bottom sizes together with the clays go onto the gold concentrator. Step 3. The gold concentrator enriches the heavy minerals including the gold. Step 4. The tailing of gold concentrator go through the gold sluice box so as to recover the gold particles which is possiblely lost from the tailings. Step 5. The concentrates of the gold concentrator as well as the concentrates of the sluice box go to the shaking table for further separation. Step 6. The gold concentrates of the shaking table could be processed by amalgamator to recover the gold sands, and then be smelted by the gold smelting furnace.
Detailed Images

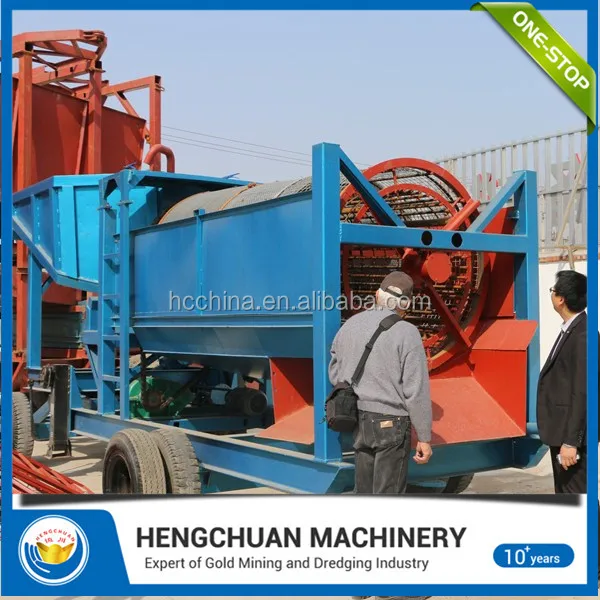

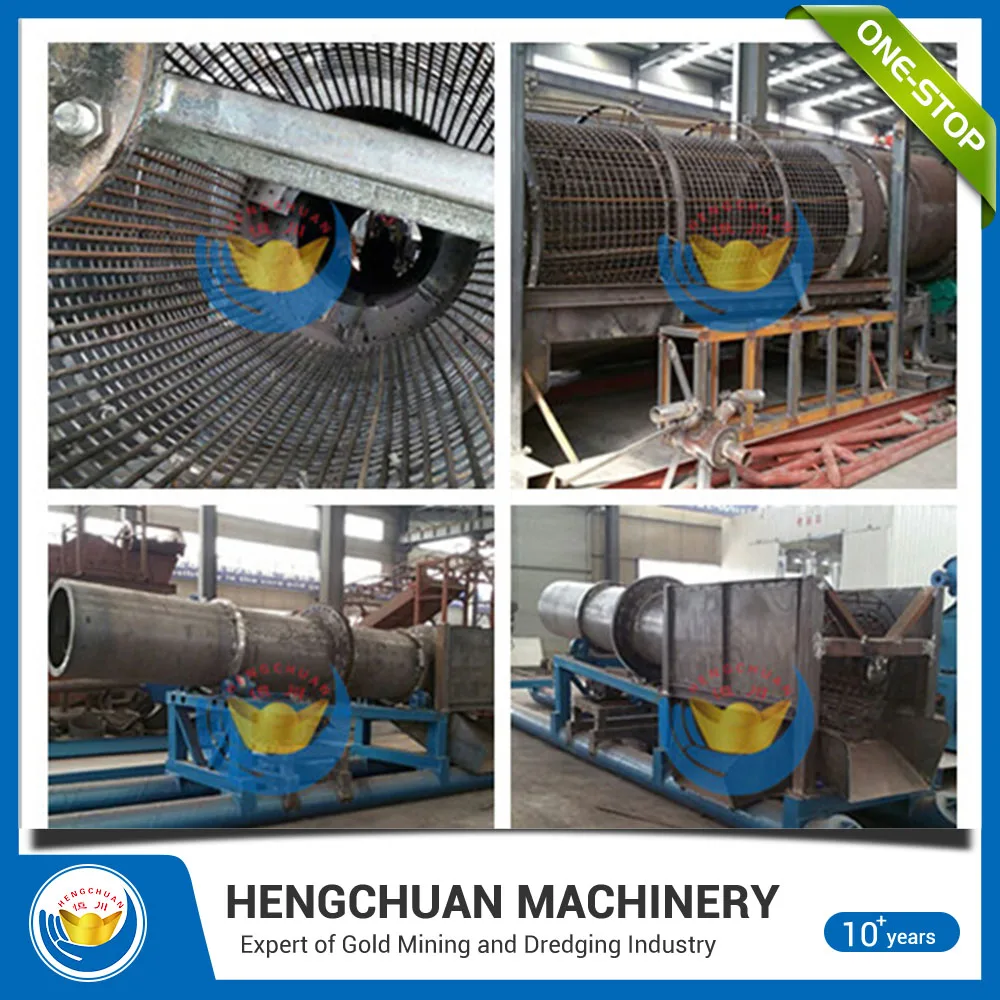

3. Gold Trommel Detailsof Full Set Gold Plant/Gold Processing Plant/Gold Panning Plant for Washing GoldThe Alluvial gold extration equipment/alluvial mine machine/ Mobile Gold Wash Trommel is usually used at the primary separation period of alluvial/placer/river gold mining so as to washing and screening the gold ore. The upper sizes out are always reckoned as unuseful materials. The bottom sizes which contain the gold are usually processed by centrifugal concentrator or gold sluice box continuously to upgrade the gold ore. The concentrates of centrifugal concentrator could be processed by shaking table which is used to separate the gold from other minerals.
4. Gold Concentrator Detailsof Full Set Gold Plant/Gold Processing Plant/Gold Panning Plant for Washing Gold
Gold Concentrator is the best recovery equipment for gold dust,It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.Both manual type and automatic discharge type concentrator is available.
5. Gold Sluice Box Detailsof Full Set Gold Plant/Gold Processing Plant/Gold Panning Plant for Washing Gold
Fixed Sluice Boxs are simple in design, no need electric power, big processing capacity for coarse gold, big concentration ratio, easy maintain and easy use.But high strength work are for sluice cleaning. Fixed Sluice Boxs can do nothing for fine gold. Generally, fixed sluice gold recover rate is lower than 50%.
Due to high recover rate and low price, shaking sluice boxs are more and more popular in gold mining market. More and more miners disuse old fixed sluices, and buy gold shaking sluice boxs.
6. Gold Shaking Tableof Full Set Gold Plant/Gold Processing Plant/Gold Panning Plant for Washing Gold
Shaking table is one of most commonly used mineral beneficiation/gold concentrate separating equipment,although the processing ability based on unit area of shaking table is low,but its effective particles size sorting could be up to 0.037mm limit,the interval grill of table surface is very clear and machine operating is easy.Shaking table could continuously sort concentrate ore,second grade ore and tailings,it is very important ore sorting equipment.

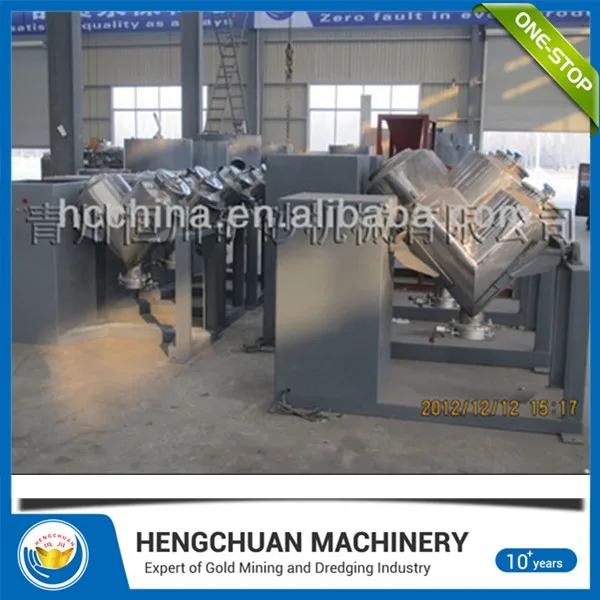

7. Gold Amalgamatorof Full Set Gold Plant/Gold Processing Plant/Gold Panning Plant for Washing Gold
Gold purify amalgamator is widely used in small gold mining plant for evaporation the Hg from the Hg+ gold mixture, and refining the pure gold.
It's used to mix the mercury and gold concentrate, in order to get the pure gold.

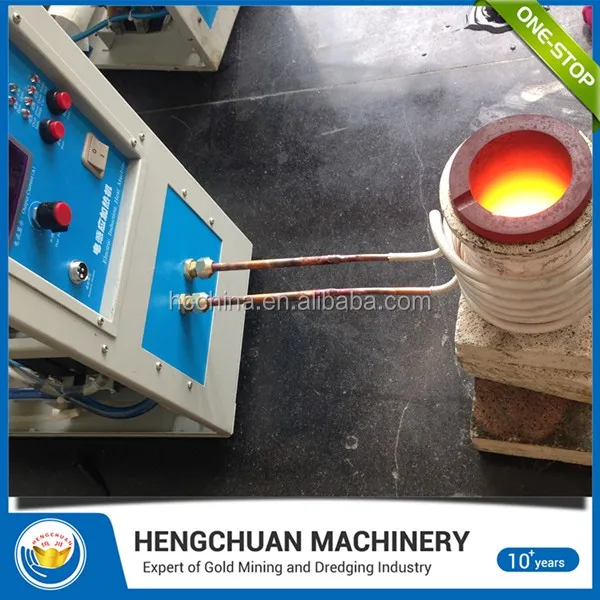

Gold Smelting Furnaceof Full Set Gold Plant/Gold Processing Plant/Gold Panning Plant for Washing Gold
Effective output power of more than 90% energy saving. For metal smelting, non-metal smelting refining, metal analysis. Suitable for precious metals such as gold, platinum, silver, copper, iron, stainless steel, aluminum and other metal smelting.The ideal equipment for university laboratories, research institutes, jewelry processing etc.

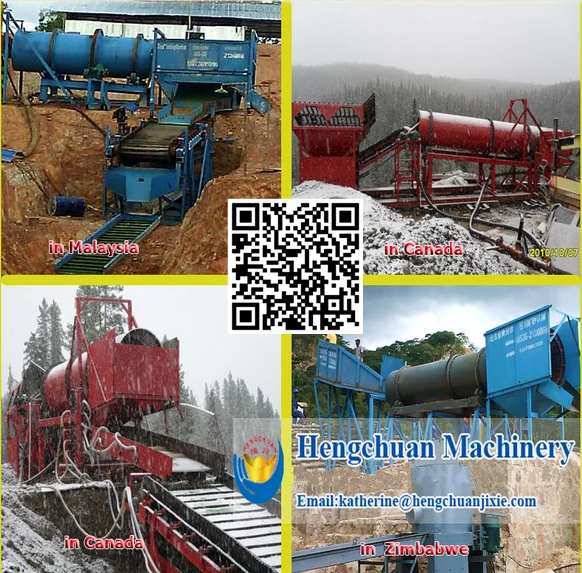

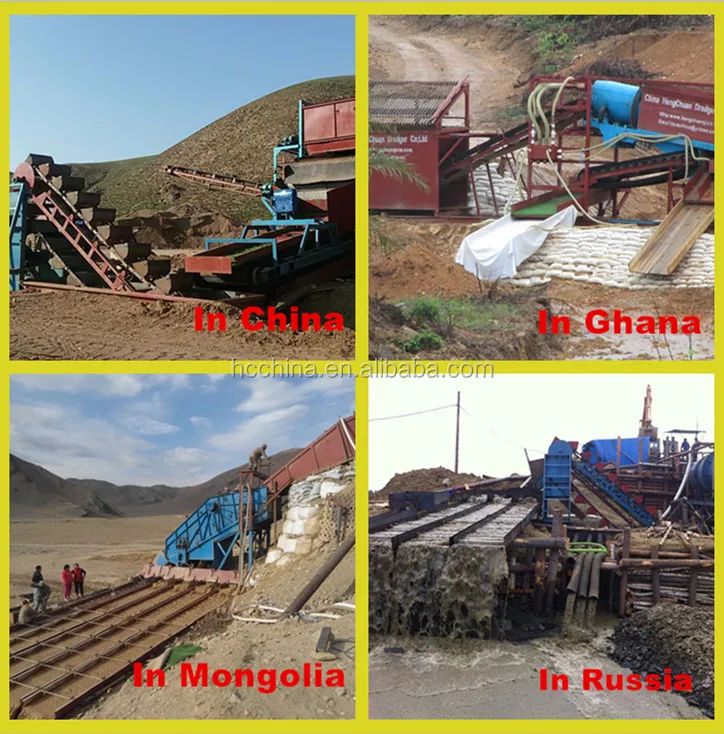

8. Project Caseof Full Set Gold Plant/Gold Processing Plant/Gold Panning Plant for Washing Gold

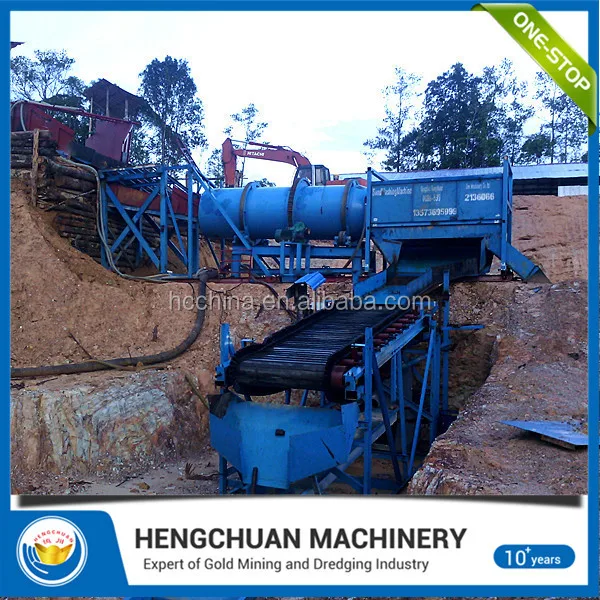

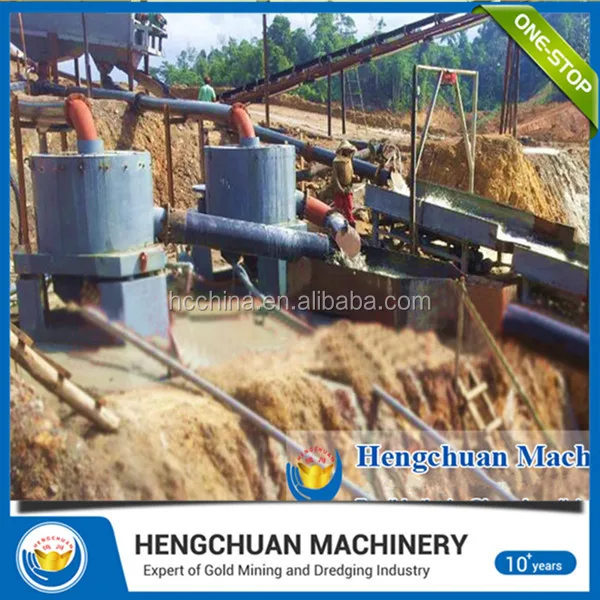

Alluvial Sandy Working Site with Trommel Screen
9. Clientsof Ful
l Set Gold Plant/Gold Processing Plant/Gold Panning Plant for Washing Gold
gold processing plant|gold plant|gold mining process
Packaging & Shipping
Way of Packing
* FLC&LCL Export standard container 20/40 GP.
* Steel support & iron sheet sea-worthy package.
* Load: export software scientific loading work
Transportation
* By sea freight.
* MSK/MSC/APL/EMC/WANHAI/KLINE
* Air delivery services
* We will remind you before boat arrives.
Payment Terms
* Usually,less than USD10000,T/T100% to reduce bank charge beforeproducing.
* More than USD10000,T/T30%as deposit, T/T70% before shipping.
* We take pictures of the finished products and send them to the clients before delivery.
Our Services
Quality Guarantee
We have ISO certification, and provide 1 year warranty for all of our products.
Spare Parts
All spare parts will be provided fast and cheap for ever.
Service
Gold Mining is along with complicated condition. We provide 7/24 service, so clients can discuss their problems any problem, happened during mining.
Company Information
Qingzhou Hengchuan Ore Machinery Co.,ltd,was established in 2002,a leading ore machinery manufacturer in China,covering an area of 20000 square meters,have 6 engineers,20 technicians and 100 workers. Our main products:Gold Mining Machinery,Magnetic separators and all kinds of mining dredger etc.Our main market is domestic,Africa and Southeast Asia,such as Cameroon,Ghana,Mali,Zimbabwe,Malaysia,Indonesia and Philippines etc.
Development History: A).Established Magnet Research Institute in 2004,successfully developed the high gradient magnetic separator to 12000-22000GS. B).Cooperated with Shandong Gold Group and doubled the sales scale. C).Developed STL-120 gold centrifugal concentrator in 2008. D).Mature dredger products in 2009. E).Developed successfylly knelson smiliar type automatic discharge type gold centrifual concentrtor and produced them in large quantity for sellling. F).Established Shandong Hengchuan International Trade Co.,Ltd in 2015.
Certifications
We have National Patent of Gold Centrifugal Concentrator,Automatic Discharge Centrifugal Gold Concentrator,Mobile Gold Trommel,Auto Washing Belt,Mercury Amalgamator Etc.
FAQ
In order to give you a responsible quotation, you can inform us the following information 1).Type of minerals to be mined? 2).Type of deposit (Primary/hard rock, or secondary/placer)? 3).Physical characteristics of the ore (sandy, with light clay or heavy clay)? 4).Intended feed capacity (Tons/hour)?
